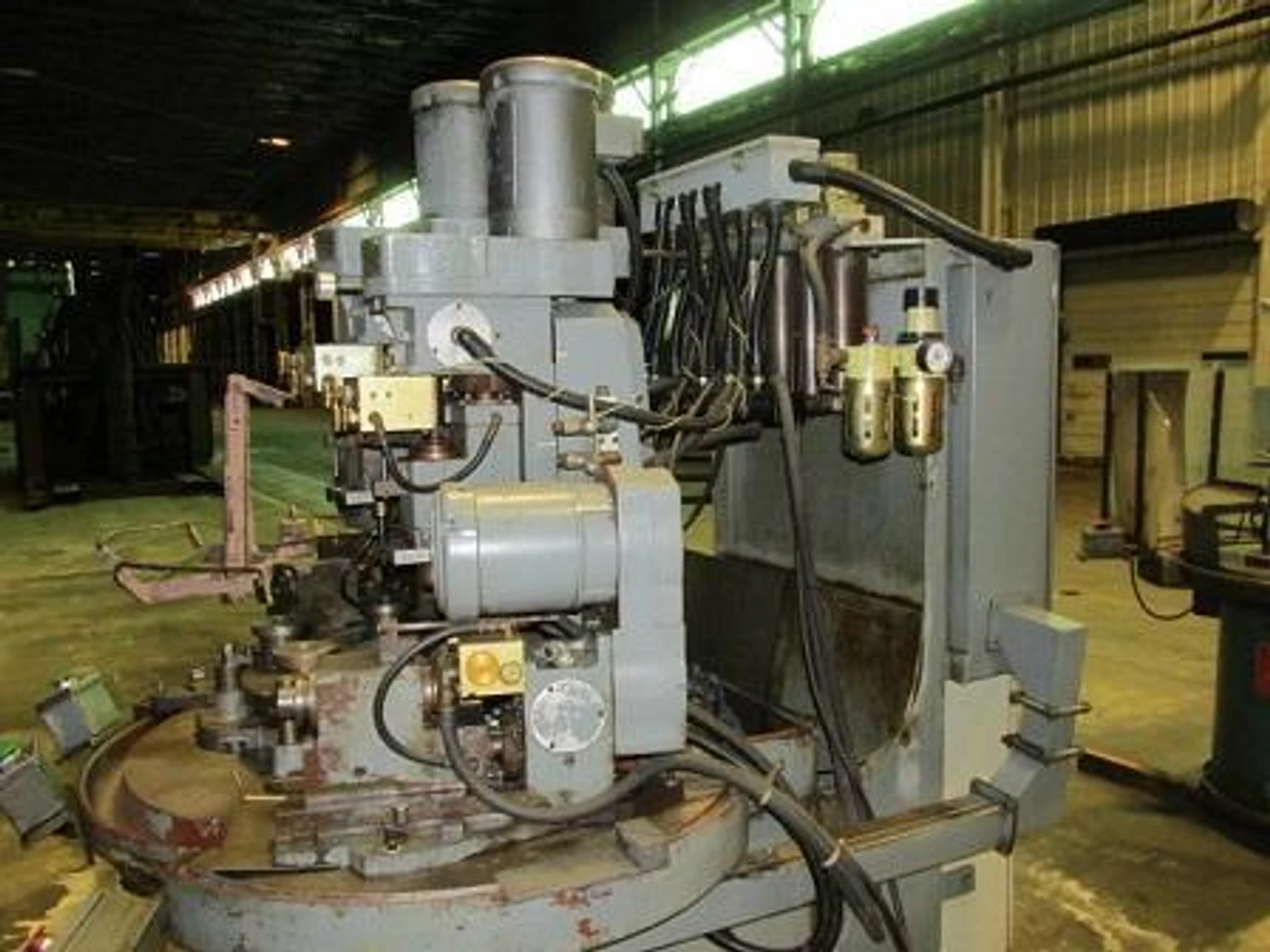

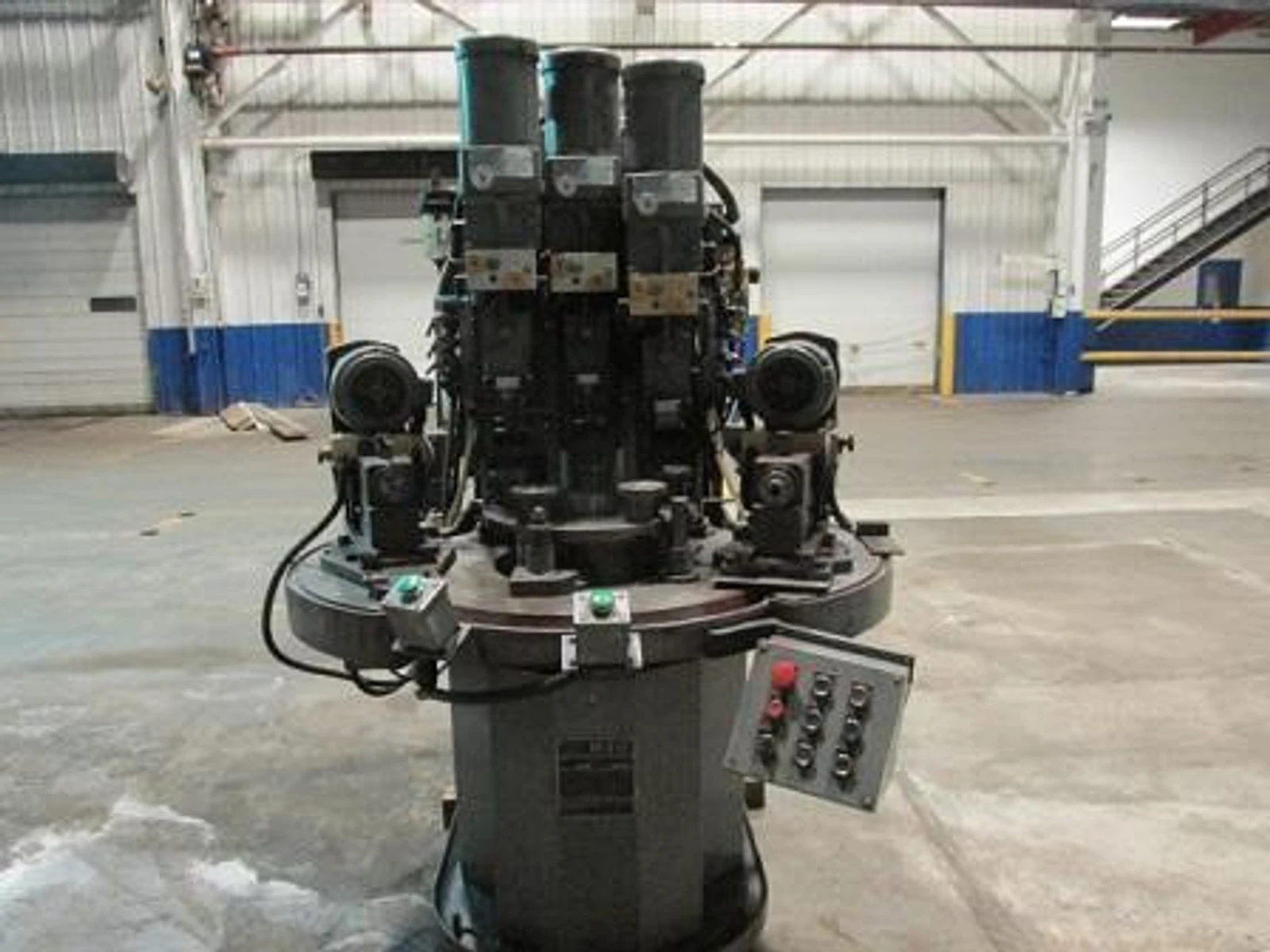

THREE UNITS MOUNTED VERTICALLY
TWO UNITS MOUNTED HORIZONTALLY ON EITHER SIDE OF INDEX TABLE.
PNEUMATICALLY POWERED,
HYDRAULICALLY CONTROLLED MECHANISM.
EACH UNIT HAS A 3" STROKE.
BRASS - ALUMINUM ......................... 1/2" - 20"
FEED RATE FORWARD OR BACK @ (80 PSI)...... 0 - 150 IPM
FEED RATE FORWARD OR BACK ................ 0.3"
SPINDLE SPEEDS WITH 1725 RPMS
WEIGHT ................................... 3,000 LBS.
O.A. DIM. ................................ 52" X 70" X 72" X 75"

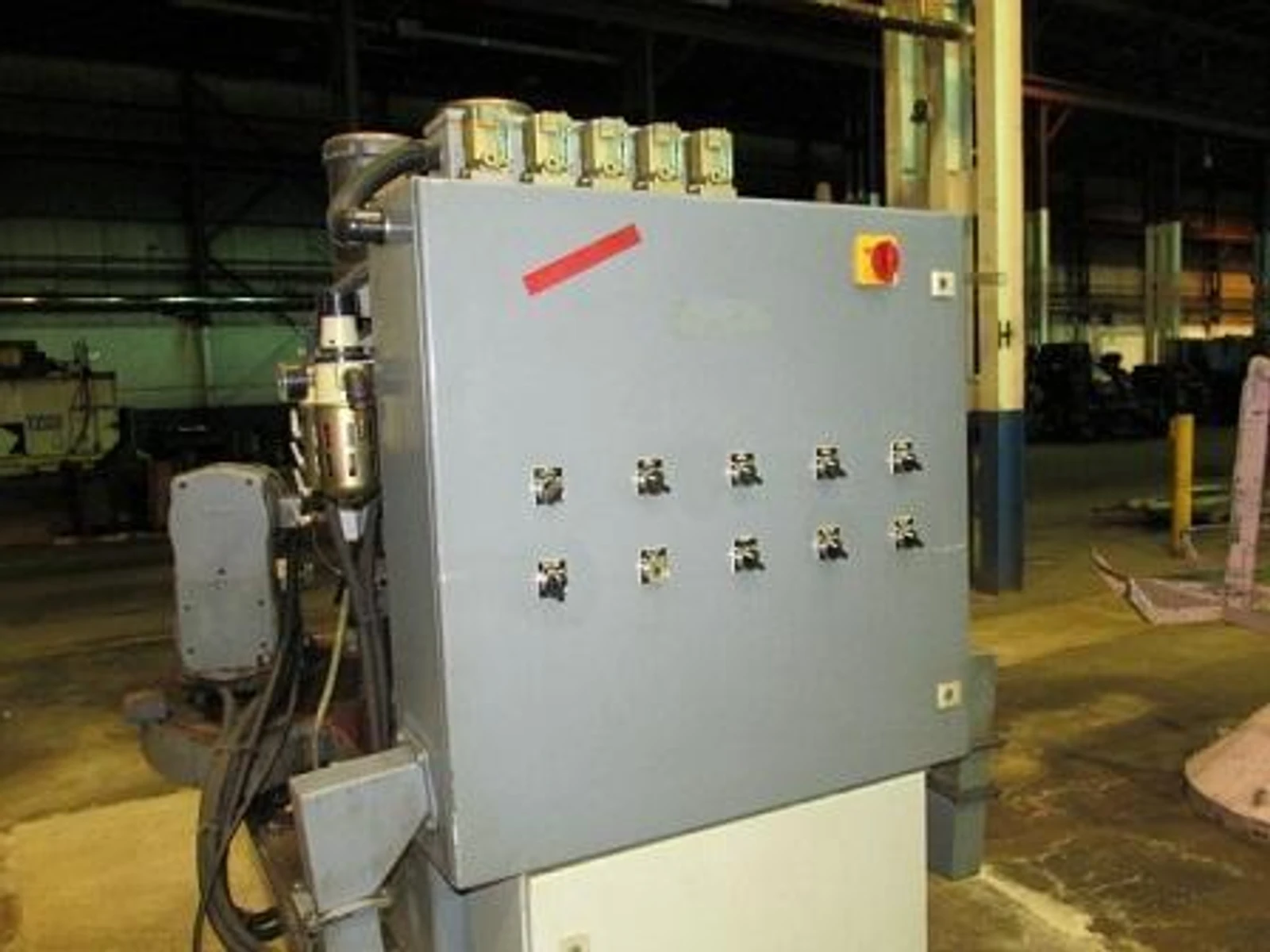

EQUIPPED WITH: MOUNTED CONTROLS - ELECTRICAL CABINET
THREE (3) HEAD MOTORS1-1/2 HP 1725 RPM
208-230/460 VOLTS 3.5-5/2.5 AMPS
(2) TABLE MOTORS 1745 TPM 208-230/460 VOLTS
1.9-1.0 AMPS |
