Control | PC Based CNC Control |
Laser Type | Fiber |

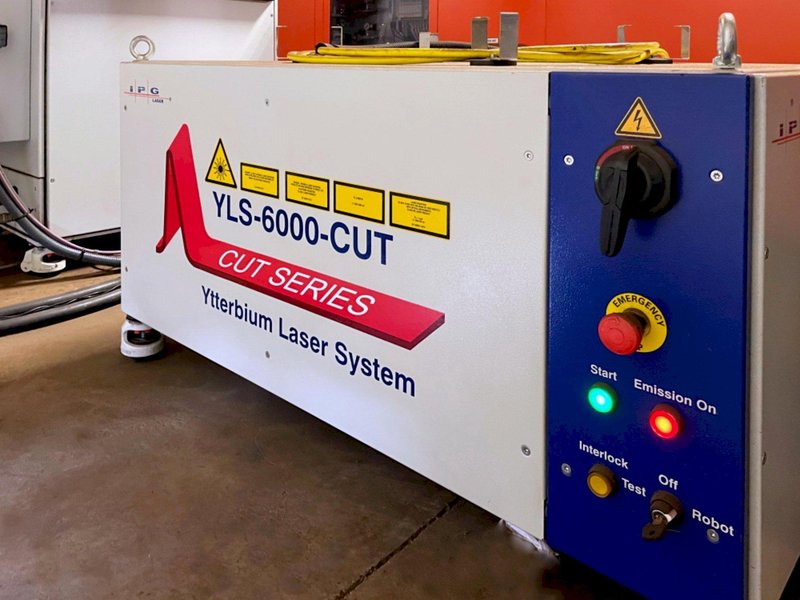

Resonator | IPG YLS-6000 |
Max. Laser Output | 6000 Watts |
X-Axis Cutting Area | 159" |
Y-Axis Cutting Area | 80" |
Z-Axis Cutting Area | 5.9" |
Working Table Height | 35.5” |
Axis Movement | 4 Axis Digital Motor System |
Positioning System | Linear Motor |
Positioning Accuracy | +/- .003" |
Max. Work Piece Weight | 7716 Lbs |
Acceleration Speed | 3G |
Assist Gas | O215 Bar/N2 25 Bar |
Max. Speed Combined | 9,400 IPM |
Max Cut Mild Steel | 98" |
Max Cut Stainless Steel | 78" |
Max Cut Aluminum | 59" |
Max Cut Brass | .394" |
Max Cut Copper | .394 |
Power Supply Consumption | 65 kW |
Machine Weight | 34,171 Lbs. |

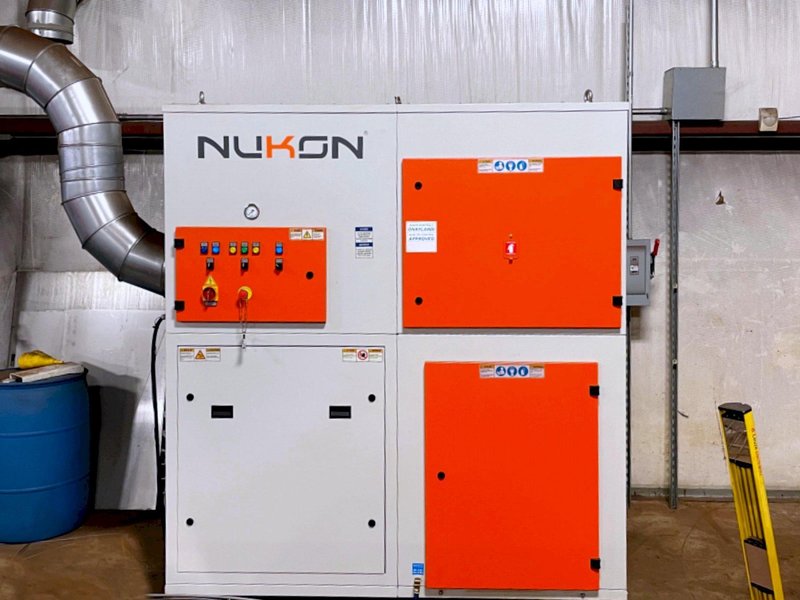

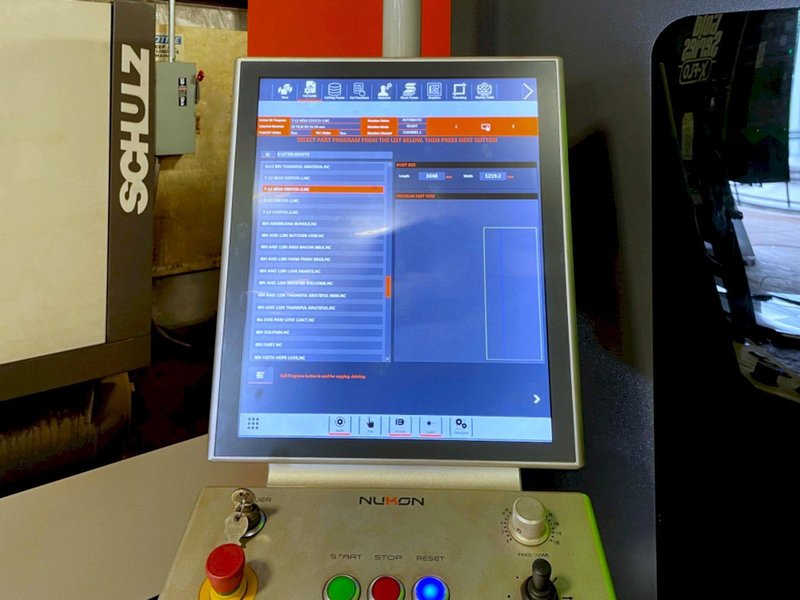

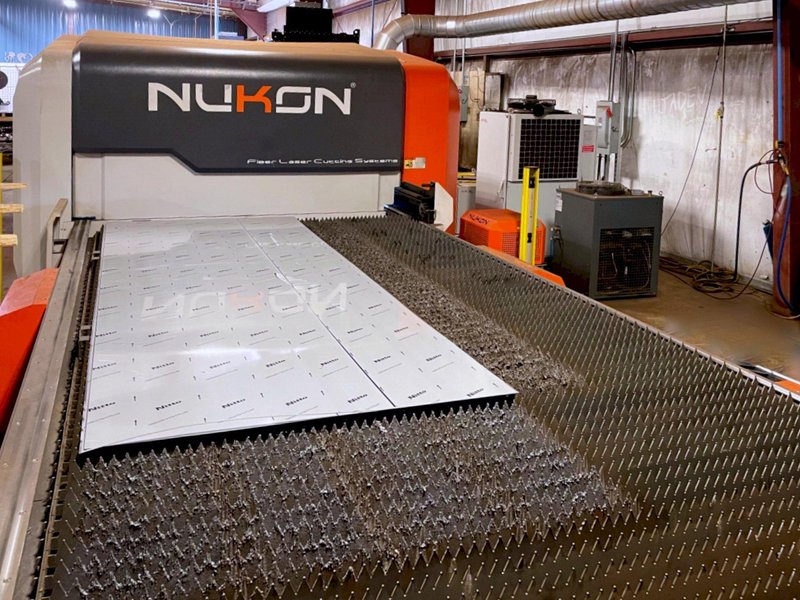

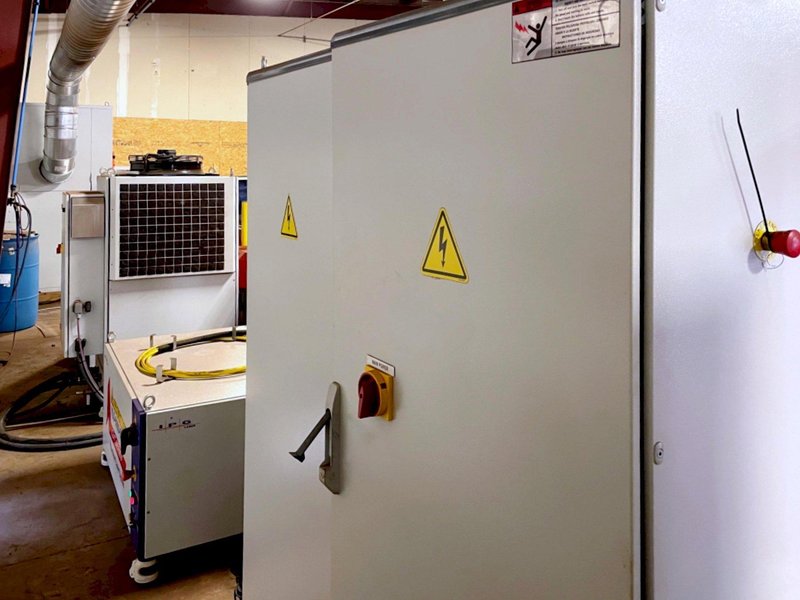

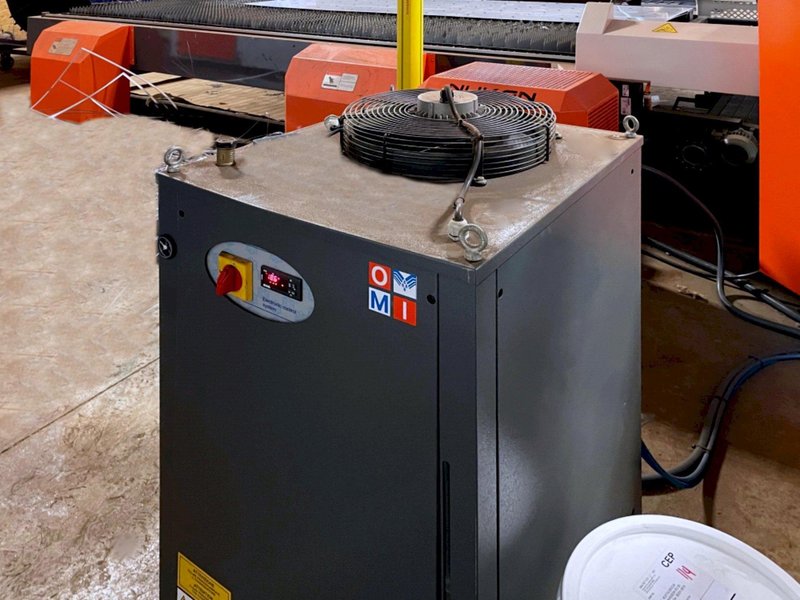

Equipped With: 19" TFT Touch Screen IPG YLS-6000-Cut Fiber Resonator Linear Drive Positioning Dual Pallet Shuttle Table Chiller Unit Dust Collector |
