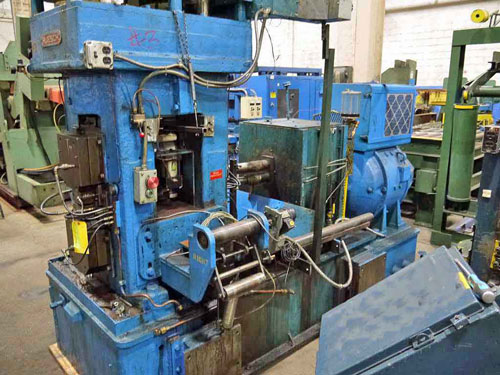

One used 18" RUESCH 4HI REVERSING MILL MODEL 265 ROLLING MILL (13921)

 Machine # 13921

 Type Mill - 4 Hi Reversing Rolling Mill
 Manufacturer - Ruesch / I2S
 Year - 1980
 Model Number - 265
 Mill Horsepower - 300 HP 500 VDC 650/1950 rpm by GE
 Winder Horsepower - 150 HP 500 VDC 650/1950 rpm by GE
 Max Coil Weight 10,000 pounds
 Work Roll Diameter - 4" Diameter (3.625" min)
 Backup Roll Diameter - 14"
 Max Width Capability - 18"
 Collapseable Widers with 16" ID and max OD of 50"
 Winder Gearing by Horseburg Scott
 Separating Force - Approximately 450,000 pounds @ 3000 psi
 Speed and Tension Specifications (3 speed selectable gearbox)
 Low Speed High Tension Range - 500 fpm & 10,000 pounds tension
 Mid Speed Range Mid Tension Range - 1000 fpm & 5000 pounds tension
 Hi Speed Low Tension Range - 1500 fpm & 3300 pounds tension
 Roll Bending of upper work roll
 Adjustable Multi-Zone Coolant Sprays (11 zones per side)
 Screwdown by digitally positioned direct acting hydraulic cylinders
 Tension Control by Load Cell Tensiometers
 Vollmer 1065 Contact Type (New Digital Amplifiers added in 2012)
 AGC - Mass Flow/Feed Forward/Feed Back by I2S (1995)
 PLC - General Electric 90/70 (1995)
 DC Digital Drives - Eurotherm Parker Model 590 (1995)
 Above Floor Coil Cars for loading
 Includes 16" ID to 50" OD Payoff with back tenson brake
 Includes Many Spares

 **Temporary Specifications Subject to Revisions**

 **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

 **ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
