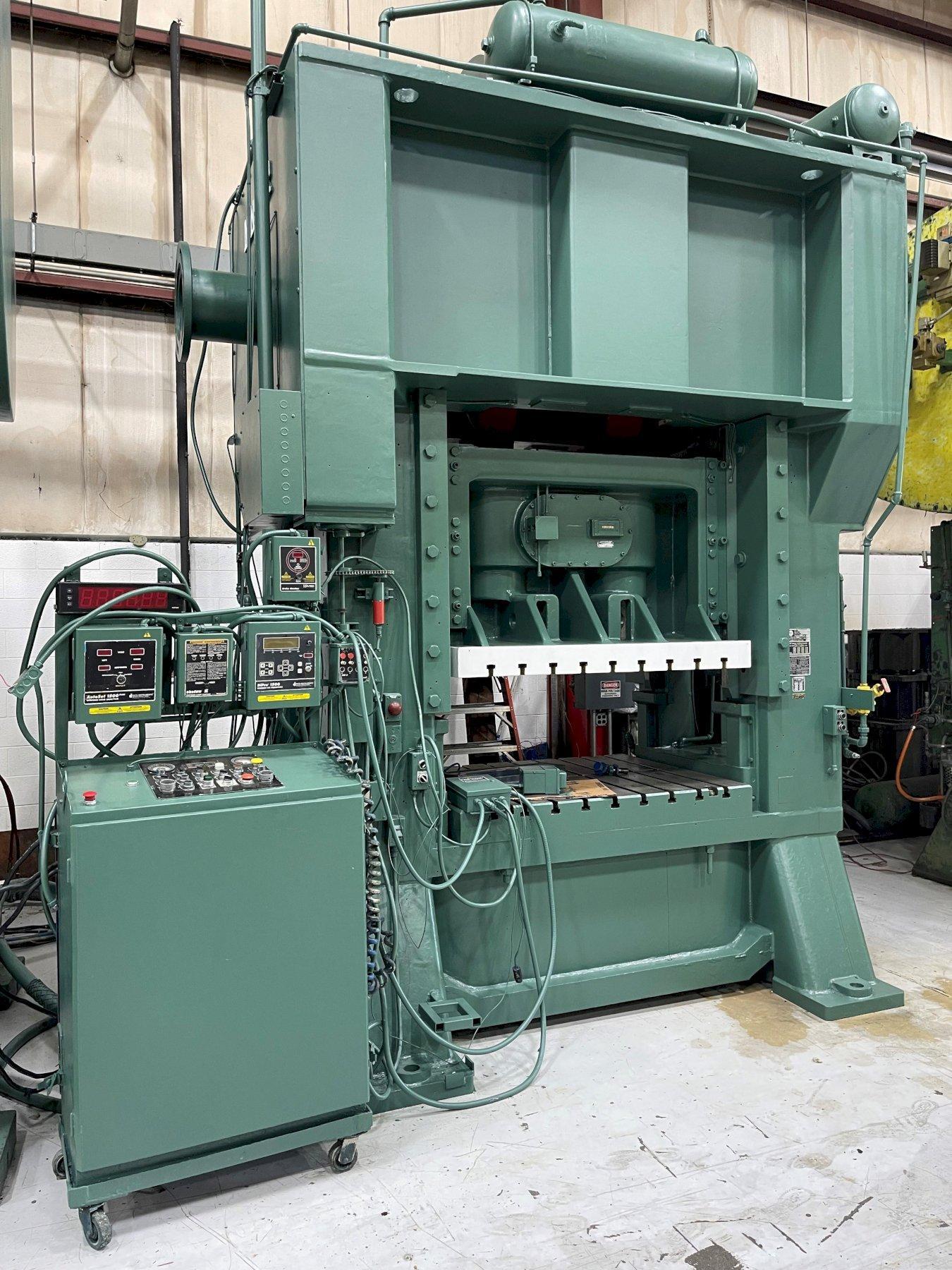

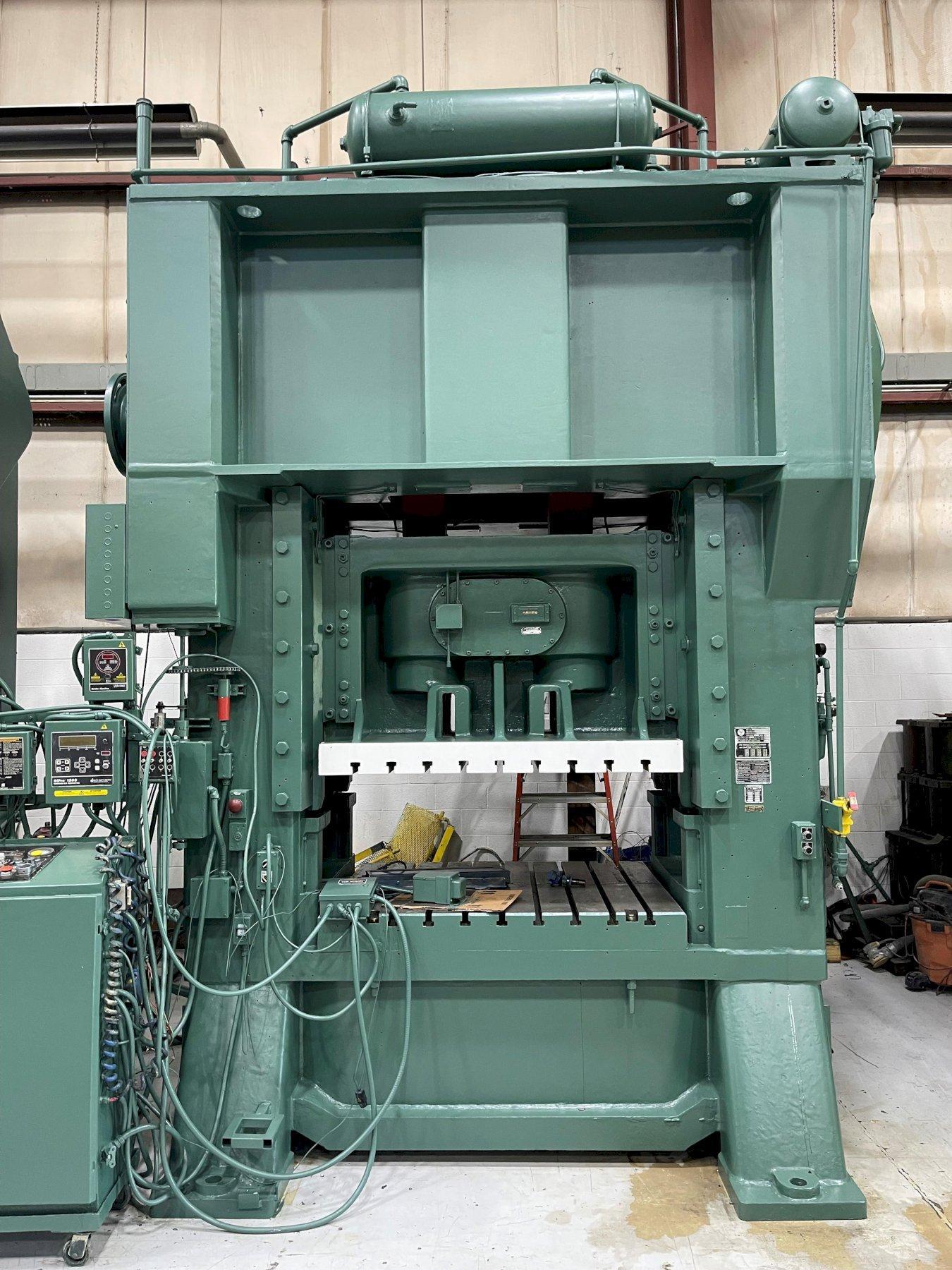

400 ton Minster E2-400-60-48 Hevi-Stamper Straight Side Mechanical Metal Stamping Press, Fully Rebuilt!
Brand
Category
Model
E2-400-60-48
Stock #
2672
Year
Not specified
Condition
Reconditioned
Location
Michigan
| Tonnage | 400 |
| Stroke | 6 inches |
| Shut Height | 28 inches |
| Adjustment | 6 inches |
| Bed Size | 60" x 48" |
| Ram Area | 60" x 48" |
| SPM | 35-70 VSPM |
|
Standard Specifications
Rebuilt 2024 Minster Hevi-Stamper Straight Side Mechanical Press Model E2-400-60-48 All Mechanical Work Completed! 400 ton Capacity 6" Stroke 28" Shut Height 22" Die Height 6" Motorized Adjustment 60" LR x 48" FB Bed Area 60" LR x 48" FB Slide Area 35-70 VSPM Equipment and Features Air Clutch and Brake Air Counterbalances Recirculating Lube System T-Slotted Ram and Bolster Wintriss Shadow V Light Curtains Wintriss DiPro 1500 Wintriss Brake Monitor Wintriss Palm Button Station Free Standing Console Controls 24" wide Windows Vibratory Leveling Pads Floor Standing Foot Print: 104.5" Wide x 78" Deep x 188" Tallest Point Price includes full Mechanical Rebuild, New Lube and New Air Systems. Scope of Work Can Be Provided Upon Request. This Rebuilt Minster Hevi-Stamper Mechanical Metal Stamping Press can be seen under power in the S&G Press Livonia Michigan Warehouse! Refurbished Straight Side Mechanical 400 ton Minster Press For Sale |
|
