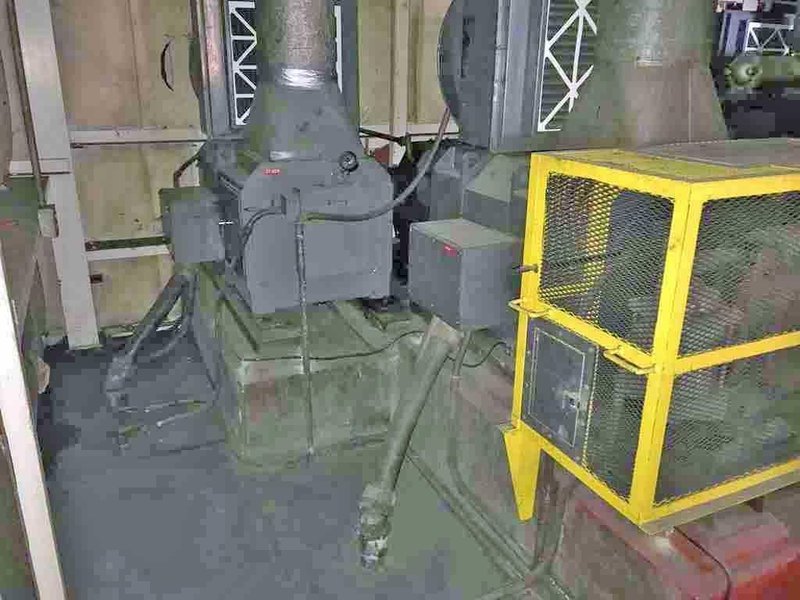

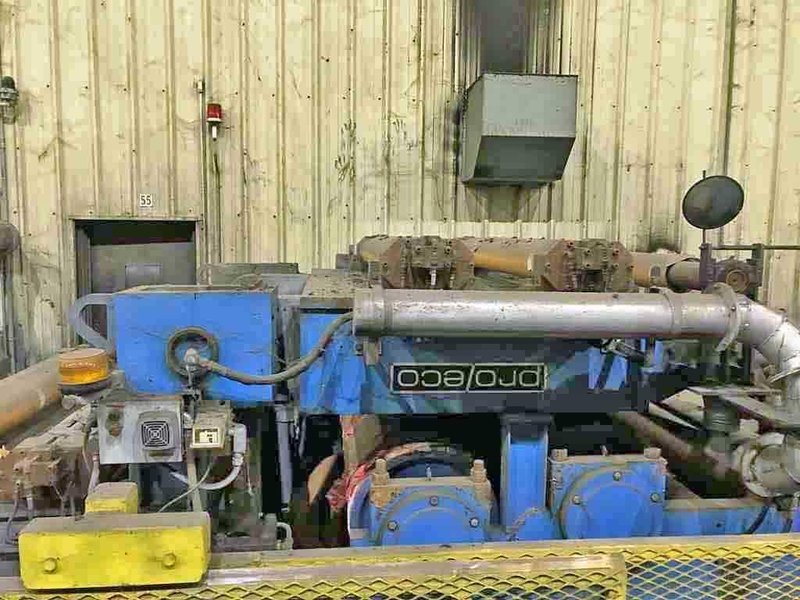

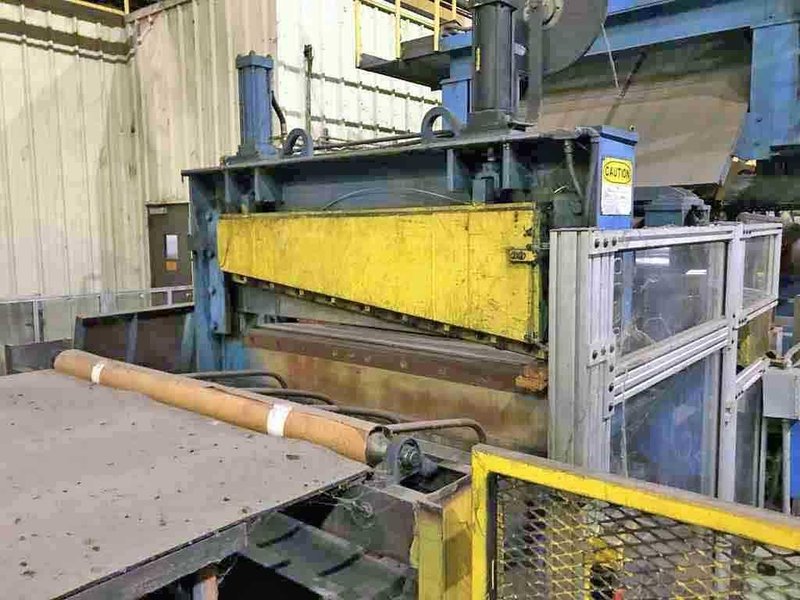

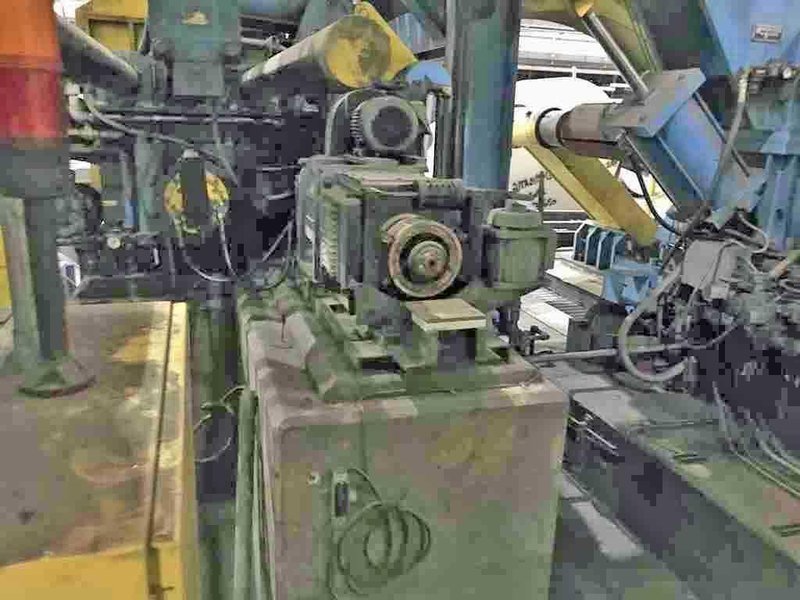

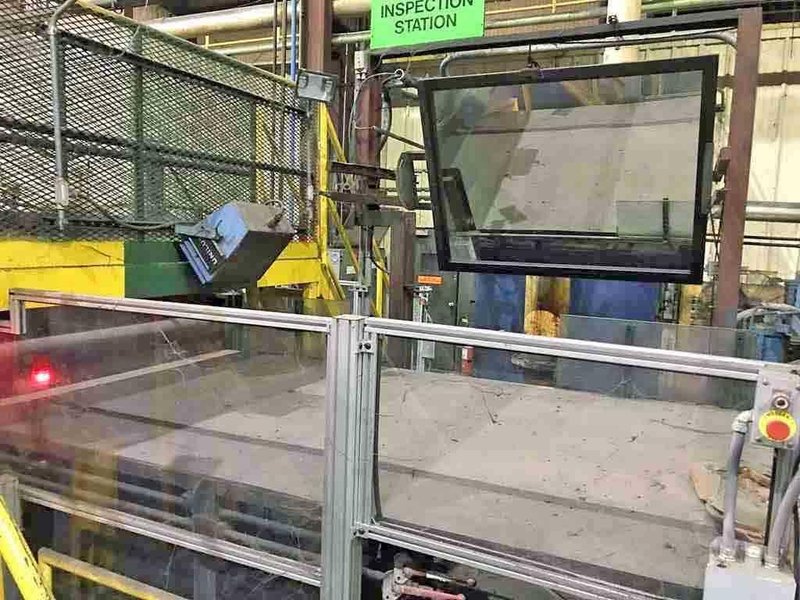

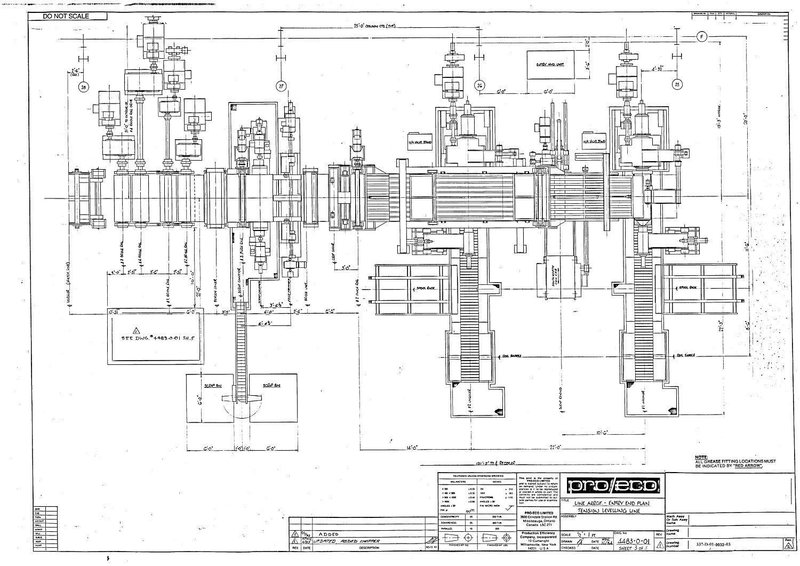

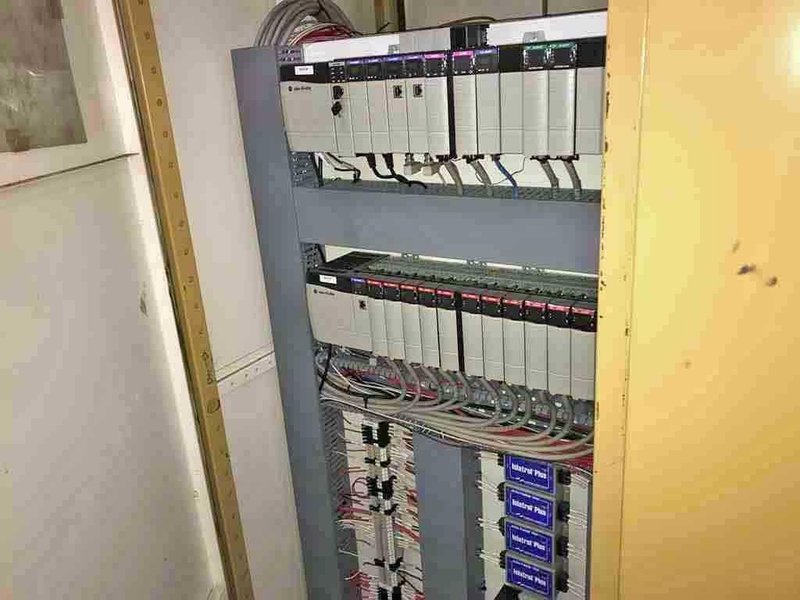

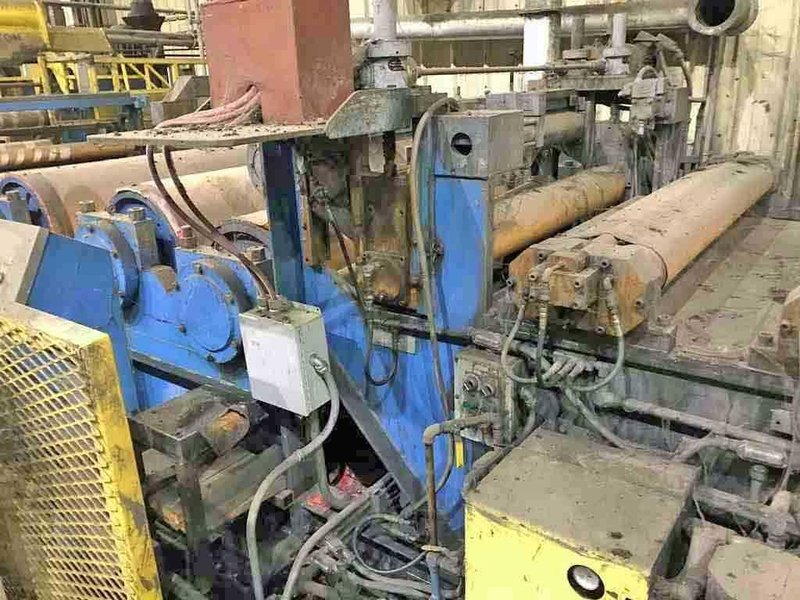

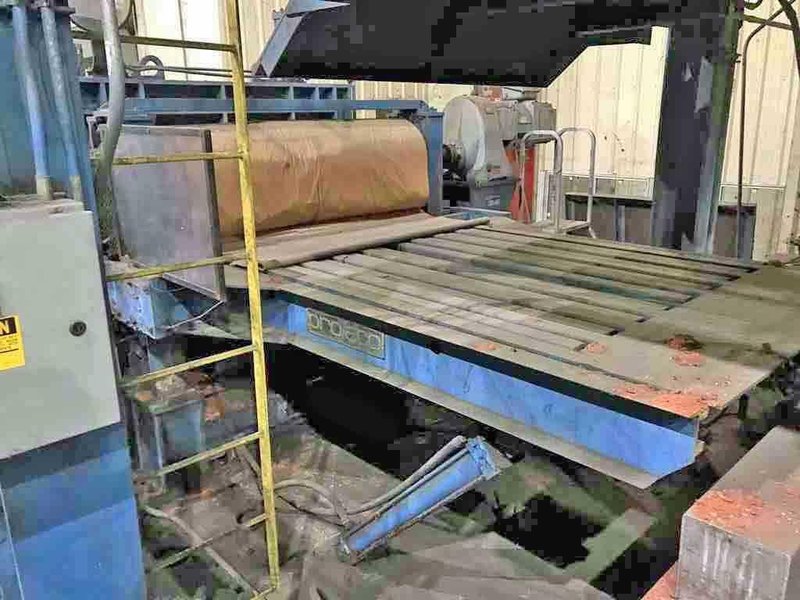

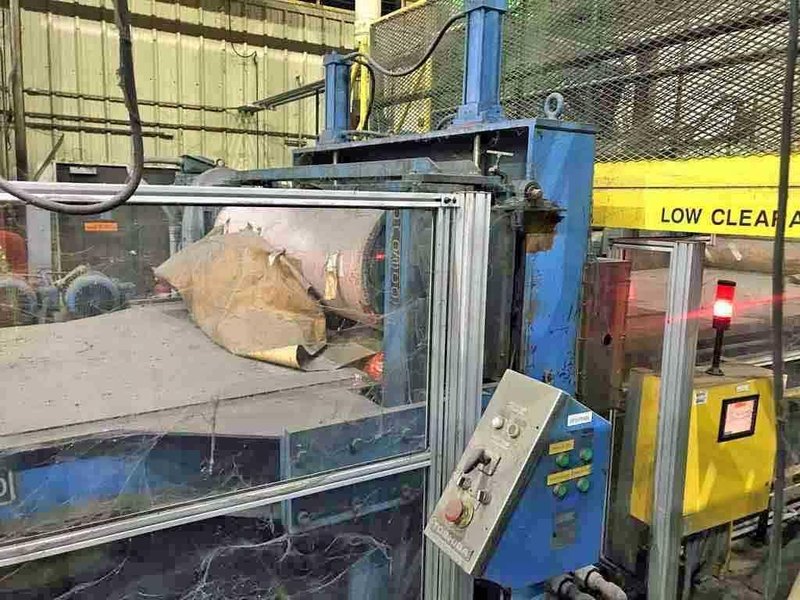

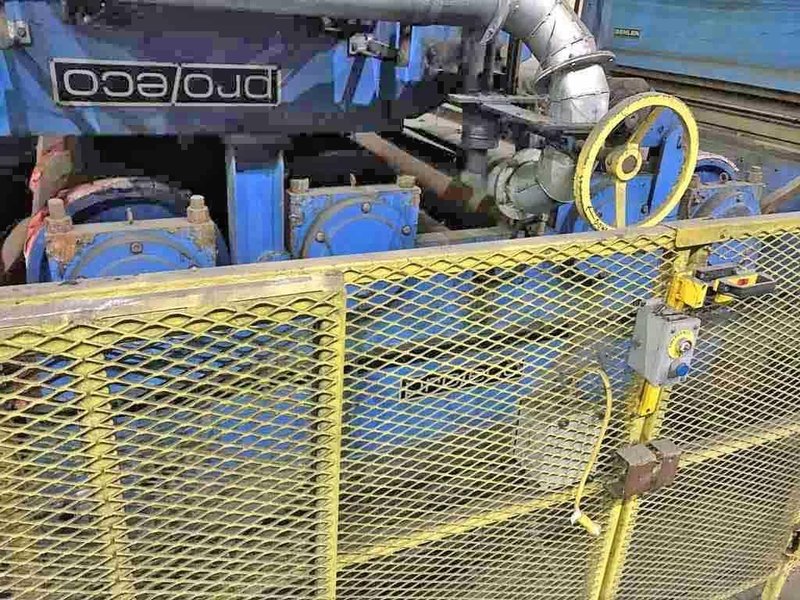

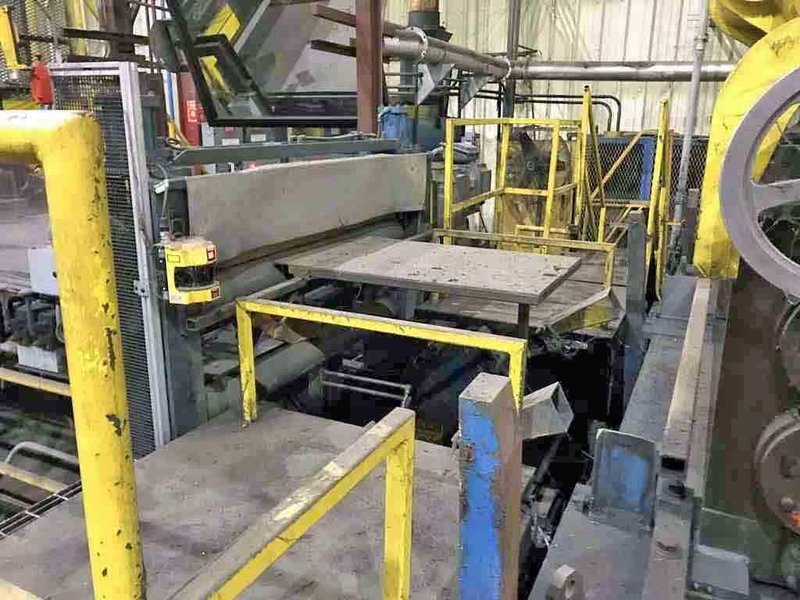

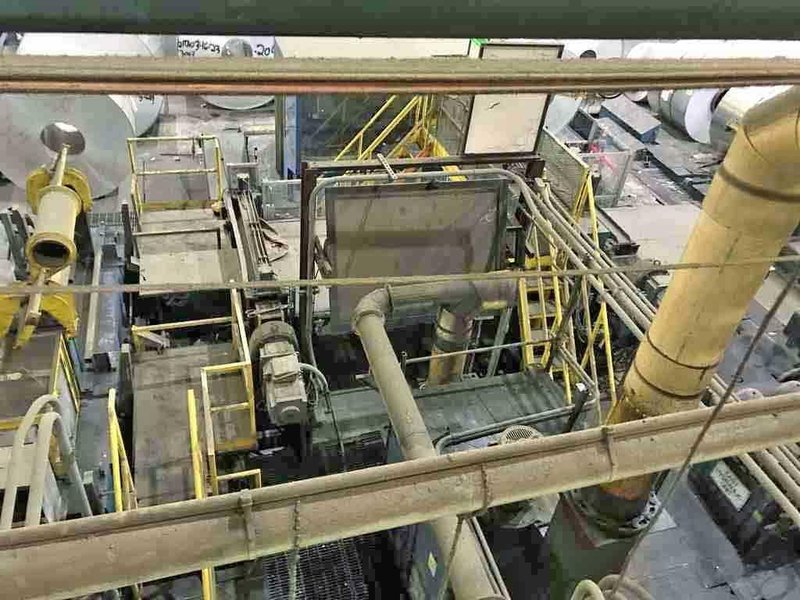

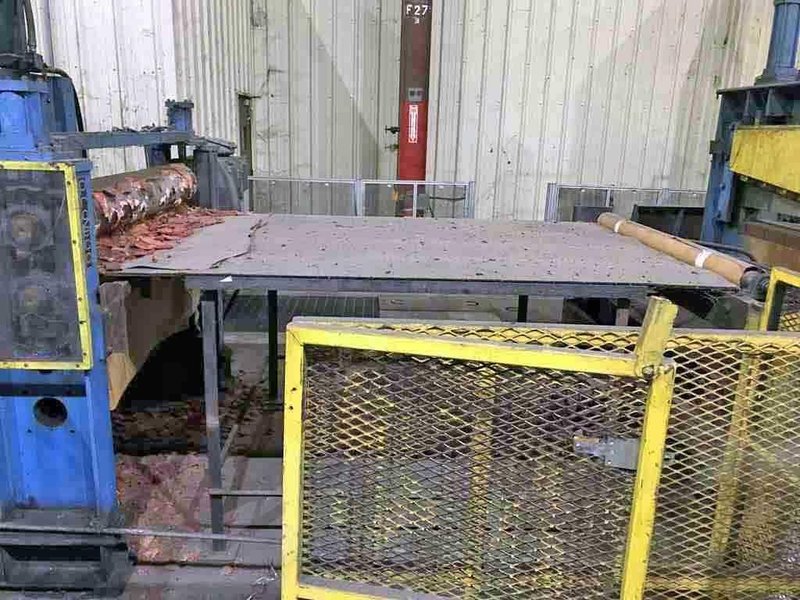

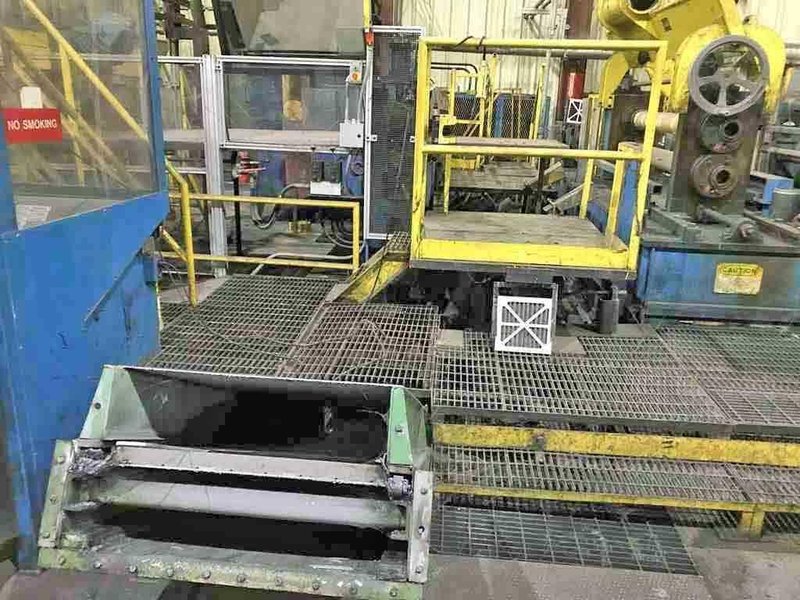

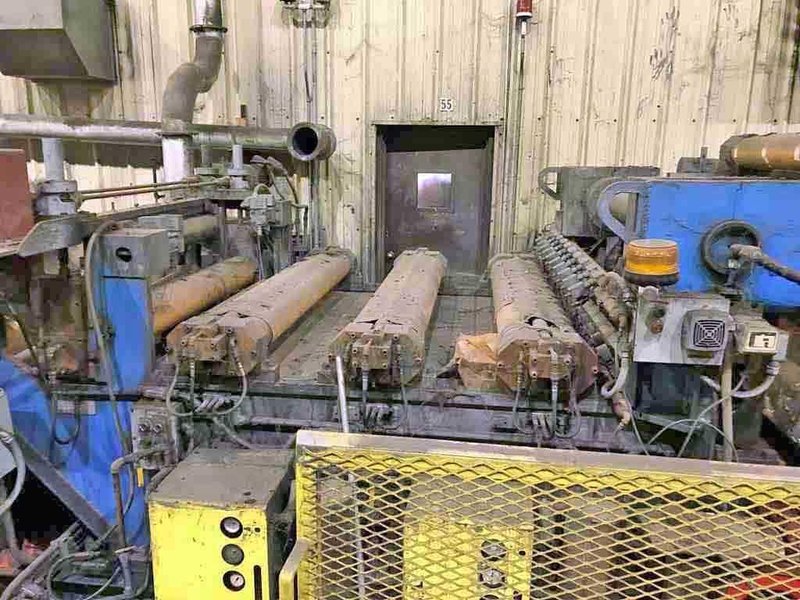

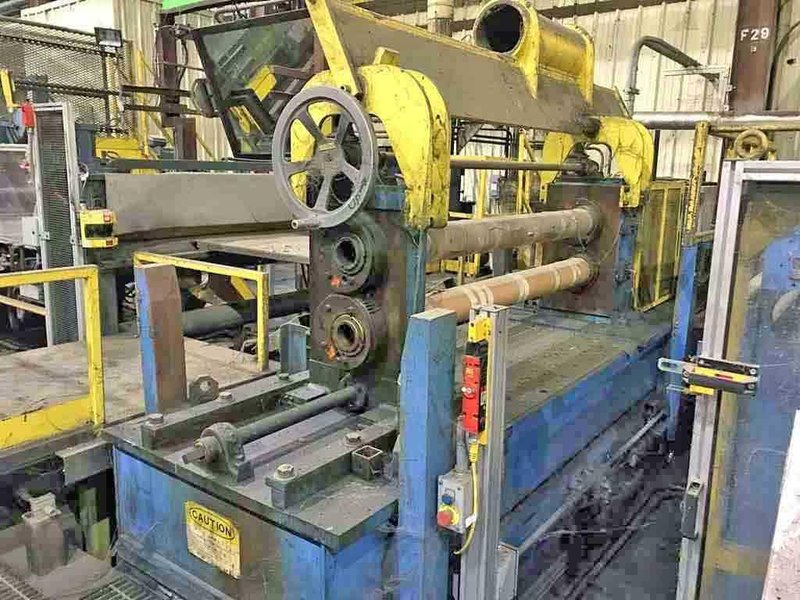

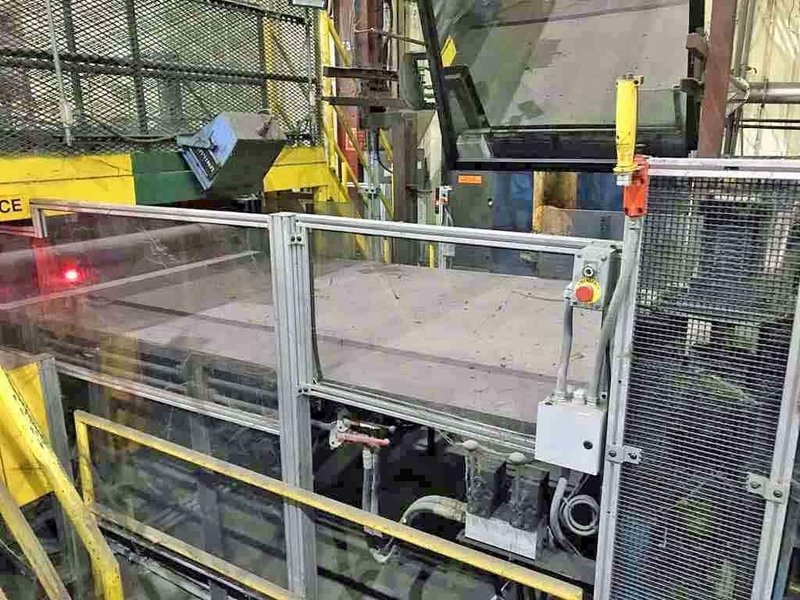

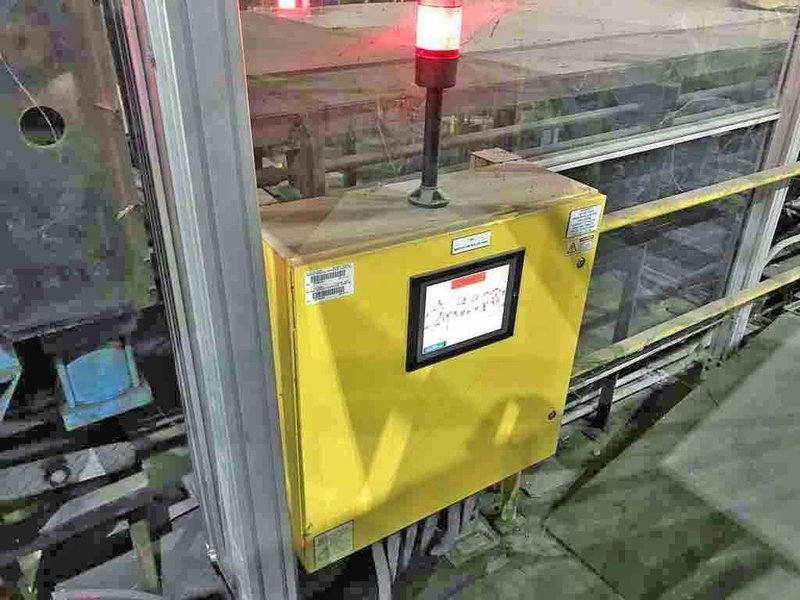

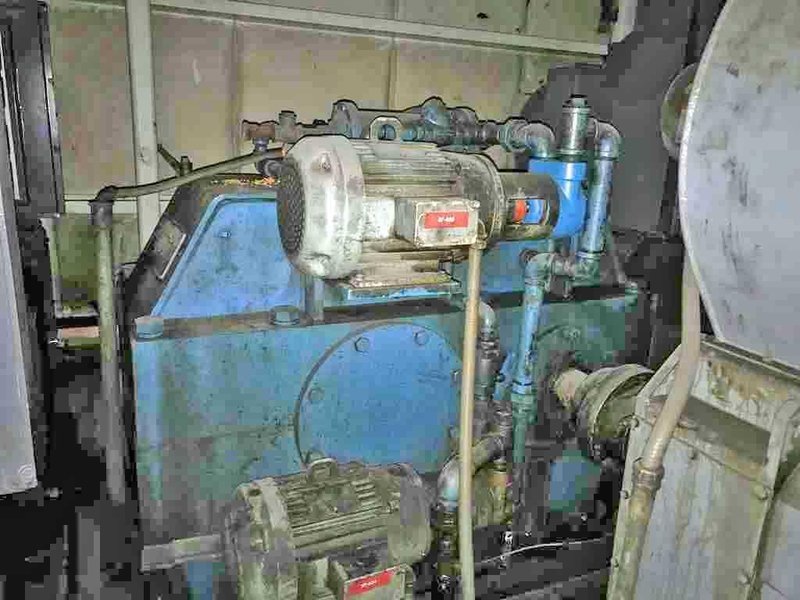

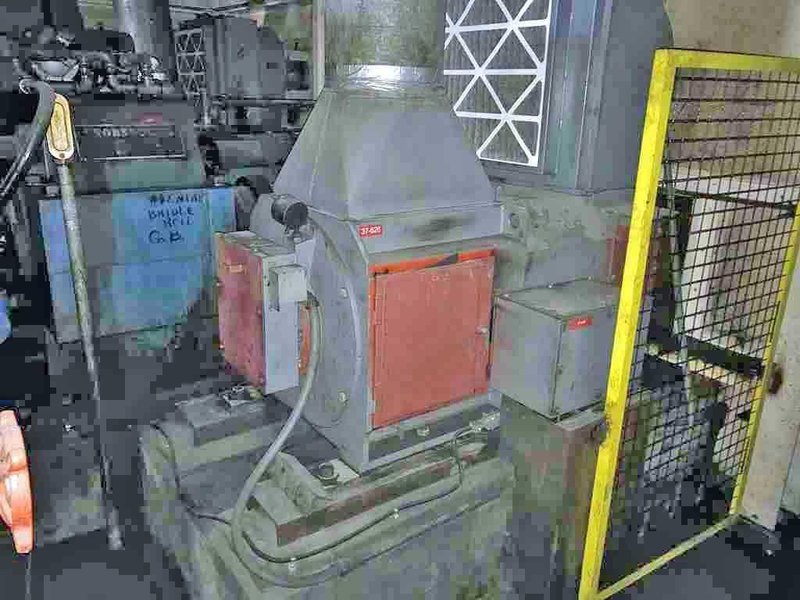

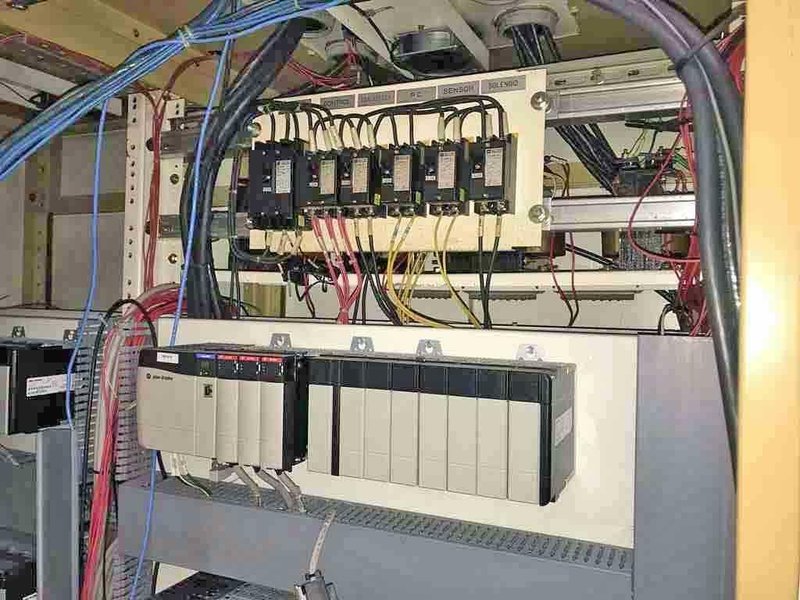

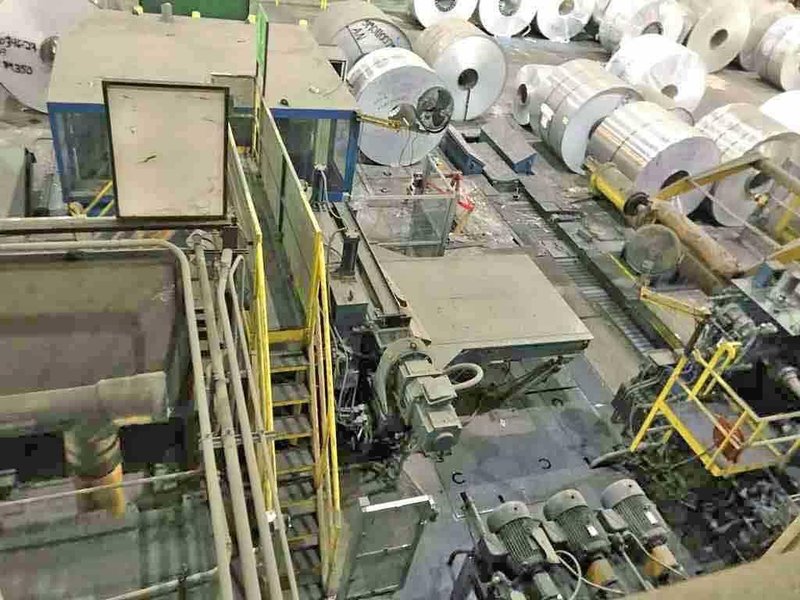

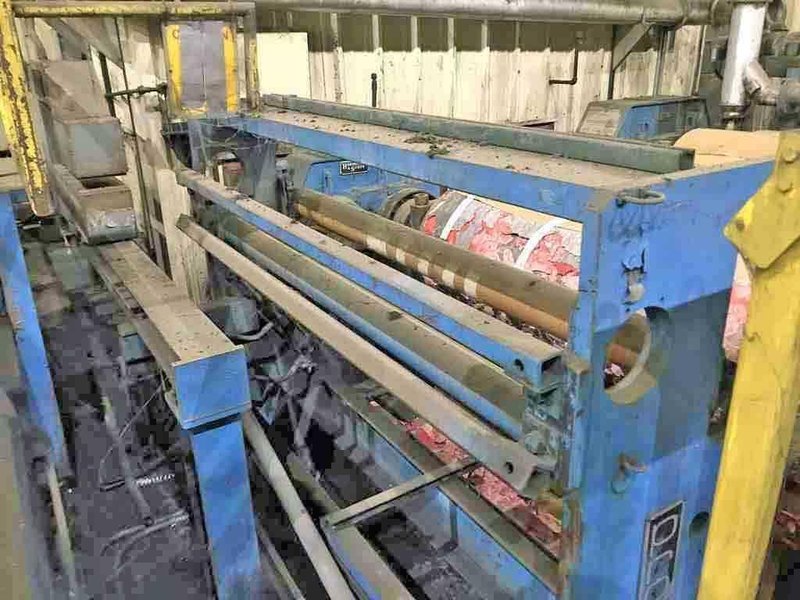

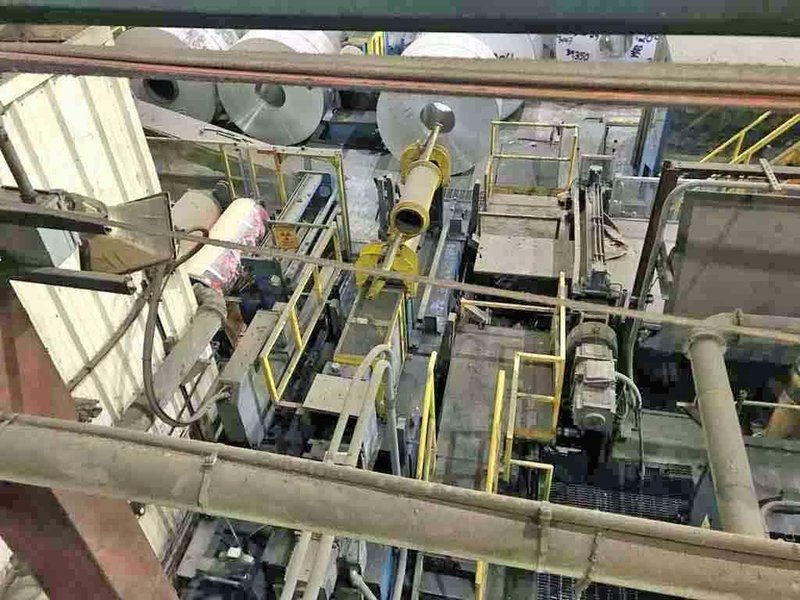

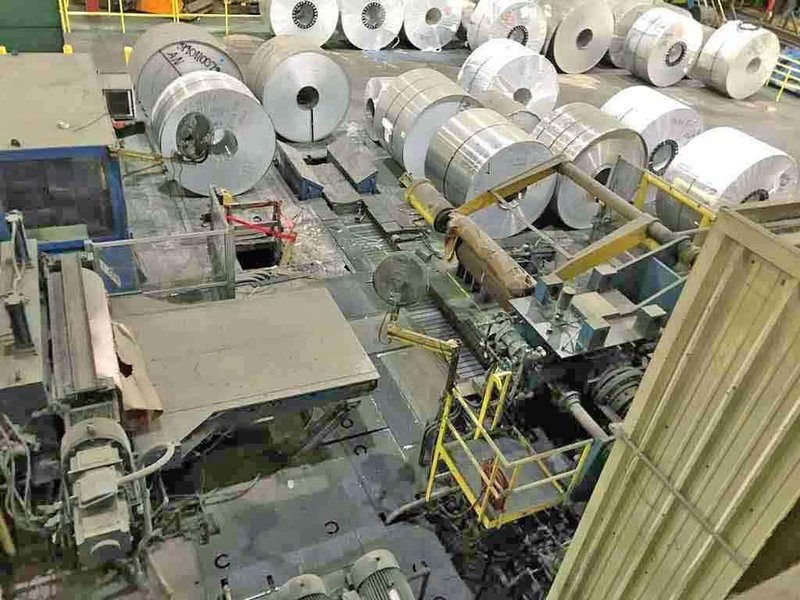

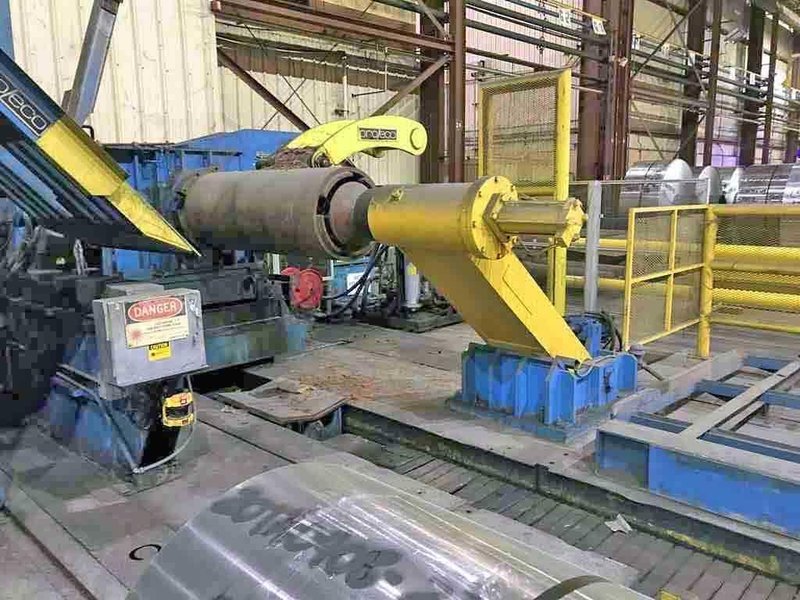

64.75" x 50,000# Pro Eco Tension Level / Slitting Line
Brand
Category
Type
Model
Not specified
Stock #
2722
Year
Not specified
Condition
Very Good
Location
Ohio
|

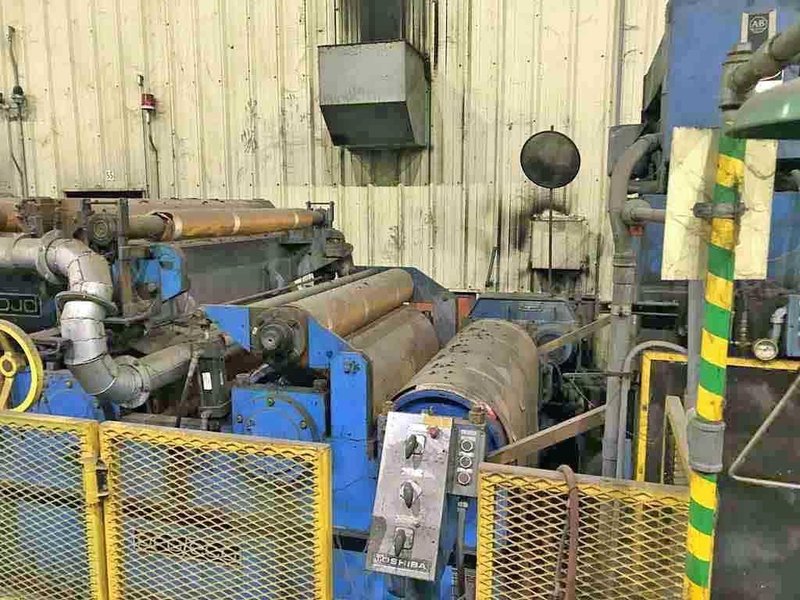

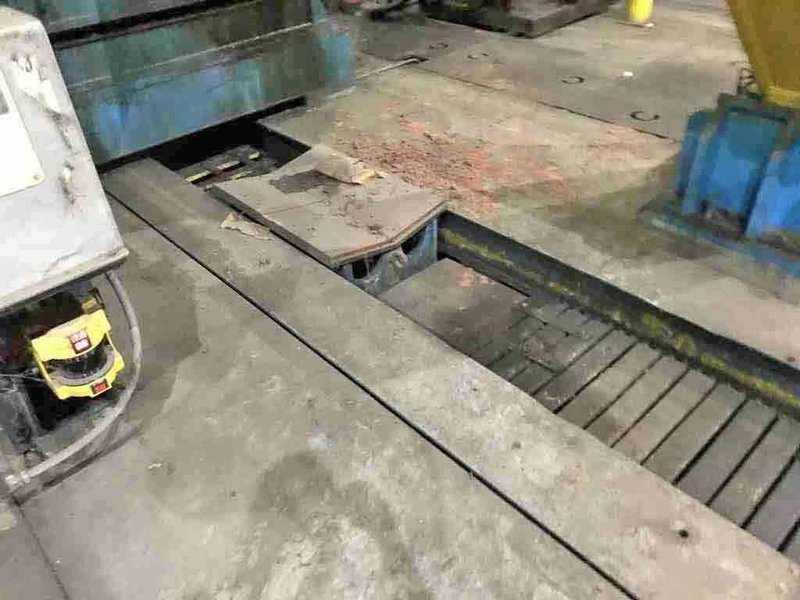

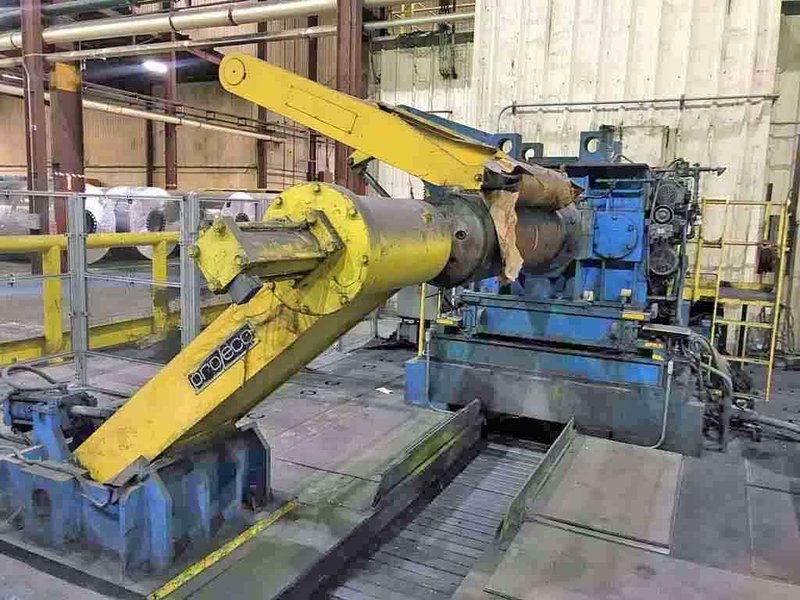

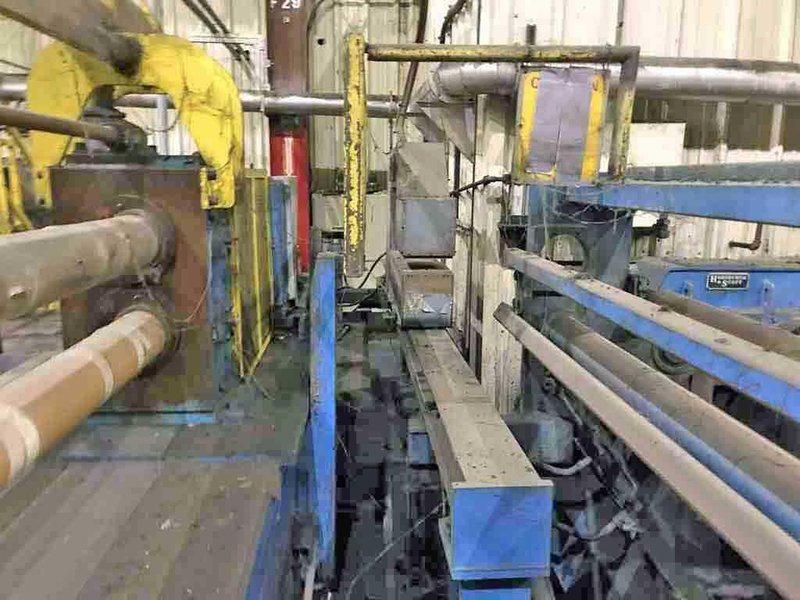

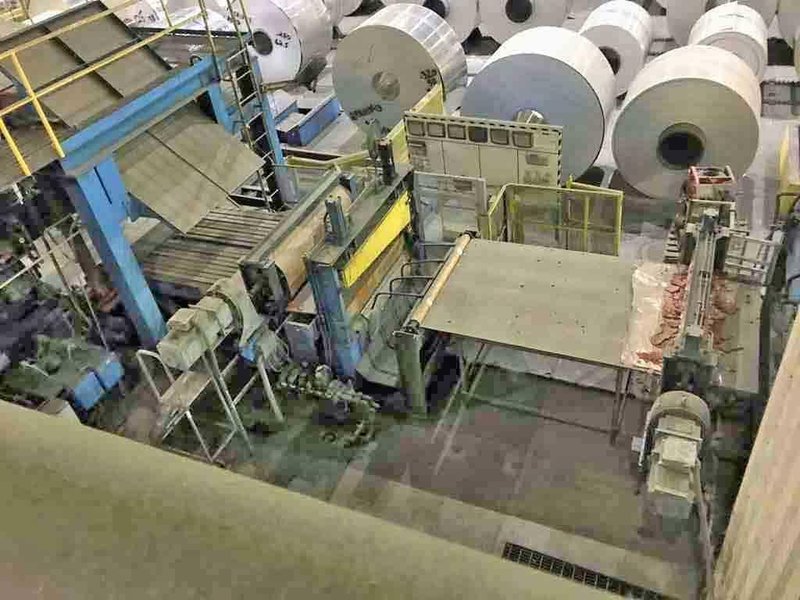

64.75" x 50,000# Pro Eco Tension Level / Slitting Line
-Materials: Aluminum Alloys -Incoming Coil Sizes: Coil Outside Diameter: 36" Min - 103" Max. Coil Weight: 50,000 lbs. Max. Coil Width Before Slit: 29" Min. - 64.750" Max. Coil Width After Slit: 28" Min. - 62.50" Max. -Width Tolerances: 1/2 Comm Tolerance (+/-) Std Capability) Over 24" thru 48" (0.02344") Over 48" thru 60" (0.03125") Over 60" (0.06250") -Gauge Range: 0.006" - 0.063" -Slitting Capacity: Single Slit Width: 28" Min. - 62.50" Max. Single Slit Gauge Range: 0.006" Min. - 0.063" Max. -Side Trim Width Capability: 0.50" Min. - 2.25" Max. -Mandrel Size: Payoff I.D.: 16" + 1.25" / - 2.00" 20/24" + 0.5" / - 5.5" Rewind I.D.: 16" + 0.0 / -0.75" 20/24" +/- 0.5" -Line Speed: 0 - 2,000 FPM -Tension Capabilities: 1% elongation on 58,000 psi yield at maximum width of 62.5" and minimum gauge of 0.006" -Line Direction: Right to Left -Line is Installed |
