Dimensions | 91" X 180" |
Weight | 19800 ounces |
Sub Spindle | yes |

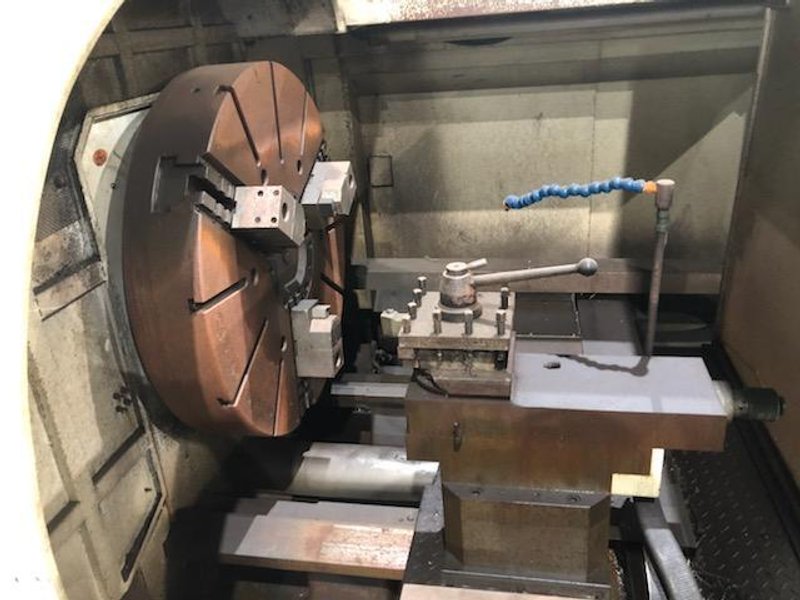

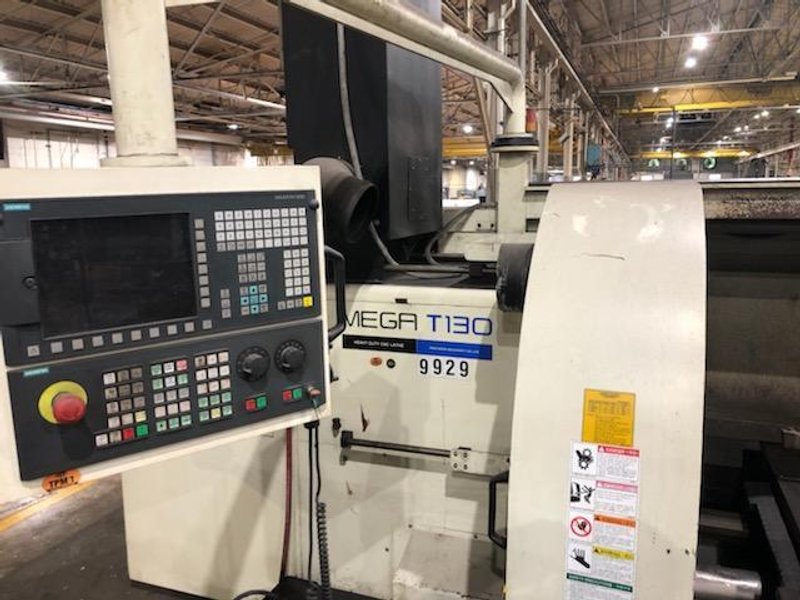

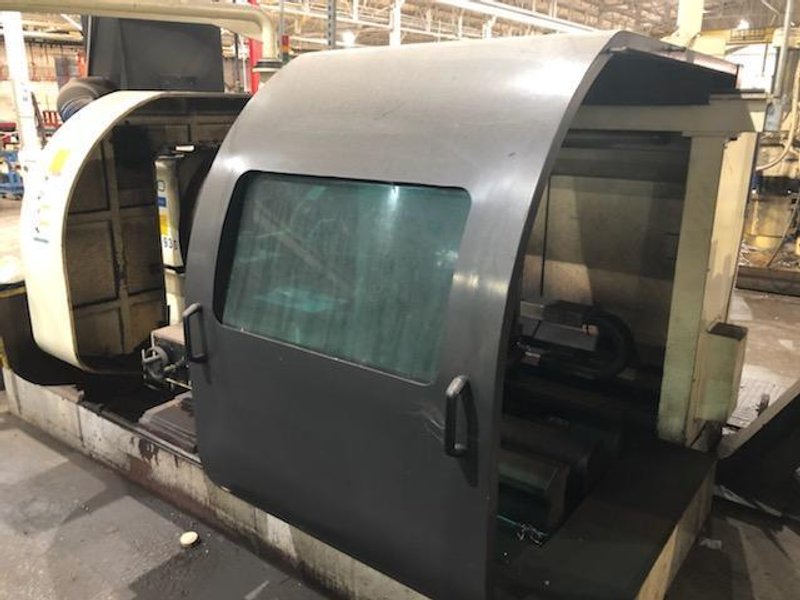

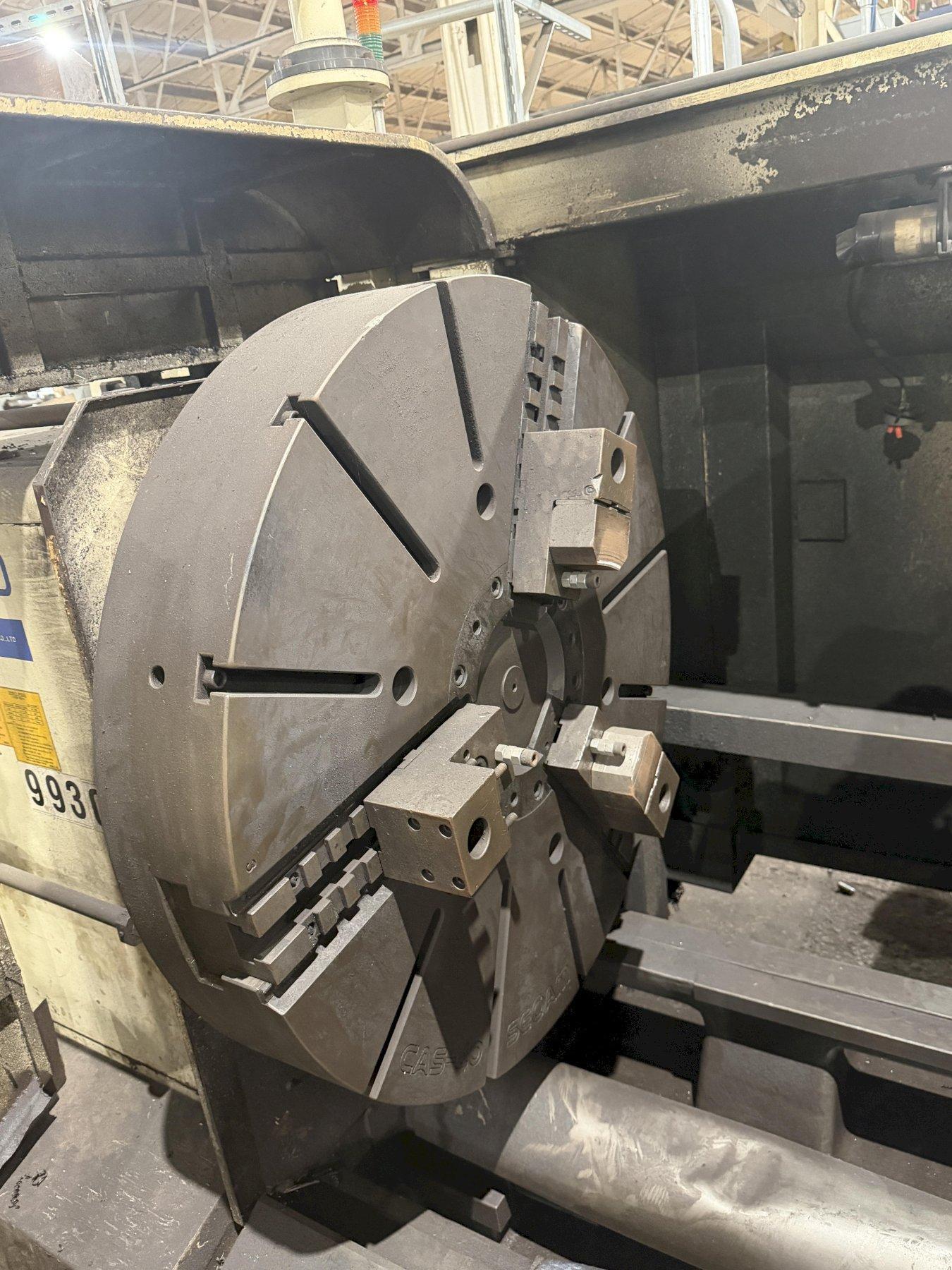

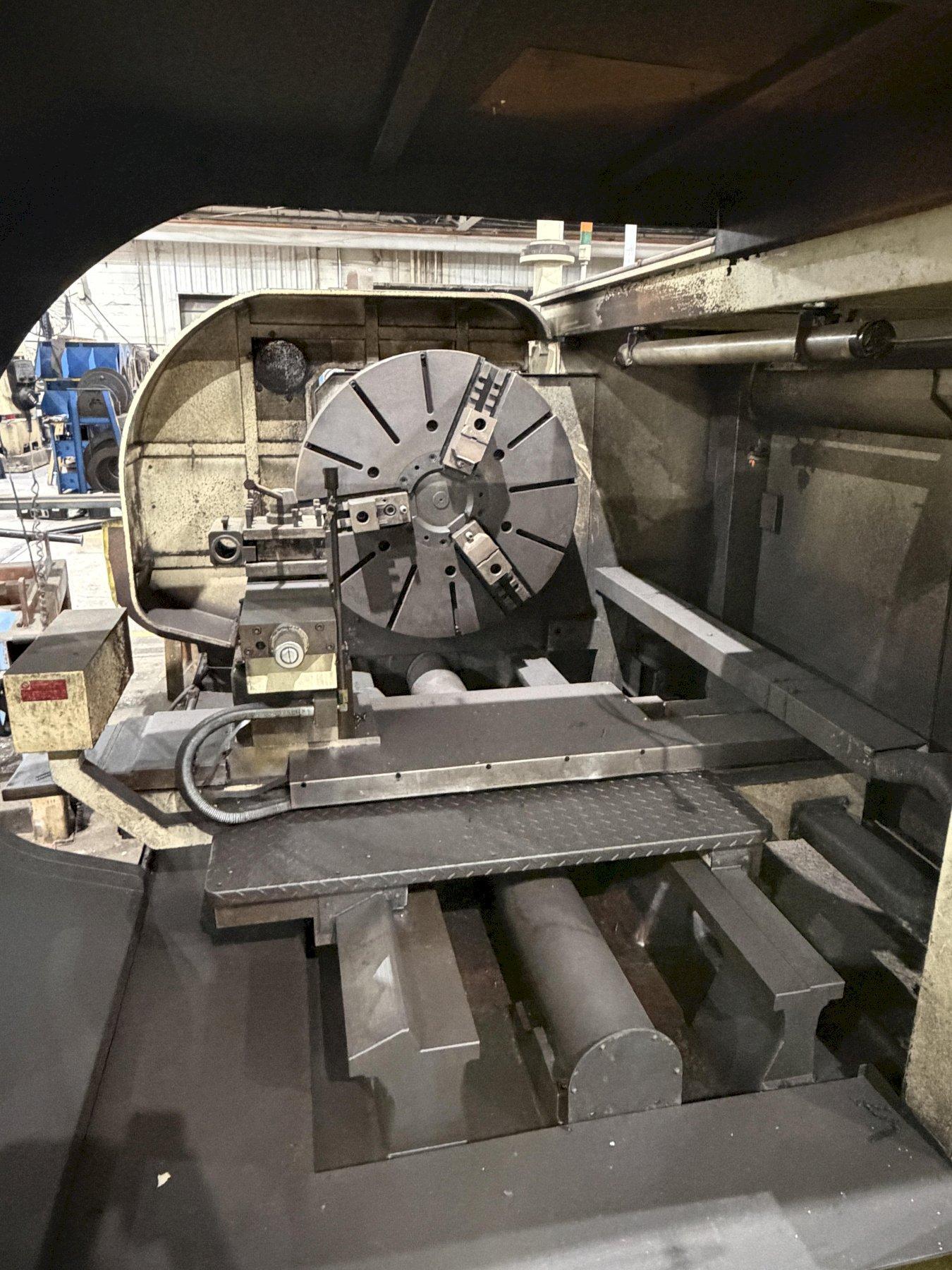

MODEL ............................................... MEGA 130T
MACHINE CENTER HEIGHT FROM BED ...................... 25.6" MACHINE CENTER HEIGHT FROM FLOOR .................... 41.9" MAX SWING OVER BED .................................. 52.0" SWING OVER CARRIAGE ................................. 35.4" MAX WORK PIECE WEIGHT ............................... 3,300 LBS MAX DISTANCE BETWEEN FACE PLATE & 4 STATION TURRET .. 43.3" SPINDLE: SPINDLE NOSE ........................................ A2-15 SPINDLE SPEED ....................................... 4-400 RPM SPINDLE HORSEPOWER (CONT./30MIN) .................... 30/25 (AC) RAPID TRAVERSE RATE OF X-AXIS ....................... 157 IPM RAPID TRAVERSE RATE OF Z-AXIS ....................... 157 IPM FEED RATE ........................................... 0.04-157 IPM MAX CUTTING FORCE ................................... 3,300 LBS MAX SPINDLE TORQUE .................................. 13,019 FOOT POUNDS AXIS TRAVELS: X-AXIS CNC CONTROL .................................. 21.3" Z-AXIS CNC CONTROL .................................. 47.2" X2-AXIS MANUAL ...................................... 3.9" Z2-AXIS MANUAL ...................................... 14.2" BALL SCREWS & SERVO MOTORS: X-AXIS BALL SCREW ................................... 1.5" Z-AXIS BALL SCREW ................................... 2.0" X-AXIS SERVO MOTOR .................................. 1.3 HP Z-AXIS SERVO MOTOR .................................. 4.2 HP TURRET: 4 POISTION MANUAL WITH CURVIC COUPLING .............. 10.4" SQ SIZE OF TOOL HOLDERS ................................ 1.25" INDEXING POSITION ................................... 90 DEGGREES TOTAL POWER REQUIRED ................................ 125 AMPS |
