Max Weight of Coil | 20000 pounds |
Max Width of Coil | 72 inches |

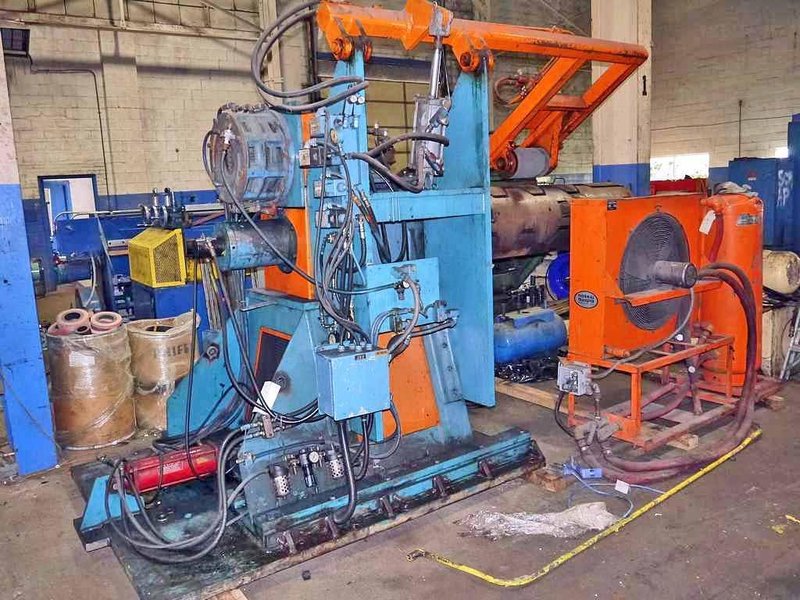

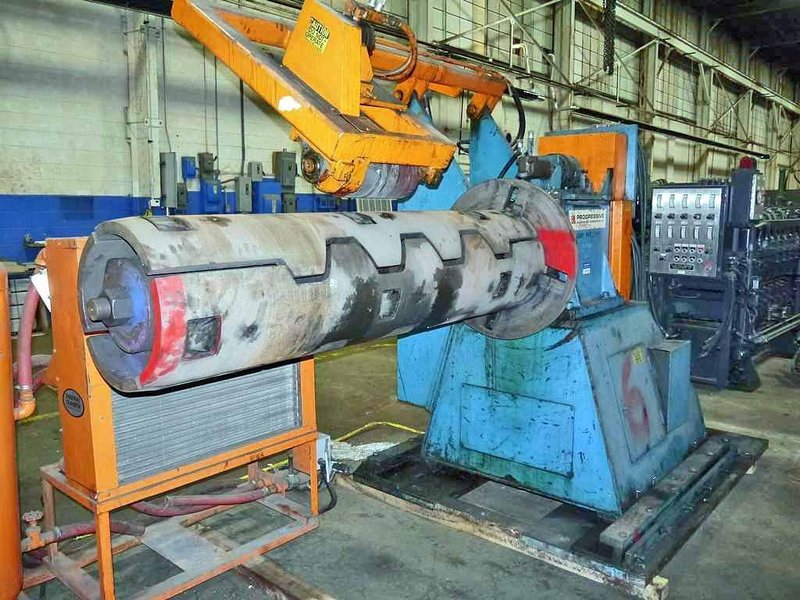

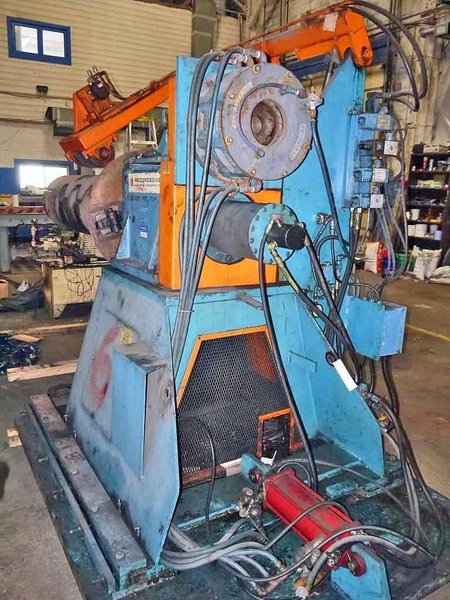

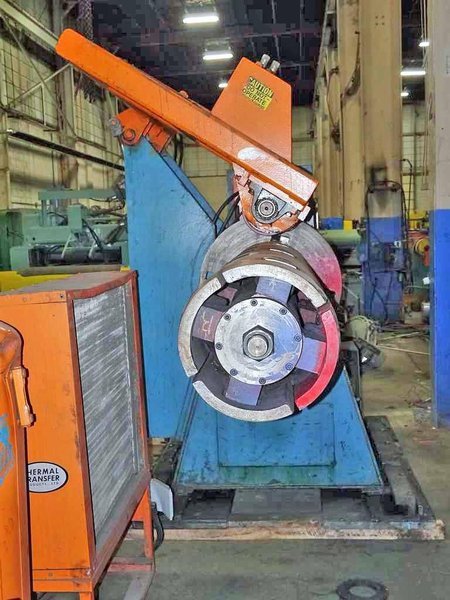

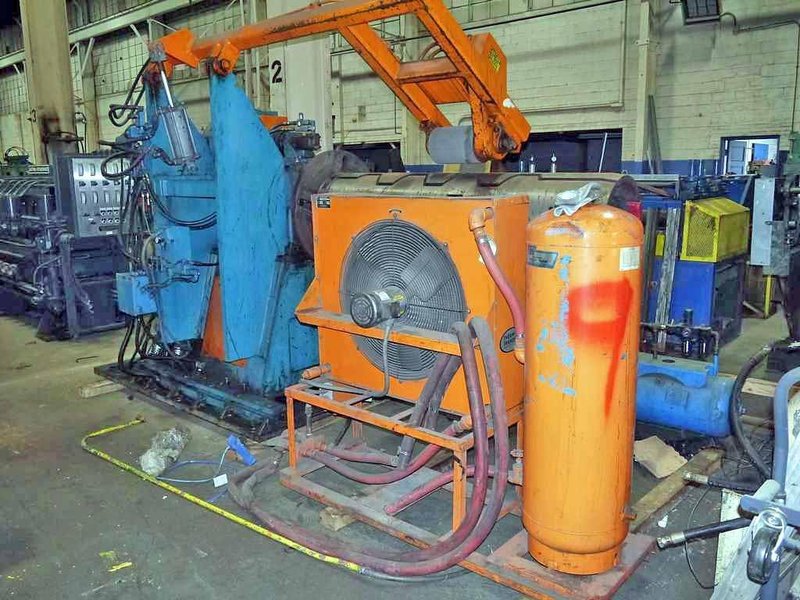

20,000 lbs. x 72" Capacity
-72" Face Mandrel -Hydraulic Expansion 20" to 24" -Pumpkin Tooth Mandrel -10" Dia. Main Shaft -Wichita Water Cooled Brake -Overarm Holddown Roll Roll Driven by Hydraulic Motor -Hydraulic Motor Threading Drive -Sliding Base -Hydraulic Power Unit -Thermal Transfer Water Cooler -Passline: 50" from Floor to center of Mandrel -Line Direction: Left to Right -Overall Size: 164" L x 72" W x 98" High |
