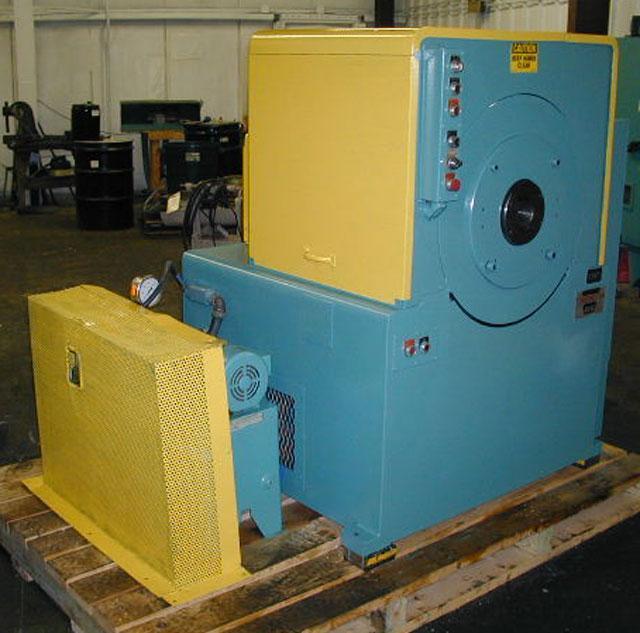

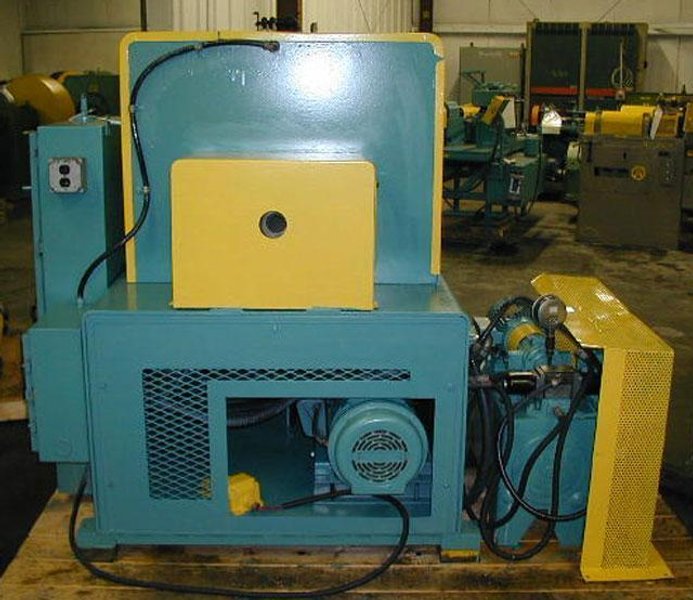

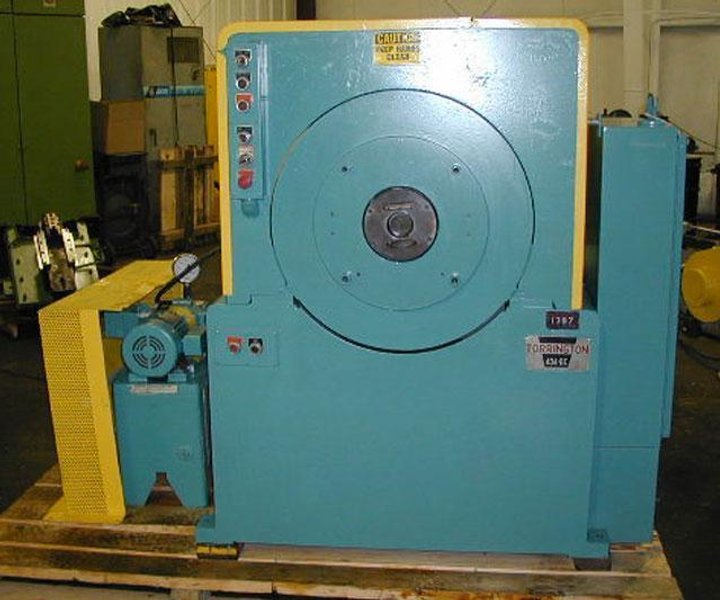

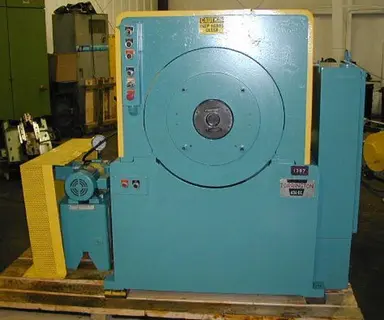

Machine # 10795
SPECIFICATIONS

 MANUFACTURER:                THE TORRINGTON COMPANY
 SERIAL No.:                  7083
 MODEL No.:                   434DC
 TYPE:                        2 DIE
                              DIE CLOSING SWAGING MACHINE

 CAPACITY
  -TUBING:                    1 3/4"
  -ON STANDARD AN
   TERMINALS:                 9/16" CABLE

 DIE SIZE
  -WIDTH:                     2 15/16"
  -LENGTH:                    4 1/2"

 MAXIMUM TOTAL DIE OPENING:   5/8"

 DIAMETER THRU WEDGE TUBE:    1 25/32"

 RATED SPINDLE SPEED:         250

 MOTOR:                       7 1/2 HP, 575 VOLT, 8.5 AMPS, 3 PH., 60 HZ

 FLOOR SPACE:
 42 3/4" WIDE x 67 3/4" LONG (OVERALL)
 42" LONG (BASE ONLY)

 HEIGHT:                      57"

 WEIGHT:                      6000 LBS. APPROXIMATELY

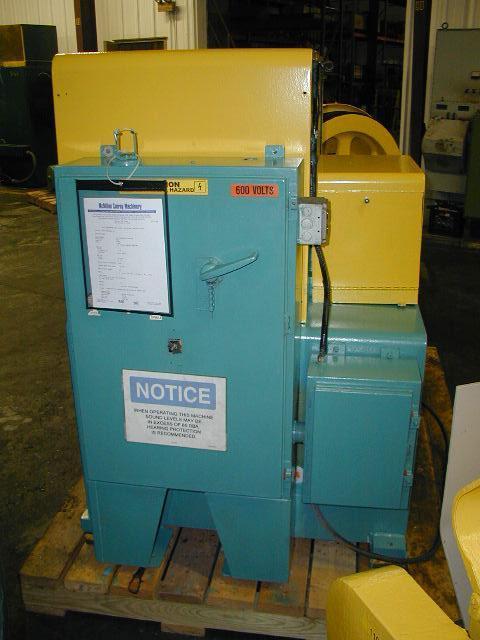

 SWAGER IS COMPLETE WITH HYDRAULICS AND ELECTRICAL CONTROL BOX.

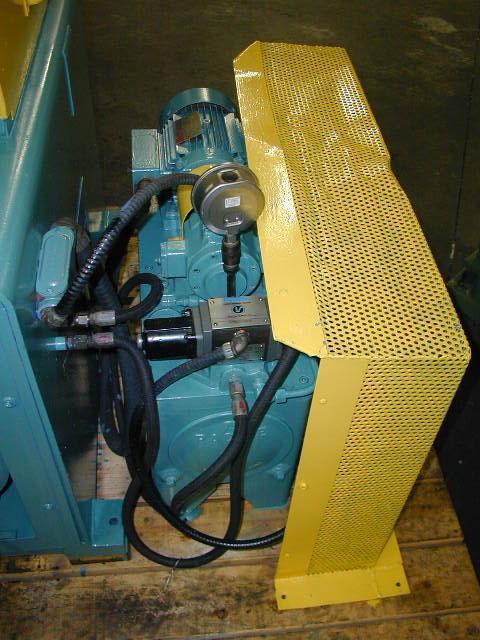

 HYDRAULIC UNIT:
  MANUFACTURER:               RACINE HYDRAULICS
  SERIAL No.:                 943815
  REF. No.:                   12-6864
  CAPACITY:                   3000 PSI
  RESERVOIR CAPACITY:         10 GALLONS
  DRIVE MOTOR:                2 HP, 575 VOLT, 1725 RPM, 3 PH., 60 HZ, G.E

  **Temporary Specifications Subject to Revisions**
  **PRICE QUOTED IS EX WORKS AS IS WHERE IS SUBJECT TO PRIOR SALE**

   **ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
