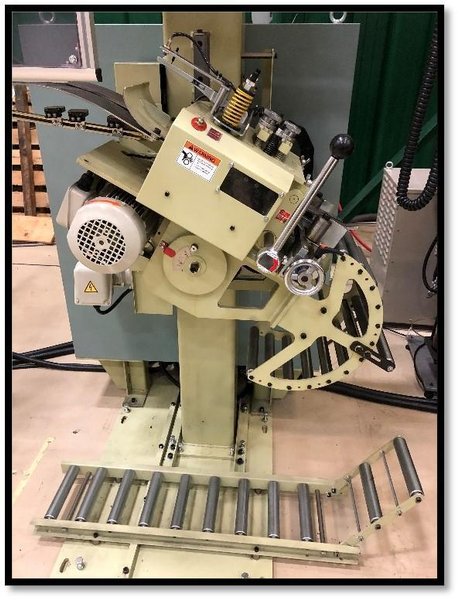

Matsumoto MLM-150P Stock Straightener & Dual Coil Reel

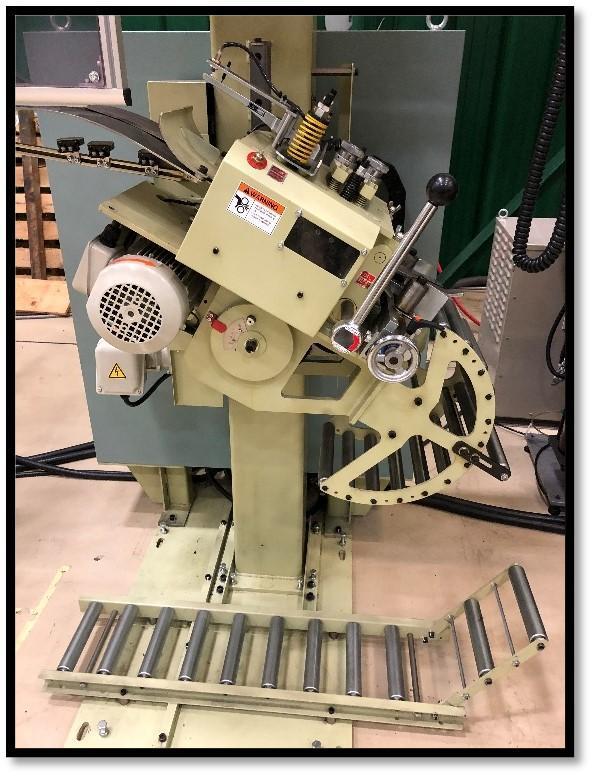

Straightener Specifications:

·         150 mm Maximum coil width (6.0 in.)

·         0.2 – 0.5 mm Coil thickness range (0.008 – 0.020 in.)

·         Ø50 mm Pinch Roll x 2 (1.97 in.)

·         Ø50 mm Work Roll x 6 (1.97 in.)

·         7 – 60 m/min Speed range (23 – 197 fpm)

·         480 VAC, 60 hz, 3 ph Incoming

·         Manual pinch roll open/close

·         Photo electric loop control

·         Left to right feed direction

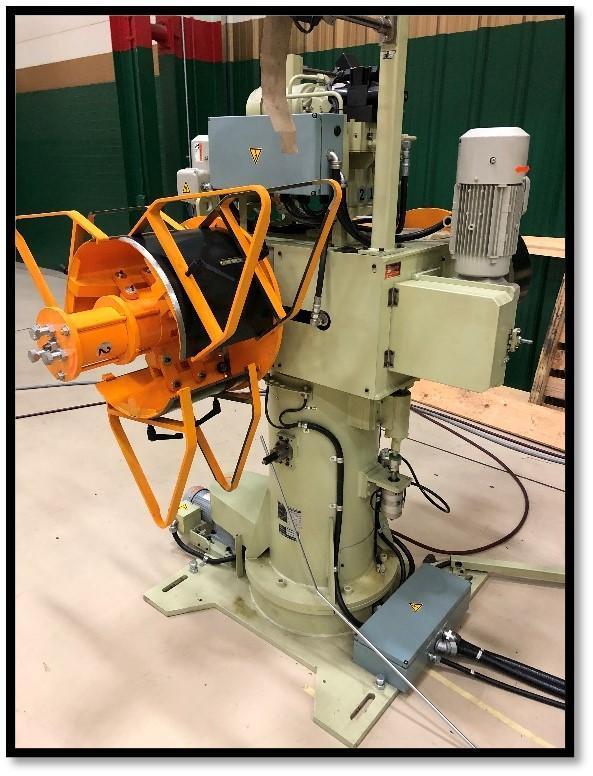

Dual Reel Specifications:

·         150 mm Maximum coil width (6.0 in.)

·         Ø1200 mm Coil OD (47.20 in.)

·         Ø470 - 520 mm Coil ID (18.50 – 20.50 in.)

·         1000 kg Coil weight per side (2205 lbs.)

·         Hydraulic expansion and turret rotation

·         Motorized coil rotation

·         Photo electric loop control

·         Left to right feed direction
