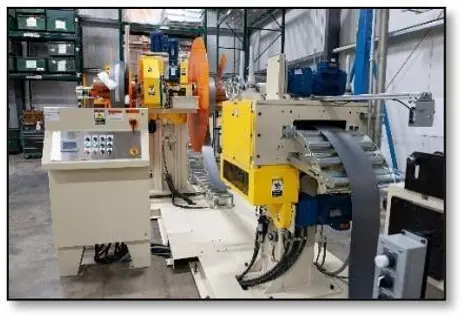

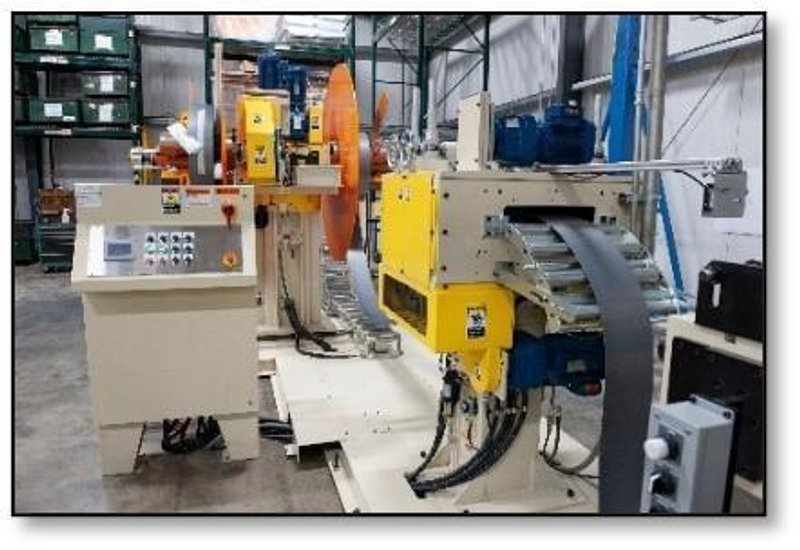

Machine Concepts Precision Straightener with Double Arm Decoiler

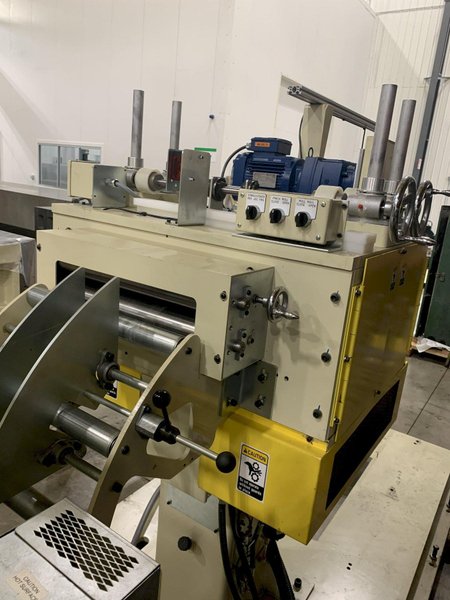

Generation L2 14” Precision Straightener

·         16.00 in. wide Roll Face (406 mm)*

·         0.007 – 0.035 in. thickness range (0.18 - 0.89 mm)*

·         55,000 psi yield strength*

·         0.875 in. diameter work rolls (22 mm)

·         50.00 – 54.38 in. pass line height (1270 - 1381 mm)

·         5 hp cassette drive (610 mm)

·         2400 ipm speed (61 m/mn)

·         Two (2) Backup Rail Sets

·         Fifteen (15) total number of straightening rolls

·         Quick change roll cassette

·         Two point drive connection

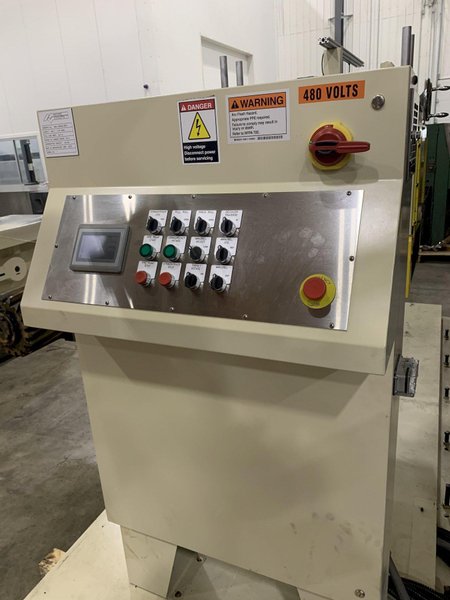

·         Allen-Bradley Control System

·         Constant Torque Variable Frequency Drive and motor

·         Exit side pull roll

·         Powered pinch roll

·         Self-centering edge guide

·         End of strip sensor

·         Integration of Reel Controls

·         Common mounting base

·         Non-contacting loop control

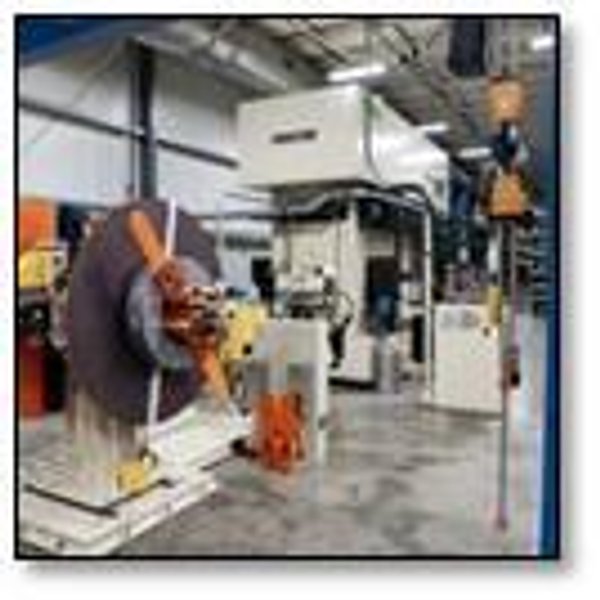

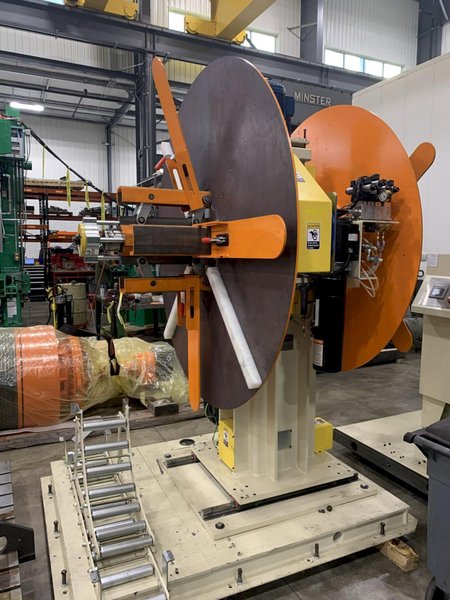

DM10-14” Double Arm decoiler

·         10,000 pound max. capacity per side (4536 kg)

·         18.00 to 22.00 in. expansion range (457 – 559 mm)

·         72.00 in. maximum coil od (1829 mm)

·         14.00 in. maximum coil width @ 60.00 in. coil od
(357 x 1524 mm)

·         0.093 in. maxi material width @ full width (2.36 mm)

·         Hydraulic actuation of:

o    Expansion

o    Turret rotation

o    Coil side shift

·         Adjustable lower base

·         Pneumatic drag brake

·         Allen-Bradley controls

·         Electric powered payoff

·         Eddy Current Drive
