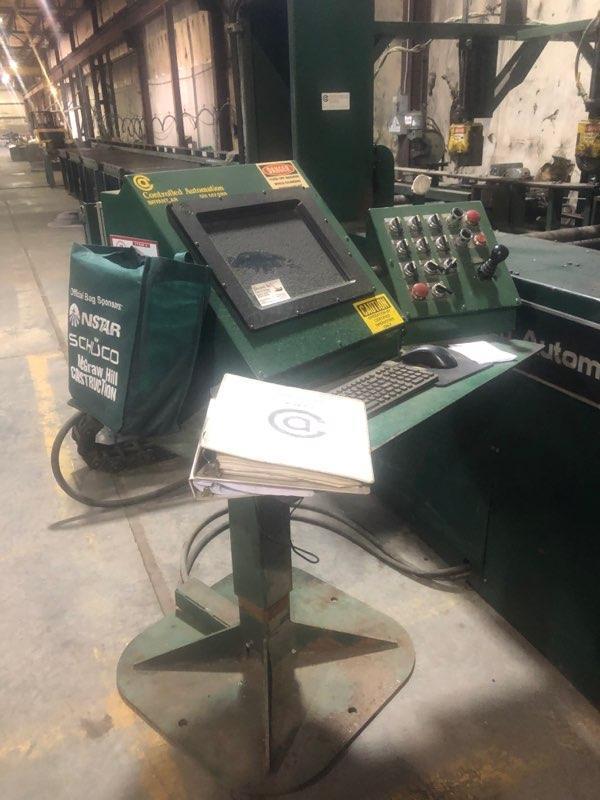

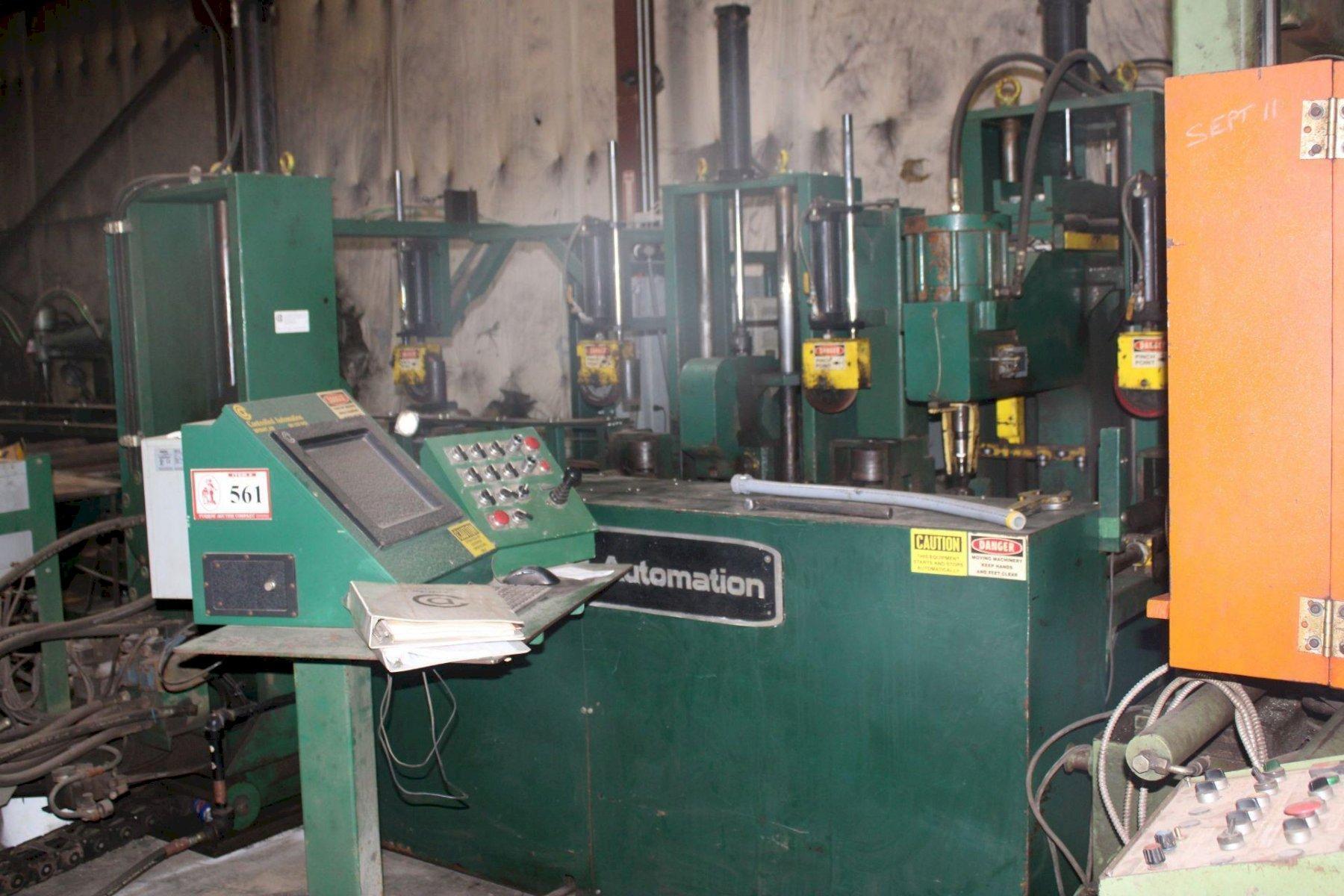

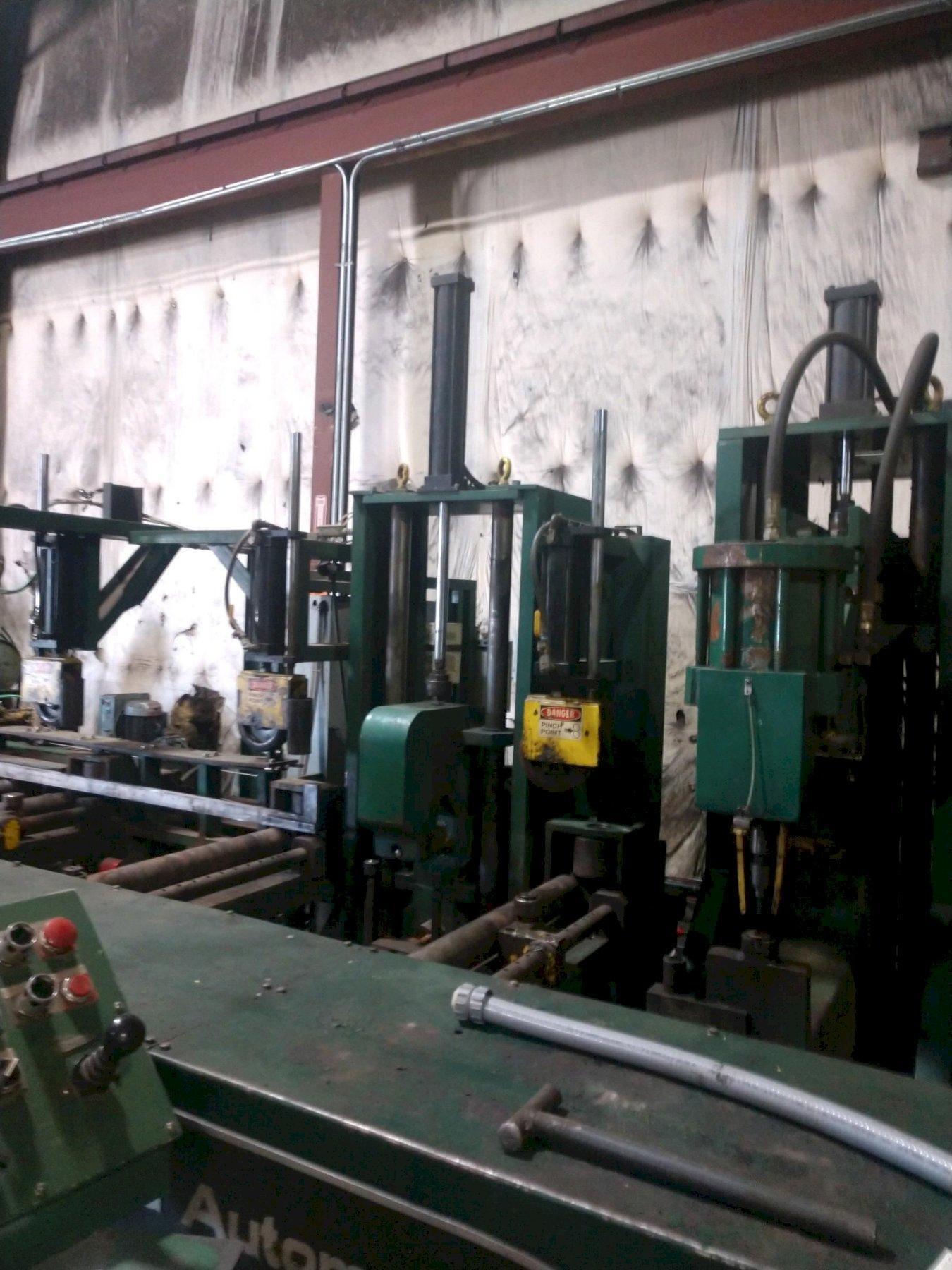

2003 CONTROLLED AUTOMATION MODEL #BFC-530 BEAM PUNCH LINE WITH PEDDINGHAUS SAW
Brand
Category
Type
Model
BFC530
Stock #
2702
Year
2003
Condition
Good
Location
Ohio
|
SERIAL .......................... #03-033
MODEL ........................... #BFC530
MAXIMUM MATERIAL WIDTH .......... 36”
MAXIMUM MATERIAL WEIGHT ......... 300 LBS/FT
MAXIMUM FLANGE THICKNESS ........ 1-1/4” FOR LAYOUT AND 1” FOR PUNCHING
MINIMUM MATERIAL ................ 4” BEAM (WEB ONLY)
MINIMUM MATERIAL ................ 4” CHANNEL (WEB ONLY)
MINIMUM MATERIAL ................ 4” ANGLE
MINIMUM MATERIAL ................ 6” BEAM (WEB AND FLANGES)

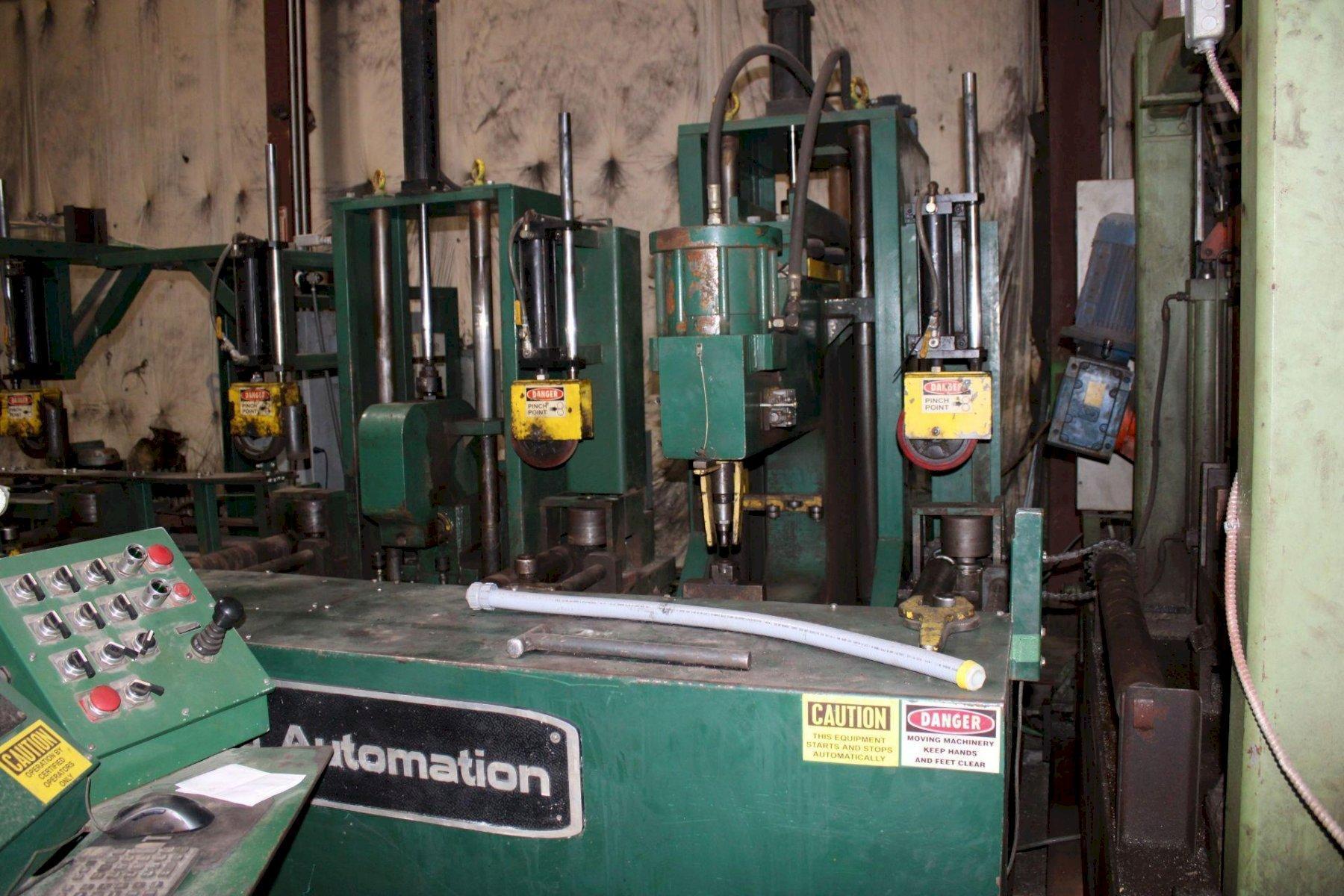

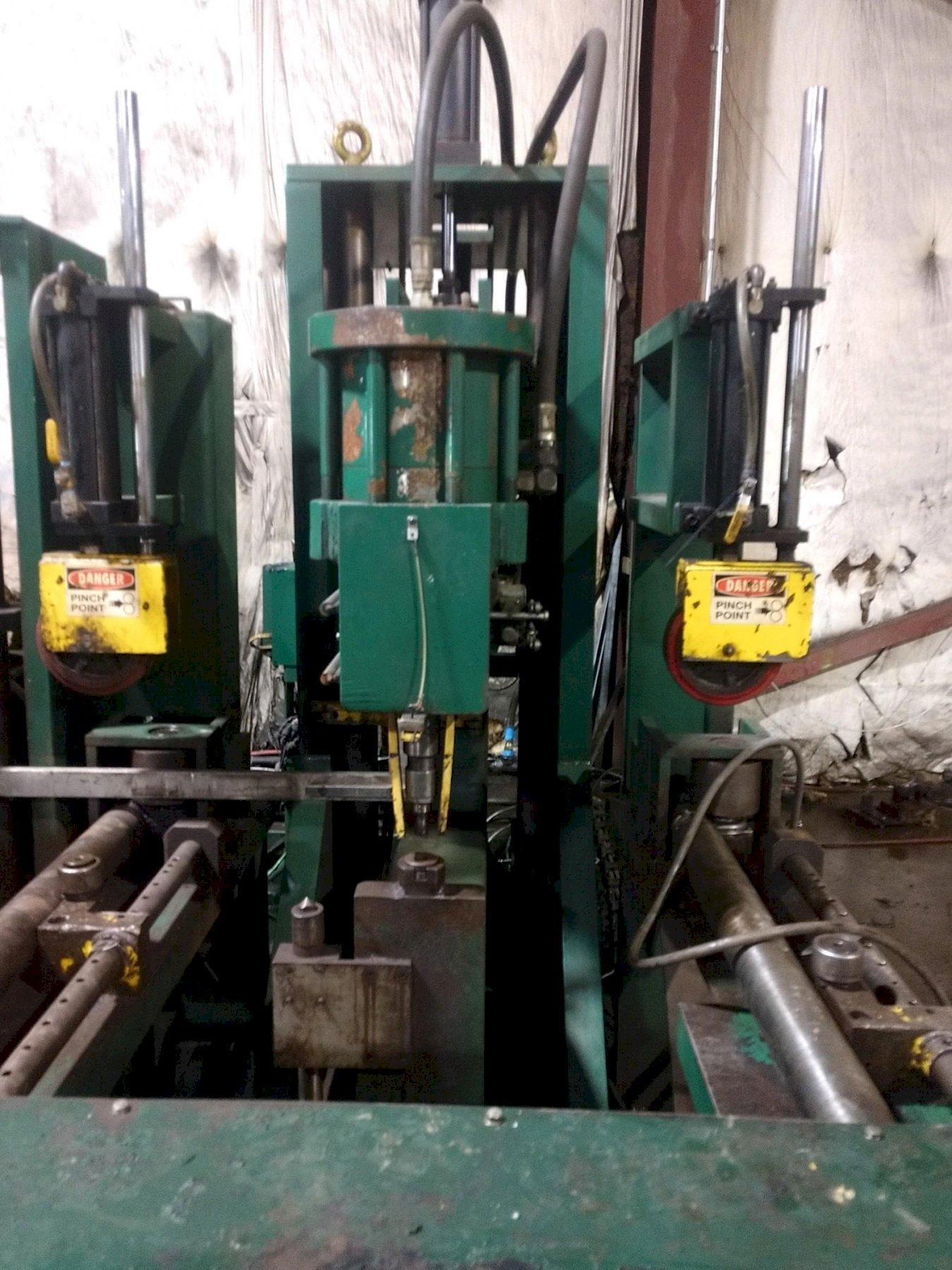

PUNCHES
MAXIMUM SLUG HOLE SIZE .......... 1-5/8”
FLANGE CAPACITY ................. 115 TON
WEB CAPACITY .................... 115 TON
WEB THROAT DEPTH ................ 30”

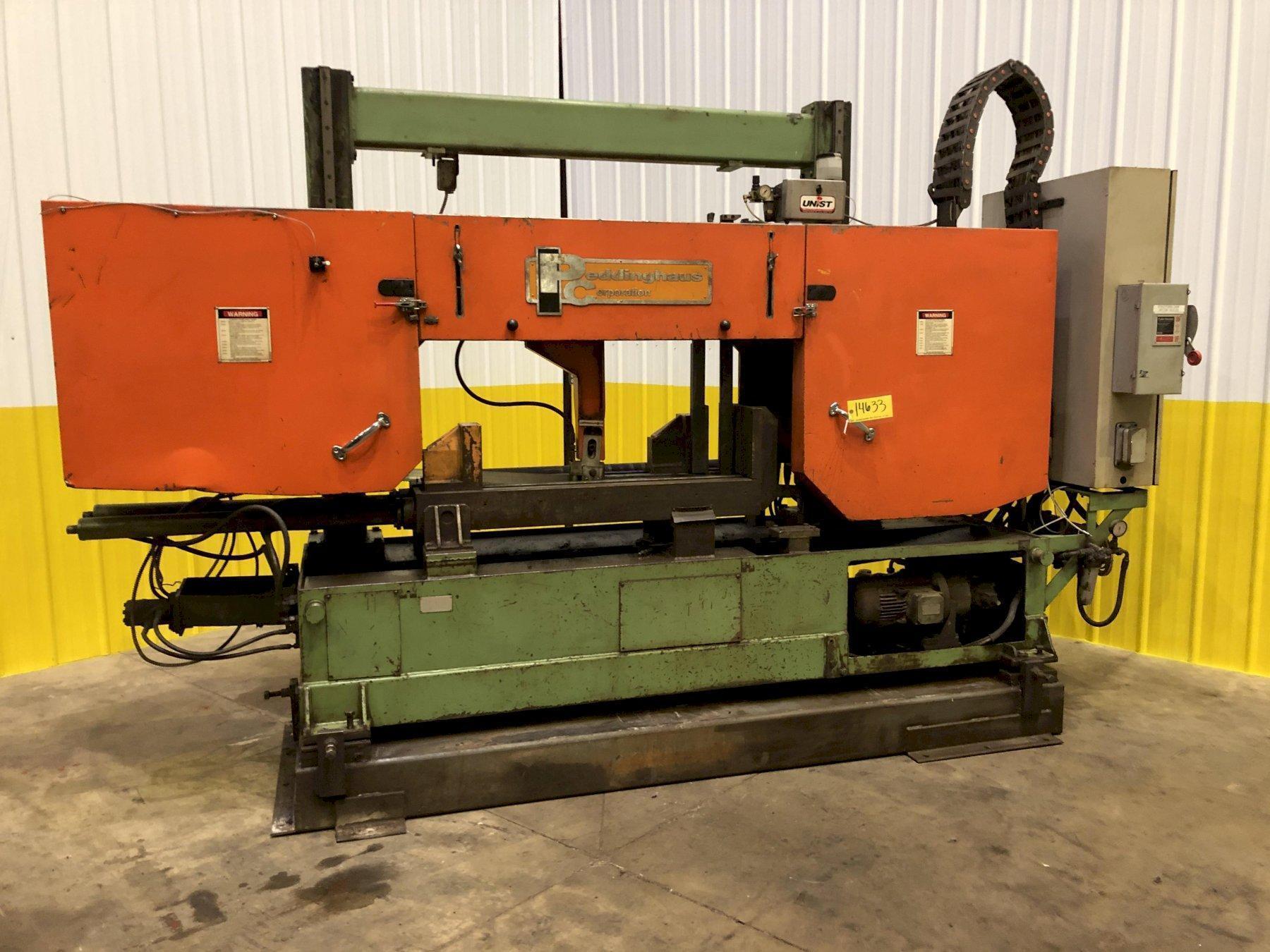

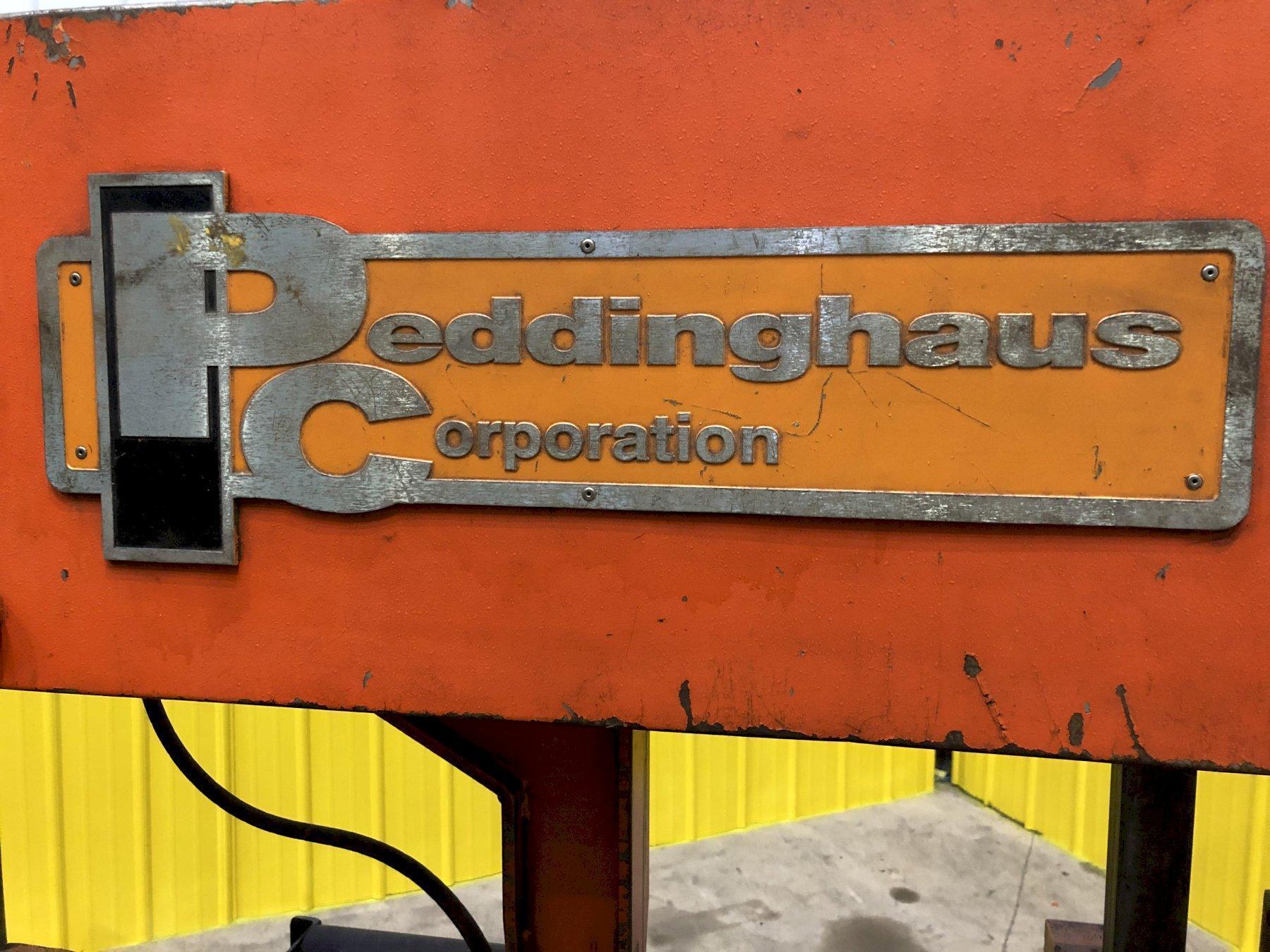

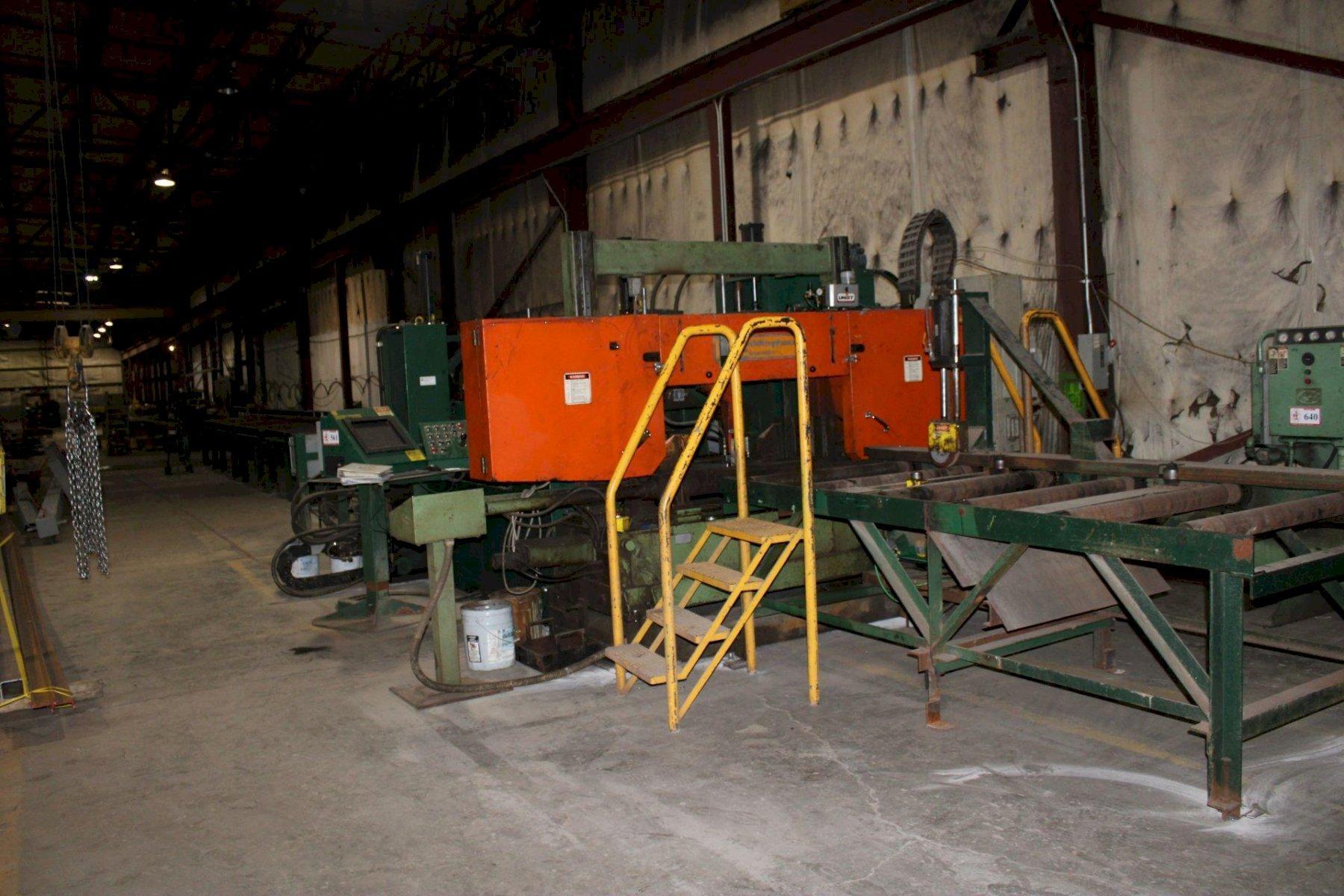

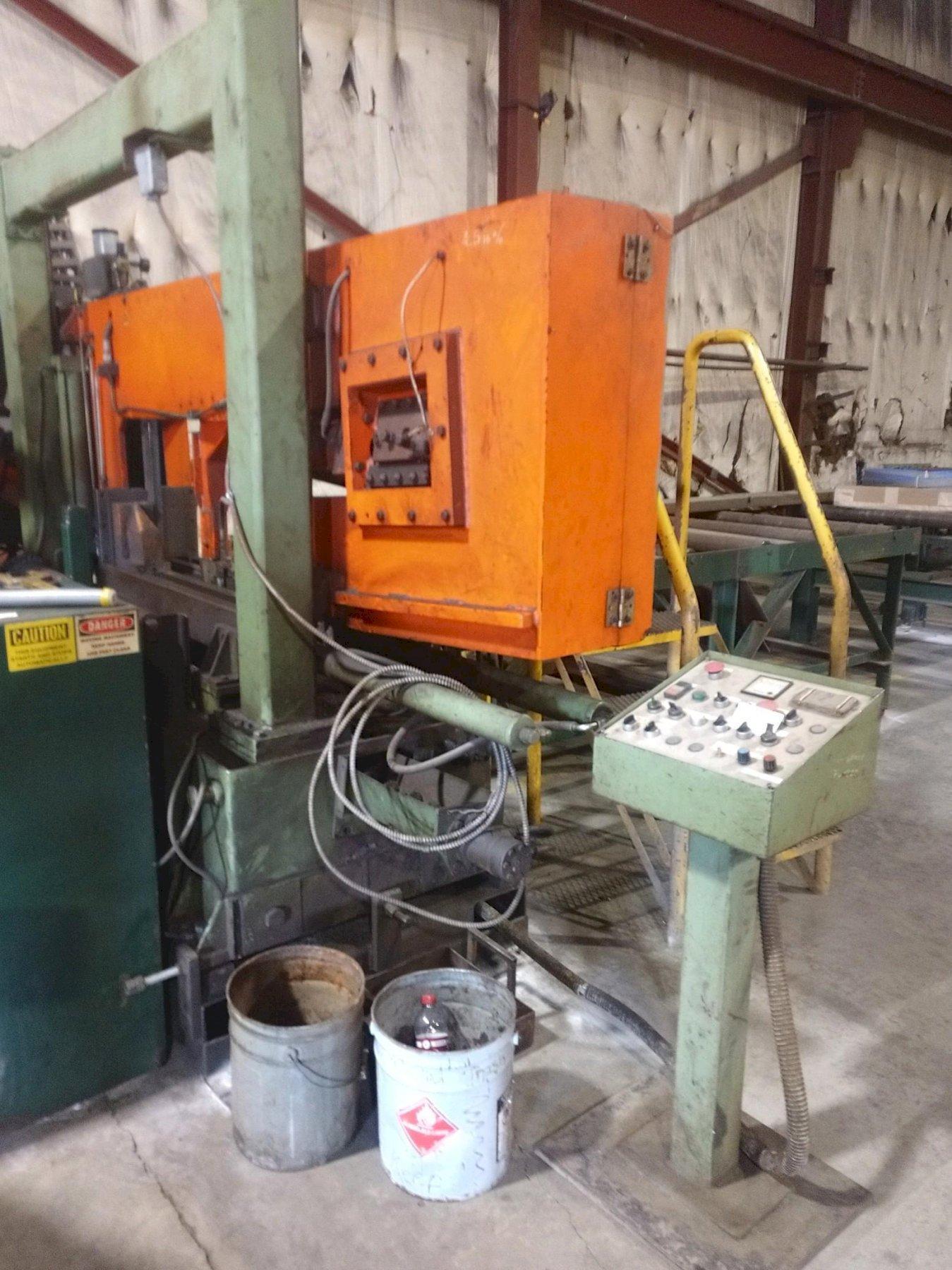

SAW: 30" X 16" PEDDINGHAUS SAW MODEL #SHN 30/16 |
