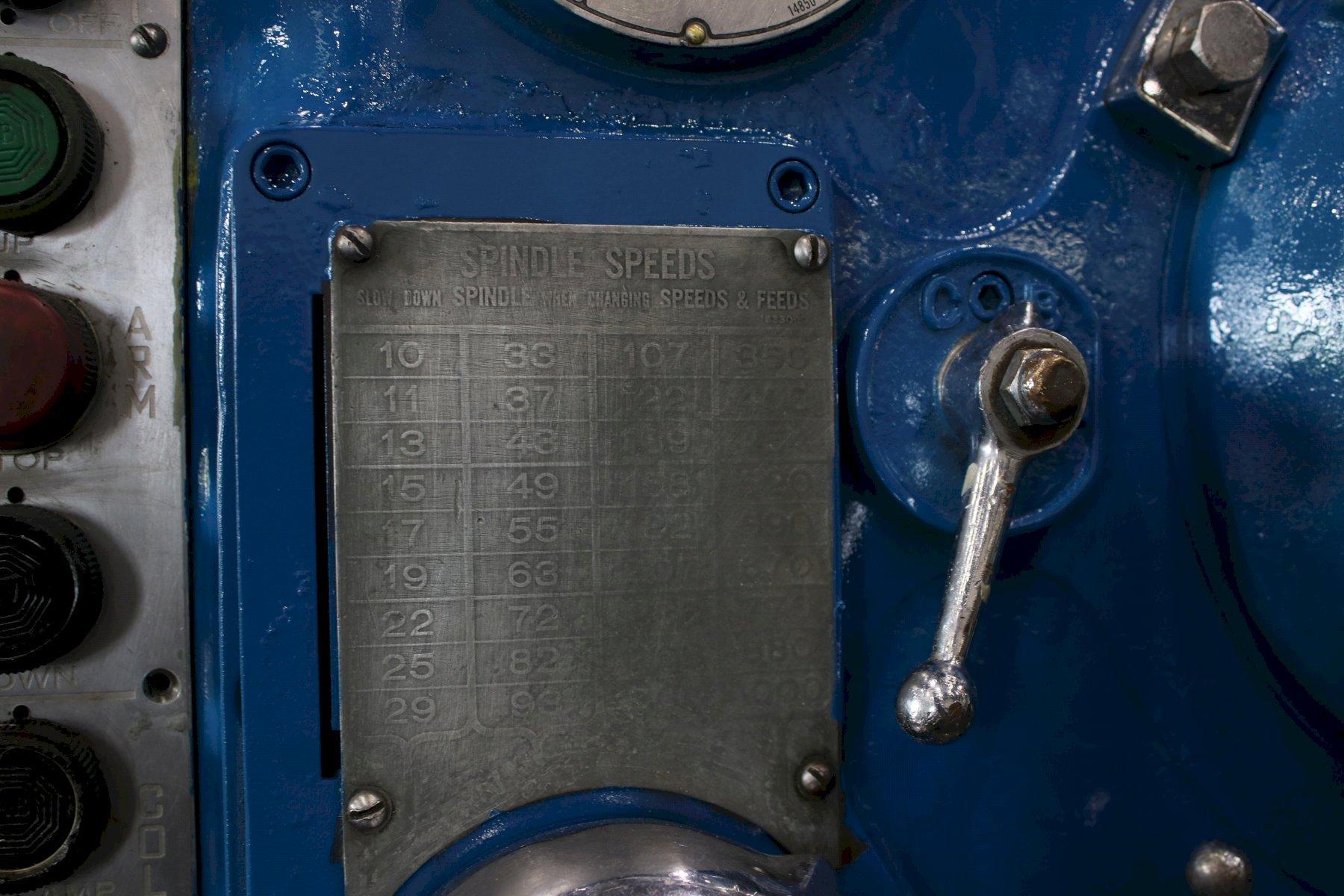

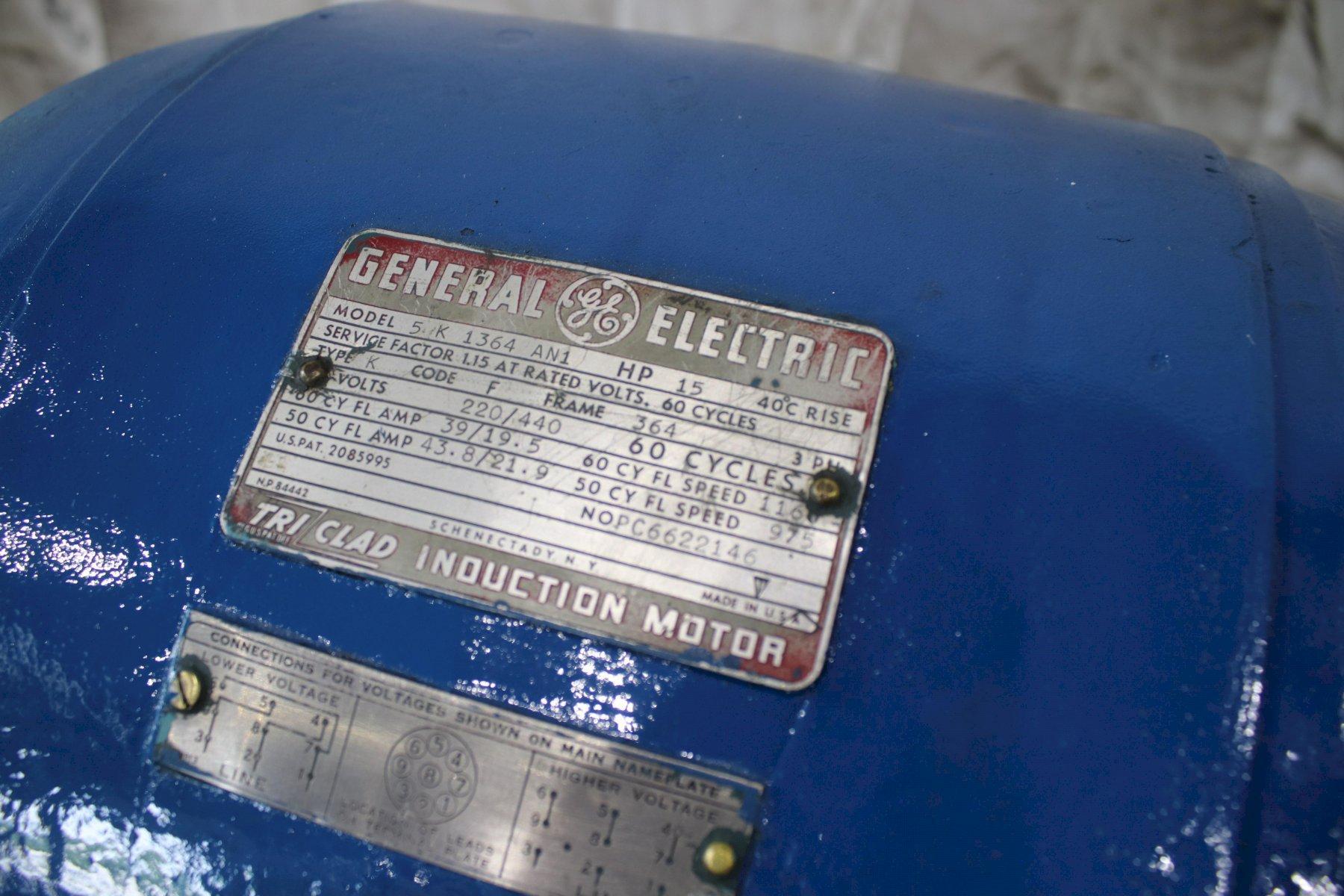

SERIAL .......................... 4A3042 MODEL ........................... 4A AREA OF BASE .................... 76" X 50" SPINDLE SPEEDS .................. (36) 10 TO 1000 RPM FEEDS ........................... (18) .004 TO .125 IPR THREADS ......................... 8,11-1/2",14, 18, & 27 TPI SPINDLE TRAVEL .................. 18" SPINDLE DIAMETER ................ 3-3/16" TAPER IN SPINDLE ................ #6 MT DISTANCE SPINDLE TO BASE ........ 15" MINIMUM TO 70" MAXIMUM DISTANCE SPINDLE TO COLUMN ...... 18" MINIMUM TO 72" MAXIMUM POWER ELEVATION ................. YES POWER CLAMPING ON HEAD & ARM .... YES POWER HEAD TRAVERSE ............. YES MOTOR, HORSEPOWER ............... 15 |
