Dimensions | APPROX FLOOR SPACE: 16' X 8'6" X 18'2" MAX HEIGHT |
Weight | 38500 pounds |

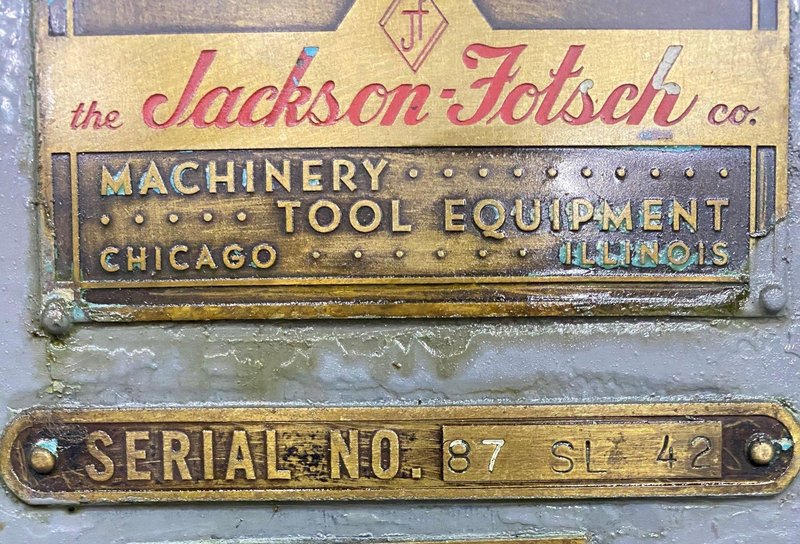

SERIAL ............................. 87-SL-42
MODEL .............................. SL
STROKE LENGTH ...................... 6" TO 48"
SLOTS TO CENTER OF CIRCLE .......... 83" DIAMETER DISTANCE UNDER GUIDE RAM ........... 46" MAX TABLE TO TOOL HEAD ................. 54" MAX RAM GUIDE VERTICAL ADJUSTMENT ...... 16" FOWARD INCLINATION OF TILTING RAM .. 10 DEGREES RAM RETURN SPEED (VARIABLE) ........ O TO 150 FPM CUTTING SPEED (VARIABLE) ........... 0 TO 80 FPM SPEED CHANGES ON RAM ............... INFINITE CUTTING PRESSURE ................... 10,000 LBS MAX TABLE DIAMETER (T-SLOTTED) ......... 42" WORK HEIGHT (FLOOR TO TABLE) ....... 42" LONGITUDINAL TRAVEL OF TABLE ....... 42"
CROSS TRAVEL OF TABLE .............. 36"
LONGITUDINAL/CROSS/ROTARY FEEDS .... .001" TO .140" PER STROKE
PENDANT CONTROL .................... YES
ONE SHOT LUBE ...................... YES
TABLE MOTOR ........................ 2 HP

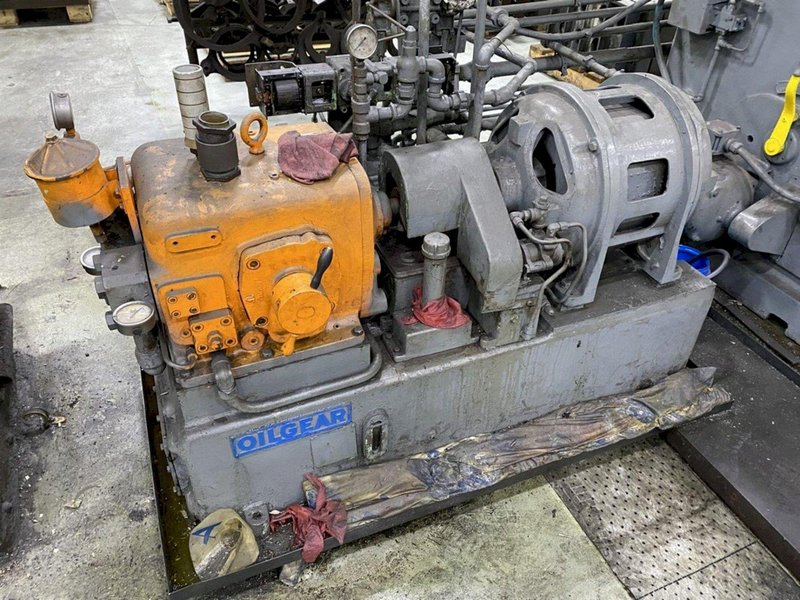

OIL GEAR PUMP MOTOR ................ 20 HP |
