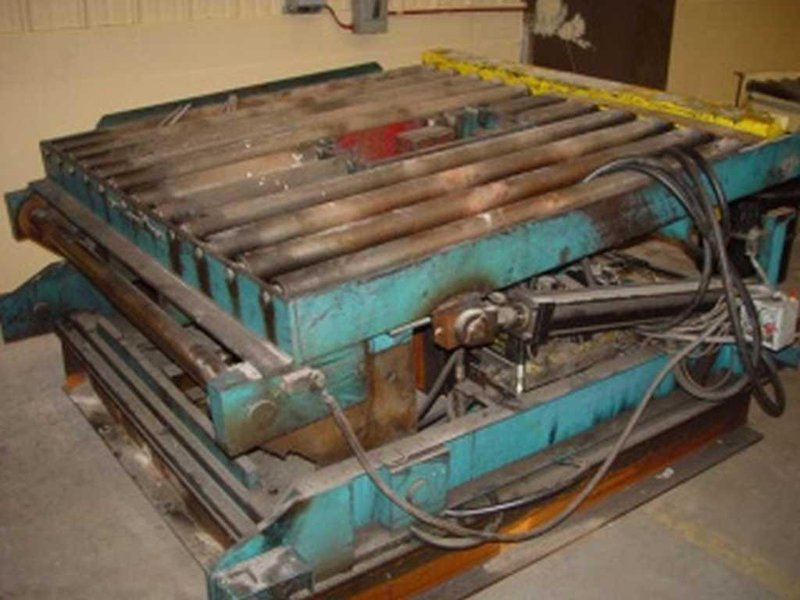

10,000# x 72" Braner Downlayer
Brand
Category
Type
Model
Not specified
Stock #
2595
Year
Not specified
Condition
Good
Location
Ohio
|
-10,000# Capacity
-Has Pick and Place capability
-Hydraulically Powered Conveyor Rols
-3.5" Dia. x 76" Face Rolls on 6.5" Centers
-1.375" Round Shafts
-81" Table Length
-36.75" Conveyor Pass Height when lowered
-61.75" from floor to top of horn when raised
-5" Wide x 8" High x 19" Long Horn, Hydraulic Extension
-2 Hydraulic Cylinders for lift off arm of Turnstile
-2 Hydraulic Cylinders for tilt
-Forward and Reverse of unit to clear next coil during removal is
actuated by a hydraulic cylinder. Unit travels via Cam Rollers
on 4.25" high #60 Rail.
-Cams are 2.5" above the base of the unit.
-All Height Dimensions are minimum dimensions from the floor utilizing
#60 Rail Floor mounted |
