Year of Construction: 1990 / 1991 / 1993 / 1994
Type: 2 HI
Roll Diameter: Max. 330 mm
Min. 300 mm
Roll Length: 500 mm
Material Data:
Band Thickness Max.: 4,00 mm
Band Thickness Min.: 0,20 mm from 0,50 mm
to be winded on sleeve.
Band Width Max.: 470 mm
Band Width Min.: 80 mm
Rolling Speed: Max. 150 m/Min.
Roll Adjustment Hydraulically
Roll Force (Nominal): Max. 1.500 kN (1.850-2.500) kN
Roll Force Min.: 150 kN
Adjustable Stroke: 80 mm
Working Direction: Right to Left
Coil Weights:
Decoiler: 20 kg/mm
Recoiler: 10 kg/mm
Decoiler:
Mandrel Diameter: 400 mm/500 mm
Drive Motor DC: 1 = 16 KW, 11 16 KW
Roll Stand:

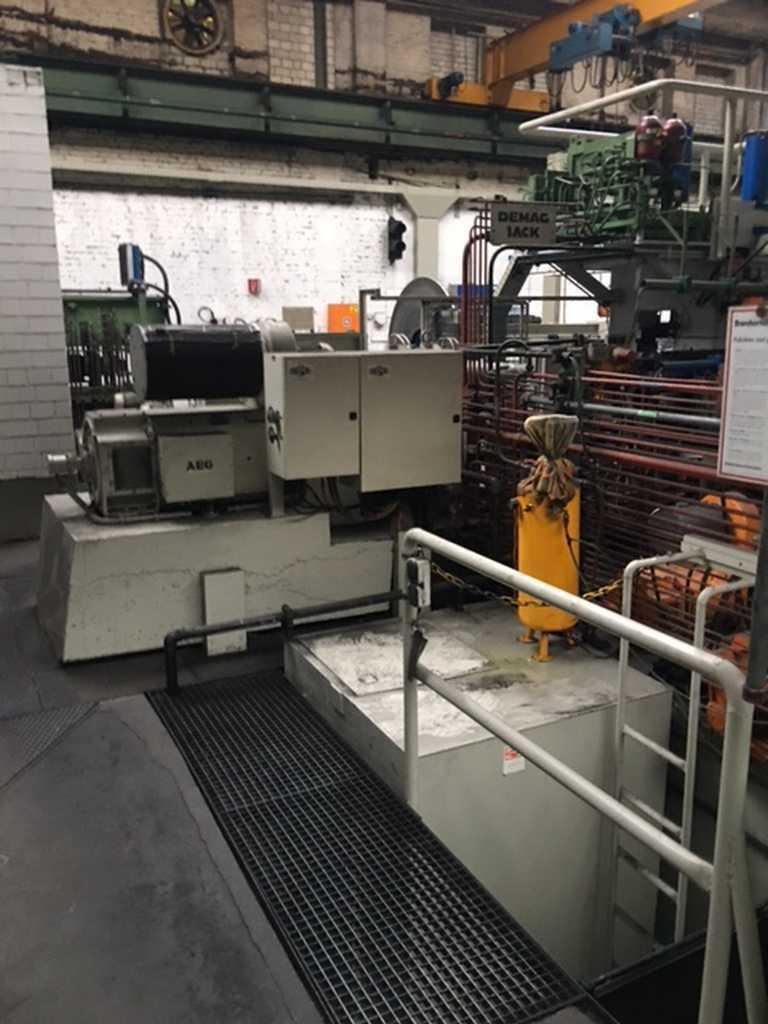

Drive Motor DC: 70 KW

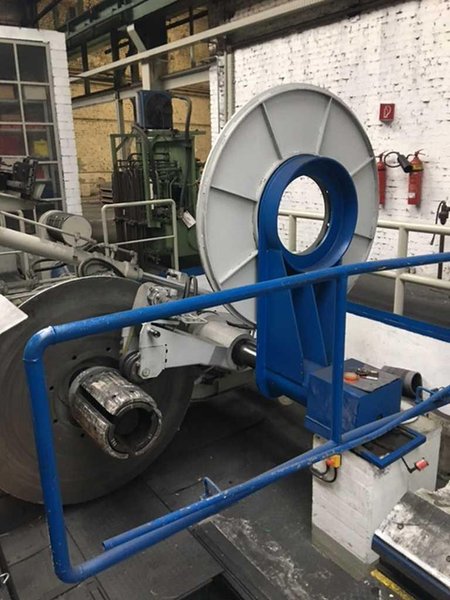

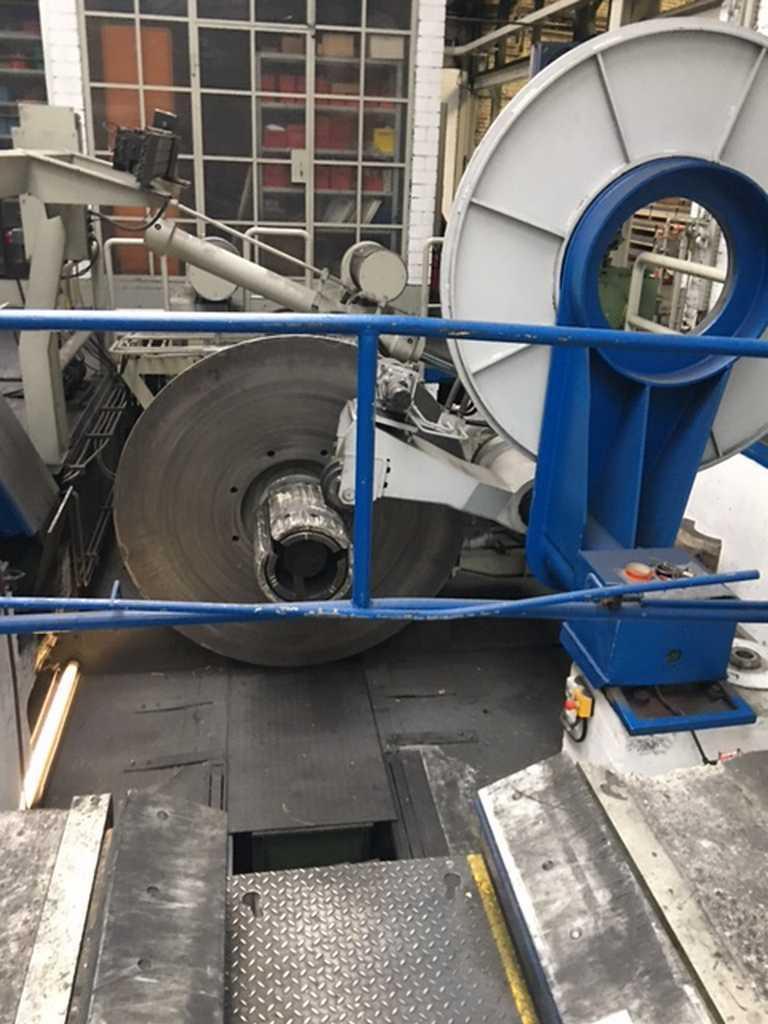

Recoiler:
Mandrel Diameter: 400 mm / 500 mm
Belt Tension Sector 1: 2.500 - 25.000 N
Belt Tension Section 11: 500 - 2.500 N
Drive Motor DC: 1 = 0-60/60 KW, 11 0-12/12 KW

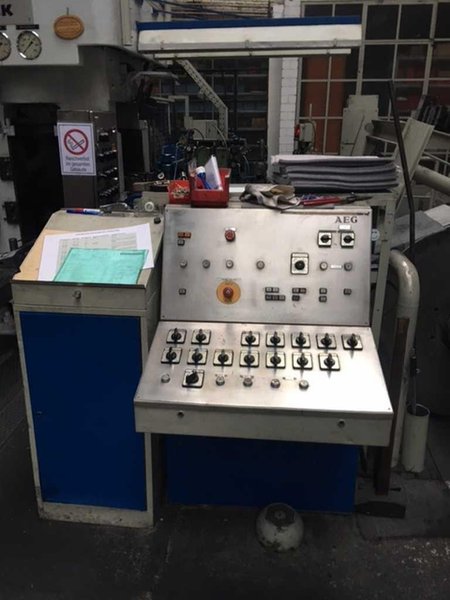

Electric: AEG
Hydraulic: Mannesmann Rexroth

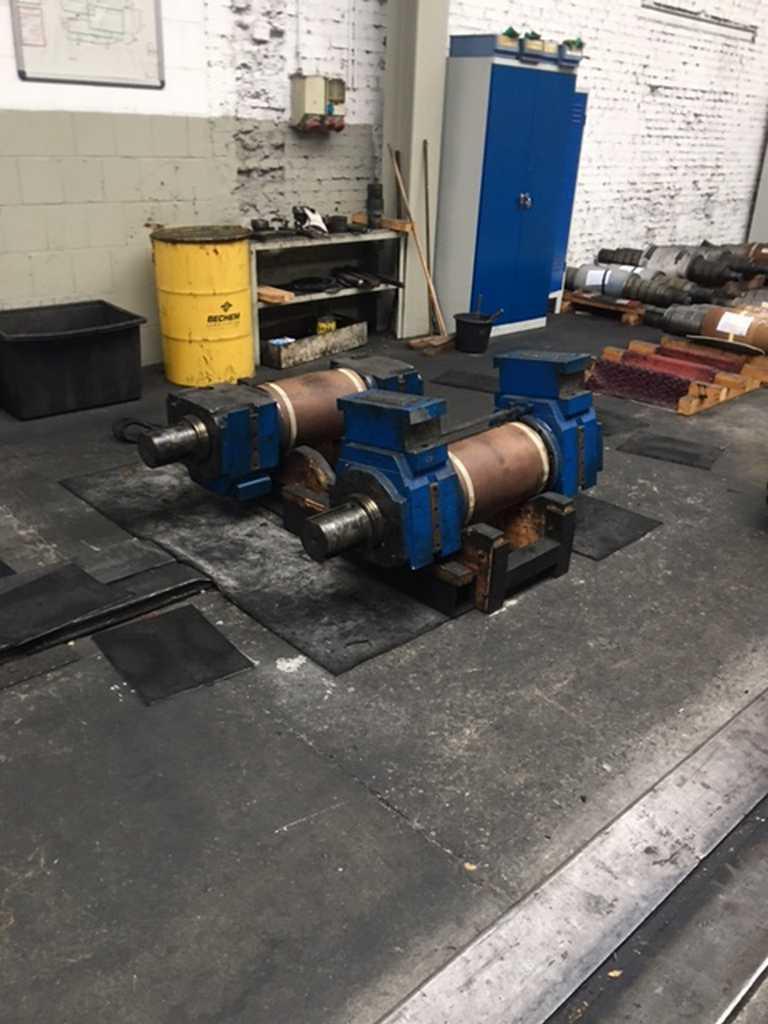

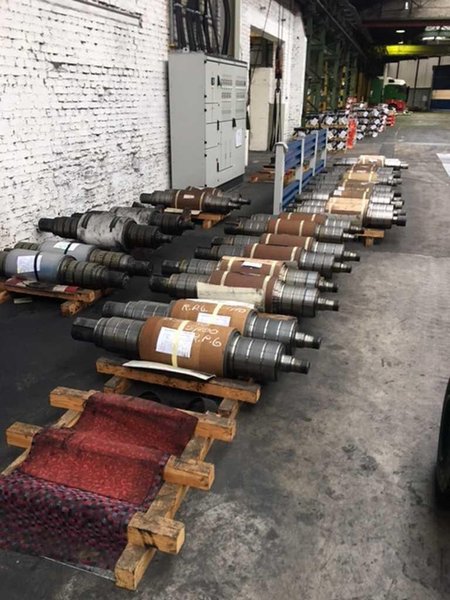

Spare Parts: Div. Rolls, Storage Pieces, Electric & Mechanic
-Reconstruction and Modernization by MDS
-Roll Adjustment Hydraulically
-Strip Thickness Control (position control, roll pressure control
return control analogue/digital incl. Cm/Cg-valuation
Skin Pass Measurement, Skin Pass Control, Position Sensor,
Hydraulic Electrical Converter for the roll force measurement,
VSPC Software, 2 Channel.
-Outlet Guide (left Mill Side)
-Oscillating Cleaning Device
-Recoiling Station (Gearbox, Recoiling Drum, Coil Displacement, Band Pressing
Device)
-Paper Decoiler
-Coil Car
-Coil Magazine

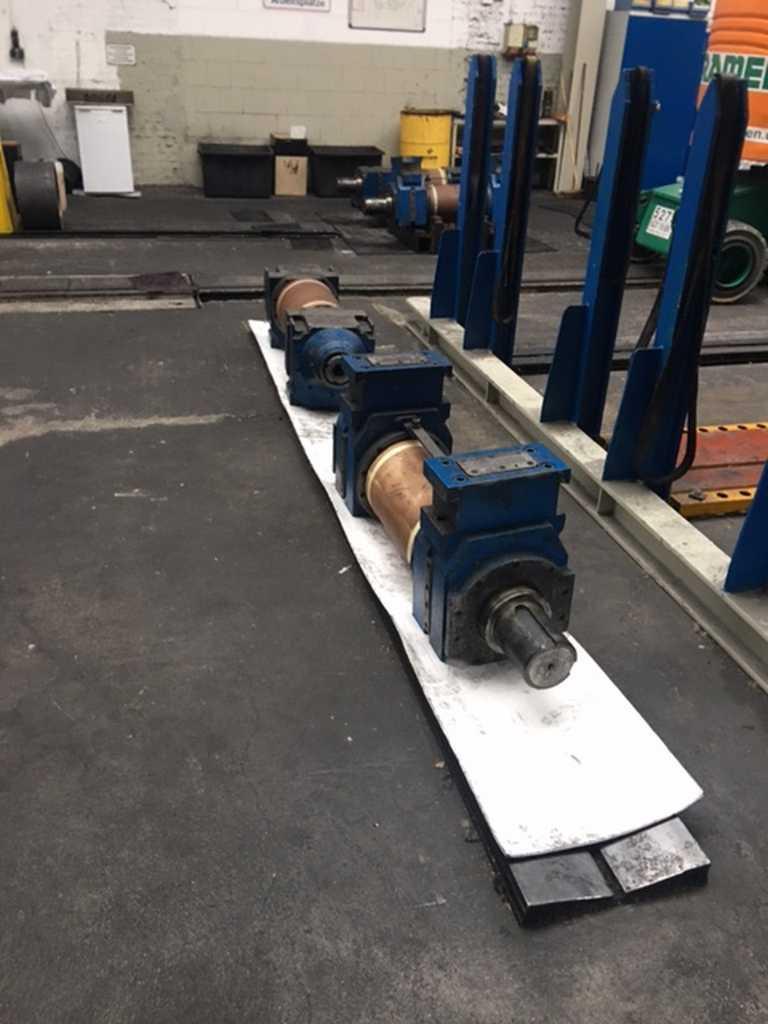

-Spindles
-Hydraulic Balancing
-Conveyor Table

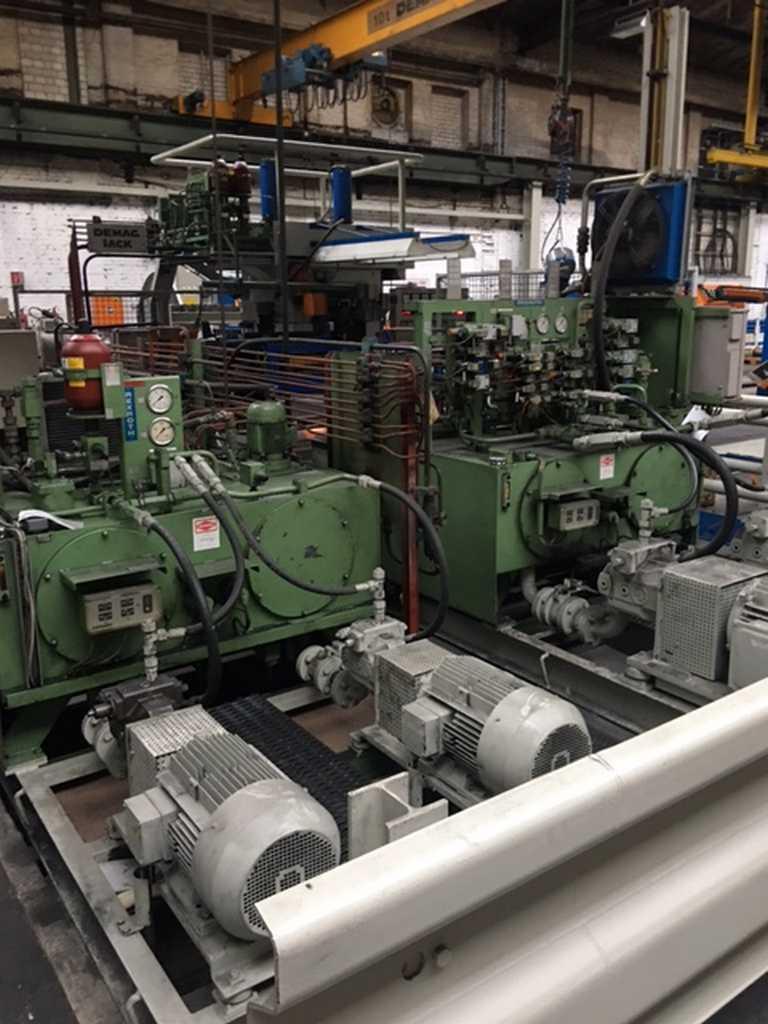

-High Pressure Hydraulic Unit
-Hydraulic Unit with Valve Stand
-Pneumatic
2-Vollmer Measuring Devices
3-Electric AEG PRICE ON REQUEST.. |
