Rect-Cap (H) | 16 inches |
Rect-Cap (W) | 16 inches |
Rounds-Cap | 16 inches |
Power | 7.5 horsepower |
Type (Auto, Manual, Semi) | automatic |
Blade Width | 1.5 inches |
Blade Thickness | .050 inches |
Blade Length | 15 feet |
CNC Control | no |
Dimensions | 90" x 106" x 63" |
Weight | 4850 pounds |
Max Table Load | 5511 pounds |

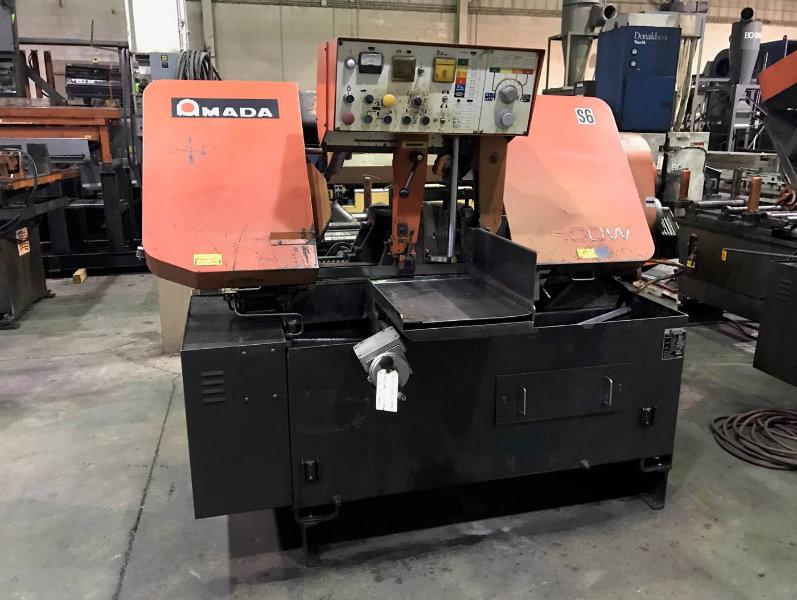

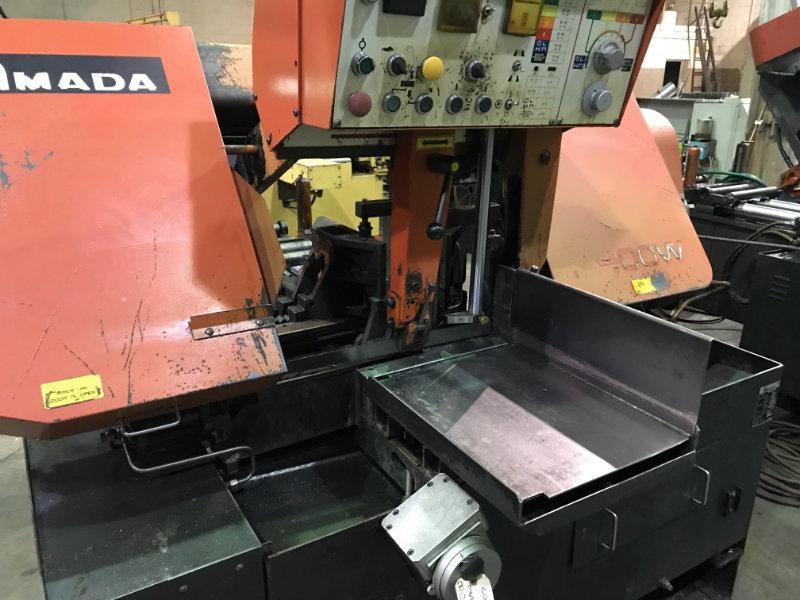

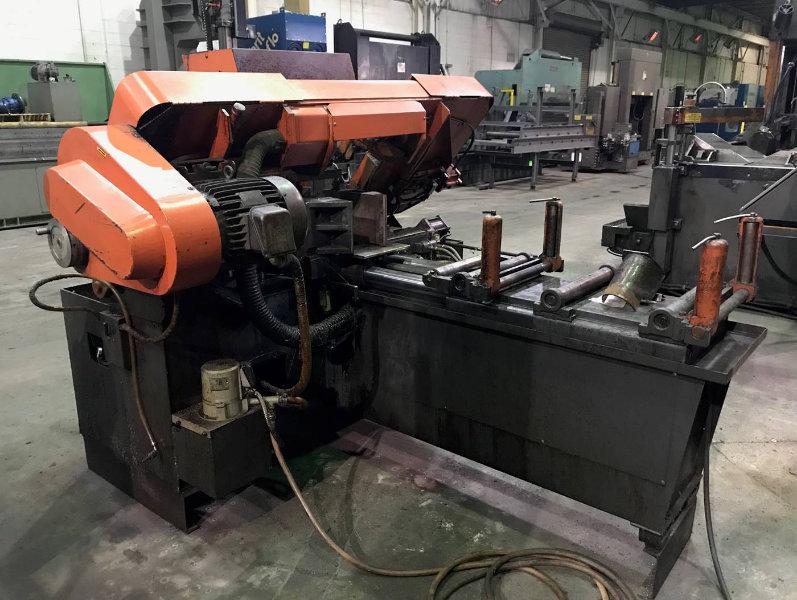

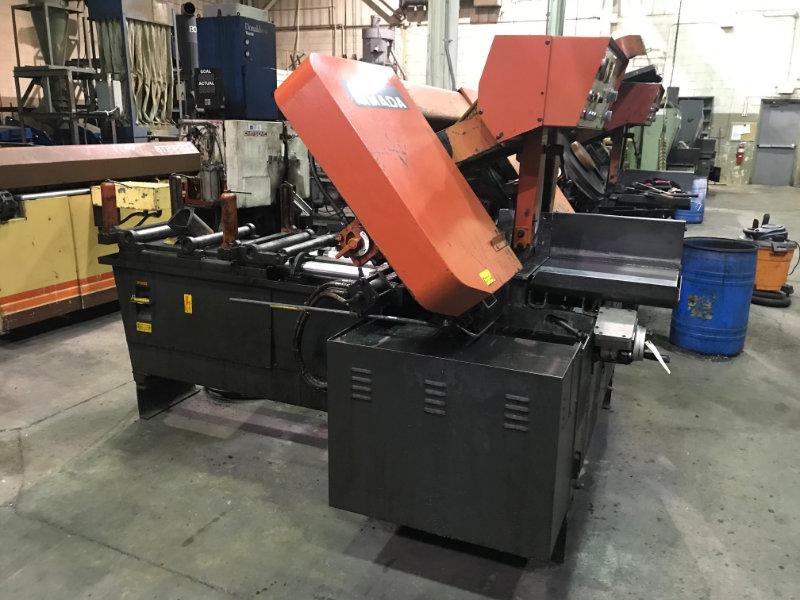

Brand: Amada
Model: HA-400W Specifications: Maximum cutting capacity 90 deg, round: 16" Maximum cutting capacity 90 deg, square: 16" x 16" Blade dimensions: 15' x 1-1/2" x .050" Blade guides: Carbide Guide arm (manual / powered): Manual Blade speeds: 50 - 295 FPM Number of speeds: Infinite Blade motor: 7.5 H.P. Blade drive type: Motor to pulley to gearbox Blade tension type: Hydraulic Hydraulic motor: 2 H.P. Hydraulic Tank Capacity: 31.5 Gallons Coolant motor: 1/4 H.P. Coolant type: Flood Coolant tank capacity: 10.5 Gallons Maximum feed length: 19.6" Number of multi indexes: 9x Table height: 31.5" Maximum weight load: 5,511 Lbs. Vise type: Hydraulic Remnant length: 3" Voltage: 440 volt 3 phase Dimensions: 90" x 106" x 63" Weight: 4,850 Lbs. Equipped with: Length set with hand wheel and has a mechanical length readout Amp meter 4 vertical rollers Wash down hose Blade break switch Out of stock switch Piece counter Powered screw type chip auger Fast approach of blade to cut area Powered chip brush Positive hydraulic down feed Manual/automatic mode We put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor. |
