Dimensions | 55”L x 40”W x 44”H (approx.) |
Tonnage: 102 @ 200 PSI

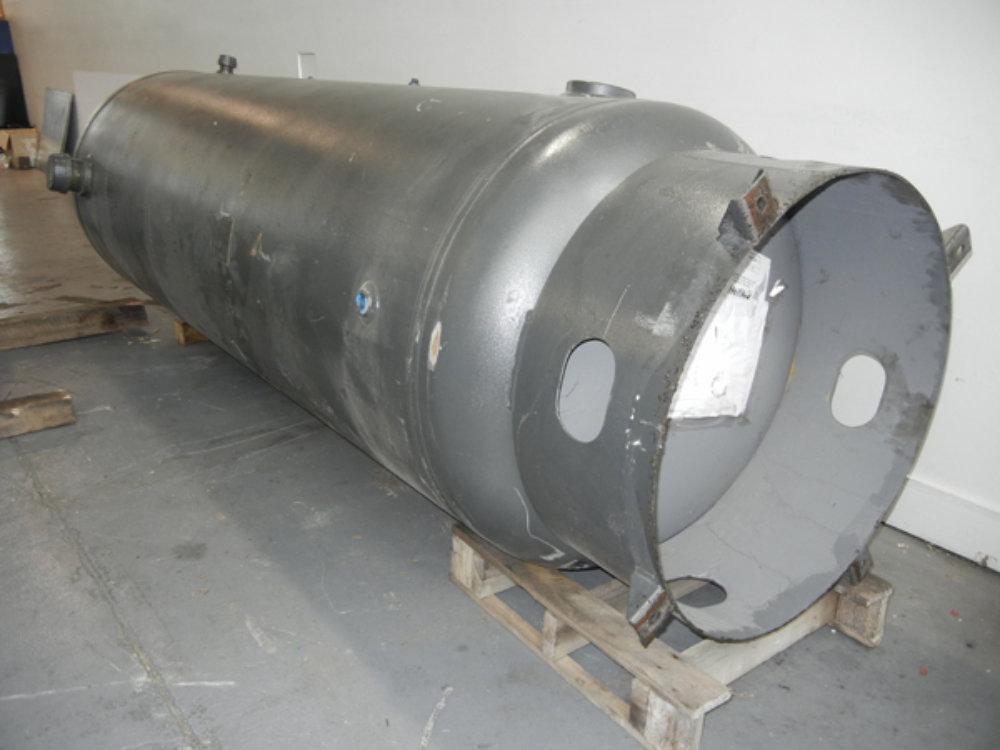

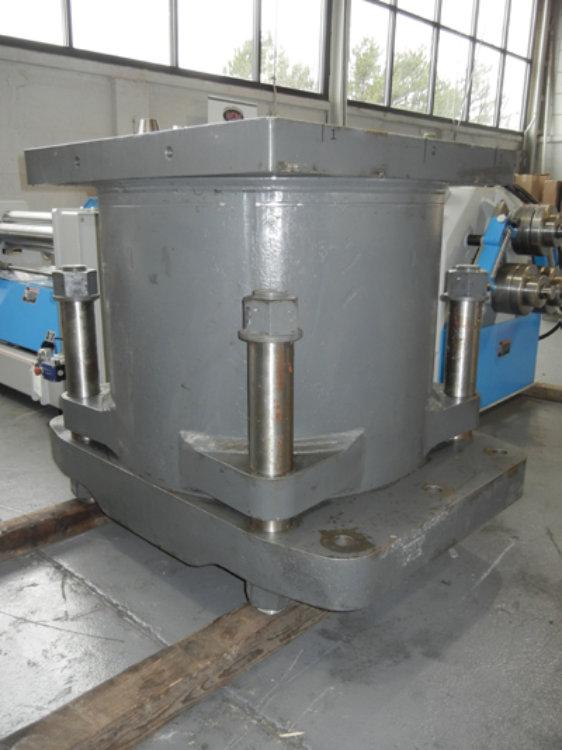

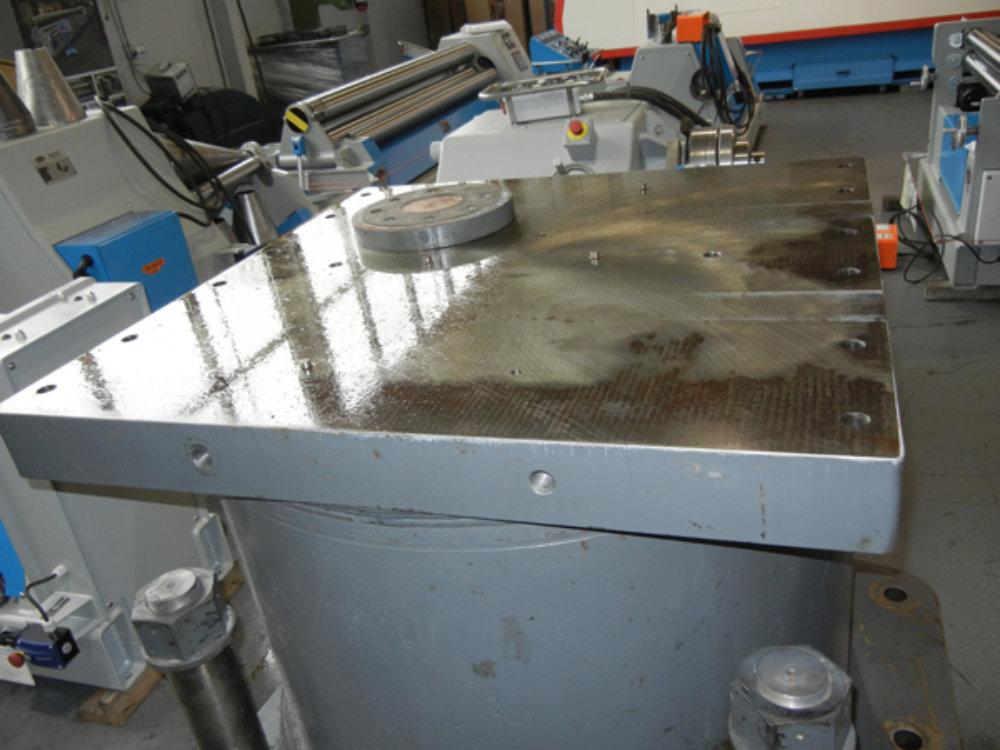

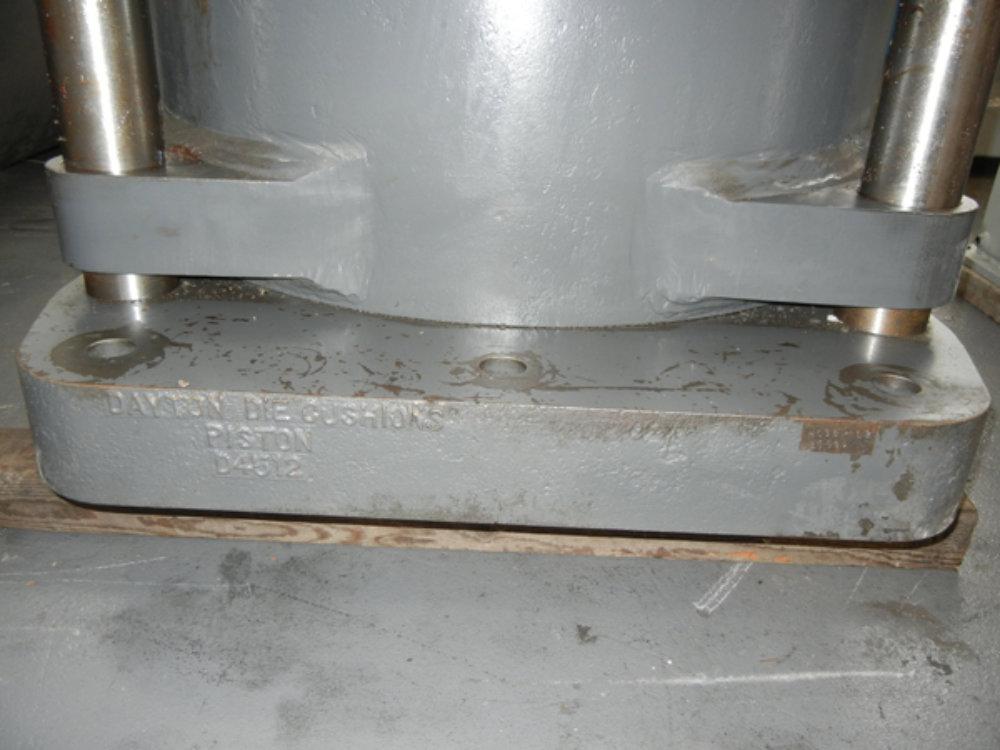

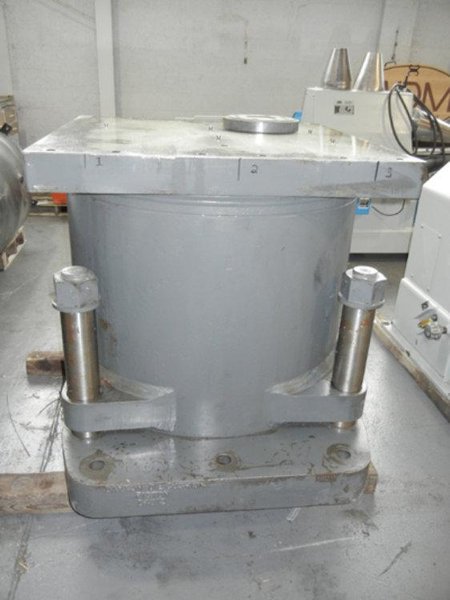

Maximum Pressure: 200 PSI Pin Pad Size: 41" square Mounting Holes: 48"c.c. x 30?"c.c. Stroke: 12" (length) Dimensions: 55"L x 40"W x 44"H (approx.) The Dayton Heavy Duty Pneumatic Die Cushion is built to withstand extremely long, heavy duty stamping and forming operations such as compound blanking, piercing and drawing. It is particularly suitable for use with medium to larger presses and can be fitted singularly or in batteries for larger beds. Excellent internal or "self-guiding" is accomplished by extra overlap between the cylinder and piston, even at the top of the stroke. It is also collapsible whenever a cushion is not needed. Equipped With: Manchester tank 500 gallon vertical air receiver tank rated to 250 PSI (36"W x 116"L) 36" diameter cast iron piston "AS IS" * Cushion and tank are in "like new" condition and have never been used! |
