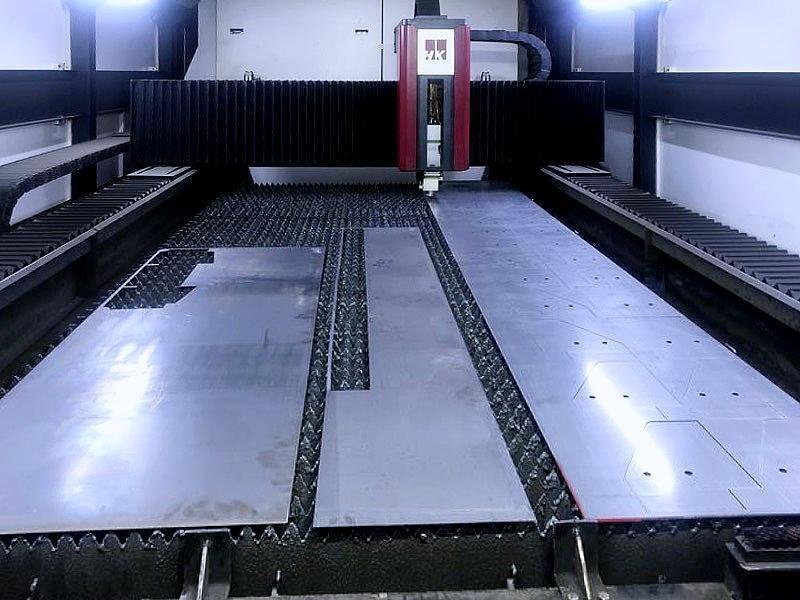

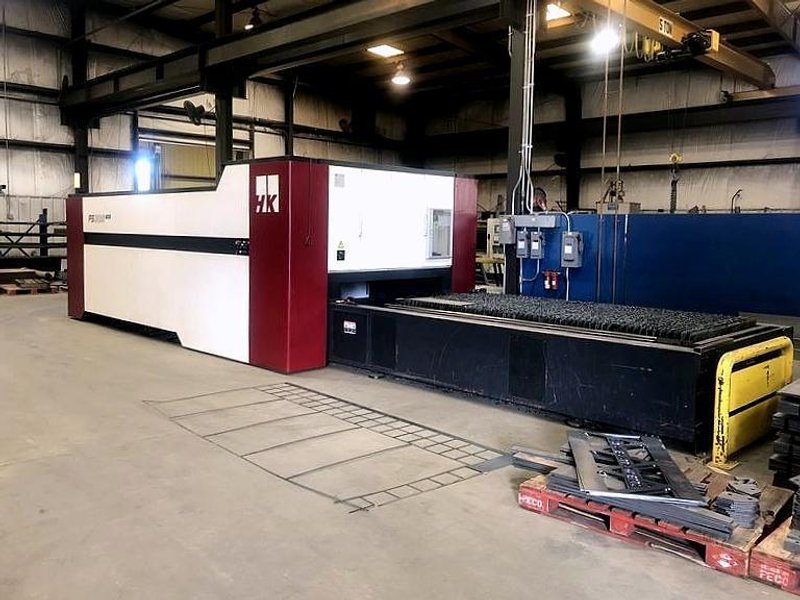

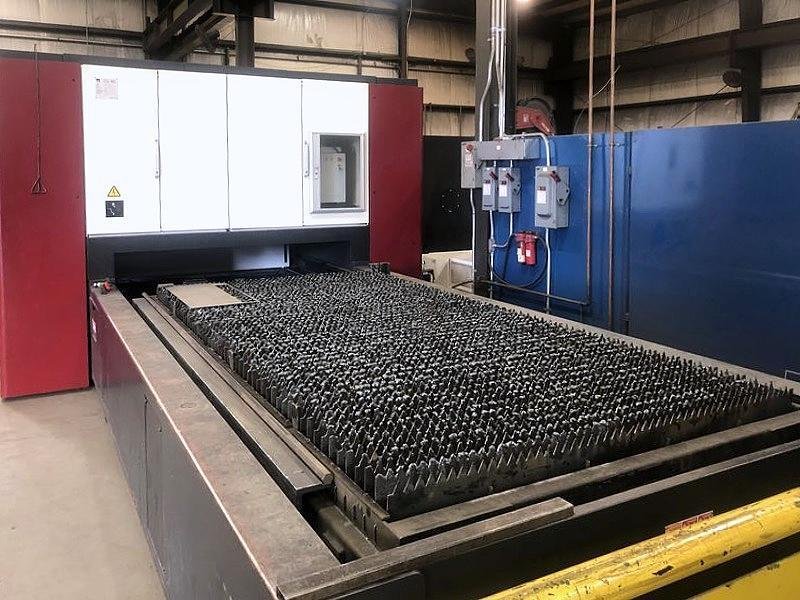

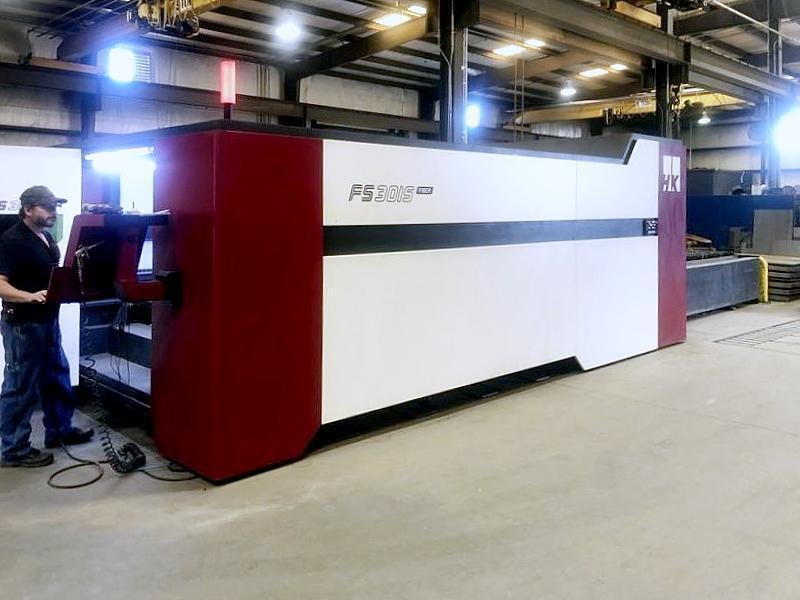

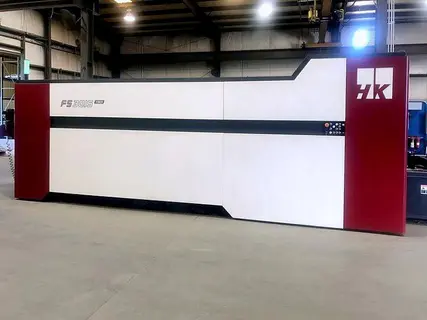

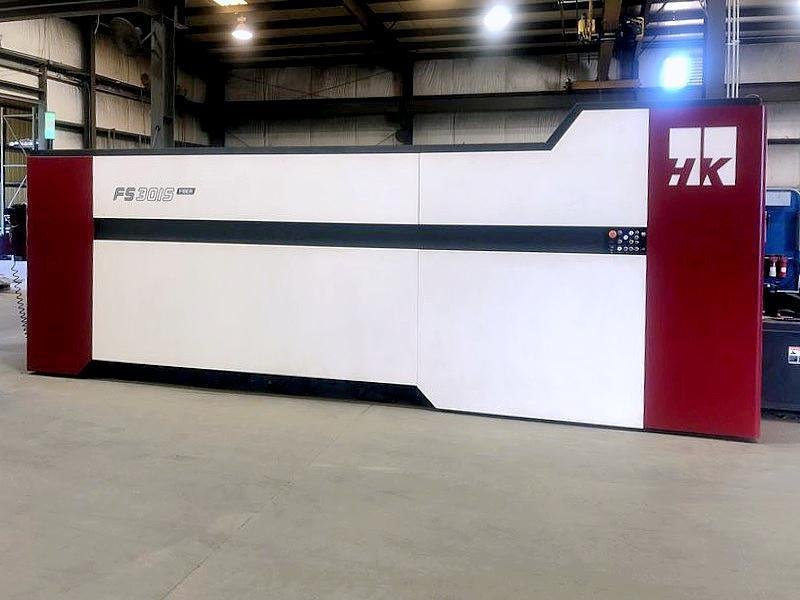

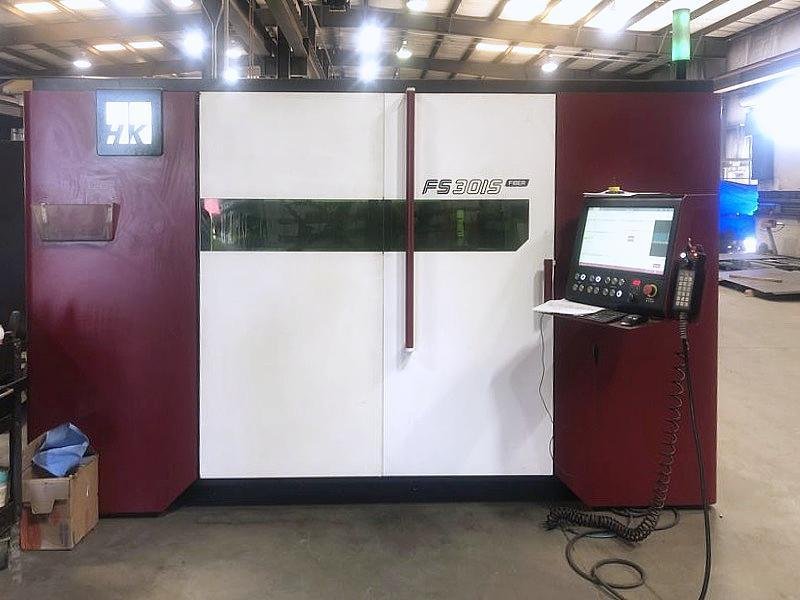

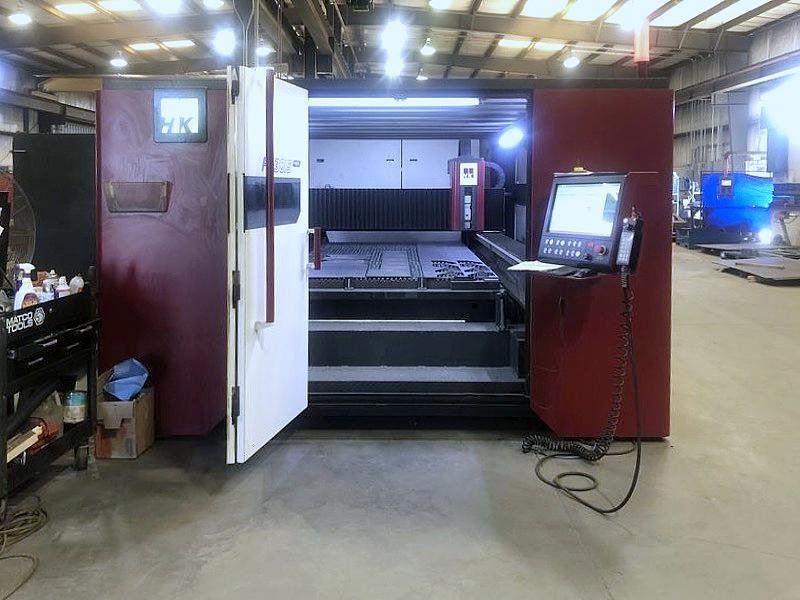

HK FS3015F (2018) Fiber Laser
Brand
Category
Type
Model
FS3015F
Stock #
100234
Year
2018
Condition
Not specified
Location
Not specified
| Laser Power | 2.5kw Fiber |
| Max Cutting Size | 121” x 61” |
| Positioning Speed | 4200 IPM (X & Y Axis Combined) |
| Accuracy | +/-0.0039” Over 120” Travel |
| Repeatability | 0.001” |

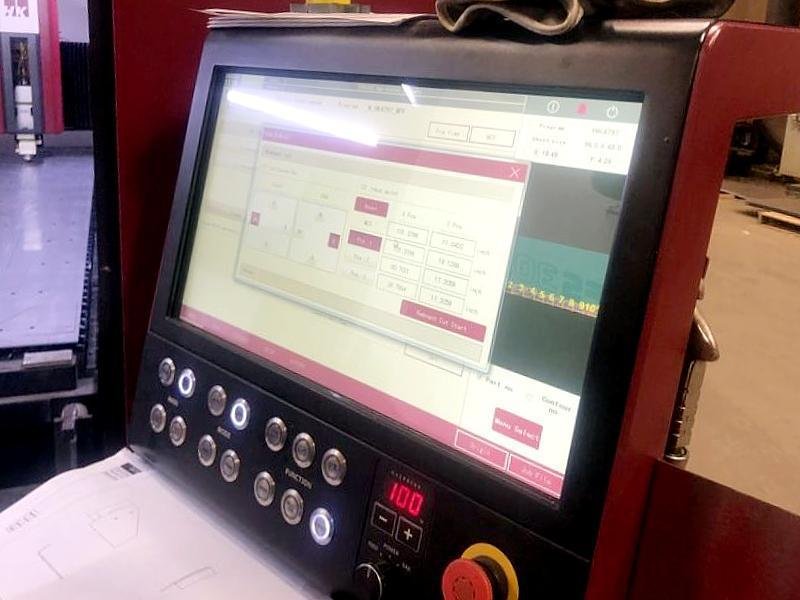

| Controller | Siemens SINUMERIK 800 Series |
| Monitor | 19” Touch Flat Touch Screen |
| Cutting Head | Auto Focus Control |
| Head Sensing | Non-contact Capacitive Sensing |
| Focal Length | 5.90” (150mm FL) |
| Assist Gas Port | Two(2) – Oxygen, HP Nitrogen |
| Data Communication | USB, Ethernet LAN |
| Machine Weight | 34,000 Lbs. |
| Electric Consumption | 38KW Including Dust Collector |
| Mild Steel | 0.625” (5/8”) |
| Stainless Steel | 0.315” (5/16”) |
| Aluminum | 0.250” (1/4”) |
|
Equipped With: |
|
