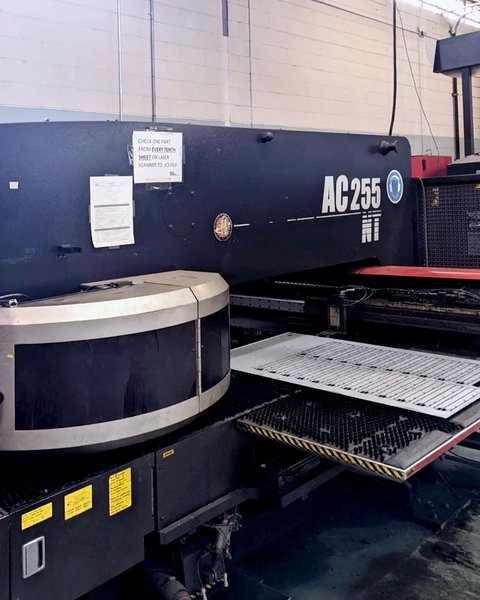

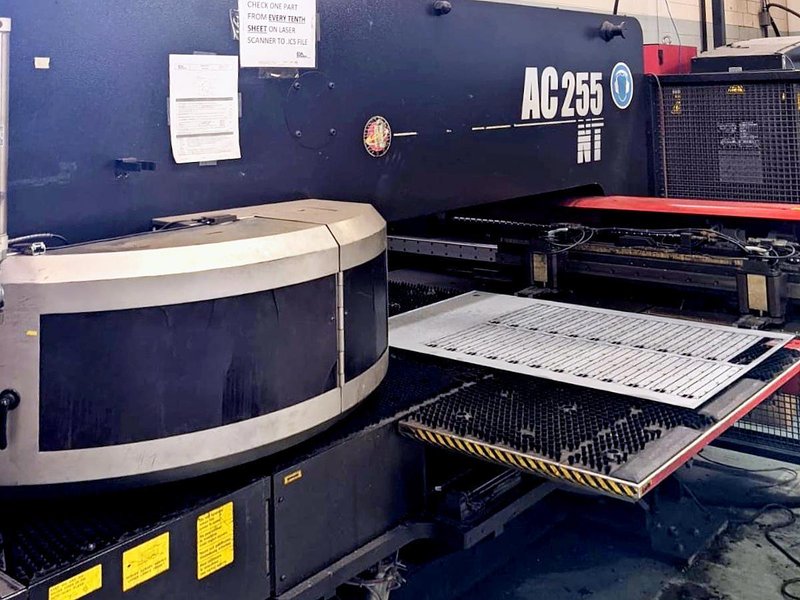

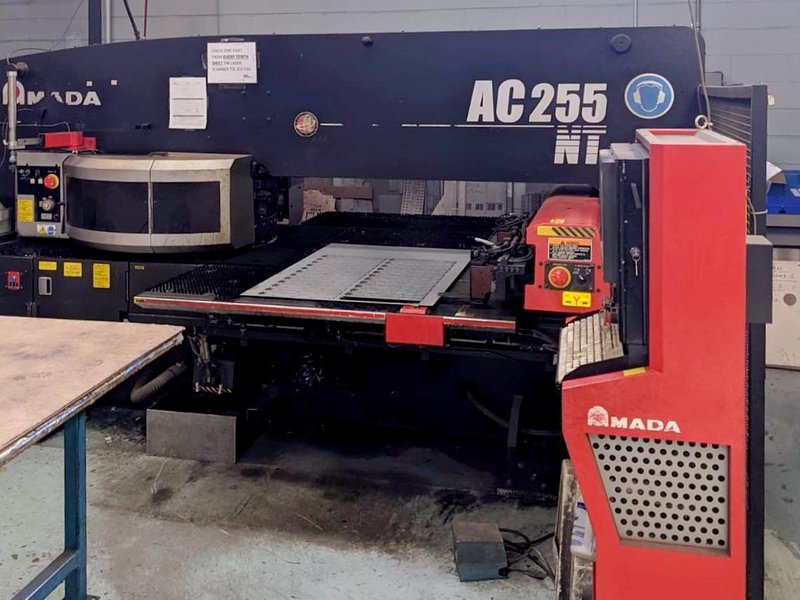

Amada AC255 NT (2009) AC Servo Turret
Brand
Category
Type
Model
AC255 NT
Stock #
100208
Year
2009
Condition
Good
Location
Ontario
| Tonnage | 22 tons |
| # Turret Stations | 51 |
| CNC Control | yes |

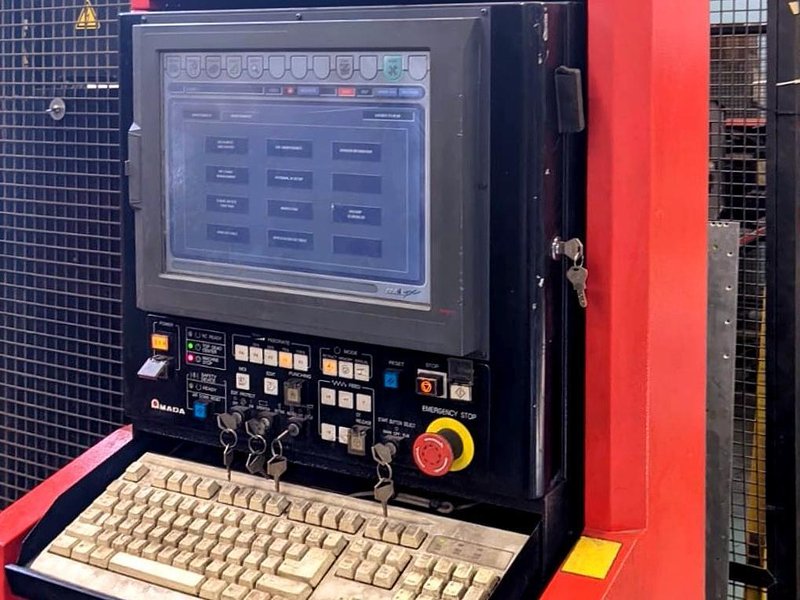

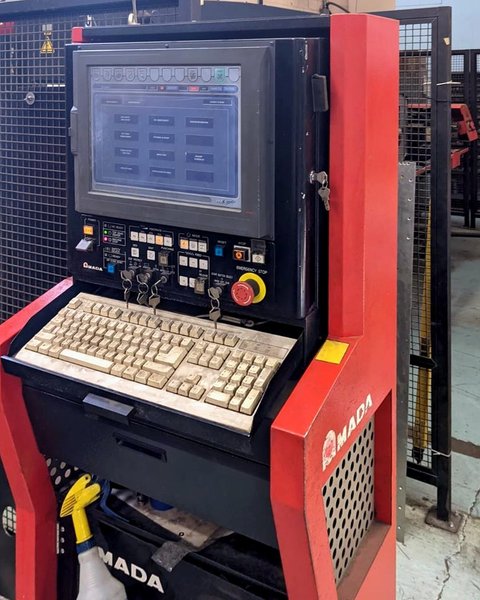

| Type of CNC Control | Fanuc AMNC NT CNC |
| Dimensions | L162” x W101” |
| Weight | 26400 pounds |
| Sheet Size Capacity | 4' x 8' w/ Repositioning |
| Travel Range | 50” x 50” w/o Repositioning |
| Throat Depth | 50" |
| Max Stroke Length | 1.65" |
| Type of Turret Tooling | Amada Thick |
| Type of Frame Design | Bridge Frame |
| Press Drive System | Single Motor AC Servo |
| Max Material Thickness | 0.126˝ |
| Punching Accuracy | ± 0.004˝ and ± 0.002˝ |
| Turret Rotation Speed | 30 RPM |
| Auto-Index Rotation Speed | 60 RMP |
| Max Feed Rate X axis | 3,150 IPM |
| Max Feed Rate Y axis | 2,362 IPM |
| Max Weight of Material F1 Speed | 110 lbs. |
| Max Weight of Material F4 Speed | 331 lbs. |
| Max Hit Rate X Axis | 370 HPM |
| Max Hit Rate Y Axis | 275 HPM |
| Power Requirement | 19 kVA |
| Max Air Consumption | 2.7 Cubic Feet |
|
Equipped With: Fanuc AMNC NT CNC Control 58 Station Thick Turret 4 Auto Index Stations AC Servo Electric Ram Electric Foot Switch Brush Table Deformation Sheet Sensors Slug Removal |
|
