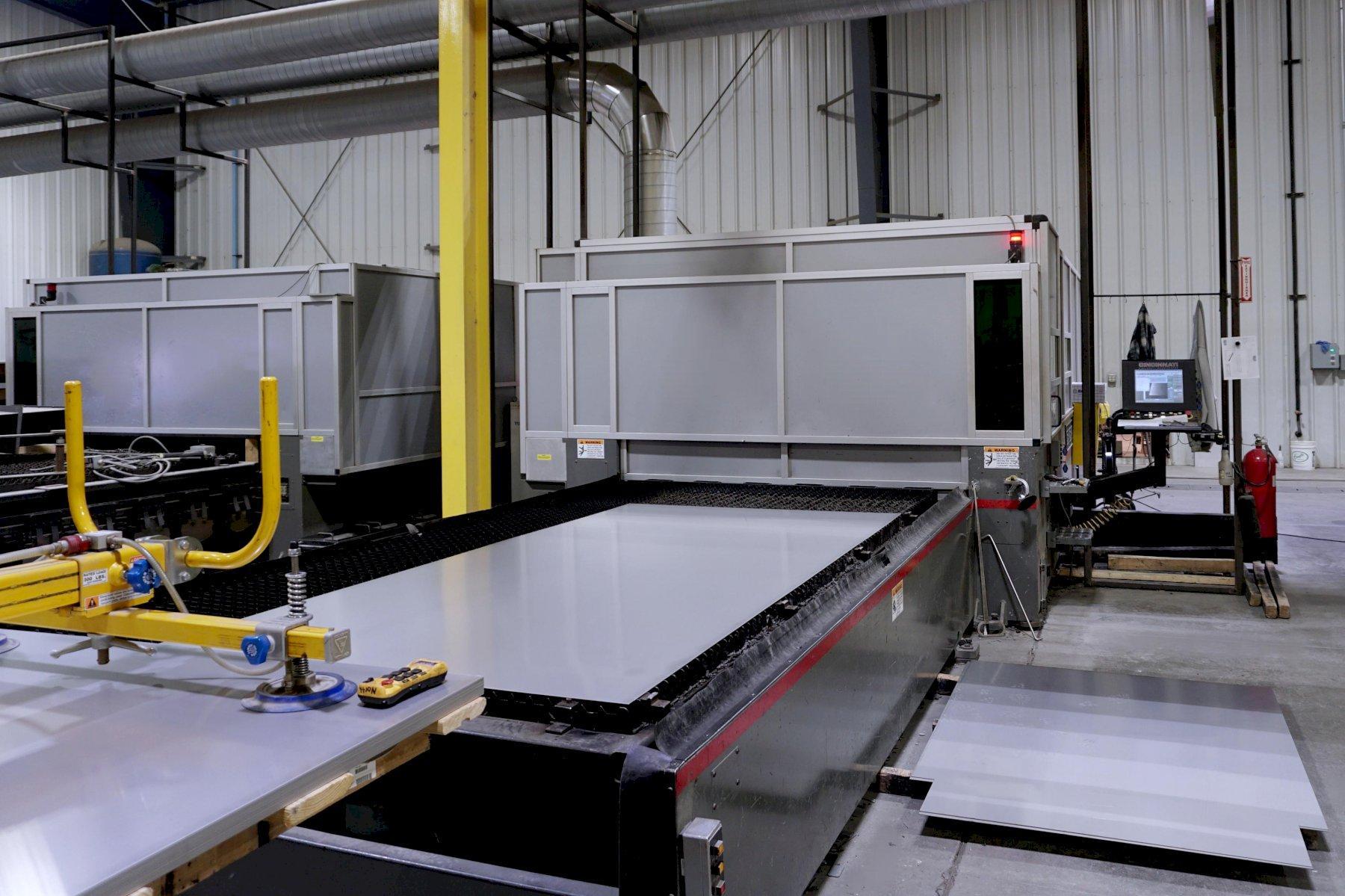

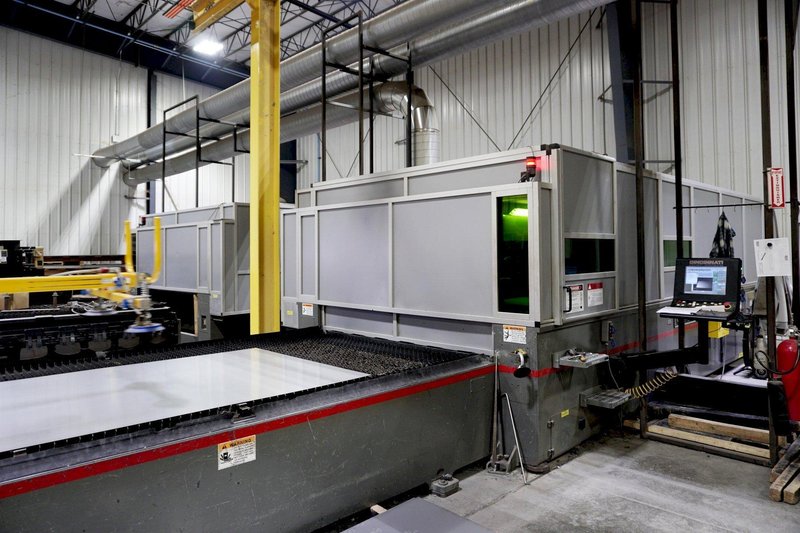

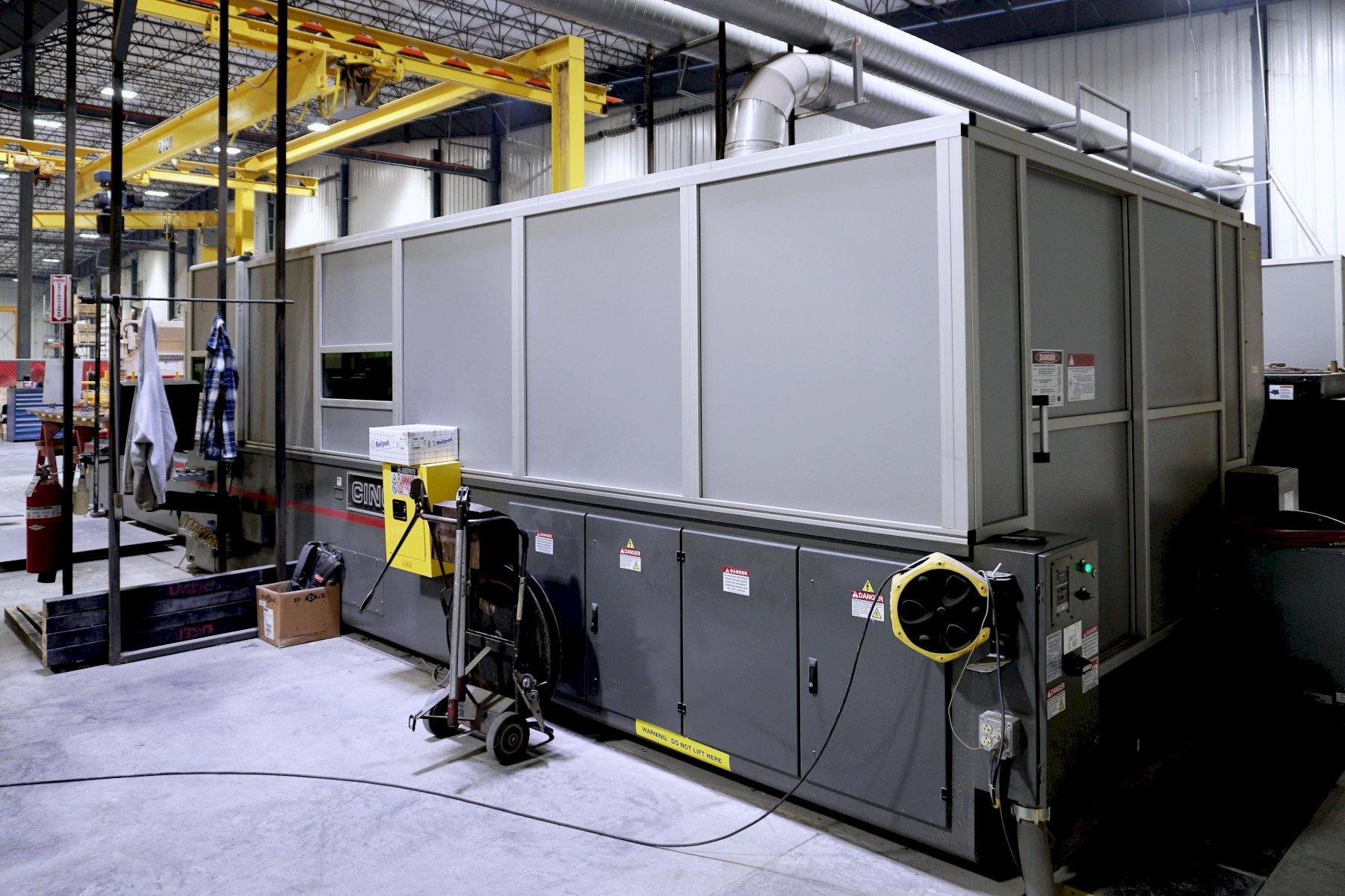

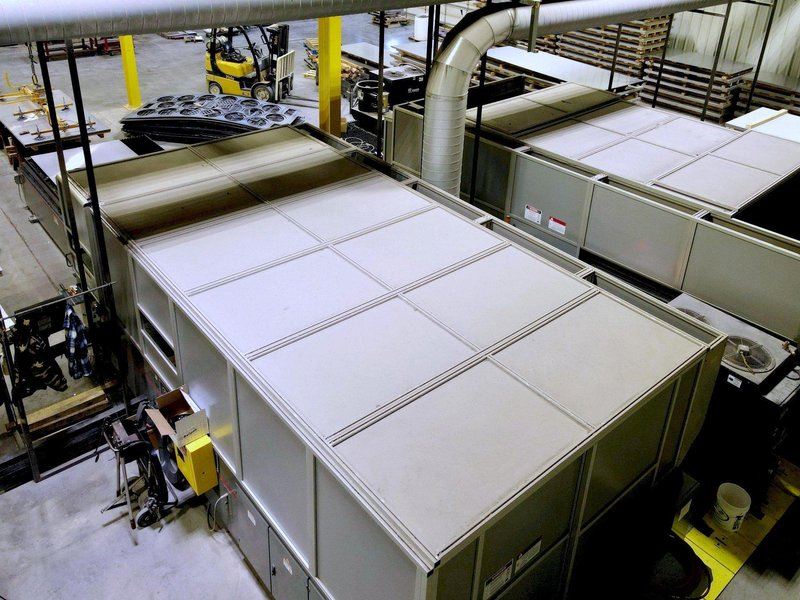

Cincinnati CL 940 6’ X 12’ 4KW Fiber Laser
Brand
Category
Type
Model
CL 940 Fiber
Stock #
100206
Year
2014
Condition
Excellent
Location
Not specified
| Sheet-W | 72 inches |
| Sheet-L | 144 inches |
| Wattage | 4000 horsepower |
| X-Travel | 158.5 inches |
| Y-Travel | 79.75 inches |
| Z-Travel | 10 inches |
| CNC Control | yes |

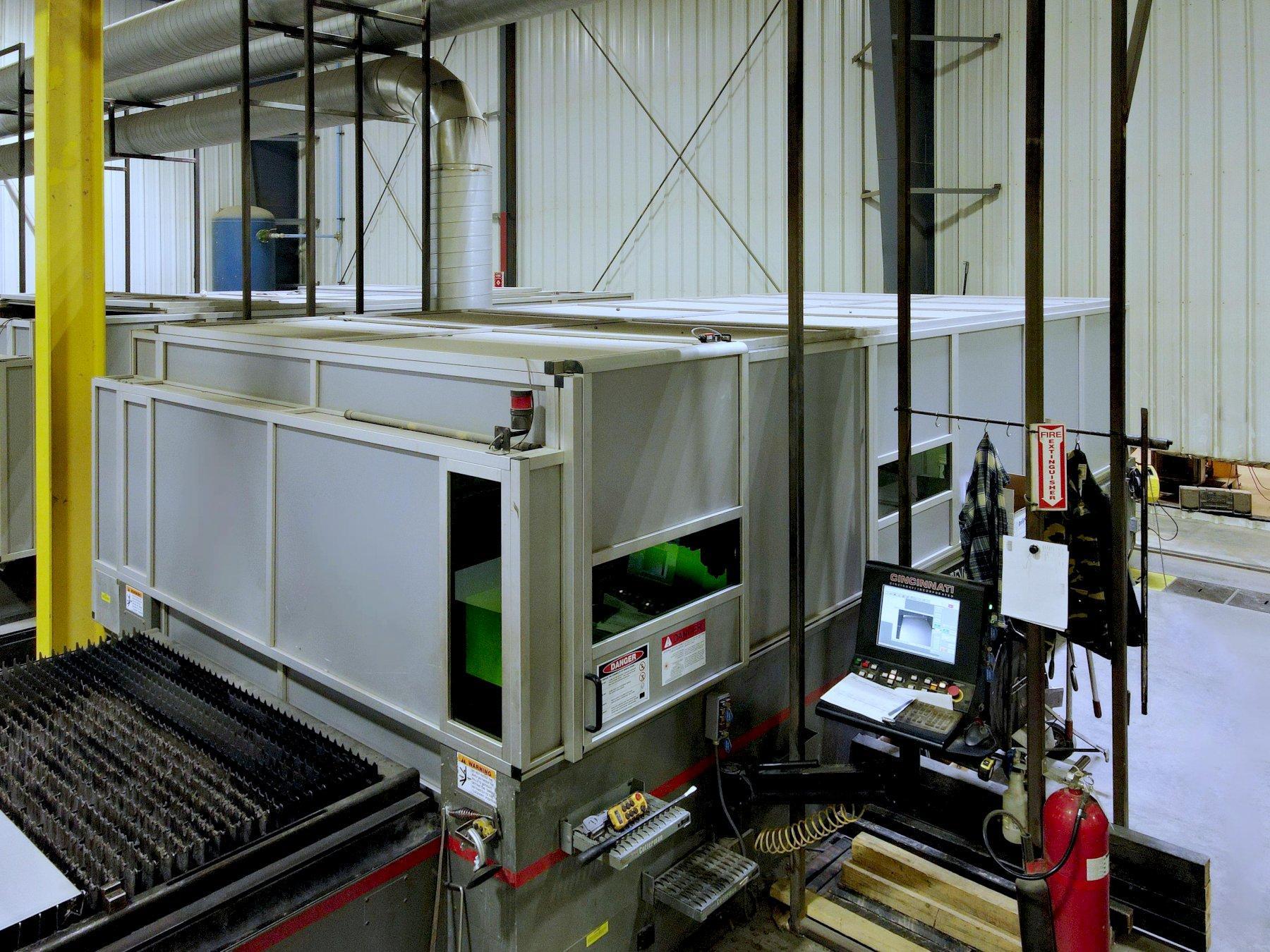

| Type of CNC Control | Cincinnati Touch Screen CNC |
| Dimensions | L 455" X W 143.2" X H 104” |
| Weight | 42200 pounds |
| Resonator Type | Fiber |
| Resonator Make | IPG |
| Power | 4,000 Watts |
| Table Load Capacity | 3,949 Lbs |
| Travels X Axis | 148" |
| Travels Y Axis | 74" |

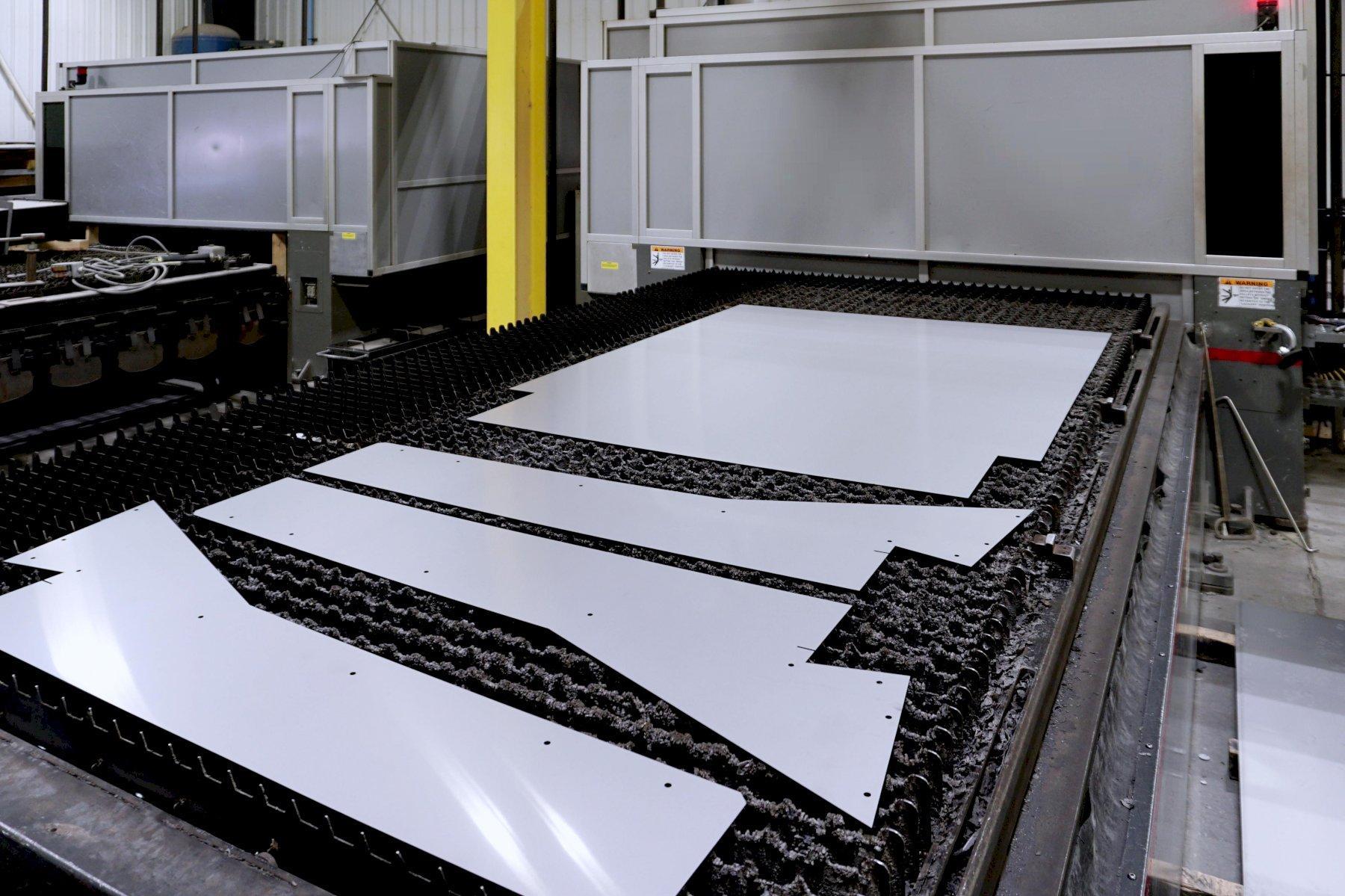

| Table Type | Dual Pallet System |
| Number of Tables | 2 |
| Positioning System Design | Flying Optic |
| Positioning Speed | 12,000 IPM |
| Rapid Traverse X & Y Axis | 8,500 IPM |
| Rapid Traverse X & Y Axis Simultaneous | 12,020 IPM |
| Rapid Traverse Z Axis | 1,700 IPM |
| Acceleration X And Y Axis | 1.65 G |
| Acceleration Z-Axis | 2.00 G |
| Absolute Positioning X & Y Axis | +/- 0.001" |
| Repeatability X & Y Axis | .001" |
| Voltage | 460V ~ 3 Phase |
|
Equipped With: 4000 Watt Fiber Laser Source 6' x 12' Dual Pallet Shuttle Tables Capacitive Cutting Head A/C Brushless Permanent-Magnet Linear Servo Motors Dual Pallet Cutting Tables Sheet Edge Detection Air Cooled Chiller Fume Blower |
|
