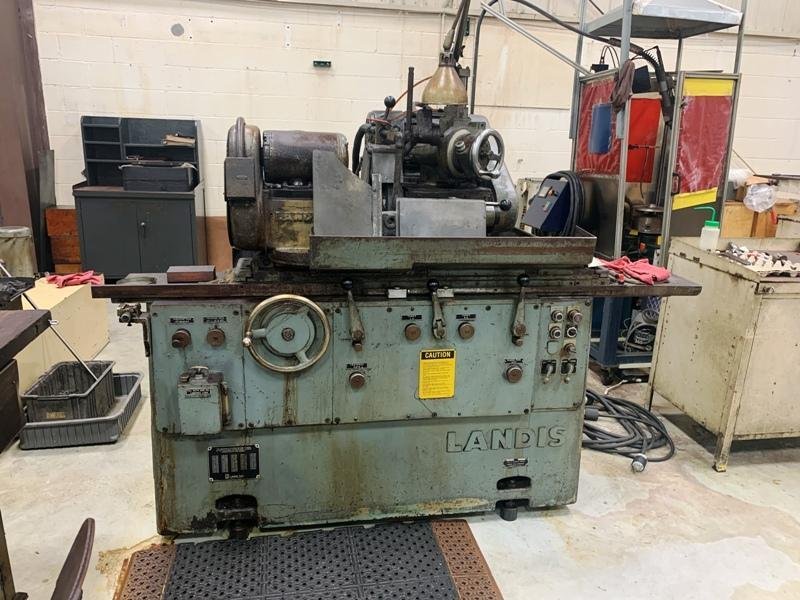

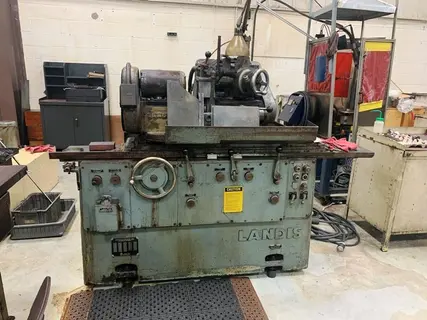

10" x 20" LANDIS MODEL 1R UNIVERSAL CYLINDRICAL GRINDER
Brand
Category
Model
1R
Stock #
16688
Year
1980
Condition
Excellent
Location
Illinois
|
10" x 20" LANDIS MODEL 1R UNIVERSAL CYLINDRICAL GRINDER
New 1980 SPECIFICATIONS: Nominal swing over table ..................... 10" Max. swing over table ......................... 10-7/8" Distance between centers ...................... 20" Hydraulic table traverse ...................... 2" TO 240" IPM Traverse per turn of handwheel ................ 0.200" Traverse handwheel graduations ................ 0.001" Swivel table gradauted ........................ 20 deg,, 4" per foot Wheelhead : Wheelehead swivels left & right of center..... 90 DEG. Max wheel size ............................... 12" x 3" Max. hydraulic infeed - on diameter .......... 0.090" Rapid infeed stroke .......................... 1" Min. feed graduations - on diameter .......... 0.000050" Work diam. reduction per rev of handwheel .... 0.100" Work diam. per rev. of fine feed knob ........ 0.001" Wheelhead motor .............................. 5 HP Workhead: Workhead swivels toward wheelhead ............ 90 deg. Workhead swivels away from wheelhead ......... 30 deg. Workehead spindle speeds (6) ................. 60 TO 600 RPM Workehad spindle nose ........................ A2-5" Workhead motor ............................... 1/4 HP Approximate weight ............................ 4,150 LBS Approximate dimensions ........................ 8'L X 4'W X 6'6"HT EQUIPPED WITH: Universal workhead and universal wheelhead Hydraulic table traverse Auto infeed @ table reversals Auto plunge feed Power rapid wheelhead advance & retraction Sparkout timer Hard film microsphere spindle bearings Coolant system with pump |
