OKUMA MX50HB CNC HORIZONTAL MACHINING CENTER
Brand
Category
Model
MX50HB
Stock #
16677
Year
1998
Condition
Used
Location
Illinois
| CNC Control | yes |
| Type Of CNC Control | OSP U100M |
| Pallet-W | 19.6 inches |
| Pallet-L | 19.6 inches |
| Pallet Indexing (B-Axis) | 1 degree |
| X | 27.5 inches |
| Y | 31.5 inches |
| Z | 27.5 inches |
| Spindle Speed | 5000 rpm |
| Coolant Through Spindle | no |
| Power | 30 horsepower |
| # ATC | 60 |
| Taper | 50 |
|

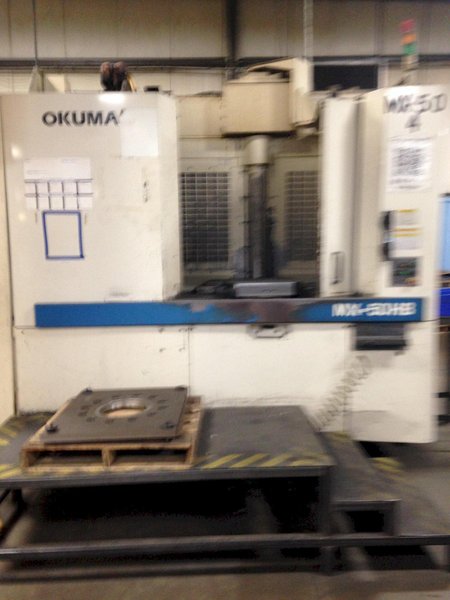

OKUMA MX50HB CNC HORIZONTAL MACHINING CENTER
NEW - 1998 SPECIFICATIONS
Control.............................................. OSP U100M
X-Axis Travel ................................... 27.50"
Y-Axis Travel ................................... 31.50"
Z-Axis Travel ................................... 27.5"
Number of Pallets ........................... 2
Pallet Size ...................................... 19.6" x 19.6"
Pallet Indexing ............................... 1 Degree
Spindle Speed Range .................... 50-5,000 RPM
Spindle Taper ................................. CAT 50
Tool Changer Positions................... 60 ATC
Spindle Drive Motor ....................... 30 HP AC
Rapid Traverse (X,Y,Z) .................. 1,181 IPM
Feed Rate...................................... 0.04 - 787 ipm
Tool Change Time
Chip to Chip................................ 5 sec
Tool to Tool.................................. 2 sec
EQUIPPED WITH: Dual Pallet One Degree Indexing Floor Space (L X W X H)................ 197" X 138" X 128"
Weight (Approx)............................... 33,500 lbs
|
|
