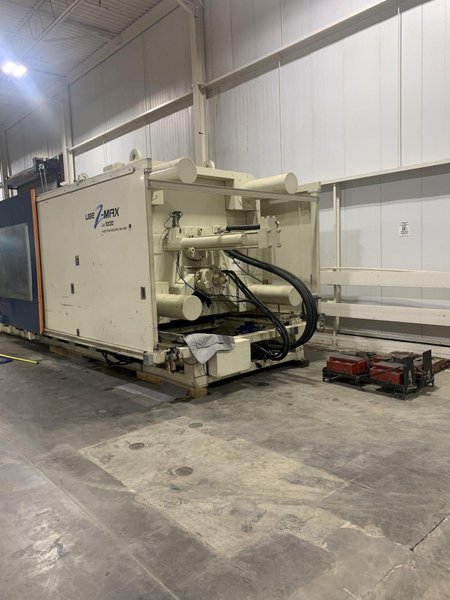

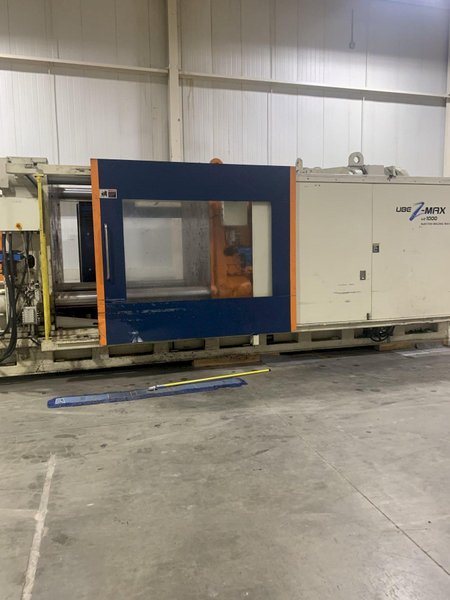

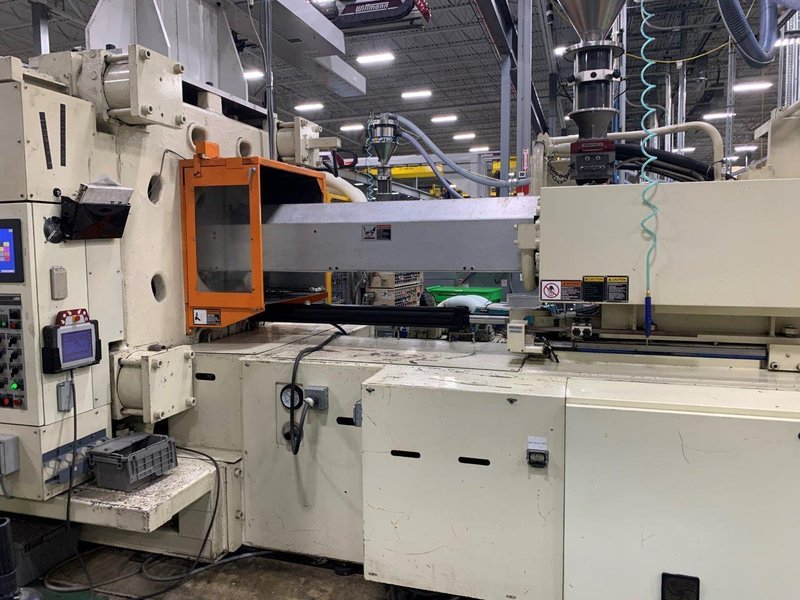

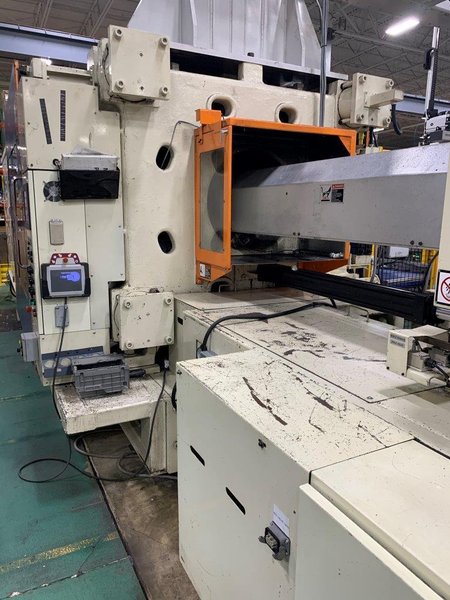

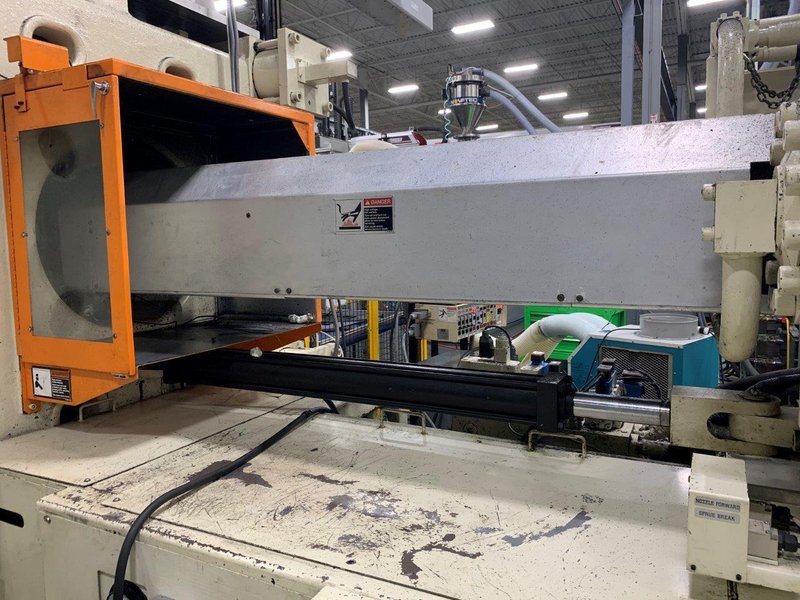

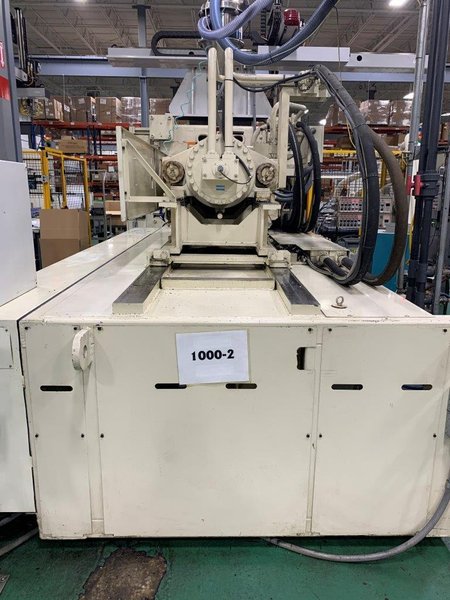

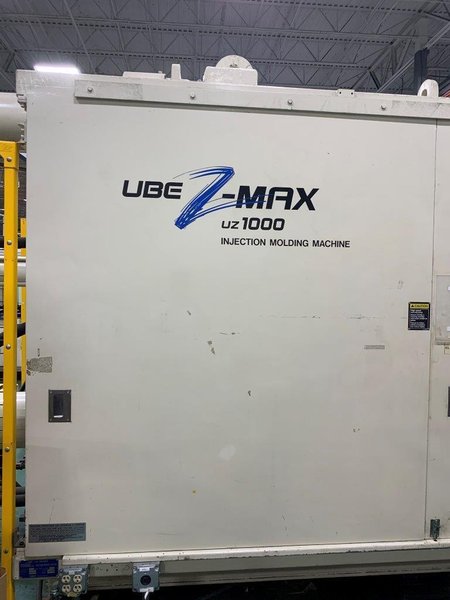

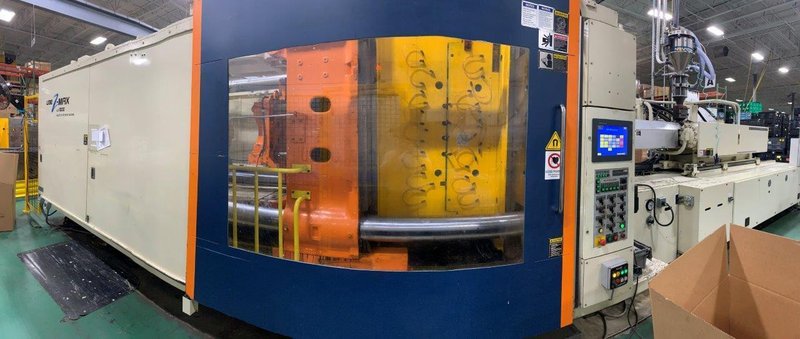

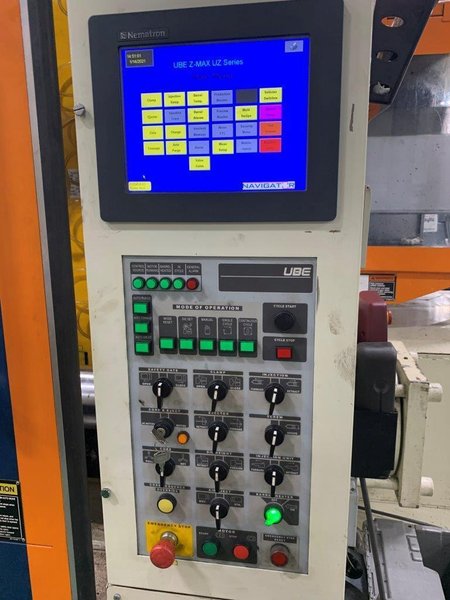

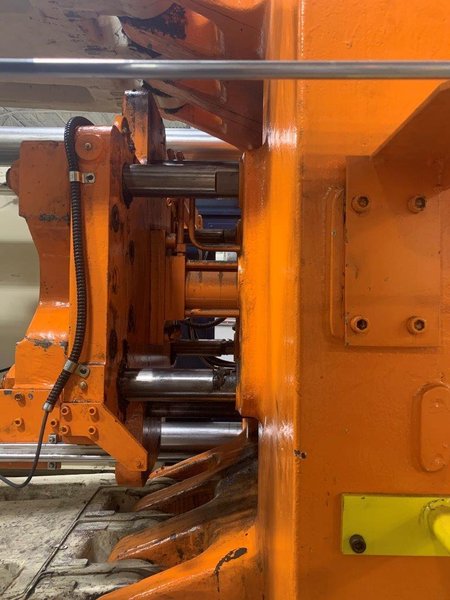

UBE Used UZ1000 Injection Molding Machine, 1000 US ton, 148 oz.
Brand
Category
Model
UZ1000
Stock #
9282
Year
2013
Condition
Used
Location
Not specified
| Manufacturer | UBE |
| Year | 2013 |
| Model | UZ1000 |

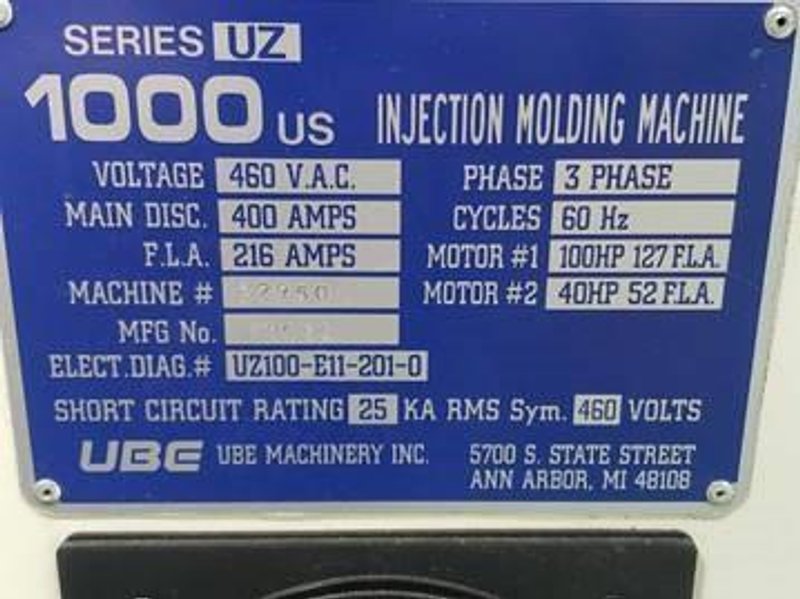

| Voltage | 460V |
| Shot Size | 148 oz |
| Clamping Force | 1000 US ton |
| Tie Bar Spacing | 60" x 50" |
|
Injection capacity: 277.96 cu cm

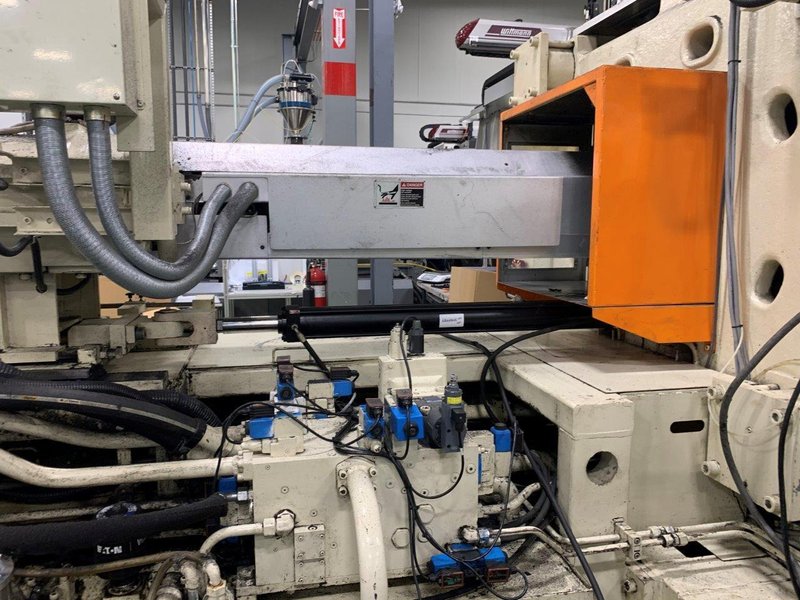

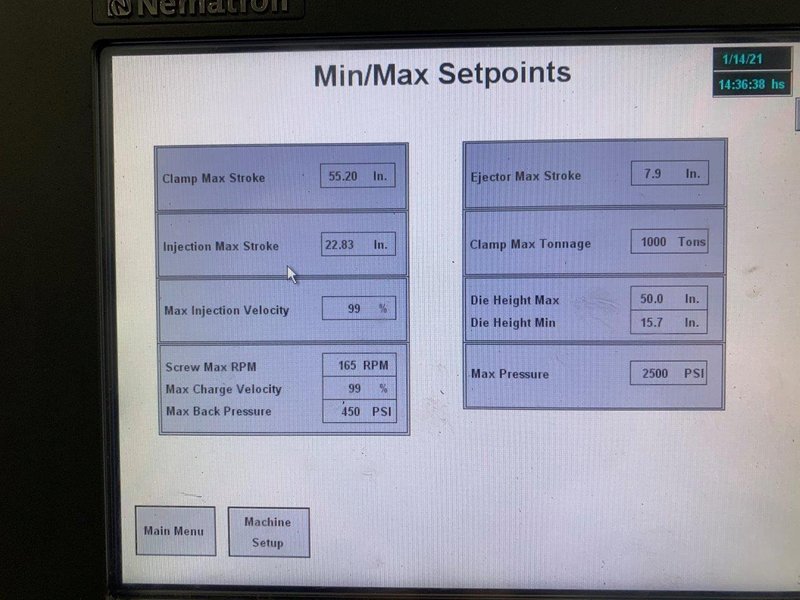

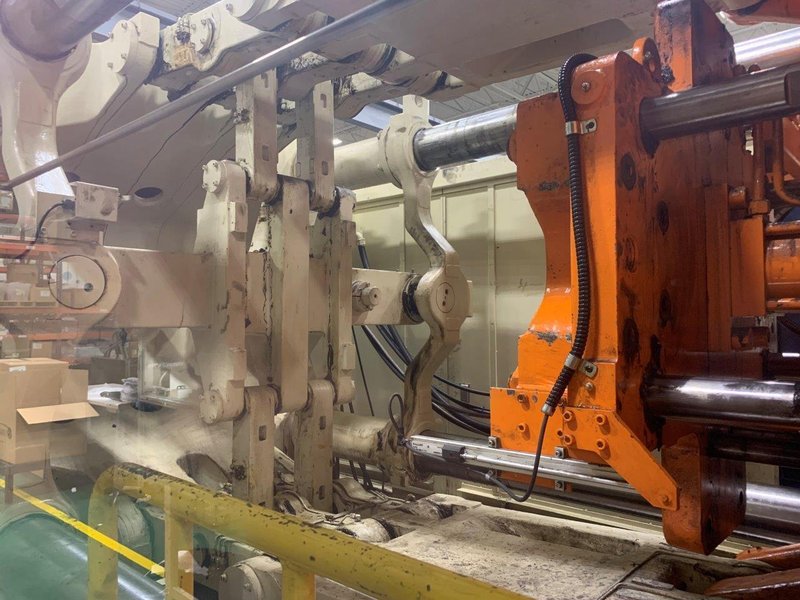

Injection pressure: 24.860 psi Screw diameter: 100mm Clamp style: toggle Platen size: 76.92" x 66.92" Clamp stroke: 55.11 Min mold height: 52.75 Max mold height: 19.69 Equipped with: hydraulic knock outs; four(4) circuits core pull; two(2) circuits air blow; SPI robot interface; servo clamp control; six(6) pneumatic valve gates Clamp equipped with servo valve control system. Injection end: New Hagglund high speed hydraulic screw motor Injection Capacity: Machine equipped with A size barrel. Machine can be up sized to B size, 4.41 in, 185 oz capacity Service Tech Start-Up Included Dimensions: 506" L x 143"W x 111"H Weight: 114,000 lbs |
|
Files
Watch https://youtu.be/Ean0ZjlHA7c
