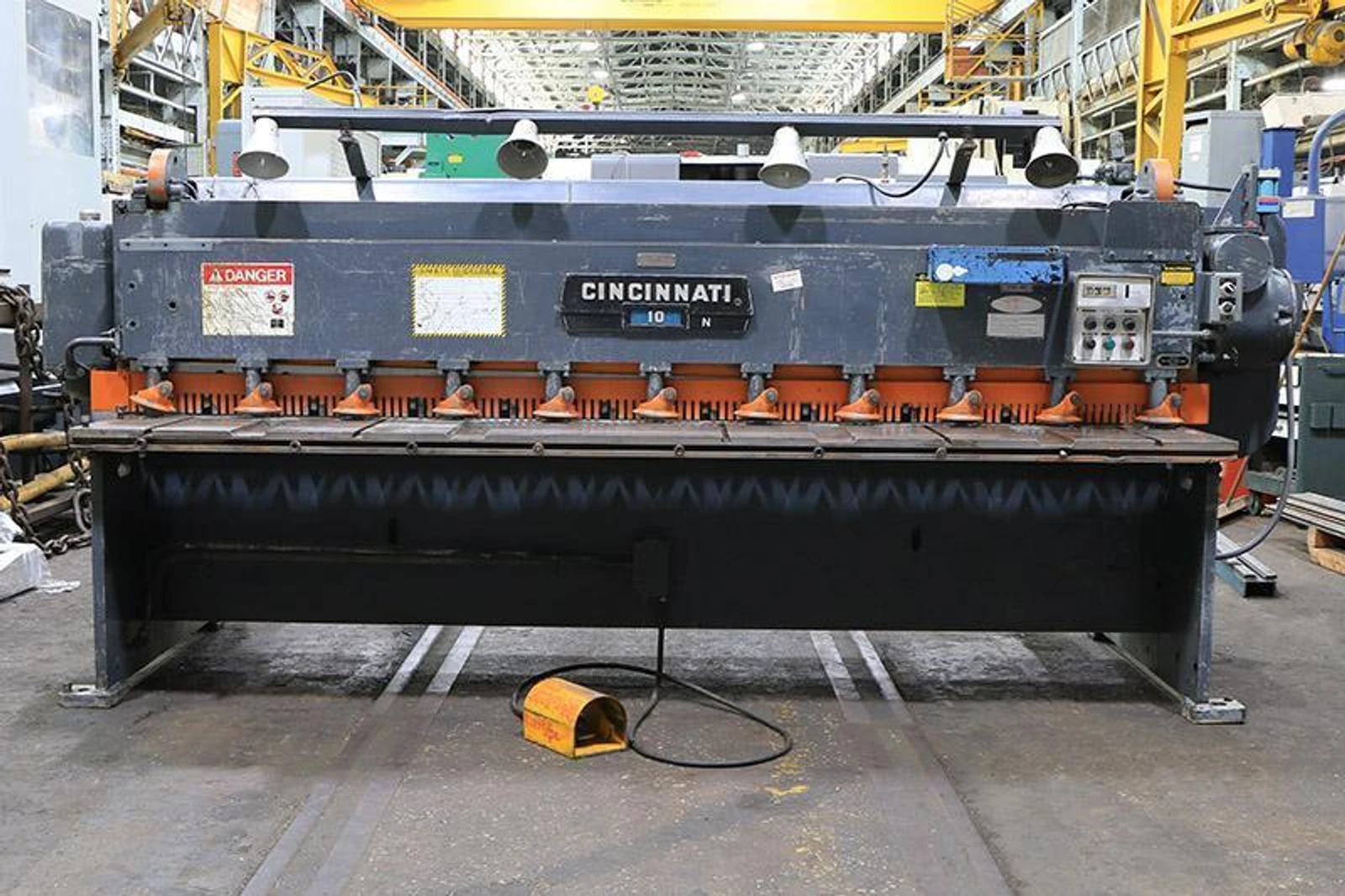

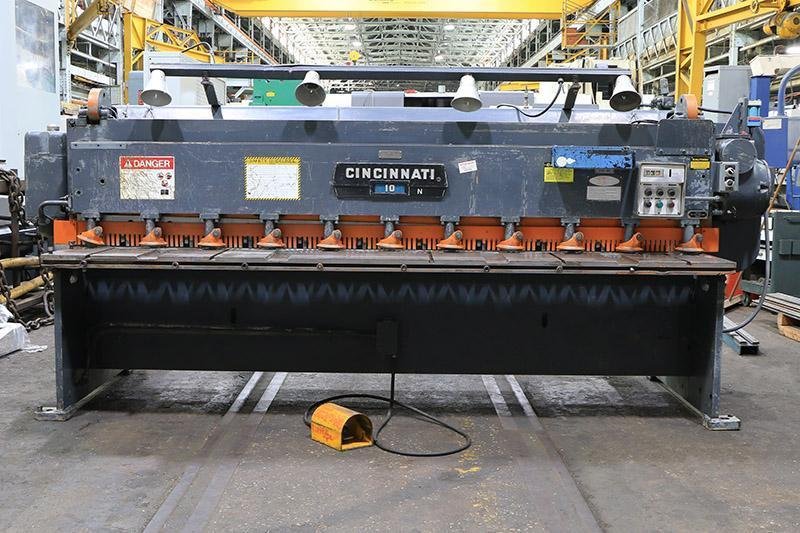

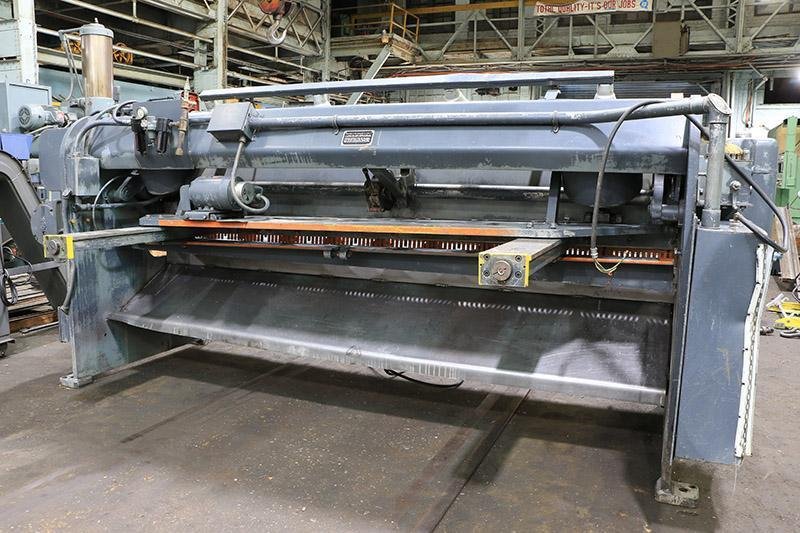

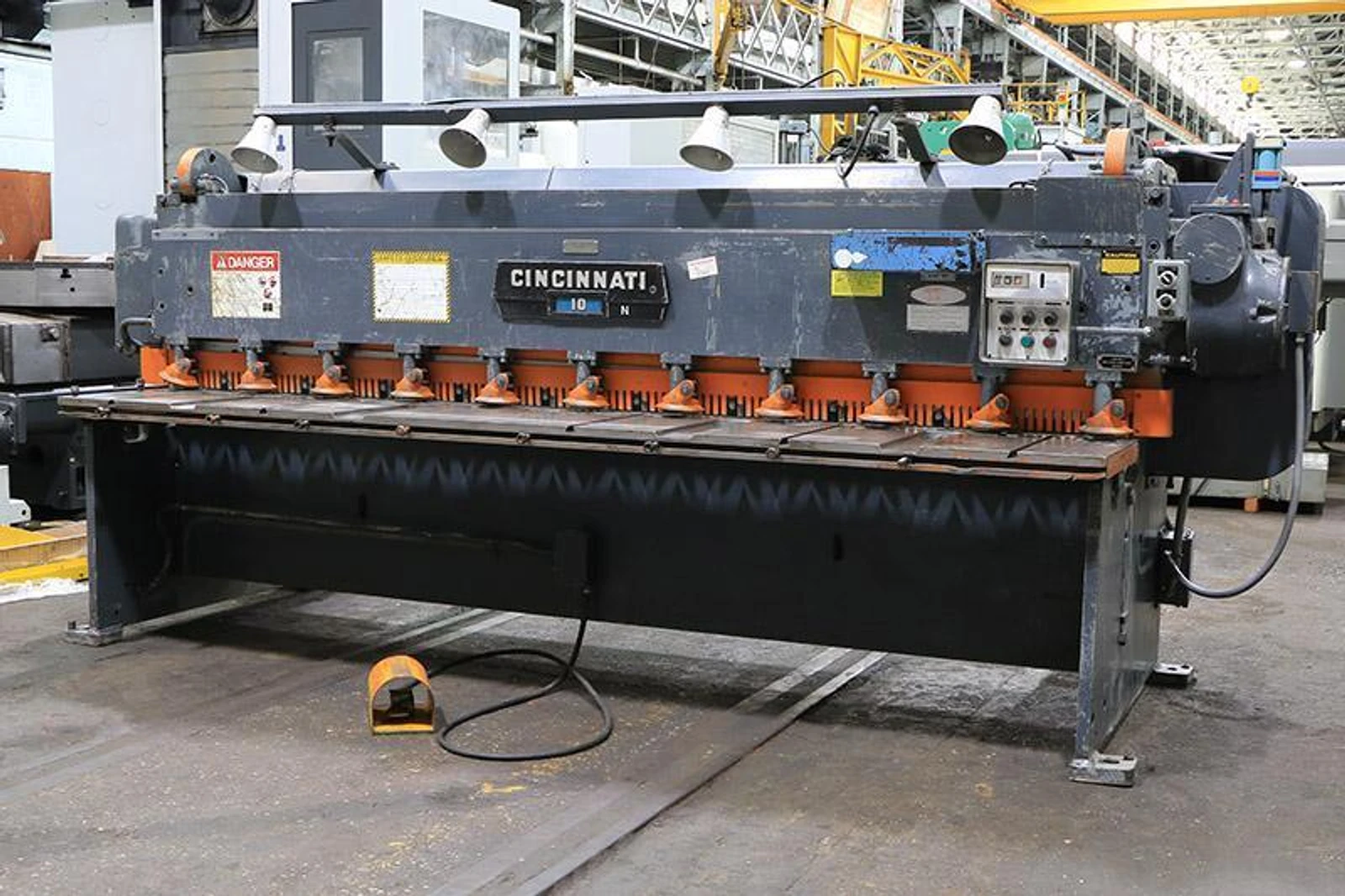

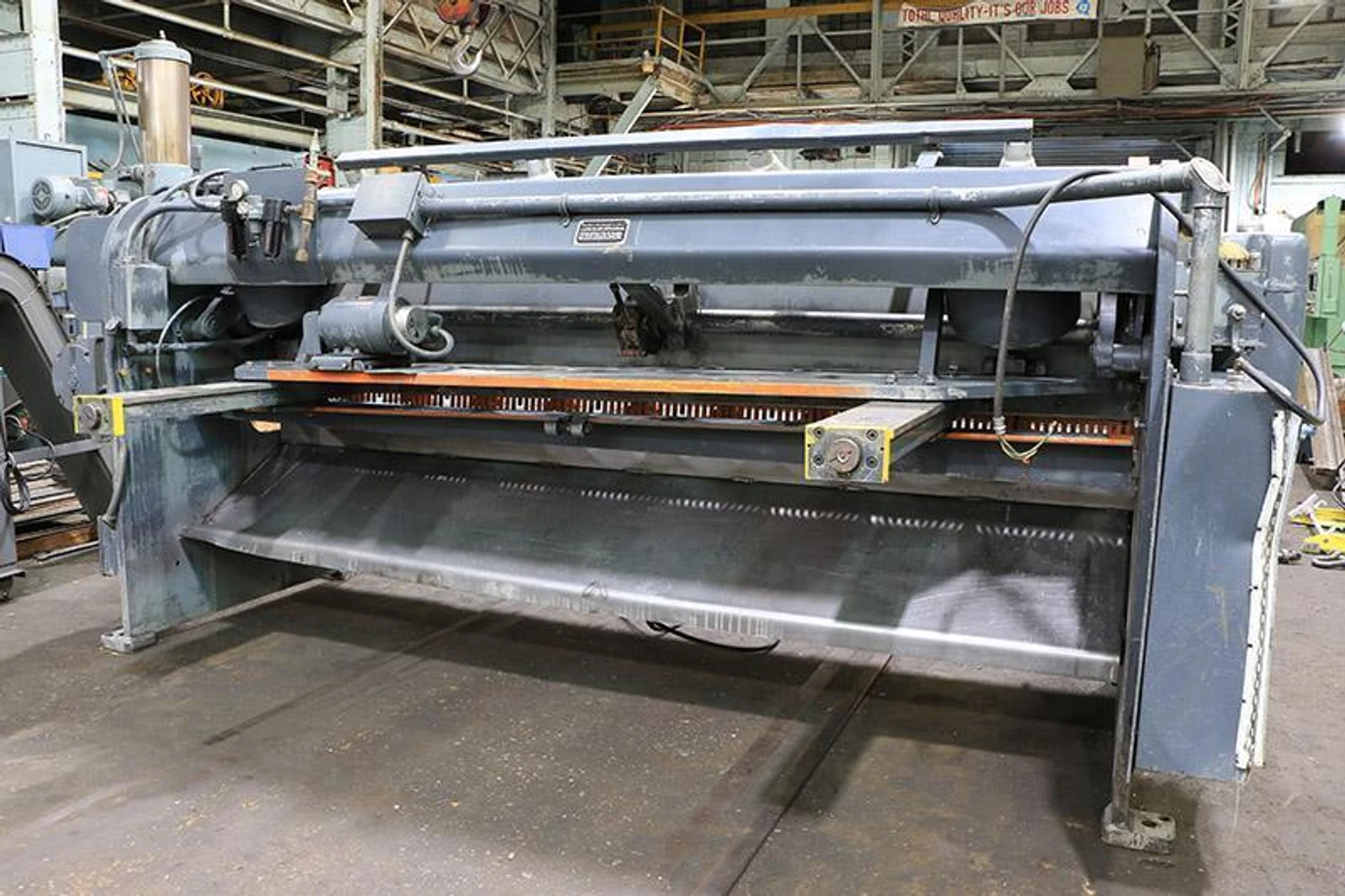

Cincinnati Mechanical Power Shear
Model 1010

Specifications:
Capacity In Mild Steel .................... 10 Ga. Mild Steel
Cutting Length ............................ 10 ft.
Motor HP .................................. 5
Strokes per Minute ........................ 65
Back Gauge Range .......................... 36 in.

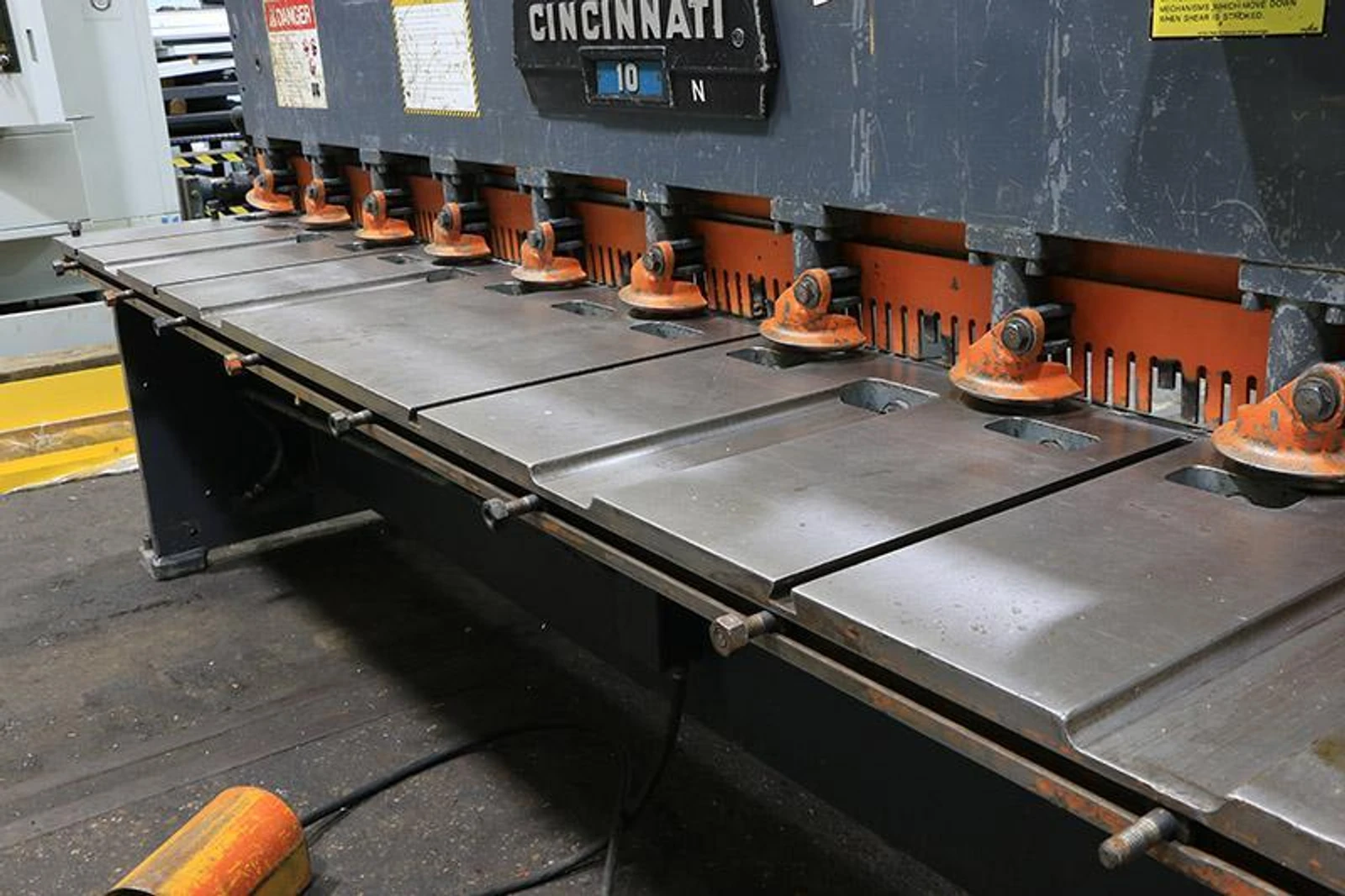

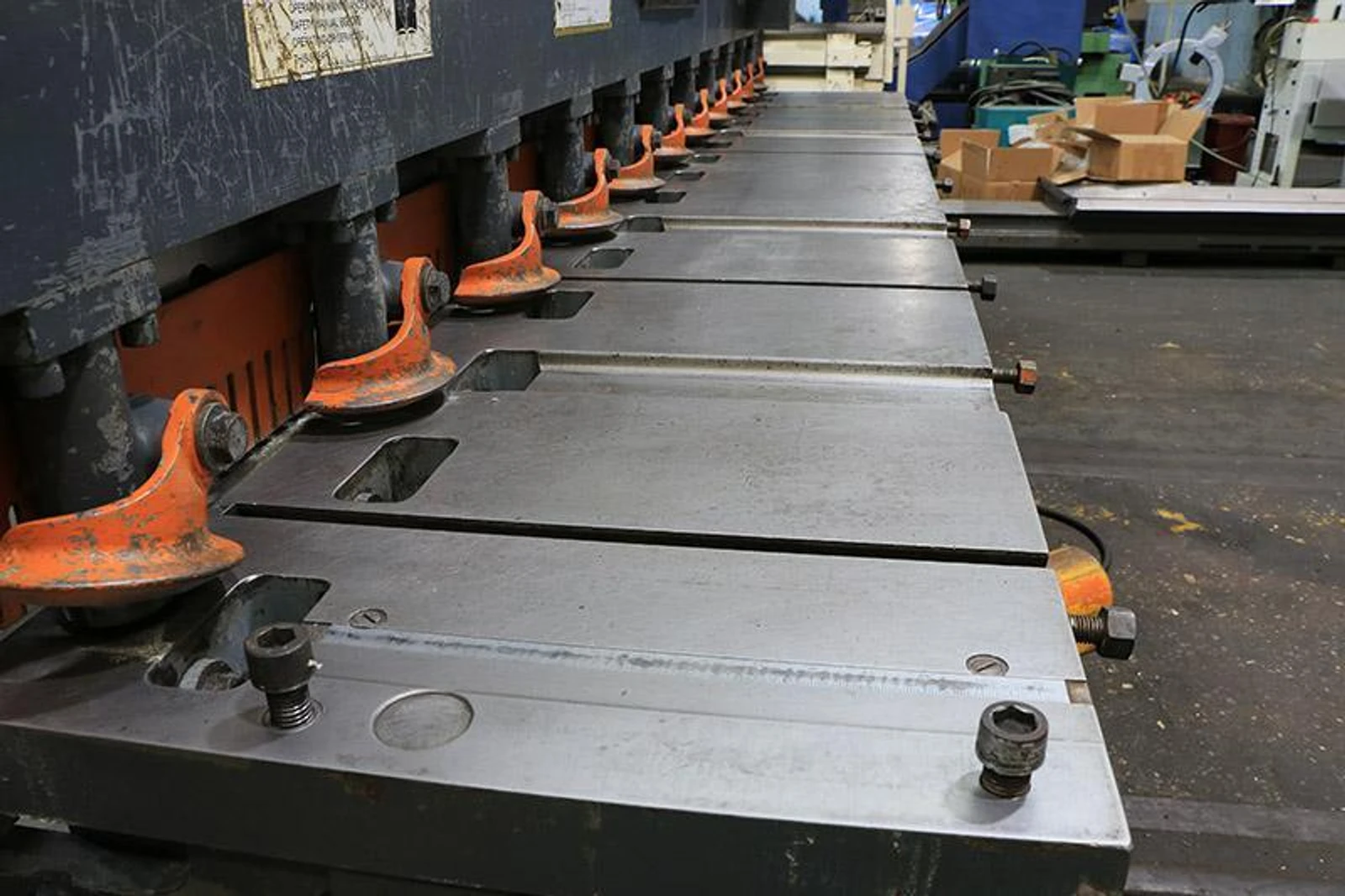

Number of Hold Downs ...................... 11
Hold Down to Blade Edge ................... 5/8"
Standard Distance Under Holddowns ......... 1/4"
Total Holddown Force ...................... 7 tons
Rake Angle ................................ 7/32" /Ft.
Size - Four Edge Blades ................... 1" x 3"

Approximate Floor Space .... 158" W x 82" D x 79" H
Approximate Weight .............. 13,000 lbs.

Equipped With:

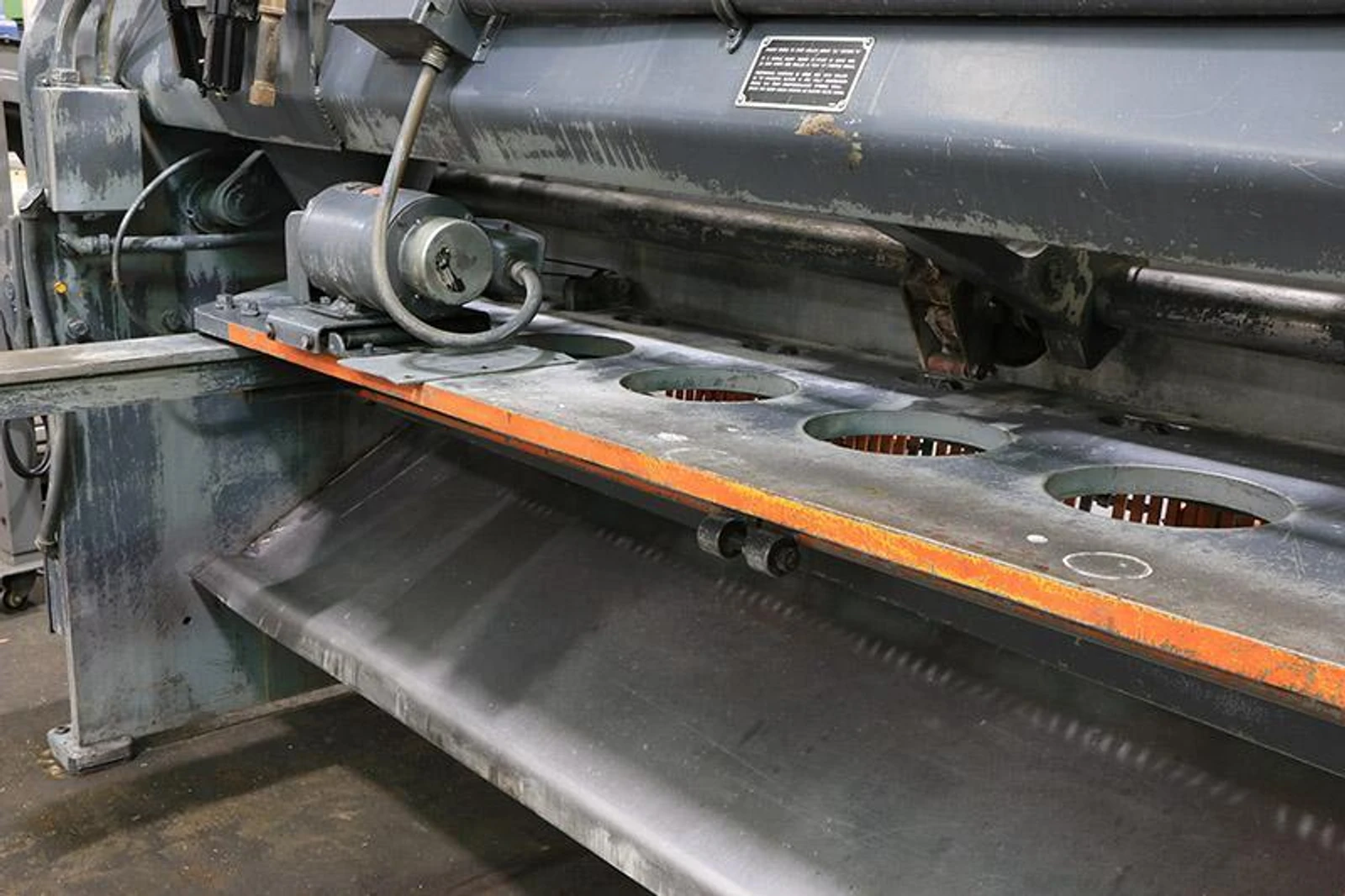

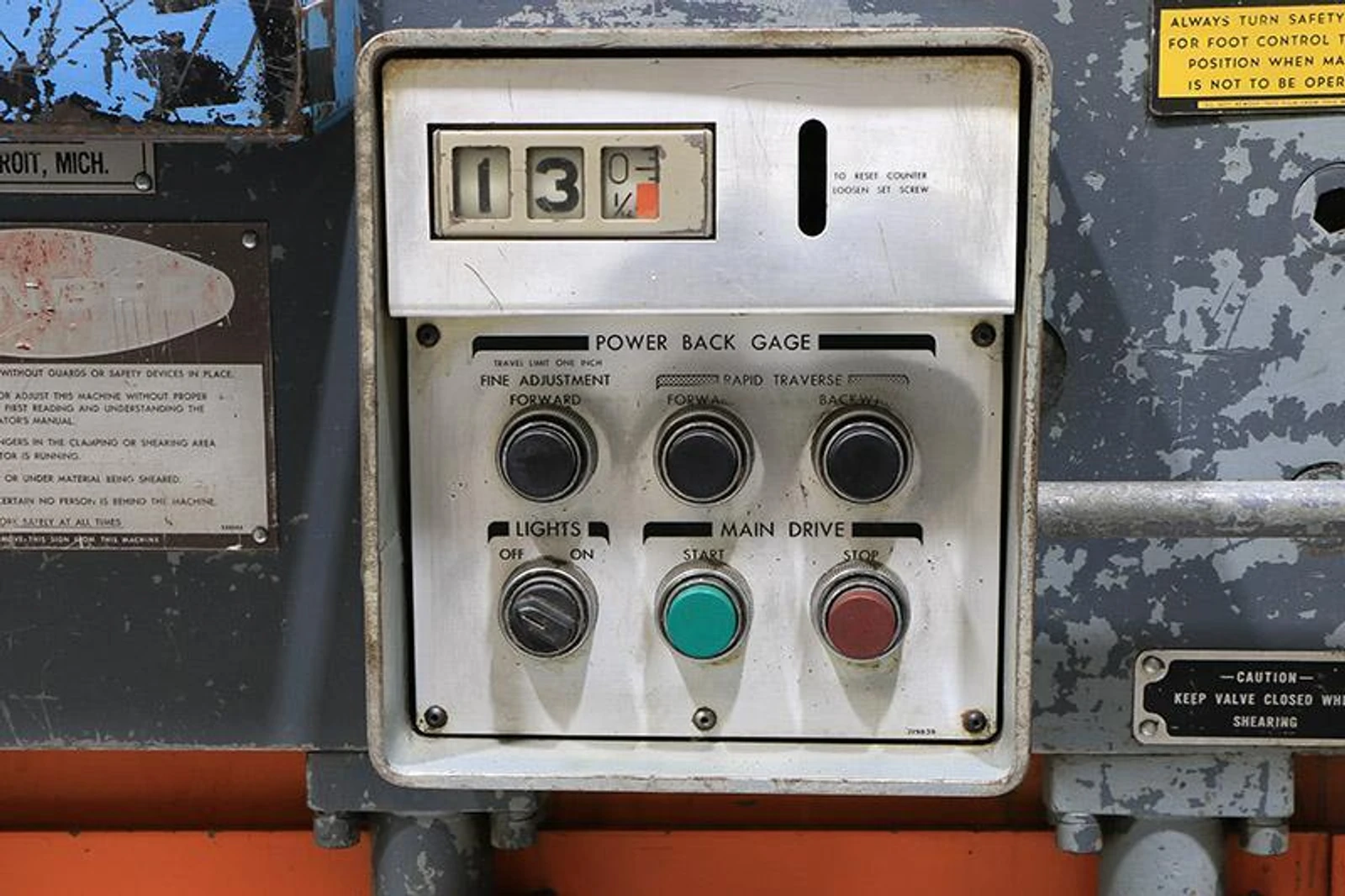

36" Front Operated Power Back Gauge
Foot Pedal
