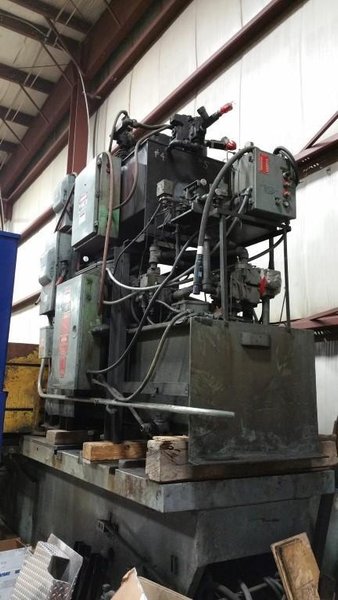

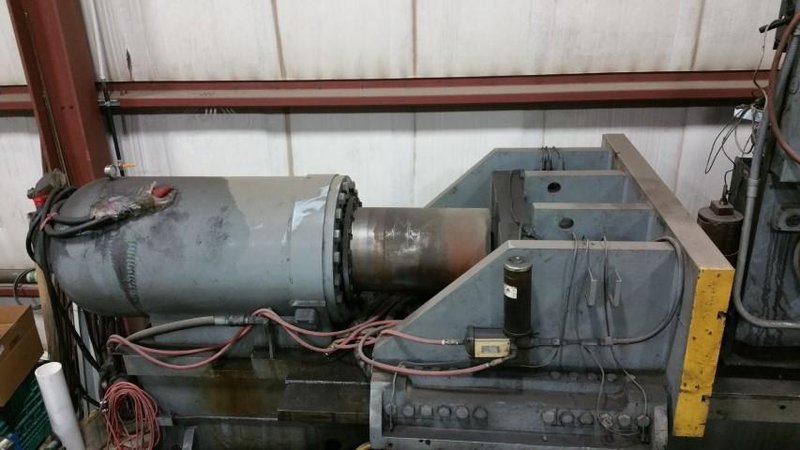

Model............................ 500BD
Crosshead & End Lug (Dims)....... 72"/30"/63"
Bed Length....................... 16'-3"
Overall Length................... 19'-0"
Width of Table................... 46"
Clearance above floor............ 32"
Below Floor...................... 19"
Open Adjustment.................. 42"-60"-78"
Stroke(Max)...................... 30"
Estimated Weight................. 52,000 lbs
Speeds (Inches per Second)........ .95(Rapid adv), .47 (Normal Pressure), 1.0 (Normal Return)
Motor HP:........................ 50
Includes:
End Lug with multiple radius punch and receiver dies
Seller can load onto Buyers truck |
