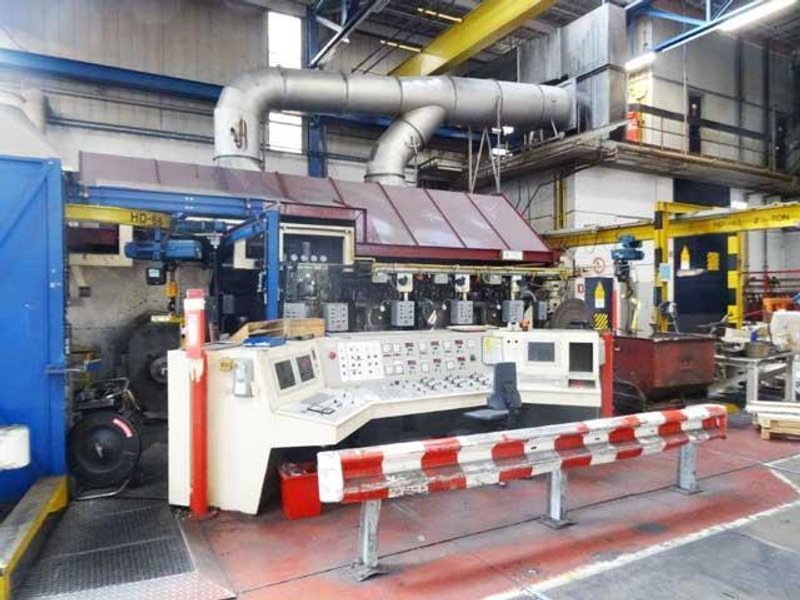

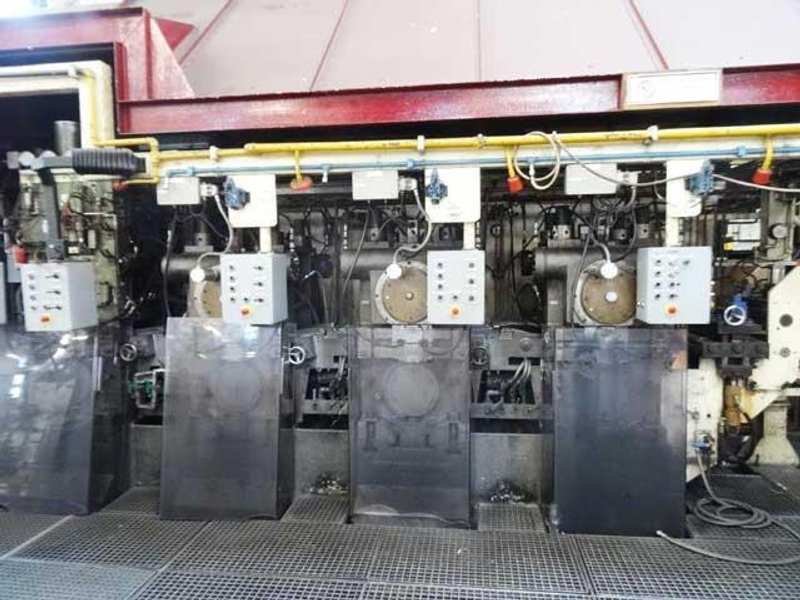

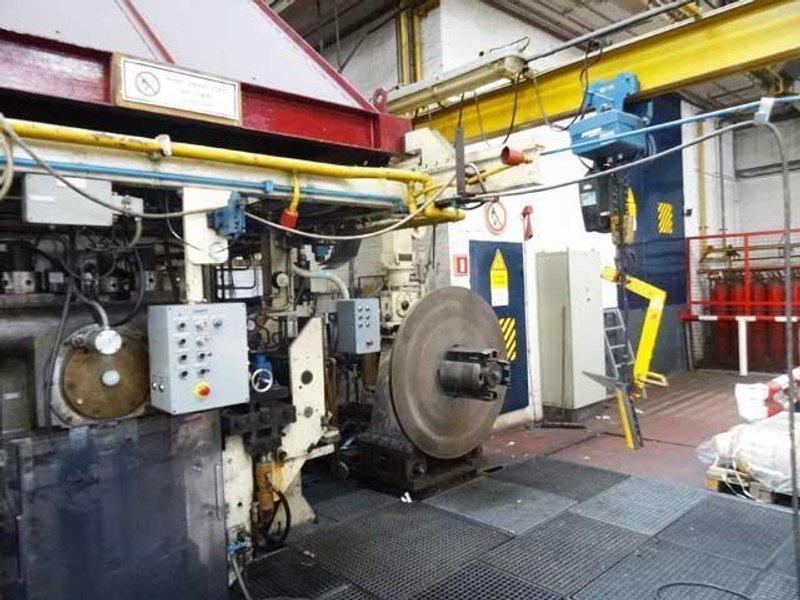

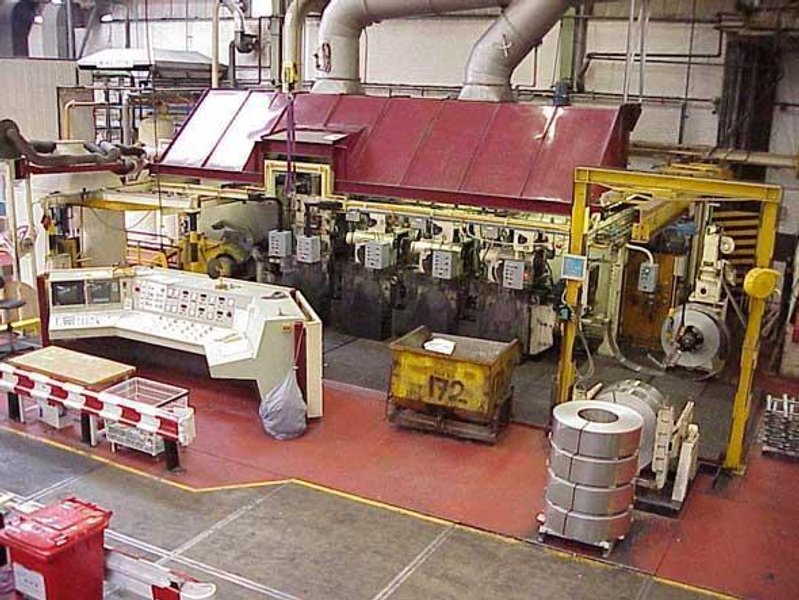

5" (130mm) x 15" (390mm) x 13" (340mm), FROHLING, 4 STAND 4-HI COLD (13026)

MACHINE# 13026

SPECIFICATIONS:

MANUFACTURER:                 DANIELI FROHLING G.M.B.H. (GERMANY)

TYPE:                         4 STAND 4-HI COLD ROLLING MILL

WITH AUTOMATIC GAUGE CONTROL (AGC) AND AUTOMATIC FLATNESS CONTROL (AFC)

USE:                          REDUCE THICKNESS OF ALUMINUM, COPPER, BRASS,

                              OR STEEL

WORK ROLL SIZE:
 DIAMETER:                    130mm (5.1")
 FACE WIDTH:                  340mm (13.4")
BACKUP ROLL SIZE:
 DIAMETER:                    390mm (15.35")
 FACE WIDTH:                  335mm (13.2")
COIL SIZE:
 INNER DIAMETER:               400mm (15.75")
 OUTER DIAMETER:              1500mm (59")
LINE SPEED:                   0-400 m/Min.
 MAXIMUM STRIP WIDTH:         282mm (11.1")

THICKNESS RANGE:
 AS USED ON ALUMINUM ALLOYS:  AA5050 AND AA5754
 MAXIMUM IN:                  2mm (.080")
 MAXIMUM OUT:                 1.2mm (0.047")
 MINIMUM OUT:                 0.25mm (0.01")

MOTORS STANDS:
DC, ABB CONVERTERS (INSTALLED 2004), 200 KW, DRIVE WORK ROLLS
COOLANT:                      KEROSENE / SOMENTOR32

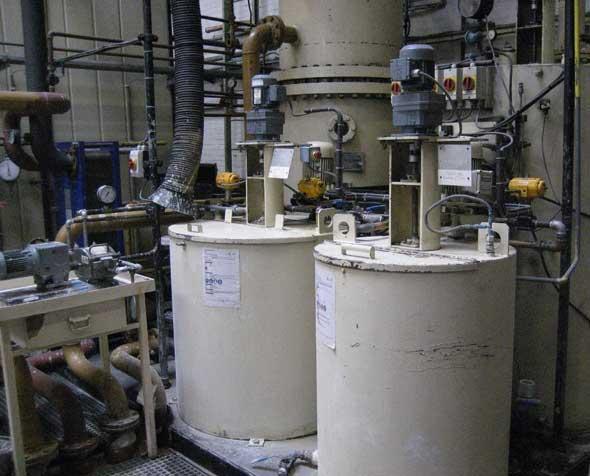

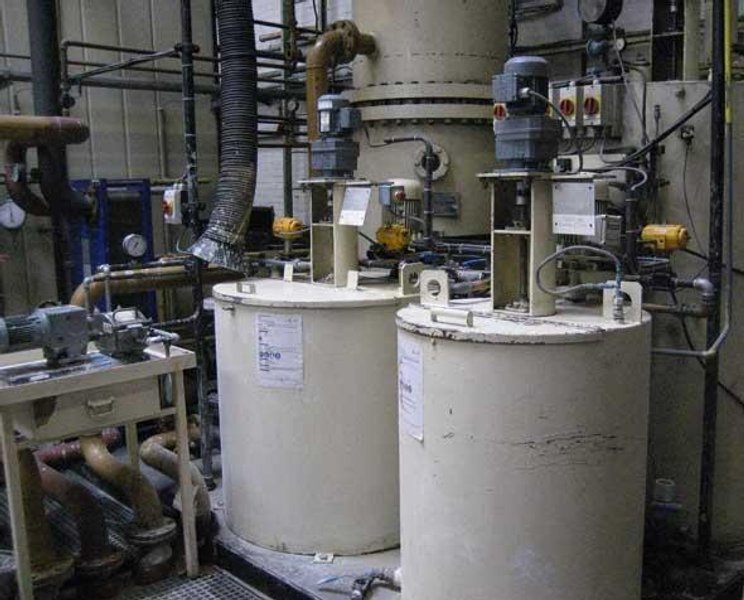

                              FILTRATION SYSTEM BY LAVAL
CONTROLS:
 PLC ABB
 SCADA SIMPLICITY
 FLATNESS CONTROL STAND #4
 THICKNESS CONTROL STAND #4 HYDRAULIC SCREWDOWNS EQUIPPED WITH AUTOMATIC

  GAUGE CONTROL (AGC) AND VOLLMER THICKNESS GAUGES
 THICKNESS CONTROL STAND #1 - #3 HYDRAULIC SCREWDOWNS WITH MANUAL OPERATION

UTILITIES:
 ELECTRICAL POWER 380V, 3 PHASE, 50 HZ
 AIR 5 BAR
 COOLING WATER

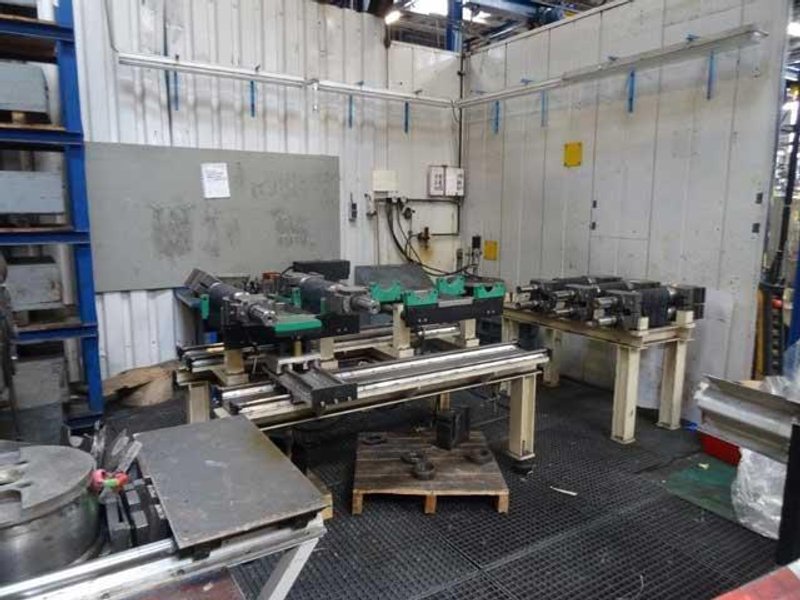

SPARE ROLLS:
 WORK ROLLS:                  39
 BACKUP ROLLS:                9

     **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
