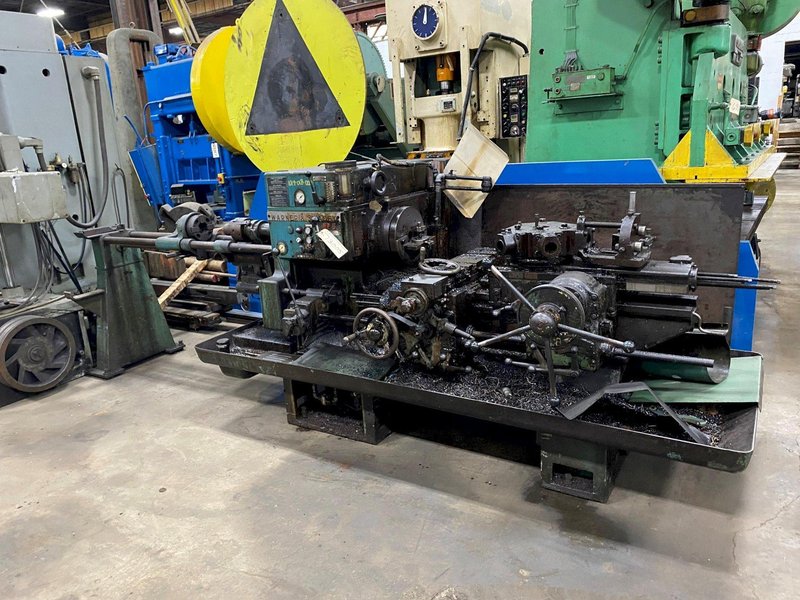

#5 WARNER & SWASEY MODEL #2250 RAM TYPE TURRET LATHE: STOCK #73005
Brand
Not specified
Category
Type
Model
Not specified
Stock #
73005
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL .............................. 1627948 MODEL ............................... 5 (M-2250) SQUARE HEAD SWING OVER BED ...................... 20" SWING OVER CROSS SLIDE .............. 10-1/4" SPINDLE NOSE TO TURRET FACE (MAX.) .. 36-1/2" HOLE THRU SPINDLE ................... 2-7/8" SPINDLE SPEEDS ...................... (24) 25 TO 1556 RPM CARRIAGE LONGITUDINAL FEEDS ......... (6) .0023 TO .022 IPR CARRIAGE CROSS FEEDS ................ (6) .0015 TO .014 IPR TURRET FEEDS ........................ (6) .003 TO .024 IPR CHUCK ............................... COLLET NOSE TYPE CHIP PAN ............................ YES COOLANT ............................. YES SPINDLE MOTOR (2-SPEED) ............. 20/10 HORSEPOWER |
