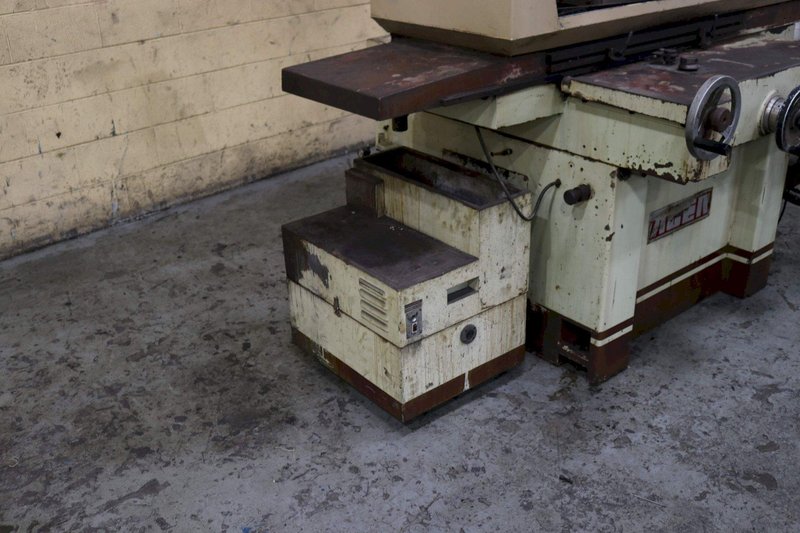

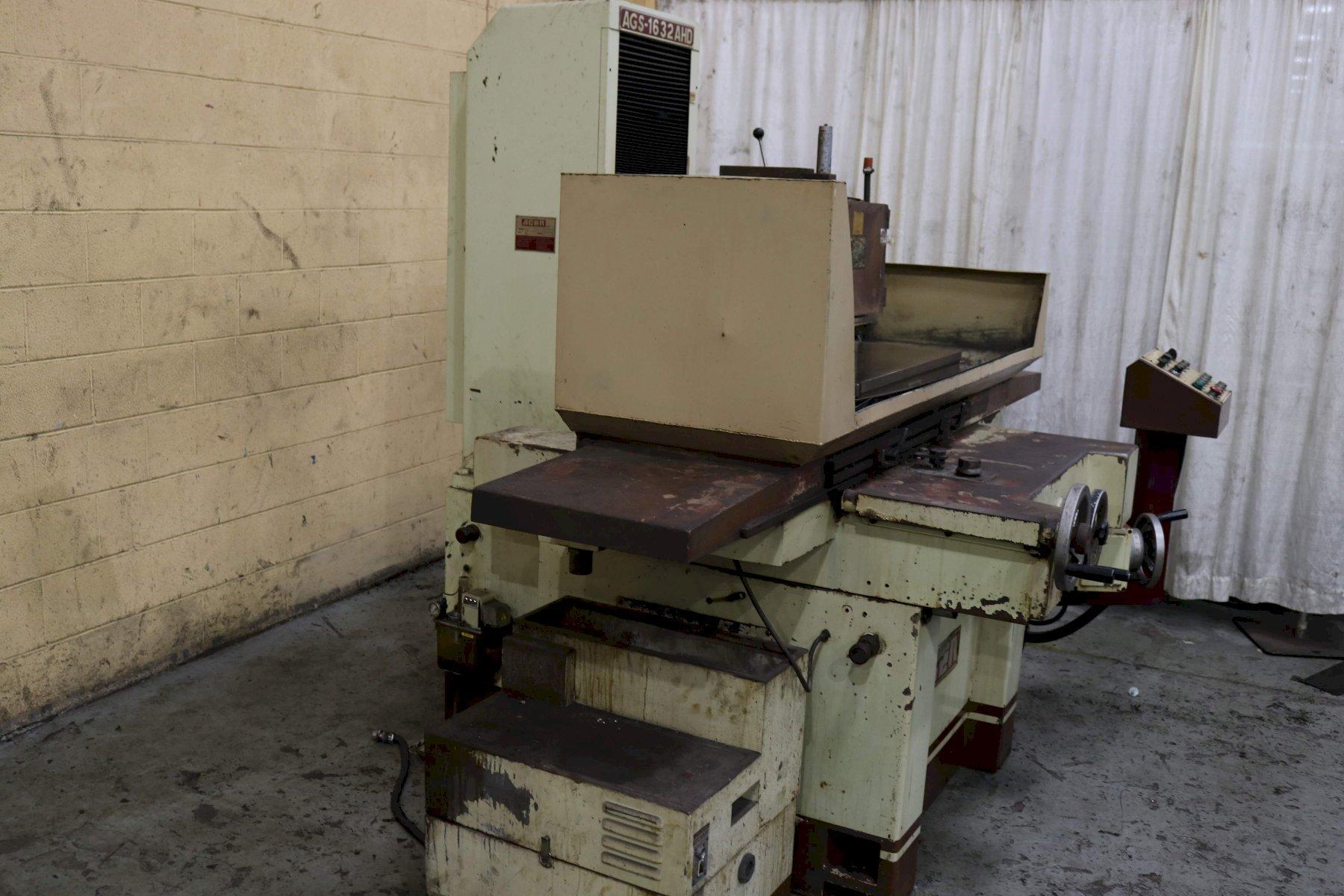

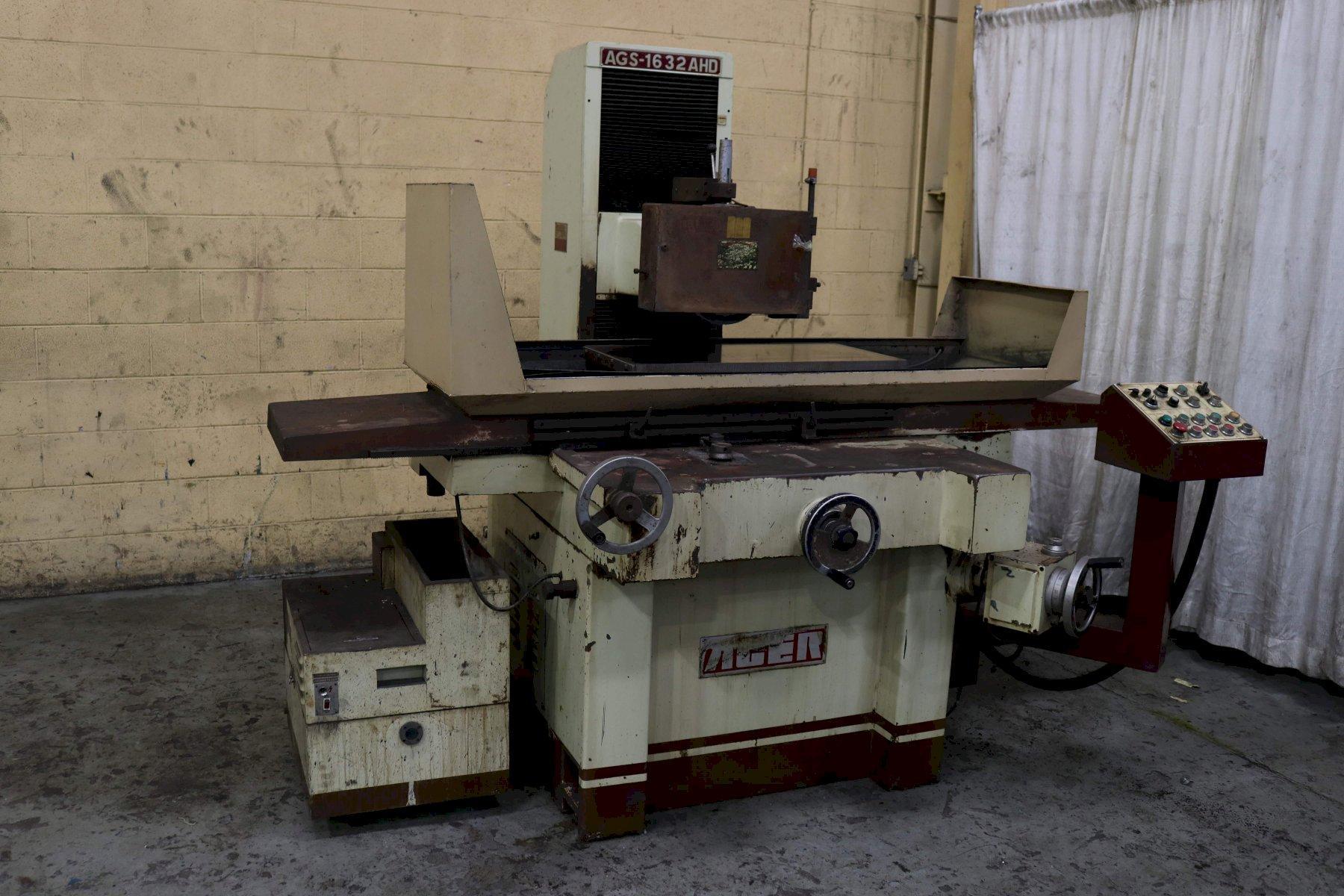

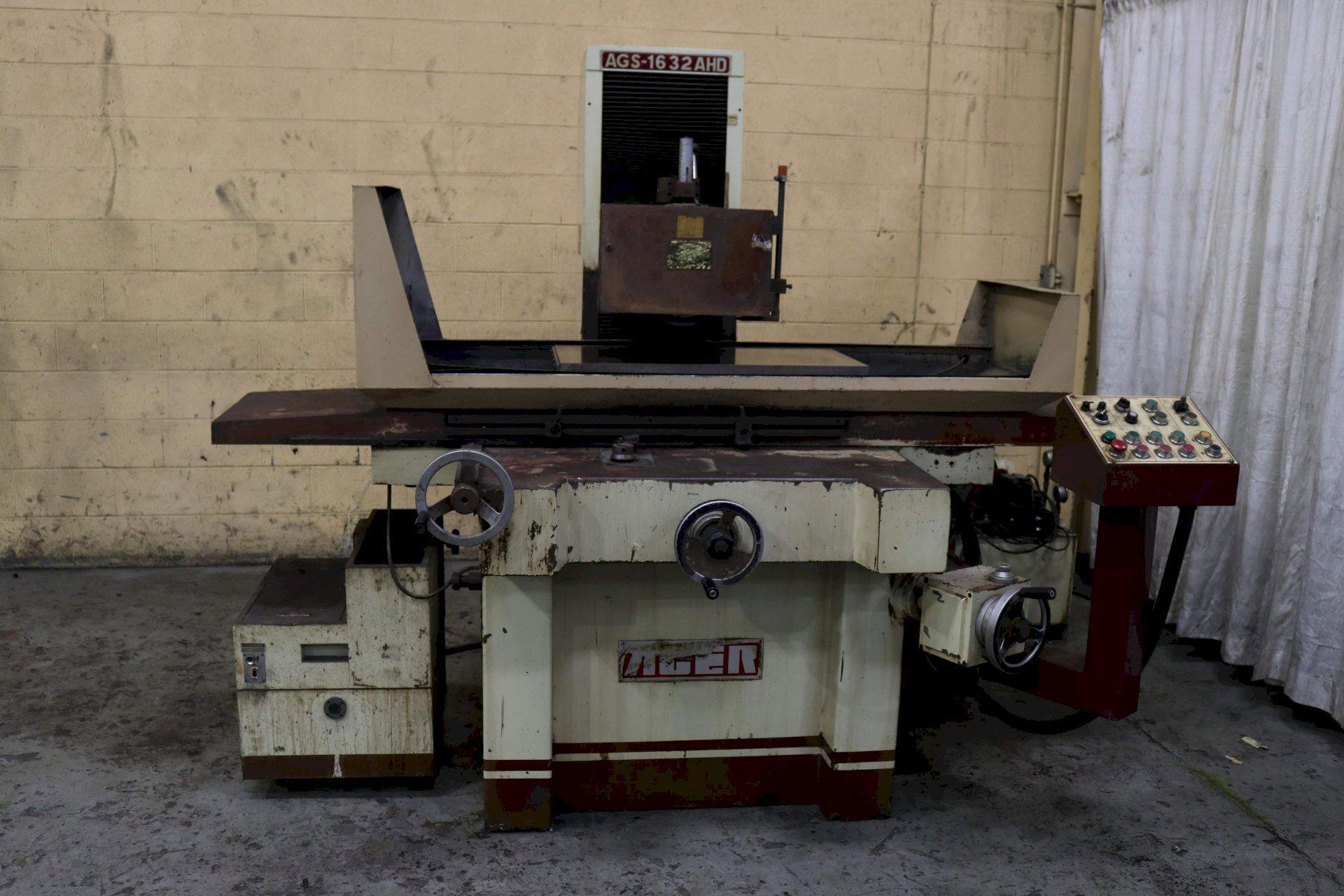

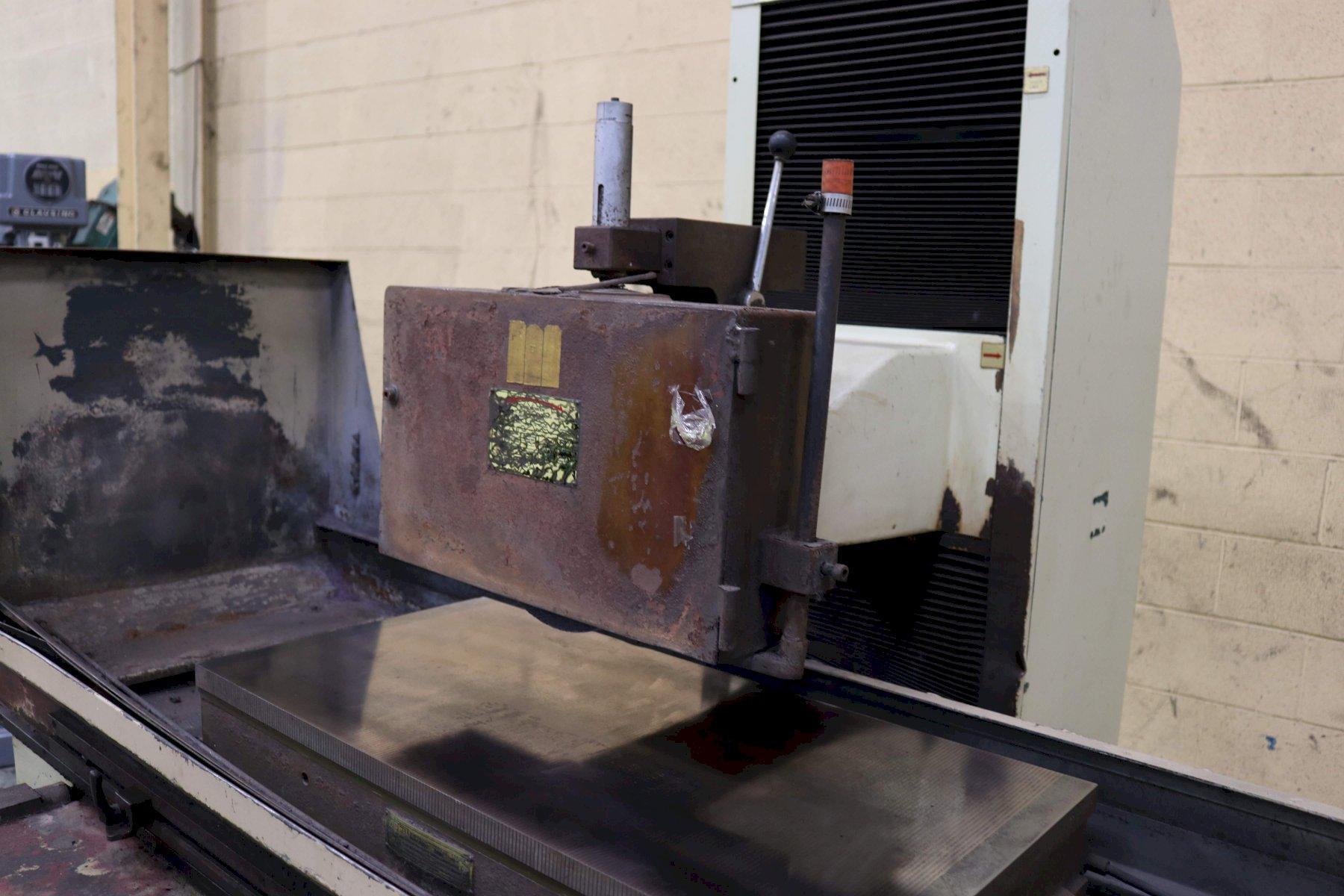

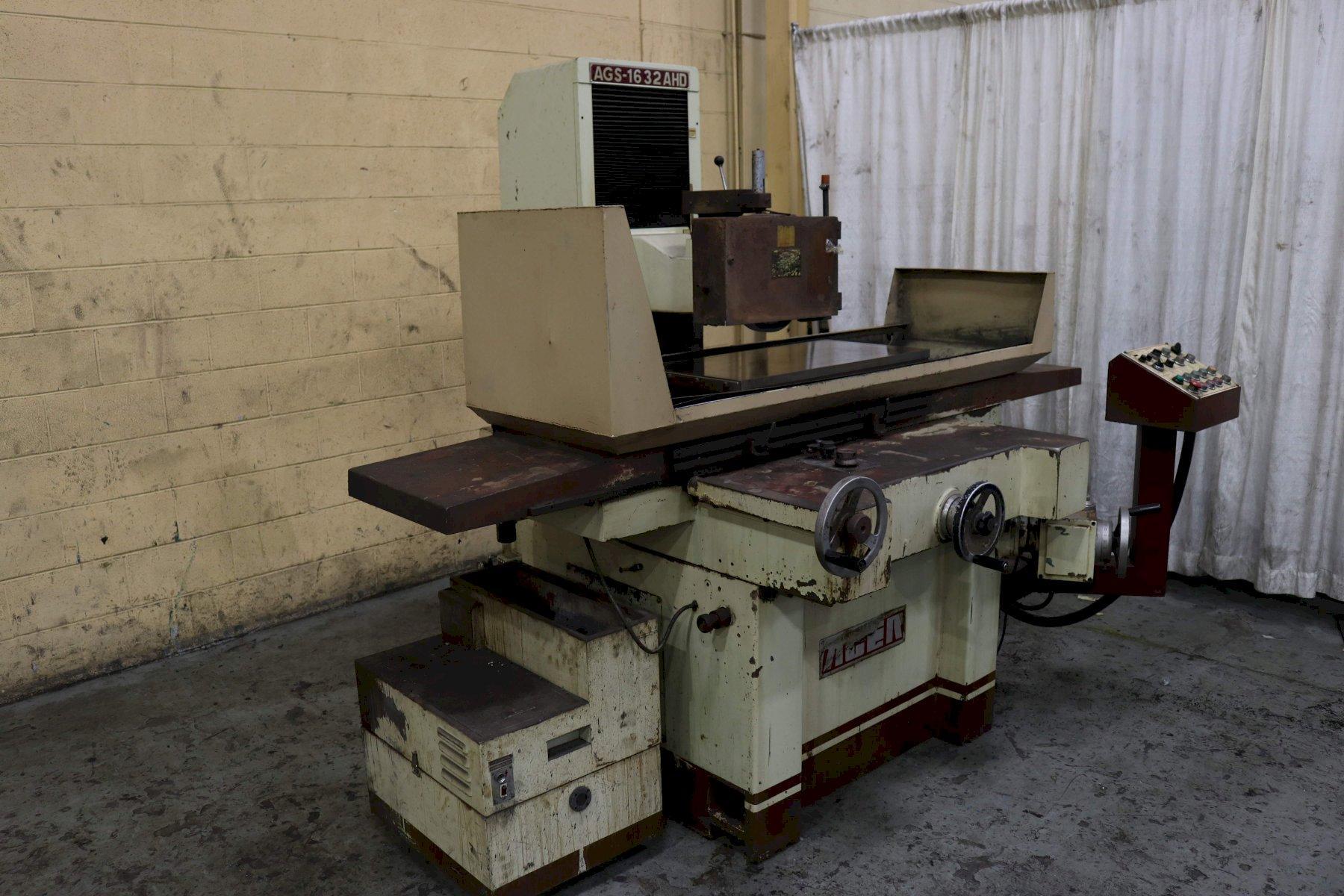

16' X 32' ACER MODEL #AGS1632 SURFACE GRINDER: STOCK #72909
Brand
Not specified
Category
Type
Model
Not specified
Stock #
72909
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL ............................. 07101033 MODEL .............................. AGS1632AHD YEAR NEW ........................... 1997 CHUCK SIZE (FINE LINE).............. 15-3/4 x 31-1/2" CENTER OF SPINDLE TO TABLE) ........ 25" LONGITUDINAL TABLE TRAVEL .......... 33-1/16" CROSS TRAVEL ....................... 19" HYDRAULIC TABLE TRAVEL ............. 16 TO 80 FPM AUTO DOWN FEED RATES (6) ............ 0.0001" PER REVOLUTION DOWN FEED HAND WHEEL ............... 0.00025" CROSS FEED HAND WHEEL .............. 0.0001" CROSS FEED CARRIAGE MOVEMENT ....... 0 TO 1" POWER SPINDLE ELEVATIONS ........... YES WHEEL SIZE ......................... 14" X 5" X 2" MAXIMUM WORK PIECE WEIGHT ........... 1,300 LBS. MAGNETIC SEPARATOR ................. YES COOLANT CONVEYOR ................... YES SPINDLE MOTOR ...................... 7-1/2 HORSEPOWER HYDRAULIC MOTOR .................... 3 HORSEPOWER |
