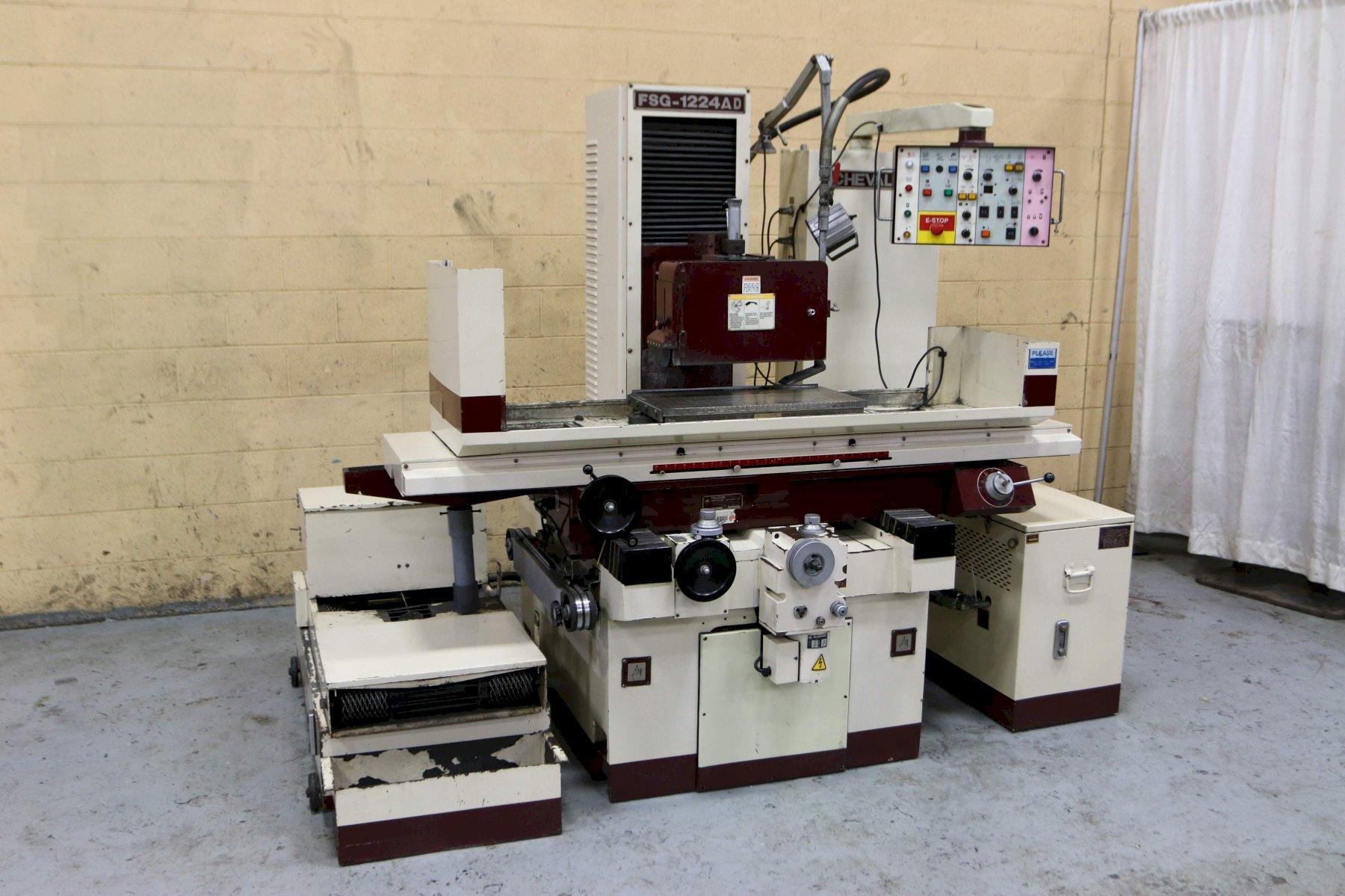

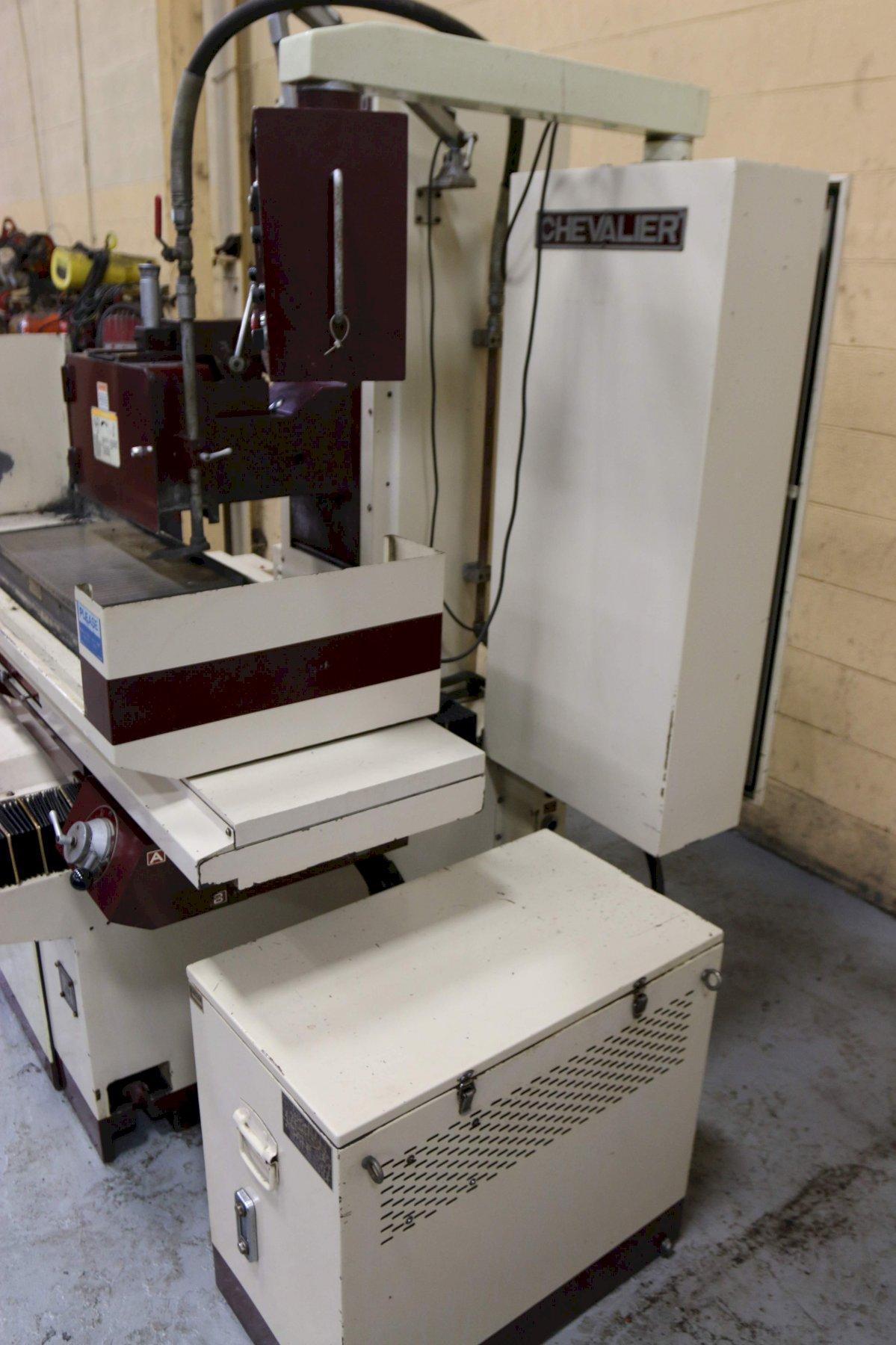

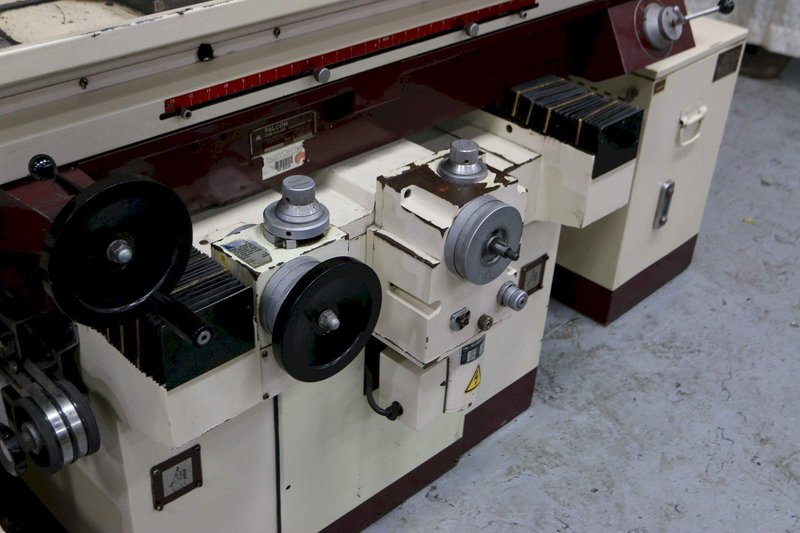

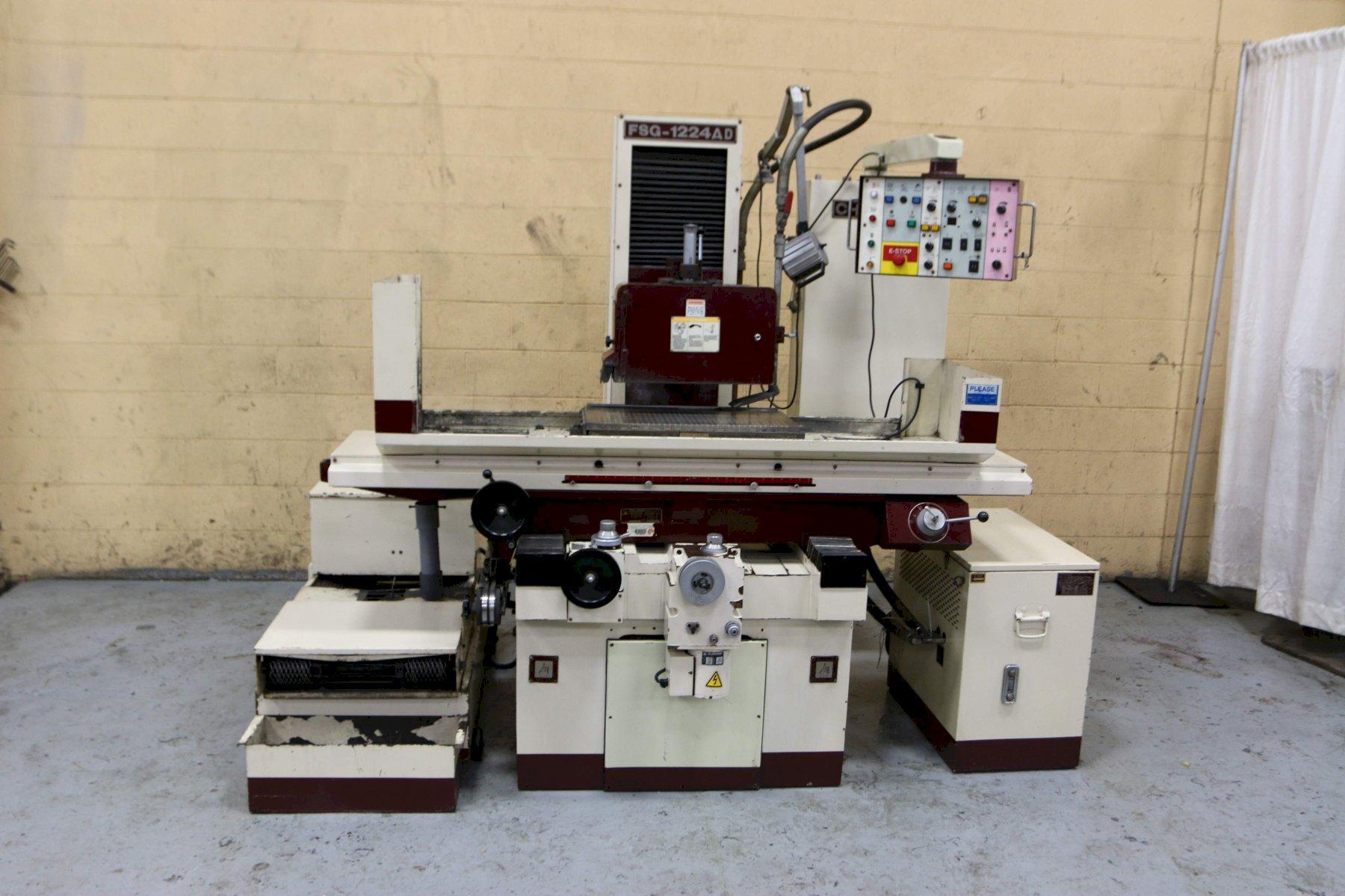

12" X 24" CHEVALIER FALCON MODEL #FSG-1224AD HORIZONTAL SURFACE GRINDER: STOCK #70439
Brand
Category
Model
12 X 024
Stock #
70439
Year
Not specified
Condition
Not specified
Location
Not specified
|
SERIAL ............................. F1854010 MODEL .............................. FSG-1224AD GRINDING CAPACITY .................. 12" X 24" SPINDLE TO TABLE (MAXIMUM) ......... 19-3/4" LONGITUDINAL TABLE TRAVEL .......... 25-5/8" CROSS TABLE TRAVEL ................. 12" TABLE SPEED (VARIABLE) ............. 16 TO 82 FPM SPINDLE SPEED ...................... 3450 RPM GRINDING WHEEL SIZE ................ 14" X 2" X 5" ELECTRO-MAGNETIC CHUCK SIZE ........ 11-3/4" X 23-7/8" X 2-3/4" INCREMENTAL DOWNFEED ............... 0.00005" TO 0.002" AUTOMATIC CROSSFEED ................ 0.005 IPR POWER ELEVATION .................... 12 FPM COOLANT W/PAPER FILTRATION ......... YES OVER THE WHEEL DRESSER ............. YES ELECTRO-MAGNETIC CHUCK W/CONTROLS .. YES SPINDLE MOTOR ...................... 5 HORSEPOWER HYDRAULIC MOTOR .................... 2 HORSEPOWER |
