SERIAL .............................. 12354

MODEL ............................... 16 ECONOMY

SWING OVER WAYS ..................... 16-1/2"

SWING OVER CROSS SLIDE .............. 9"

DISTANCE BETWEEN CENTERS ............ 54"

SPINDLE SPEEDS ...................... 16 TO 804 RPM

FEEDS ............................... .0075 TO .060 IPM

THREADS ............................. 4 TO 56 TPI

DIAMETER OF SPINDLE HOLE ............ 1-9/16"

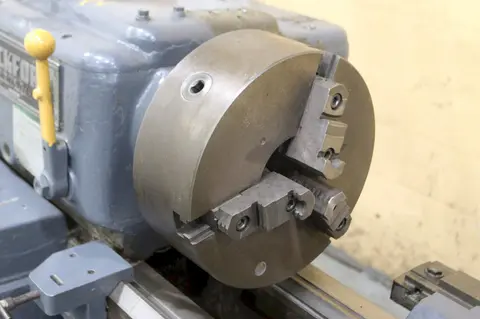

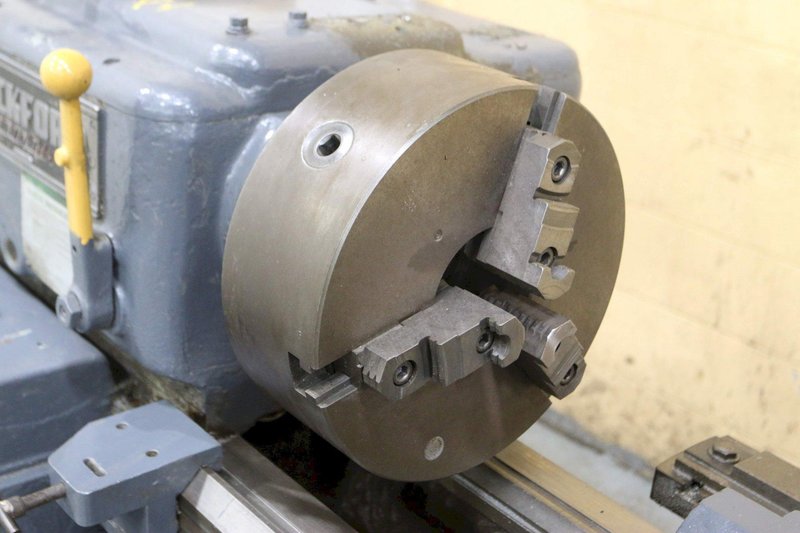

3 JAW CHUCK ............................... 12-1/2"

THREAD DIAL ......................... YES

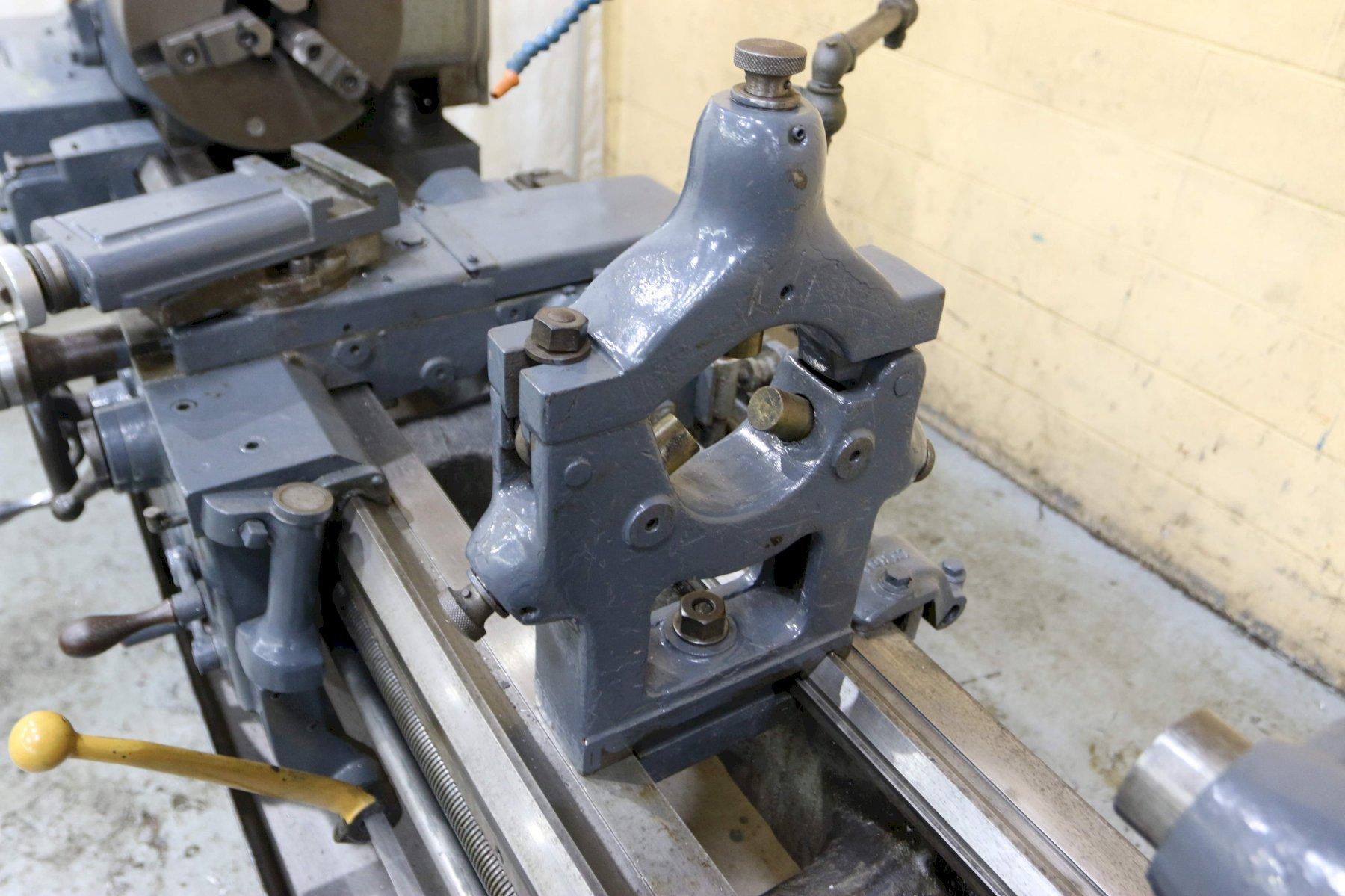

STEADY RESTS 3 POINT ................ YES

SPINDLE FORWARD AND REVERSE ......... YES

TAPER ATTACHMENT .................... YES

COOLANT WITH FULL LENGTH CHIP PAN ... YES

MOTOR ............................... 5 HORSEPOWER
