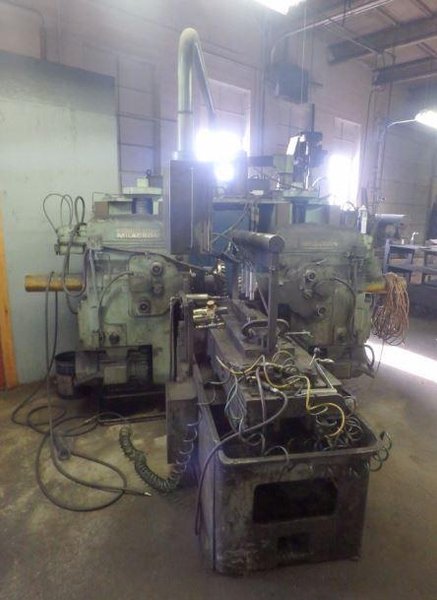

CINCINNATI MODEL 425-184 DUPLEX PRODUCTION MILL: STOCK #69103
Brand
Not specified
Category
Type
Model
425-184 48' TRAVEL
Stock #
69103
Year
Not specified
Condition
Not specified
Location
Ohio
|
MODEL ......................................... 425-184 TABLE DIMENSIONS (OVERALL) W X L .............. 18" X 80" TABLE WORKING SURFACE, W X L .................. 18" X 72" TABLE LONGITUDINAL TRAVEL (X-AXIS) ............ 48" SPINDLE-HEAD VERTICAL TRAVEL (Y-AXIS) ......... 17.25" QUILL CROSS ADJUSTMENT (Z-AXIS) ............... 6" SPINDLE-CENTER TO TABLE-TOP, MINIMUM .......... 4.75" SPINDLE-CENTER TO TABLE-TOP, MAXIMUM .......... 22" TABLE-CENTER TO SPINDLE-FACE, MINIMUM ......... 5.5" TABLE-CENTER TO SPINDLE-FACE, MAXIMUM ......... 11.5" QUILL DIAMETER ................................ 8.5" SPINDLE TAPER ................................. #50 NSTD (16) SPINDLE SPEEDS (GEARED), RANGE ........... 22 TO 900 RPM POWER RAPID TABLE TRAVERSE .................... 200 IPM (2) SPINDLE MOTORS, HORSEPOWER ................ 25 HP (EACH) HYDRAULIC MOTOR, HORSEPOWER ................... 5 HP |
