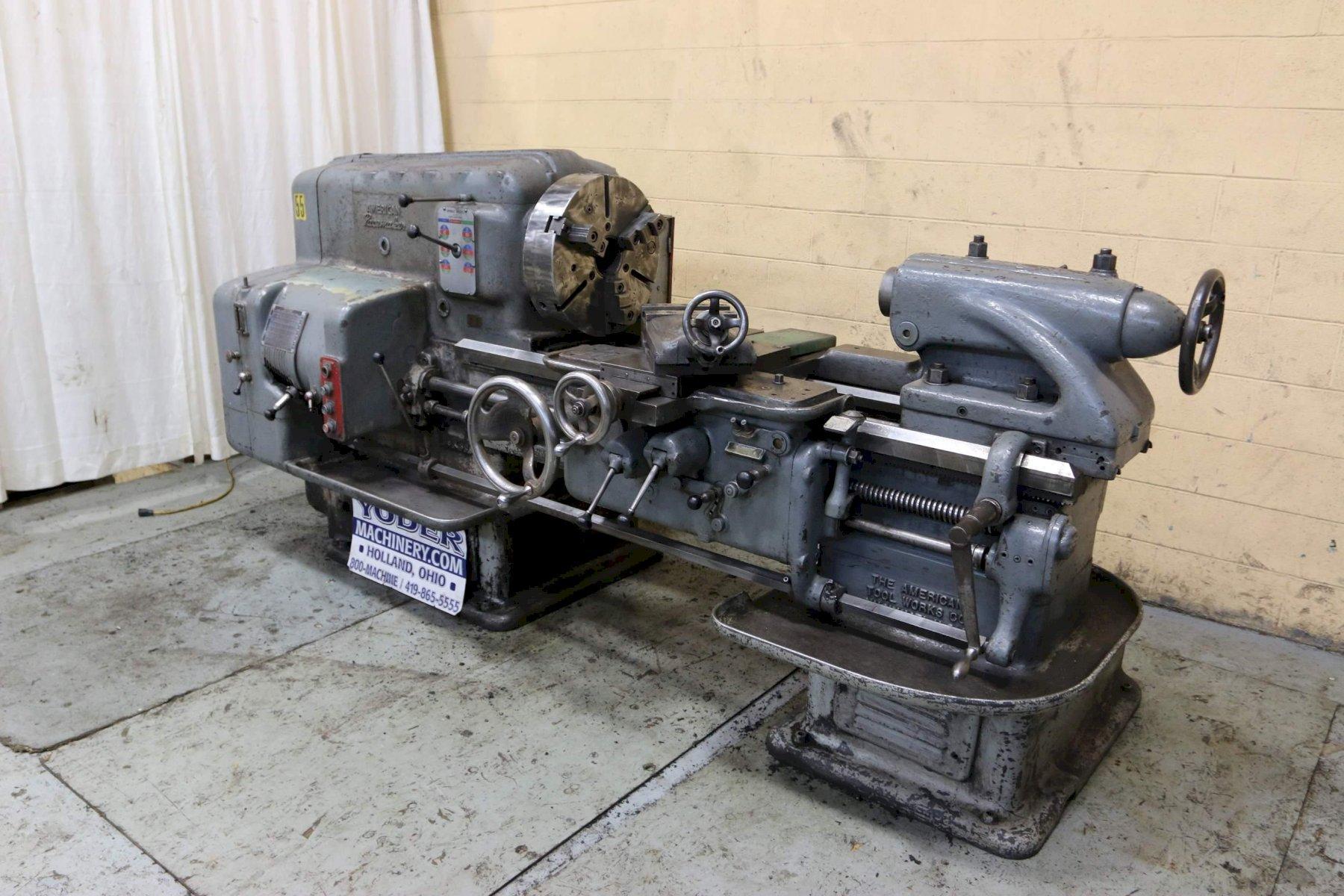

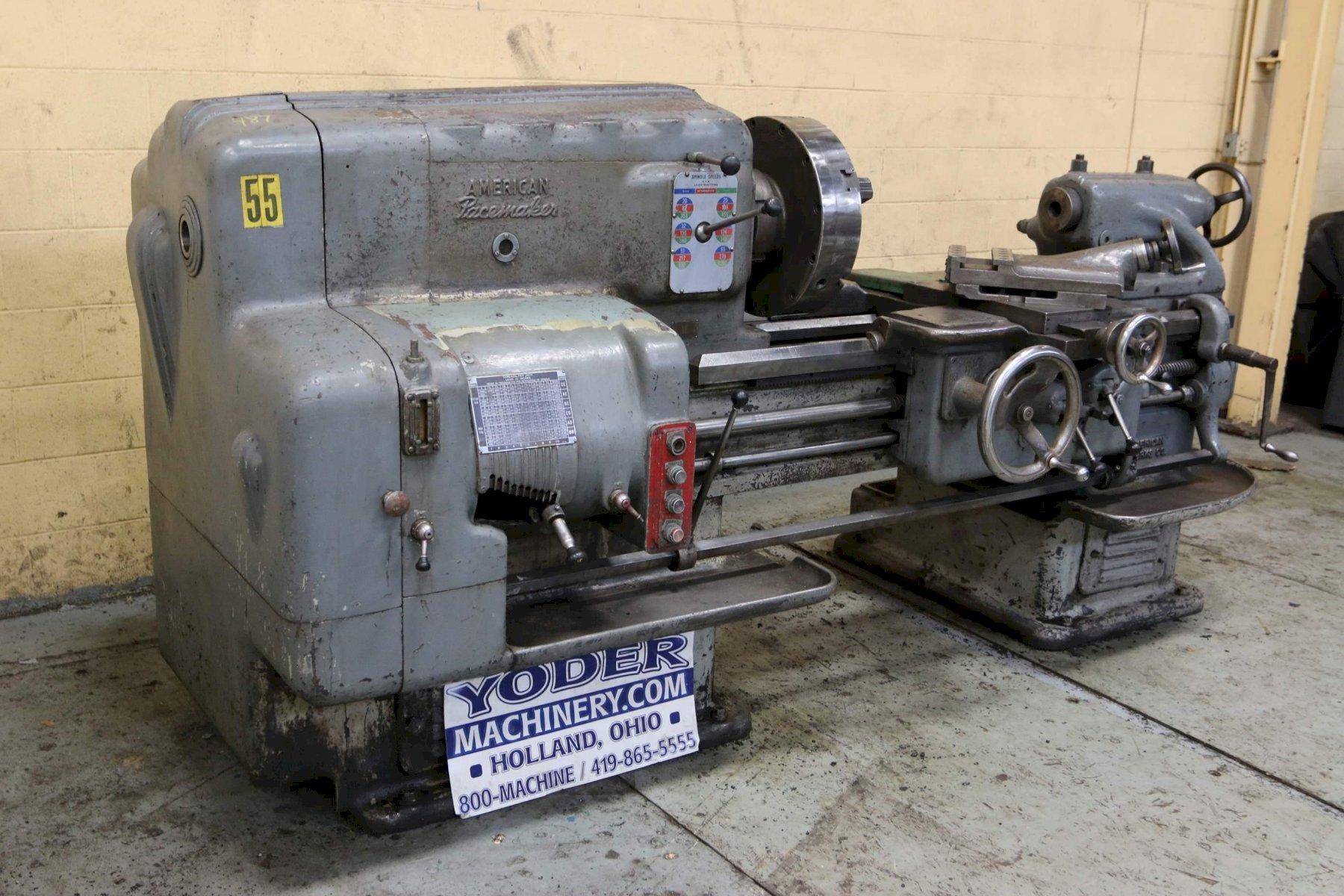

22" X 36" AMERICAN PACEMAKER ENGINE LATHE: STOCK #68719
Brand
Category
Type
Model
22 X 036
Stock #
68719
Year
Not specified
Condition
Not specified
Location
Ohio
|

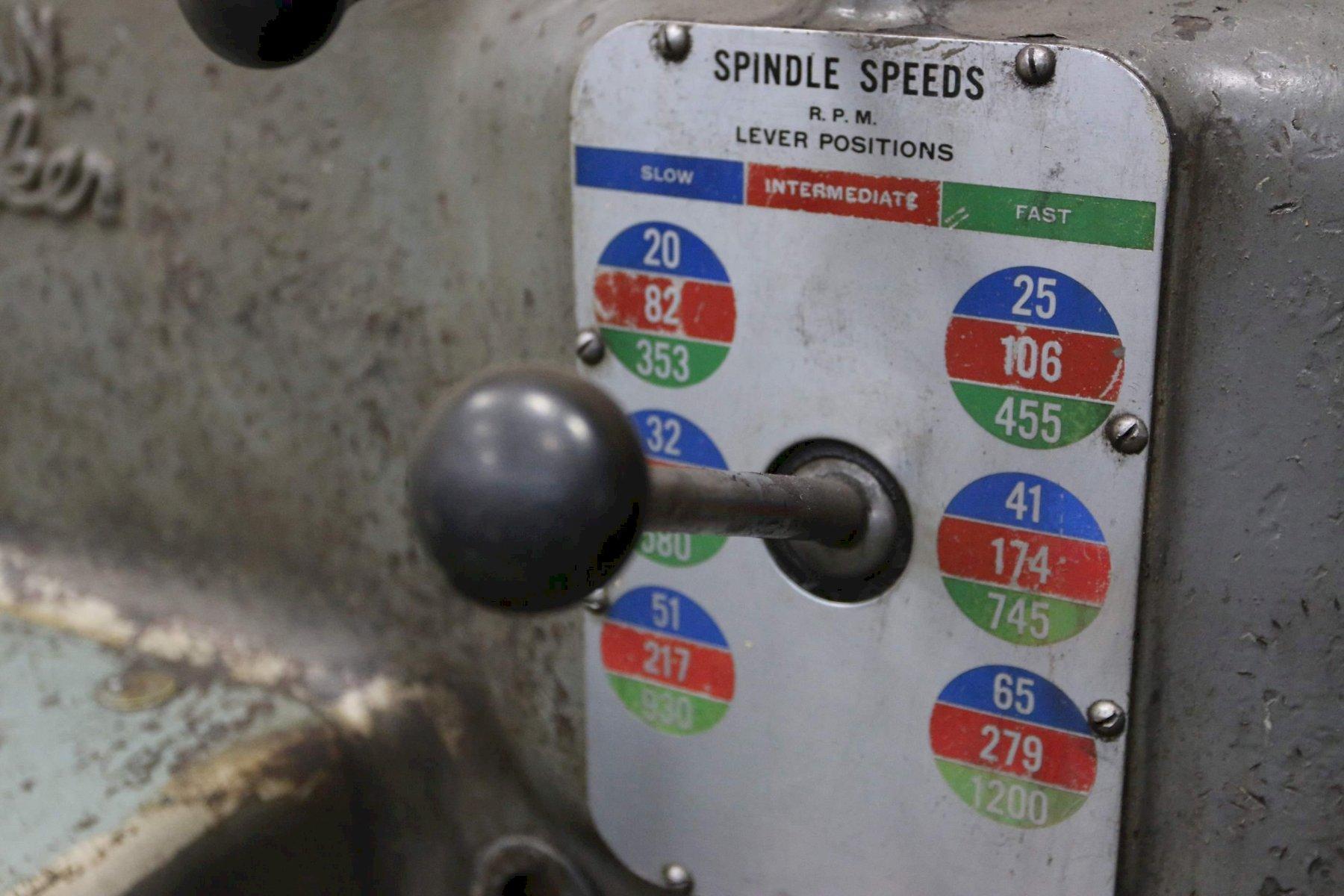

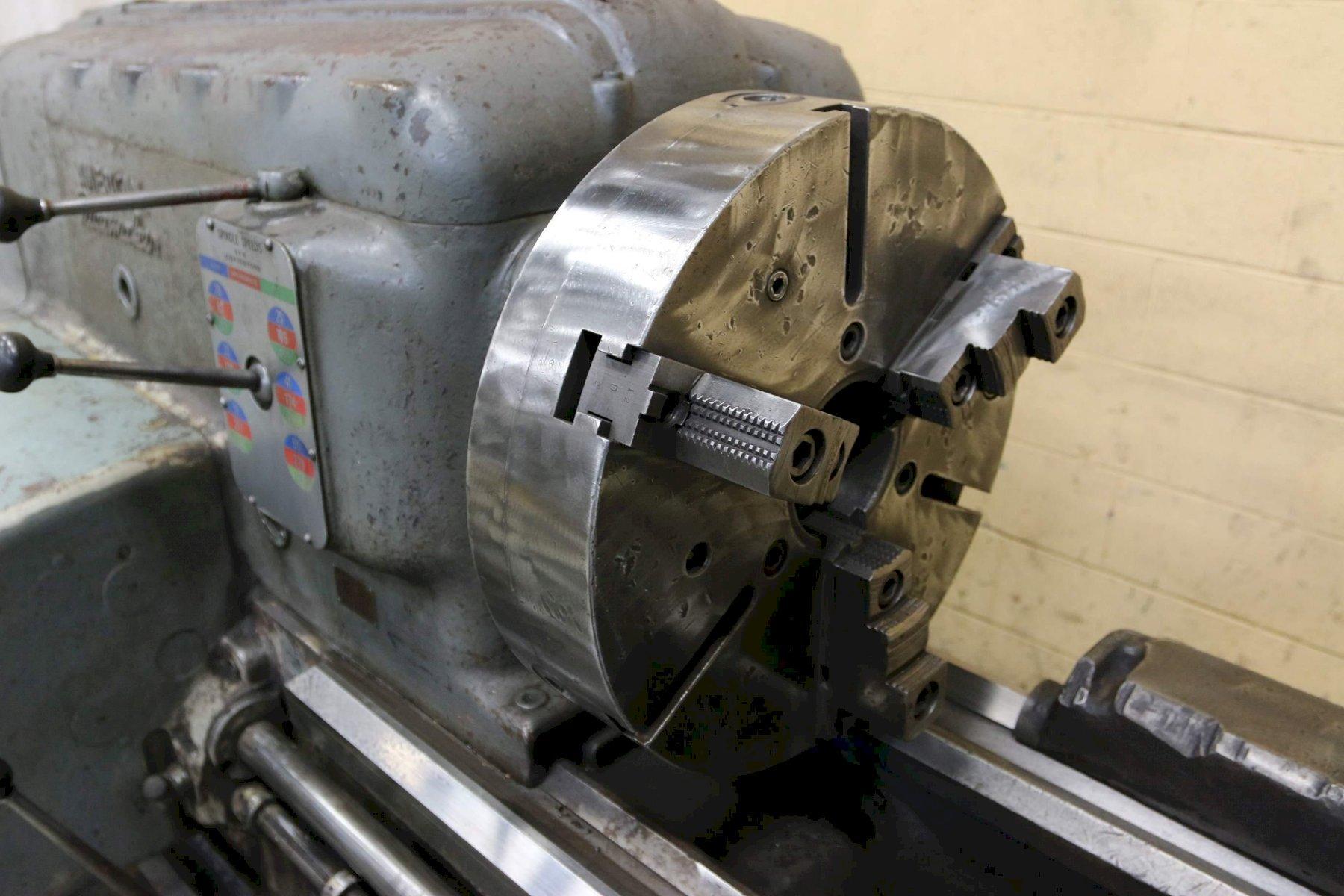

SERIAL .......................... 63874 MODEL ........................... PACEMAKER SWING ........................... 22" SWING OVER CROSS SLIDE .......... 14" DISTANCE BETWEEN CENTERS ........ 36" SPINDLE SPEEDS .................. (18) 20 TO 1200 RPM FEEDS ........................... .0033 TO .2000 IPR THREADS ......................... 1 TO 60 TPI LEADS ........................... .0156 TO 1.0000 IPR THREAD DIAL ..................... YES CHUCK ........................... 18" 3 JAW SPINDLE HOLE .................... 2.25" TAILSTOCK TAPER ................. # MT MOTOR ........................... 10 HP |
