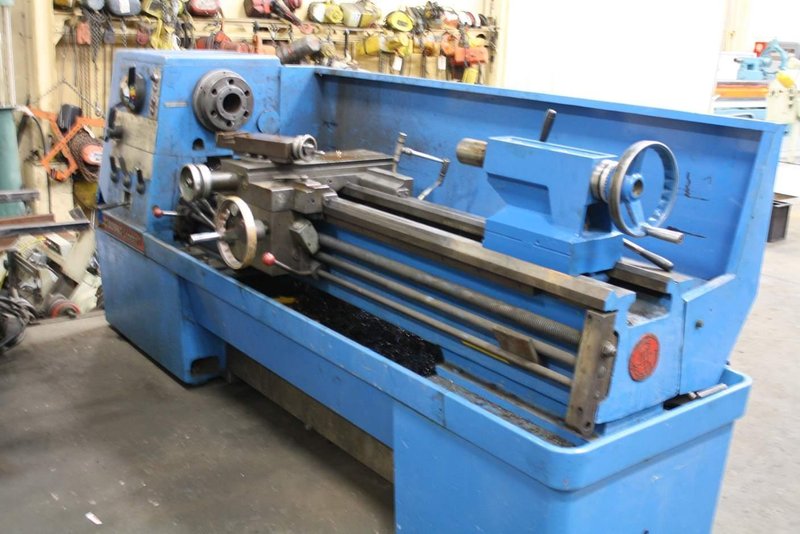

17" X 80" CLAUSING MODEL #17 ENGINE LATHE: STOCK #66996
Brand
Category
Type
Model
17 X 072
Stock #
66996
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL ............................. 7/0016/0557 MODEL .............................. 17 SWING OVER WAYS .................... 18" SWING IN GAP ....................... 28" SWING OVER CROSS SLIDE ............. 10-1/2" DISTANCE BETWEEN CENTERS ........... 80" SPINDLE SPEEDS ..................... (16) 20 TO 1600 RPM DIAMETER OF SPINDLE HOLE ........... 3-1/16" FEEDS LONGITUDINAL ................. (45) .002 TO .032 IPR THREADS (ENGLISH) .................. (38) 2 TO 72 TPI THREADS (METRIC) ................... (40) .4 TO 14 MMPI CROSS FEEDS ........................ .001 TO .016 TAPER IN TAIL STOCK ................ #5 MT HARDEN WAYS ........................ YES FORWARD & REVERSING ................ YES COOLANT ............................ YES MOTOR .............................. 10 HORSEPOWER |
