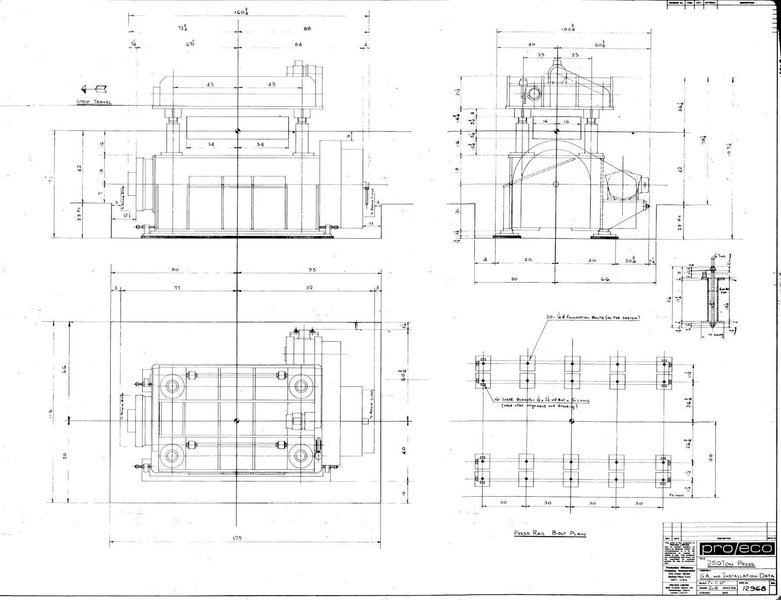

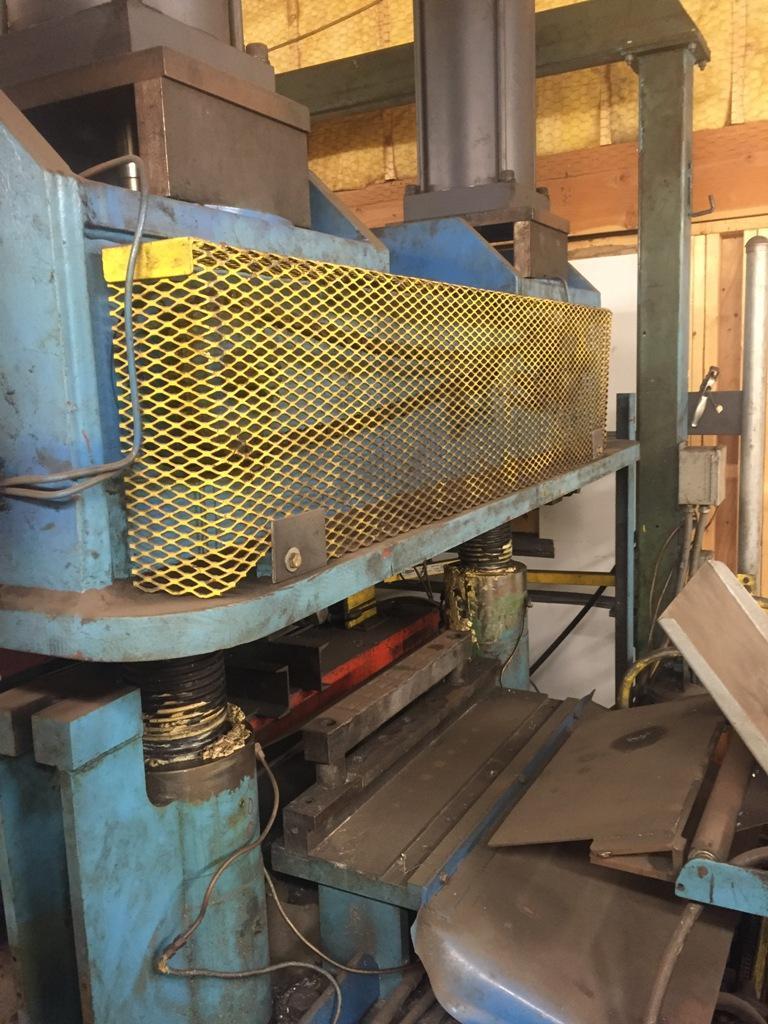

250 TON PRO ECO 4 POST CUTOFF PRESS: STOCK #65984
Brand
Category
Type
Model
MCP-250-4-36-76-200
Stock #
65984
Year
Not specified
Condition
Not specified
Location
Not specified
|
SERIAL .................... 3904-18-82 MODEL ..................... MCP-250-4-36-76-200 CAPACITY .................. 250 TON PRESS APPLICATION ......... #1 PREPIERCING UNIT STROKE .................... 4" SHUT HEIGHT ............... 13" SHEIGHT HEIGHT ADJUSTMENT . 10" VIA DRIVEN WORMGEAR ARRANGEMENT DISTANCE BETWEEN POSTS .... 37" X 79" DIE SPACE ................. 36" X 76" CRANK SPEED ............... 200 RPM MAX CUTS PER MIN .......... 20 CLUTCH & BRAKE ............ WICHITA LUBE SYSTEM ............... AUTO GREASE SYSTEM FROM PRESS TIMER PIT DEPTH ................. 53" AC MOTOR .................. 60HP/480/3/60 |
