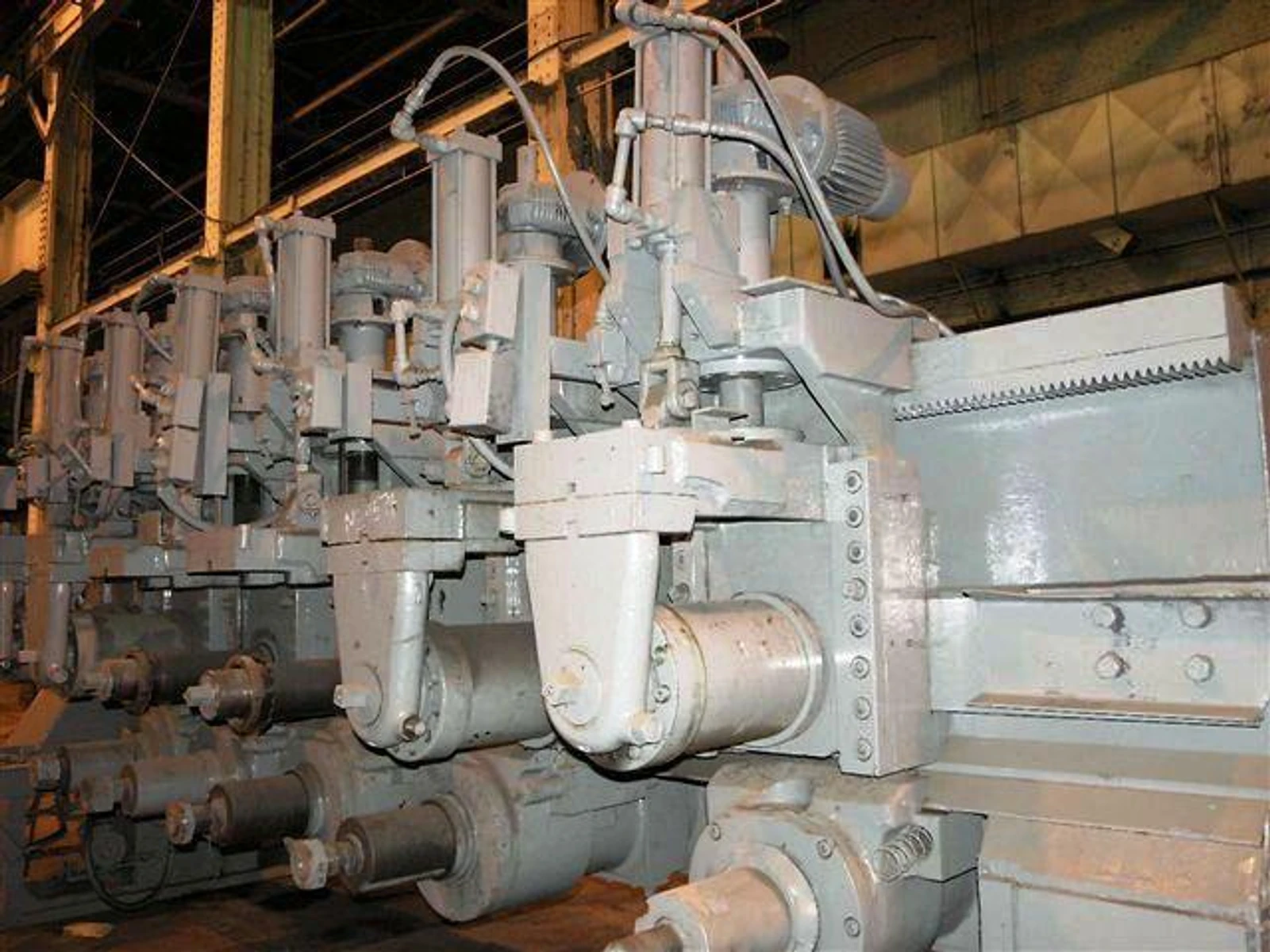

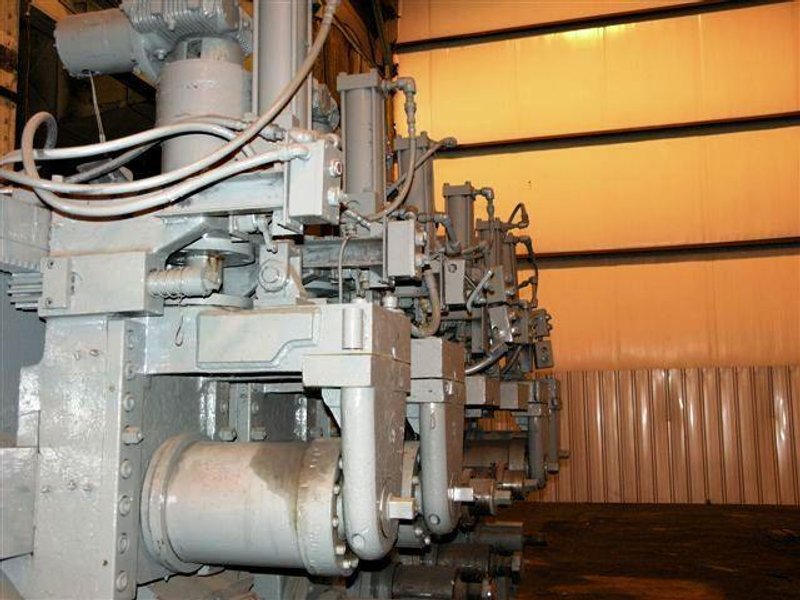

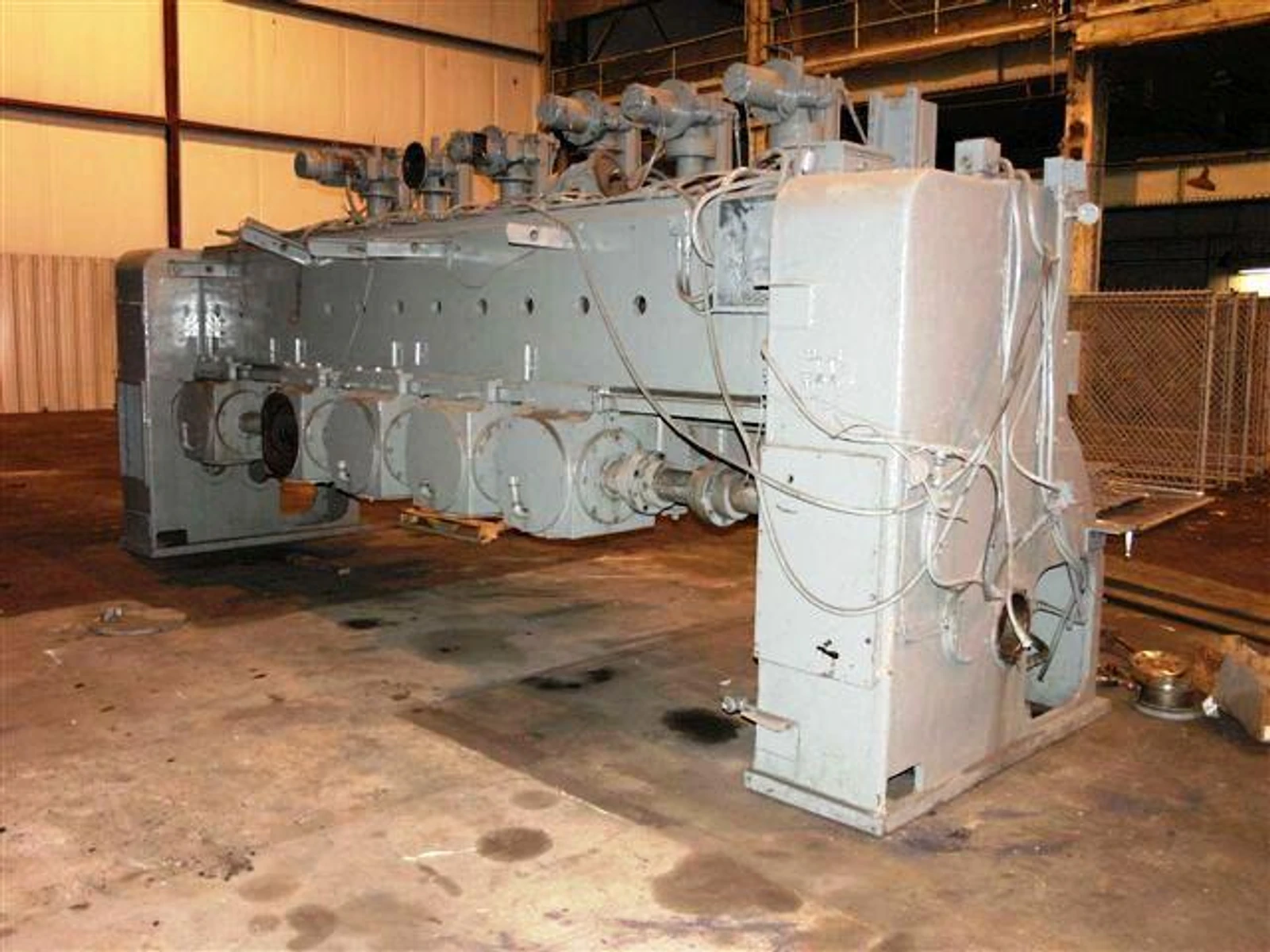

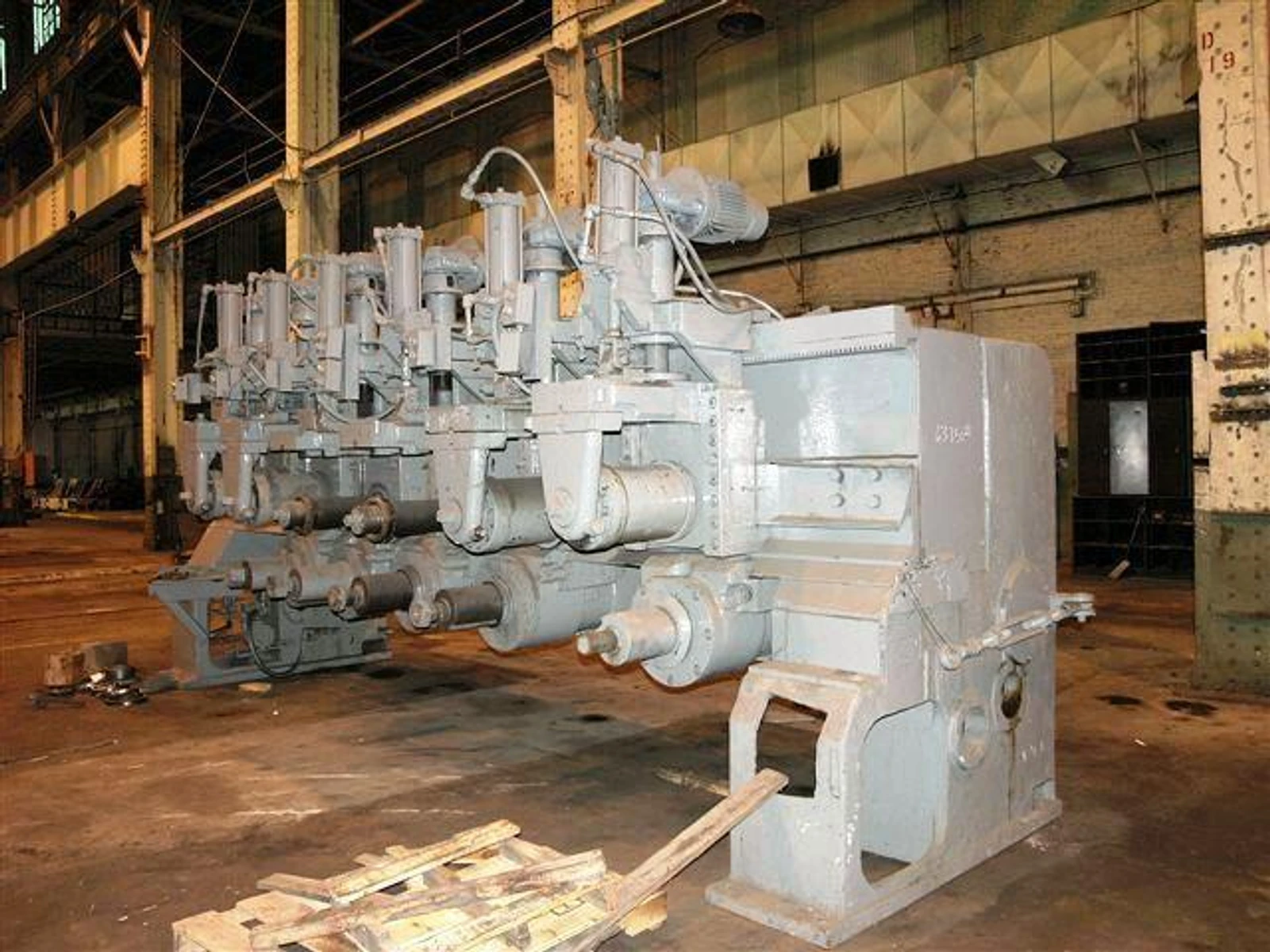

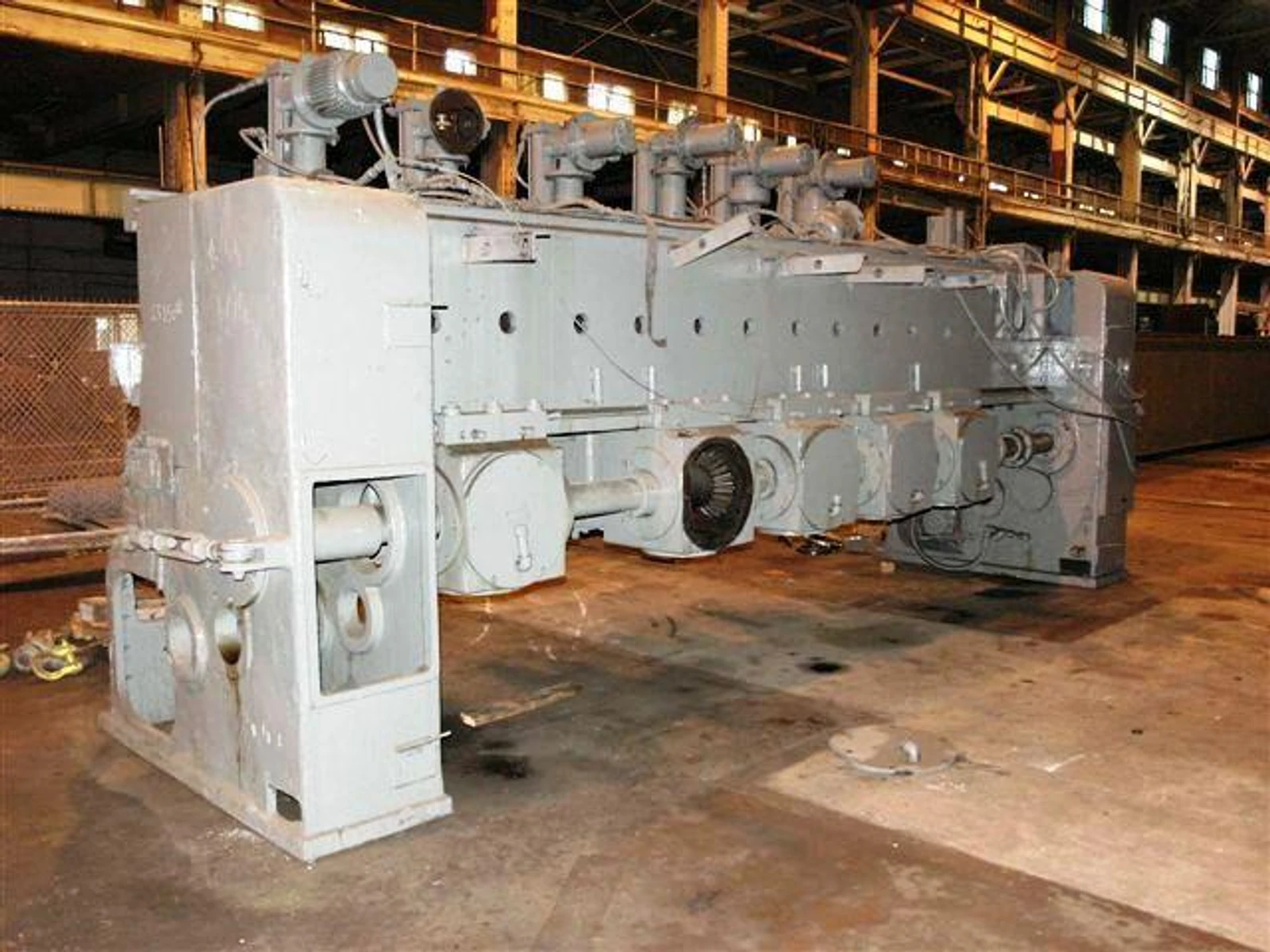

#6 BLAW KNOX/MEDART 11 ROLL SINGLE PLANE SHAPE STRAIGHTENER: STK 65937
Brand
Not specified
Category
Type
Model
11 ROLL SINGLE PLAN
Stock #
65937
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL ..................... 1950 NEW ........................ 1978 MODEL ...................... 6 SPOMVCA-11 DESIGN ..................... HORIZONTAL OVERHUNG CAPACITY, ANGLE ............ 3" X 3" X 0.19" TO 6" X 6" X .75" CAPACITY, FLAT ............. 3" TO 8" TRAVEL ..................... LEFT TO RIGHT ROLL CENTERS ............... 20" TO 40" ADJUSTABLE PASSLINE ................... 42" NUMBER OF ROLLS ............ 11 (6 TON & 5 BOTTOM) DRIVEN ROLLS ............... 15" DIAMETER X 8" FACE NON DRIVEN ROLLS ........... 16" DIAMETER LINE SPEED ................. 100 TO 400 FPM |
