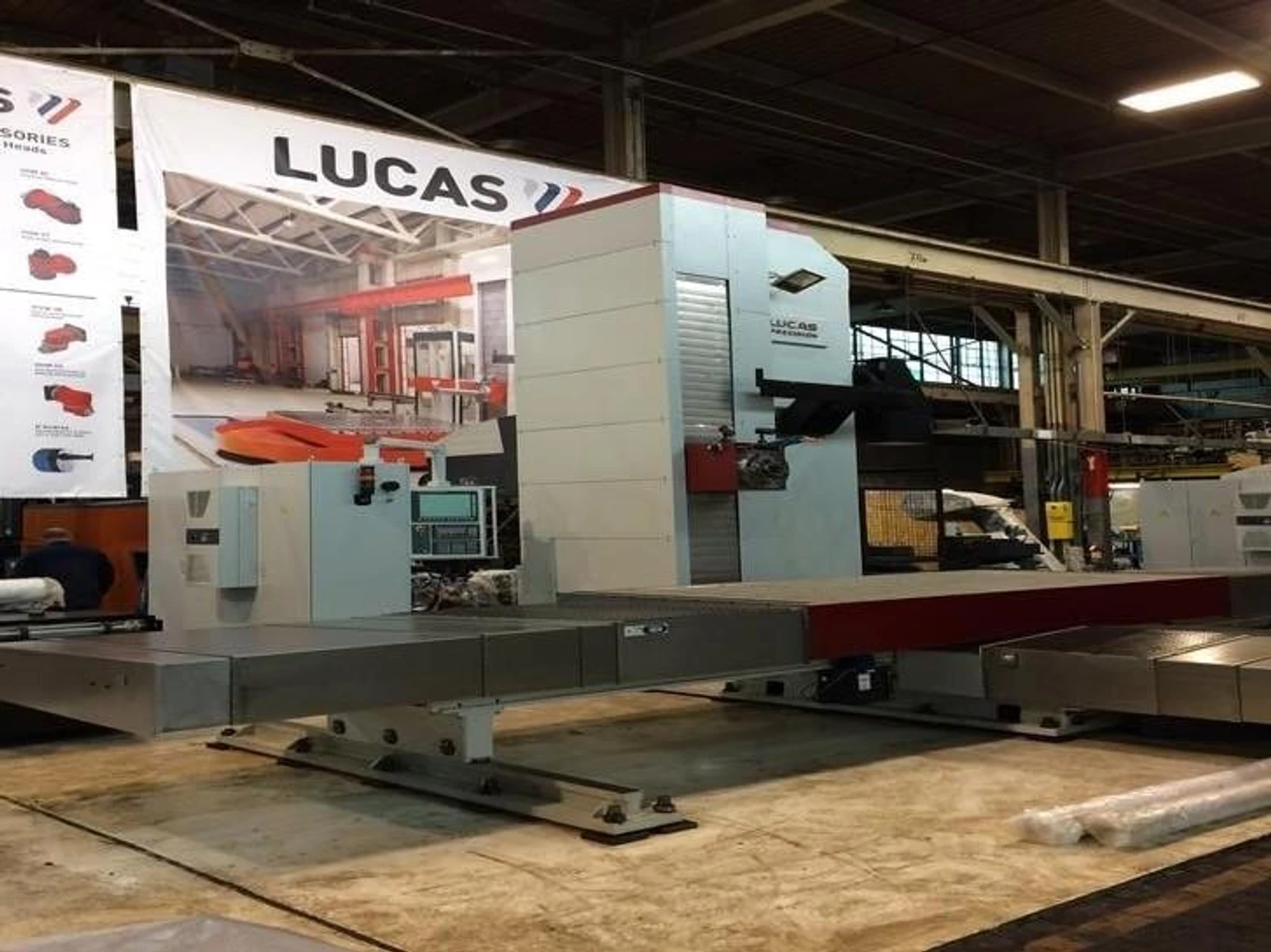

(Remanufactured) Lucas Model 40T1210 CNC Table Type Horizontal Boring Mill w/ New WFT 13 Headstock, 2017
X axis: 3 657 mm / 144.00 in
Y axis: 3 048 mm / 120.00 in
Z axis: 1 820 mm / 72.00 in
W axis: 730 mm / 29.00 in
Spindle diameter: 130 mm / 5.1 in
Taper CAT 50
Tool clamping: ANSI 35.50 - 78
Spindle speeds: 10 - 3 000 RPM
Axis Feed Rate X, Y, Z: 0,1 - 10 000 mm/min /005 - 400 IPM
Table size: 1 524 x 4 013 mm /005 - 400 IPM
Weight capacity: 20 000 kg / 45 000 lb
Output of main motor: 37/45 kW / 50 hp
Renishaw RMP 60 Nominal output of motors X, Z: 5 kW
Nominal output of motor Y: 14 kW
Nominal output of motor W: 4.5 kW
Linear Scales Fagor
Installed input 85 kVA
Weight of machine 41 730 kg / 92 000 lb
Spindle center cooling 20 bar / 290 psi
External rinse cooling 6 bar / 87 psi
Option: Renishaw RMP 60
Equipped With:
Fanuc 0i-MF CNC Control
ATC 40 pockets
Fanuc Hand Wheel
Air-conditioned Electric Switchboard
UL Rated Components for Electrical Cabinet and Wiring
Automatic Box Way Oil Lubrication
Hydraulic Unit
Cooling Aggregate for Thermal Stabilization of Spindle Bearings
and gearbox
Submersible pump into the foundation
Preparation for Manual Heads
Specifications are preliminary and subject to buyer verification.
|
