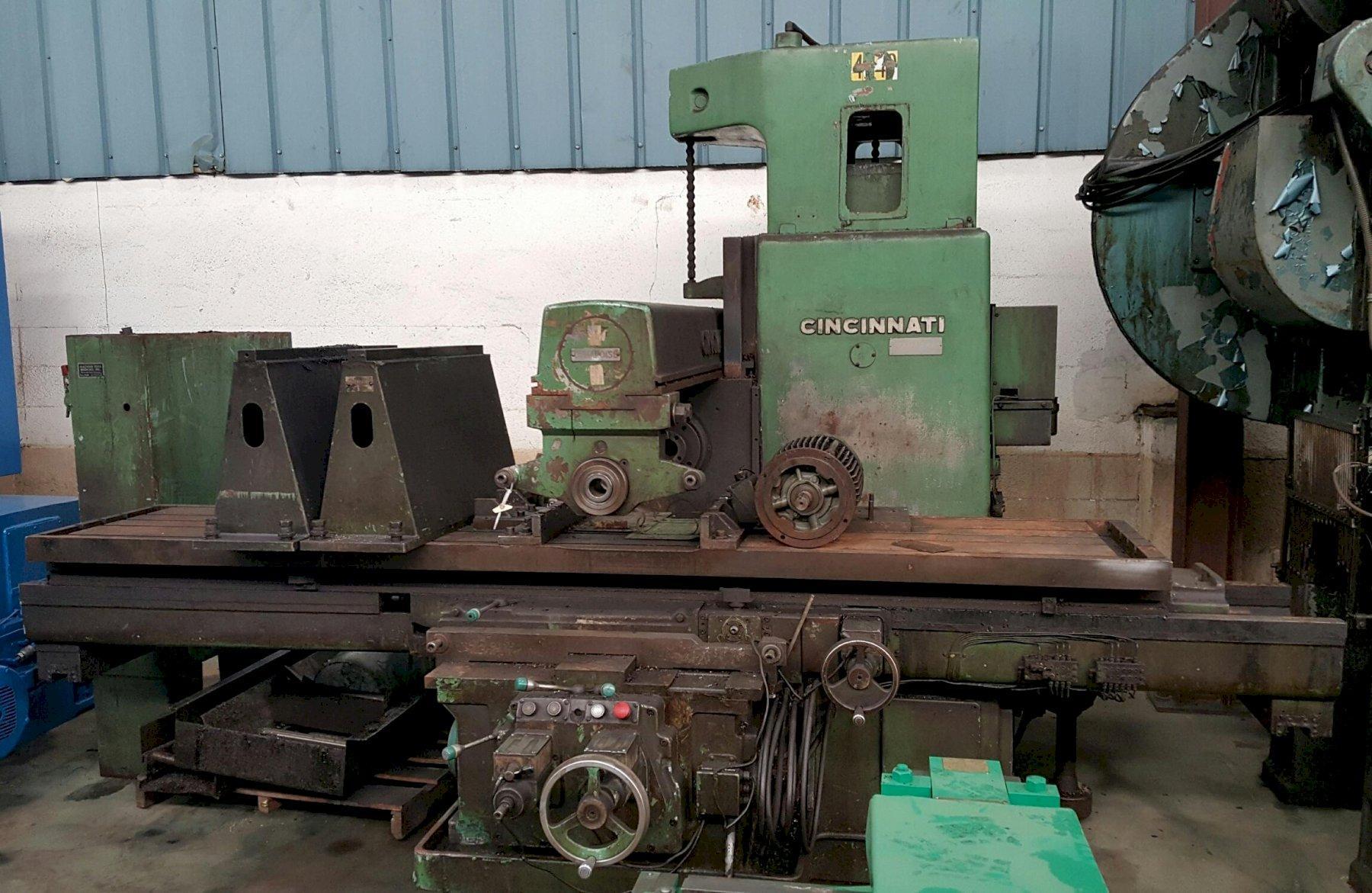

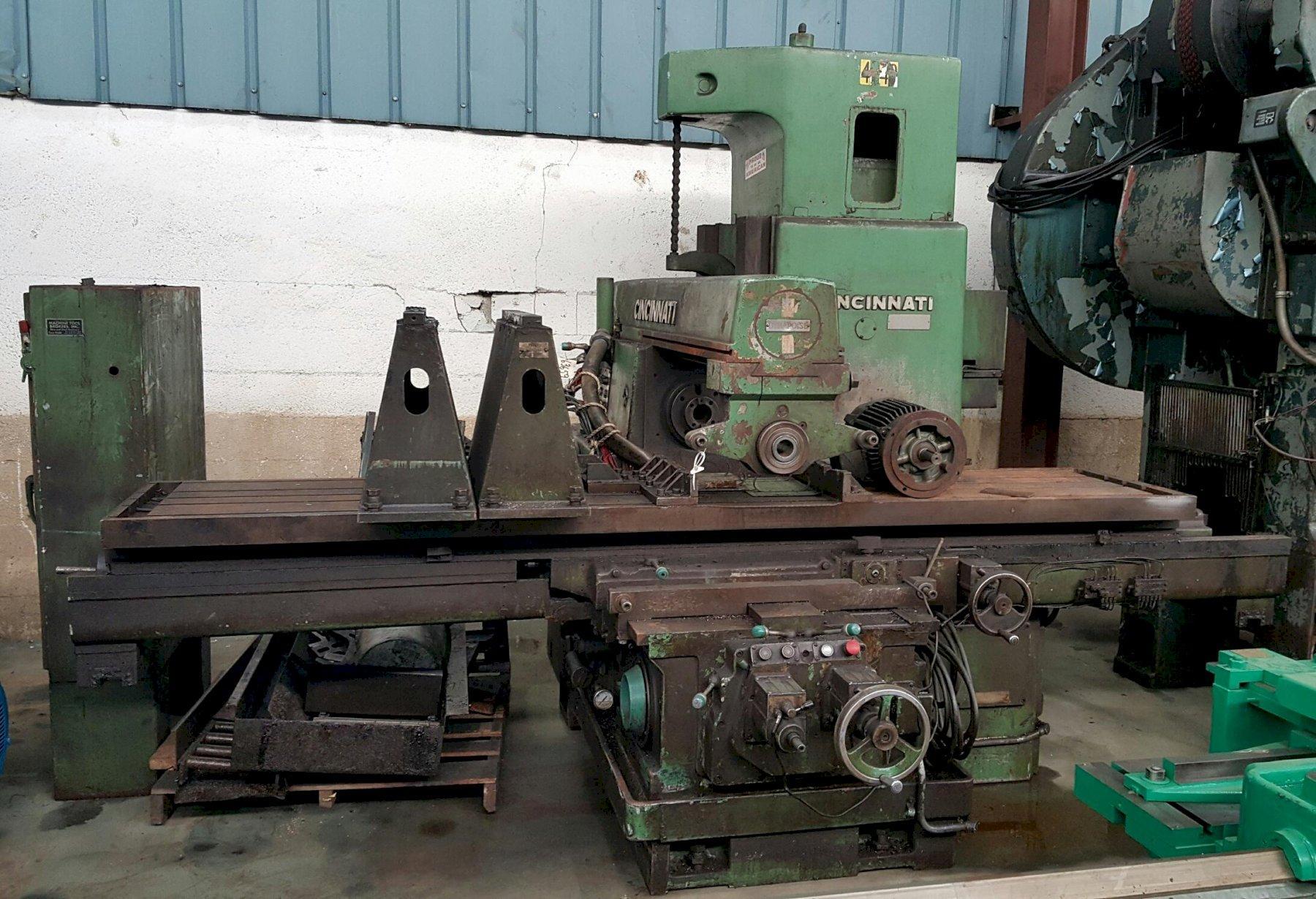

750-25 CINCINNATI VERCIPOWER HORIZONTAL MILL: STOCK #63659
Brand
Not specified
Category
Model
750-25
Stock #
63659
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL ................................. 311073H5V-1 MODEL .................................. 750-2 AREA OF TABLE .......................... 128" X 25" SPINDLE SPEEDS ......................... (24) 14 TO 1400 RPM LONGITUDINAL AND CROSS FEEDS ........... (32) 3/8 TO 90 IPM VERTICAL HEAD FEEDS .................... (32) 3/16 TO 45 IPM LONGITUDINAL TRAVEL .................... 72" CROSS TRAVEL ........................... 18" VERTICAL TRAVEL OF HEAD ON COLUMN ...... 24" CENTERLINE OF SPINDLE TO TOP OF TABLE .. 3" MIN, 27" MAX CENTER OF TABLE TO COLUMN .............. 13-3/4 TO 31-3/4" RAPID TRAVERSE ......................... 150 IPM TAPER IN SPINDLE ....................... #50 NS FLOOR TO TABLE CENTER .................. 39-1/2" OVER ARM SUPPORT ....................... YES OUT BOARD TABLE SUPPORTS ............... YES SNAP SET READERS ....................... YES SPINDLE MOTOR .......................... 50 HORSEPOWER FEED MOTOR ............................. 7-1/2 HORSEPOWER |
