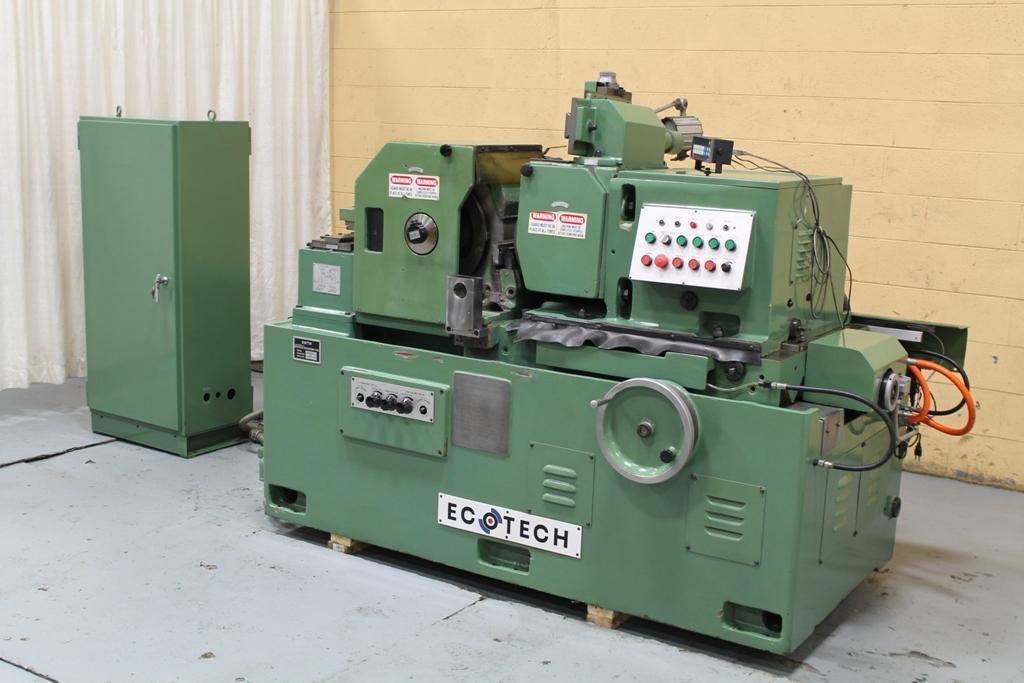

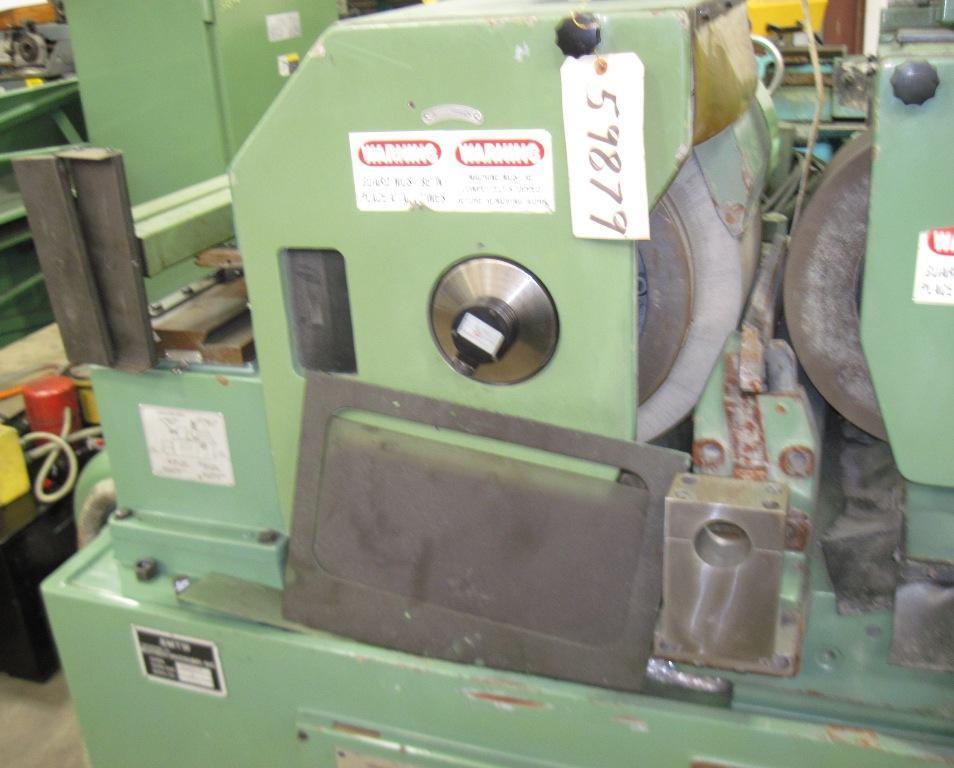

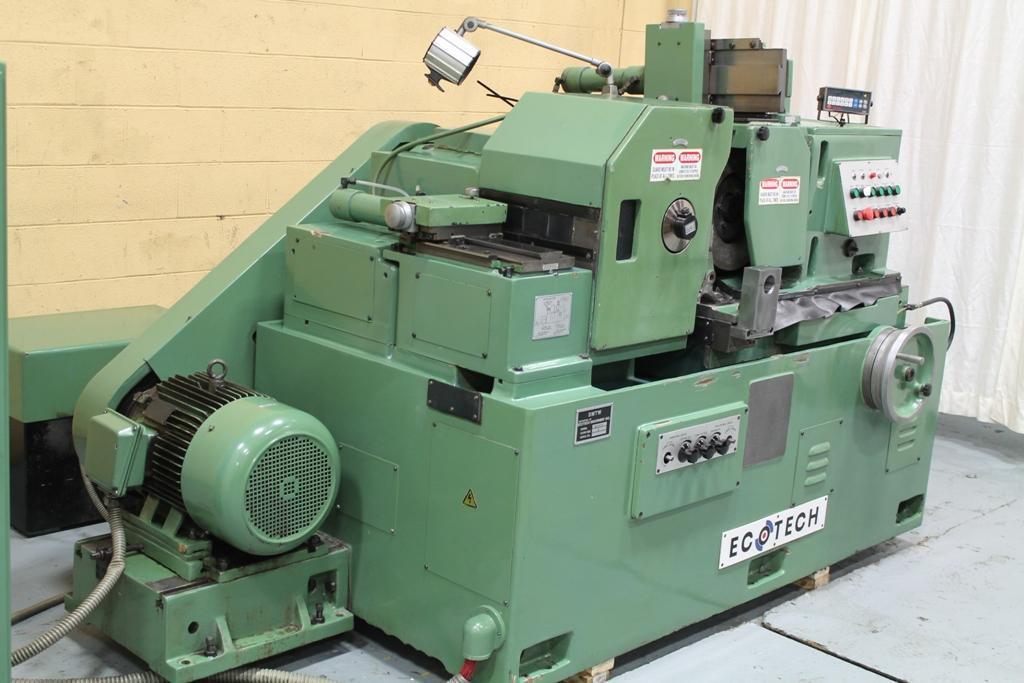

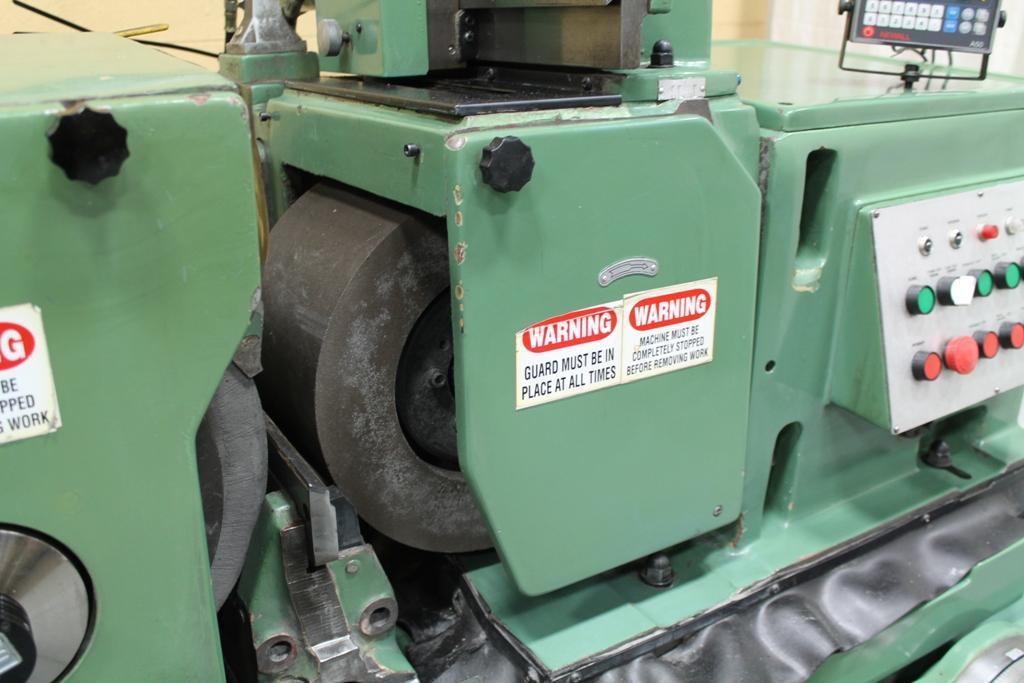

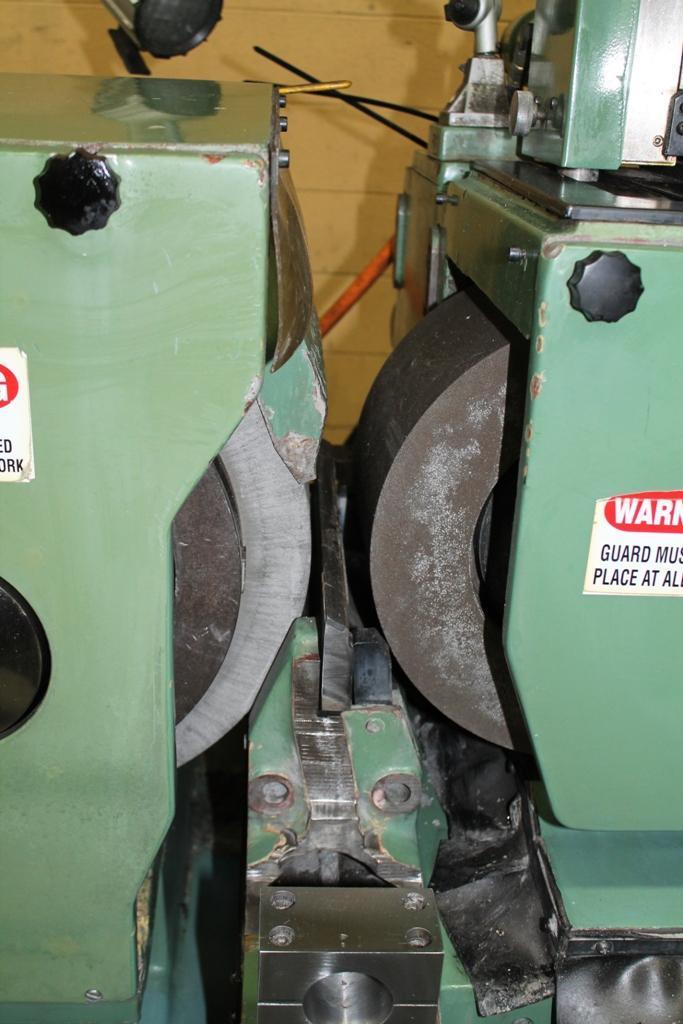

4' SMTW/ECOTECH CENTERLESS GRINDER: STOCK #59879
Brand
Not specified
Category
Type
Model
04
Stock #
59879
Year
Not specified
Condition
Not specified
Location
Ohio
|

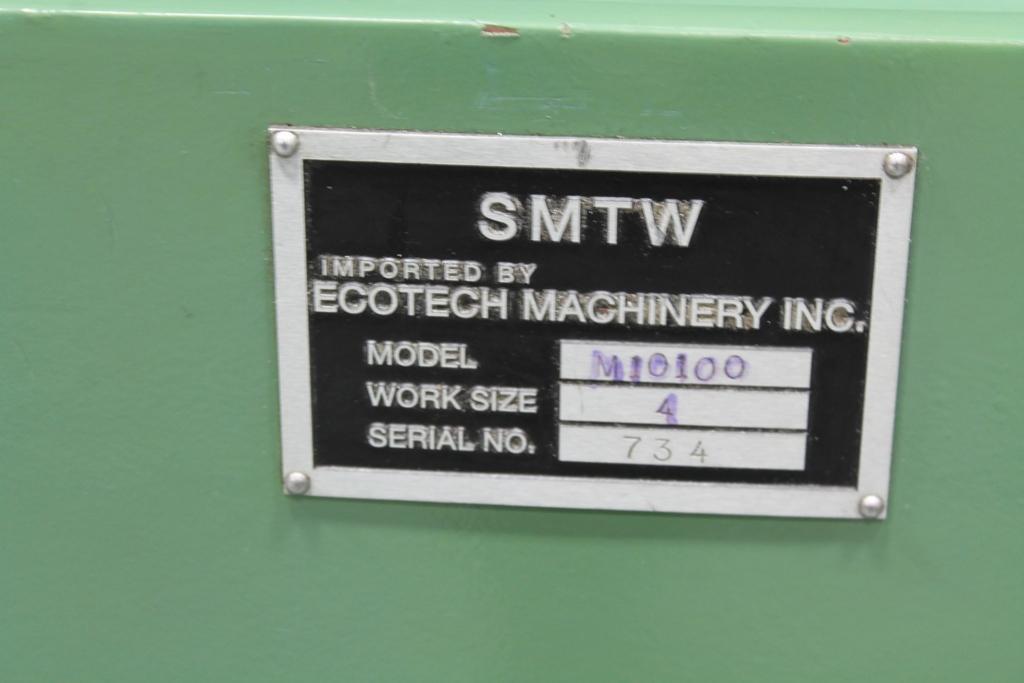

SERIAL ................ 734 MODEL ................. M10100 YEAR .................. 2006 INFEED: DIAMETER .............. 0.39/4.0" MAX (LIMITED BY WORKREST) LENGTH ................ 7.67 MAX THROUGH FEED: DIAMETER .............. 0.39/4.0" MAX (LIMITED BY WORKREST) LENGTH ................ CONTINUOUS CENTER HEIGHT ......... 8.66" (FROM WORK TABLE) MAX WORK LOAD ......... 50 LBS (INFEED) NET WEIGHT ............ 15,500 LBS DIMENSIONS ............ 154.0"L X 129.0"W X 85.0"H GRINDING WHEEL: HORSEPOWER ............ 30 WHEEL SIZE ............ 20"D X 8"W X 12"B WHEEL SPEED ........... 1,100 RPM SURFACE SPEED ......... 6,801 SFM DRESSER UNIT .......... STEPPING MOTOR INFEED W/TEMPLATE DRESS SWIVEL .......... 1 AXIS + OF -3° SPINDLE TAPER ......... 1:5 TAPER SPINDLE BEARING ........ CANTILEVER TYPE/4 SHOE HYDRODYNAMIC REGULATING WHEEL: RAPID TRAVEL .......... 30 IPM MAX TRAVEL RP ......... .78" OIL RESERVOIR ......... 5.3 GAL - 60 ISO VISCOSITY GRADE HORSEPOWER ............ 4 (DC) WHEEL SPEED ........... 10-300 RPM / VARIABLE VERTICAL SWIVEL ....... -2° / +5° HORIZONTAL SWIVEL ..... -1° / +3° WHEEL SIZE ............ 13.7" X 7.87" X 8" SPINDLE BEARING ....... CANTILEVER TYPE/3 SHOE HYDRODYNAMIC DRESSER UNIT .......... VARIABLE HYDRO FEED/TEMPLATE FORMING DRESS SWIVEL .......... 2 AXIS / 1ST-2 TO +5 / 2ND -3 TO +3° HYDRAULIC SYSTEM: FLOW RATE ............. 5.2 GPM PRESSURE .............. 241 TO 284 PSI (WORKING) 14/21 PSI (LUBE) RESERVOIR ............. 66 GAL HORSEPOWER ............ 1.5 |
