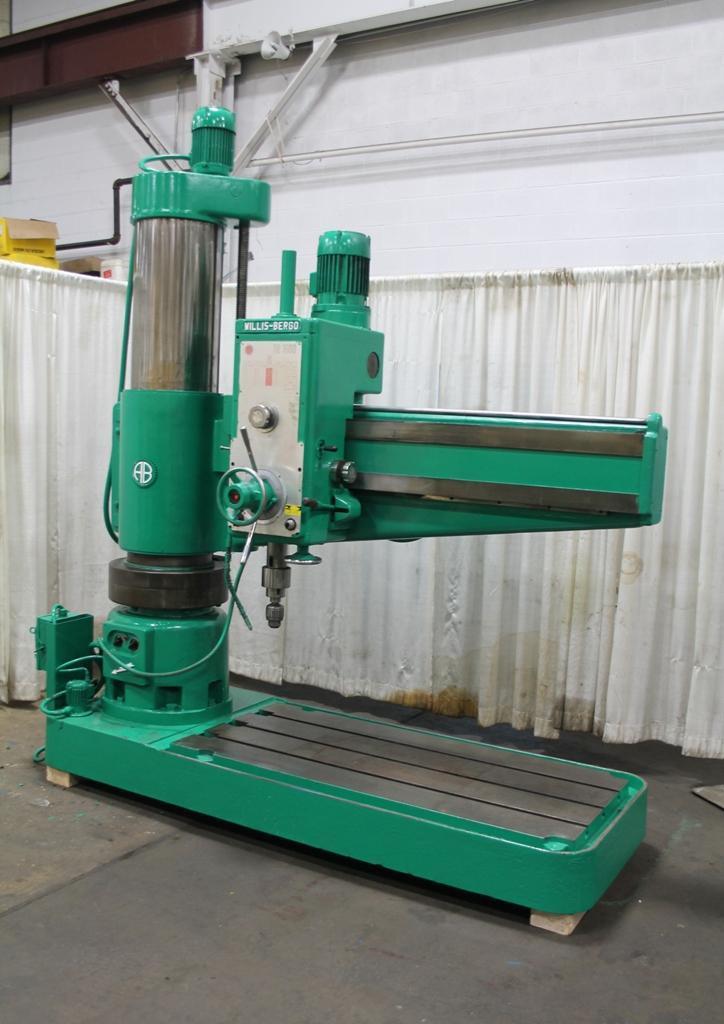

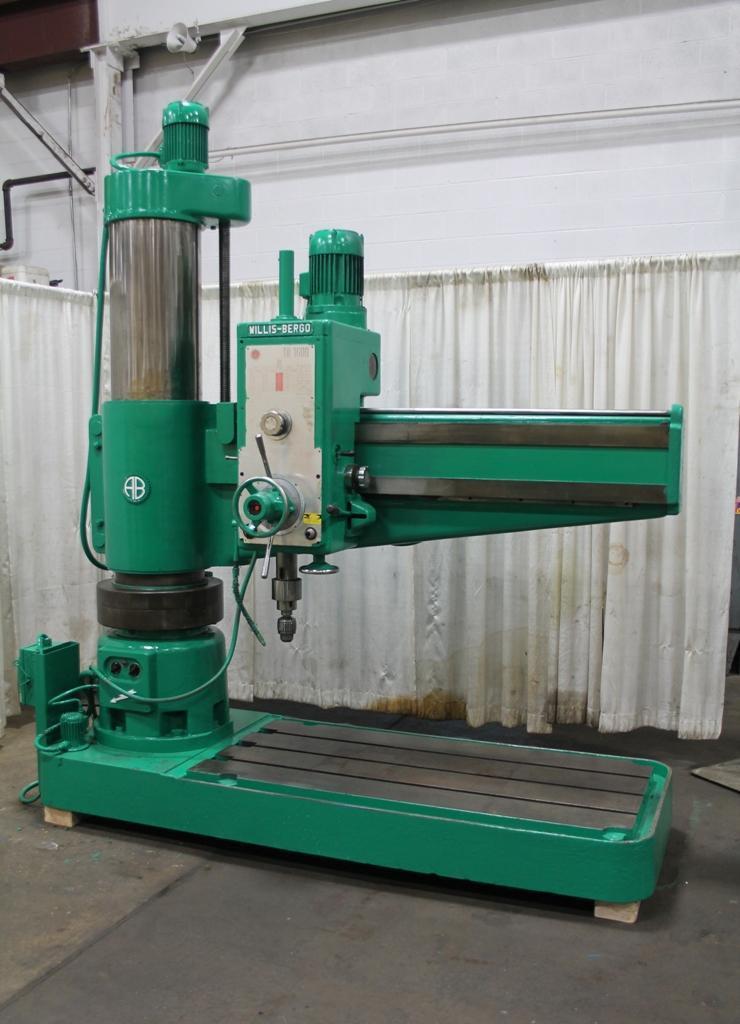

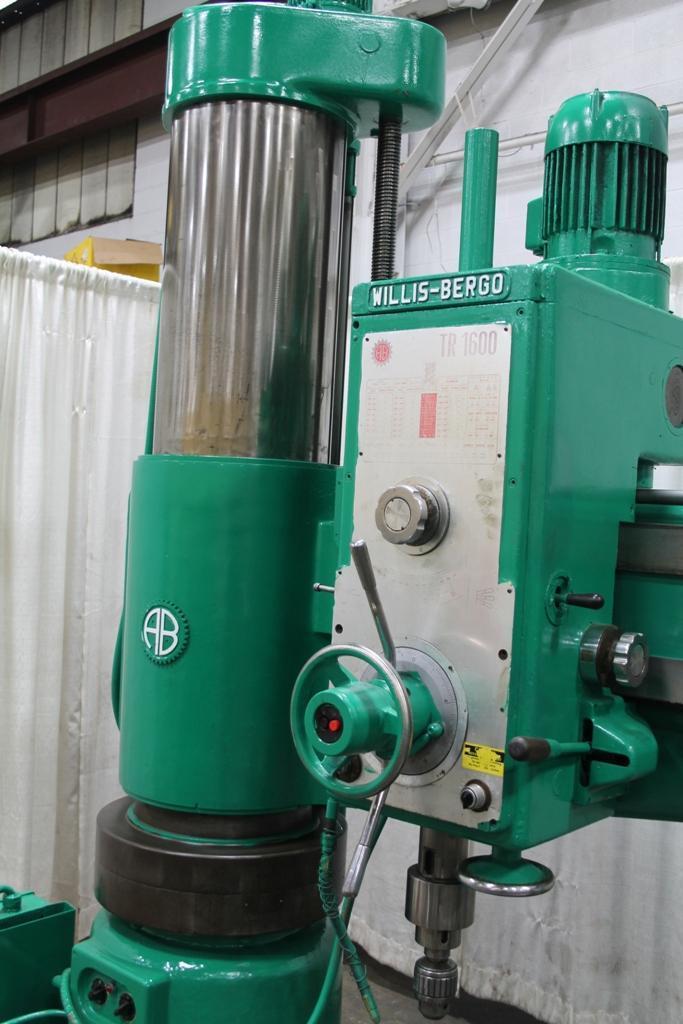

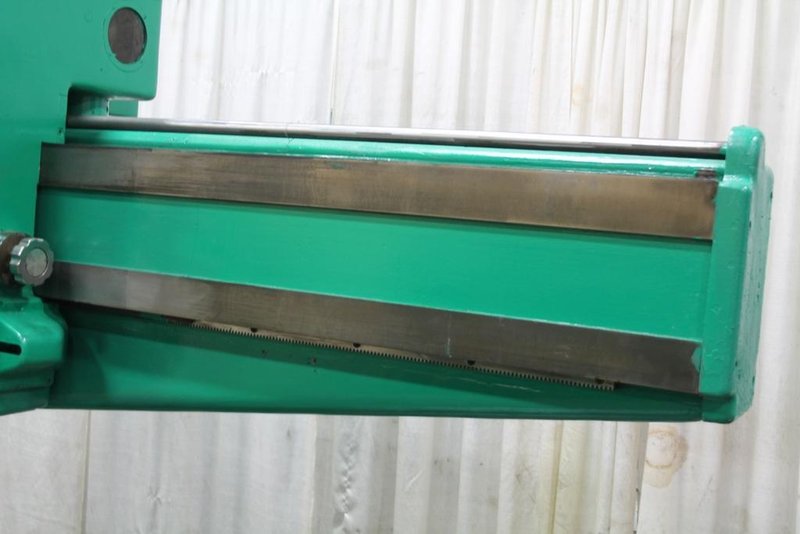

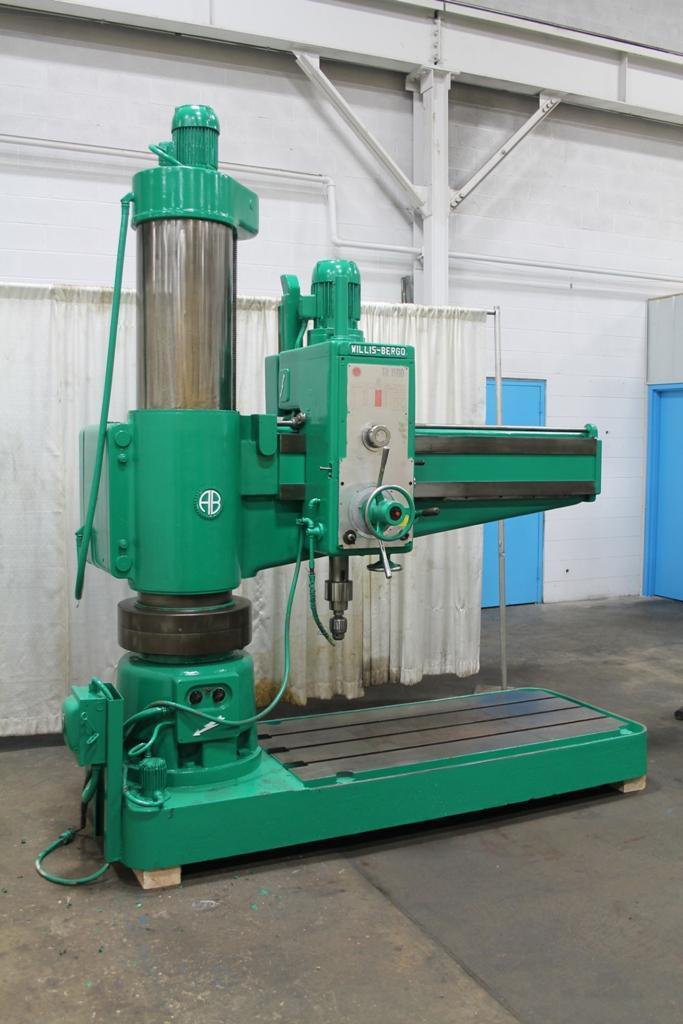

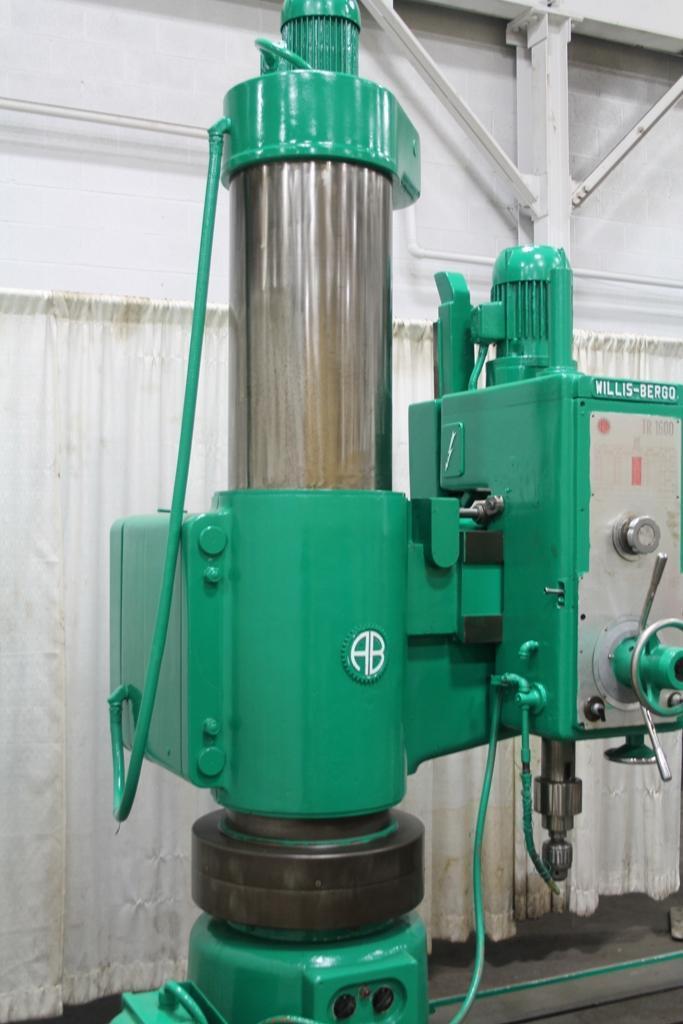

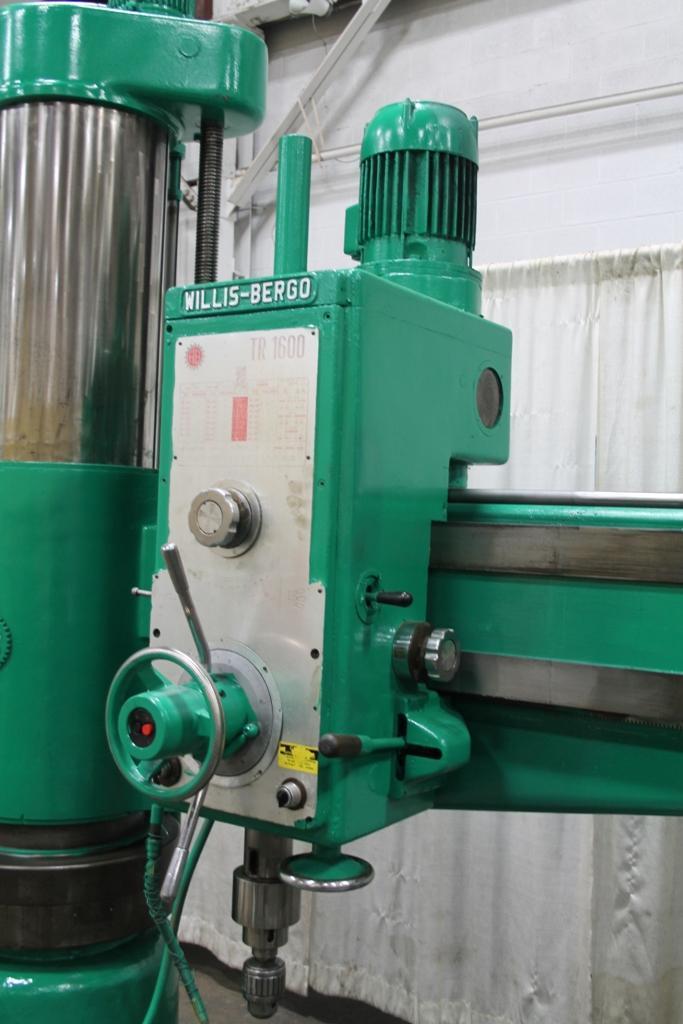

MODEL ....................... TM1600 AREA OF BASE ................ 52" X 25" SPINDLE SPEEDS .............. (12) 23 TO 1850 RPM FEEDS ....................... (5) .003,.006,.009,.013 & .021 IPR TAPPING ..................... YES DIAMETER OF SPINDLE ......... 3-3/8" TAPER IN SPINDLE ............ #5 MT SPINDLE TRAVEL .............. 11-7/8" DRILLING CAPACITY ........... 2" MILD STEEL DRILLING CAPACITY ........... 2-9/16" CAST IRON TAPPING CAPACITY CAST IRON .. 2" DISTANCE SPINDLE TO COLUMN .. 49" DISTANCE SPINDLE TO BASE .... 12" MINIMUM TO 54" MAXIMUM TRAVEL OF HEAD ON ARM ....... 37-1/2" POWER ARM AND HEAD CLAMPING . YES COOLANT ..................... YES MOTOR ....................... 6-1/2 HORSEPOWER |
