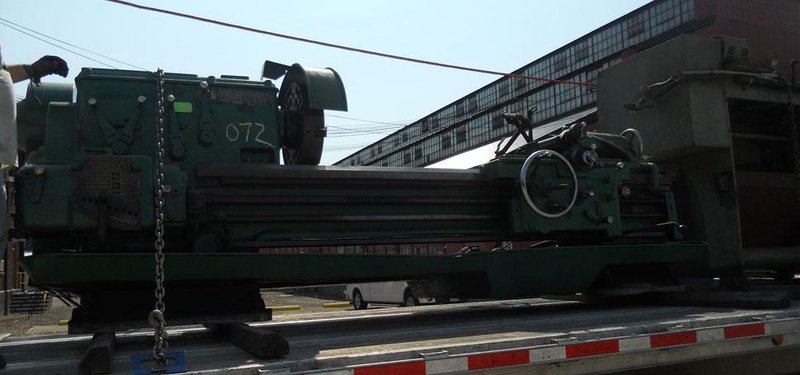

20" X 72" MONARCH ENGINE LATHE: STOCK #59043
Brand
Not specified
Category
Type
Model
20 X 072
Stock #
59043
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL ............................. 27496 MODEL .............................. 20CM SWING OVER WAYS .................... 22-1/2" DISTANCE BETWEEN CENTER ............ 72" SWING OVER CROSS SLIDE ............. 13" SPINDLE SPEEDS ..................... (12) 9 TO 400 RPM FEEDS .............................. (48) .005 TO .240 IPR THREADS ............................ (48) 3/4 TO 46 TPI DIAMETER OF SPINDLE HOLE ........... 2-1/4"" TAPER ATTACHMENT ................... YES SWIVEL COMPOUND .................... YES CHUCK .............................. 21" 4 JAW THREAD DIAL ........................ YES HARDEN WAYS ........................ YES SPINDLE FORWARD & REVERSE .......... YES COOLANT WITH CHIP PANS ............. YES MOTOR .............................. 10 HORSEPOWER |
