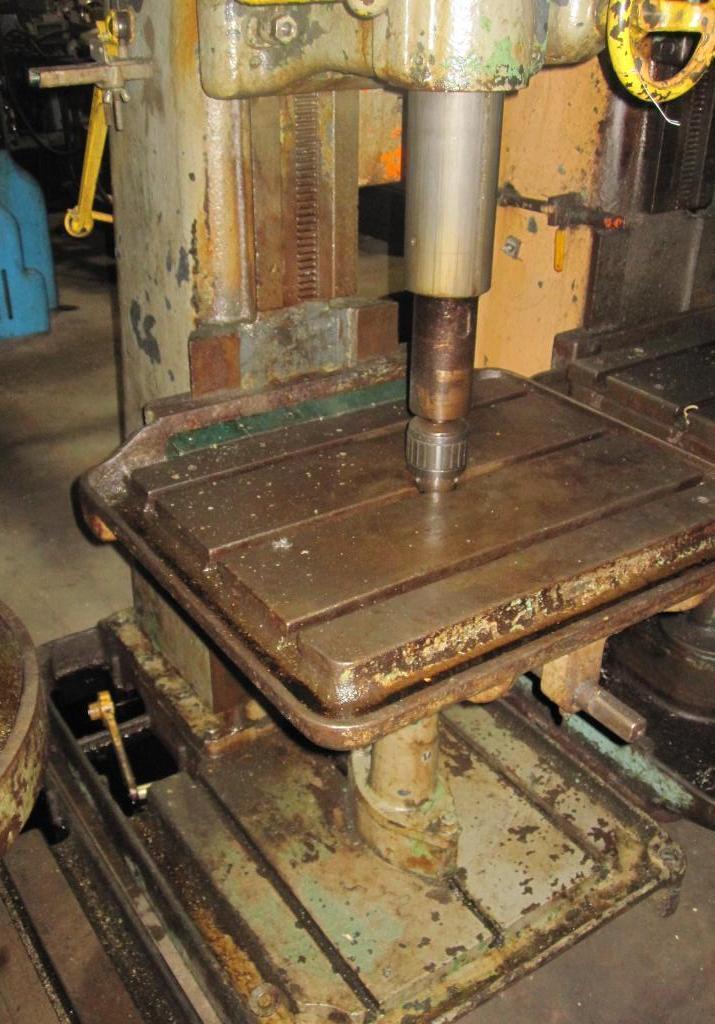

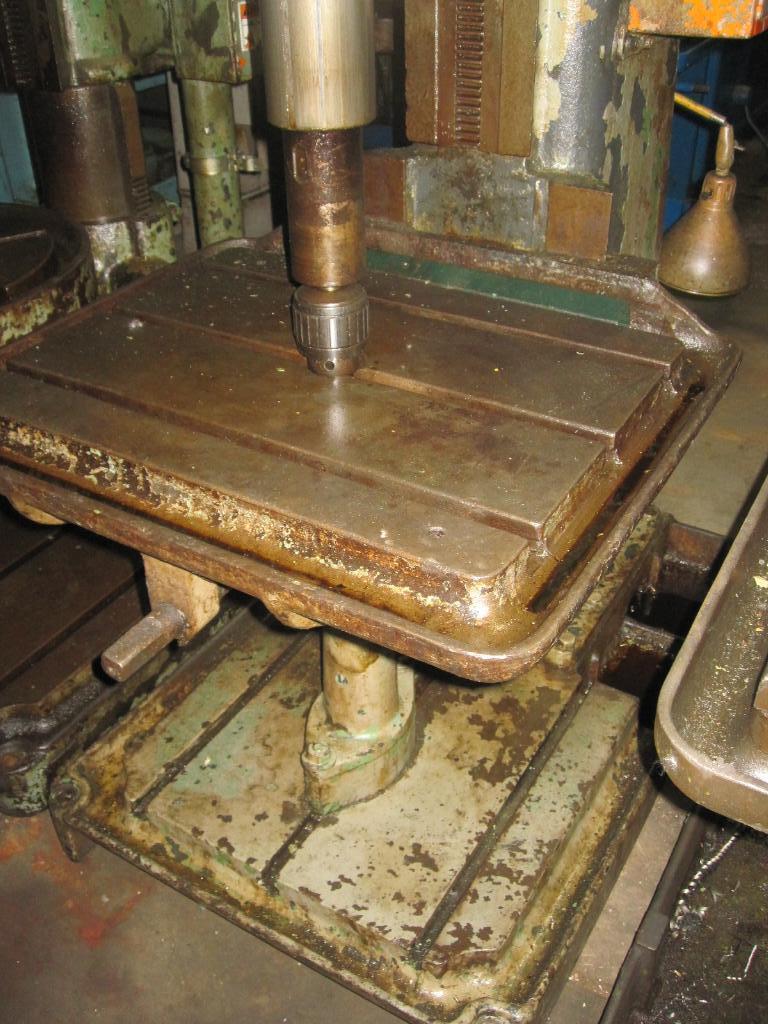

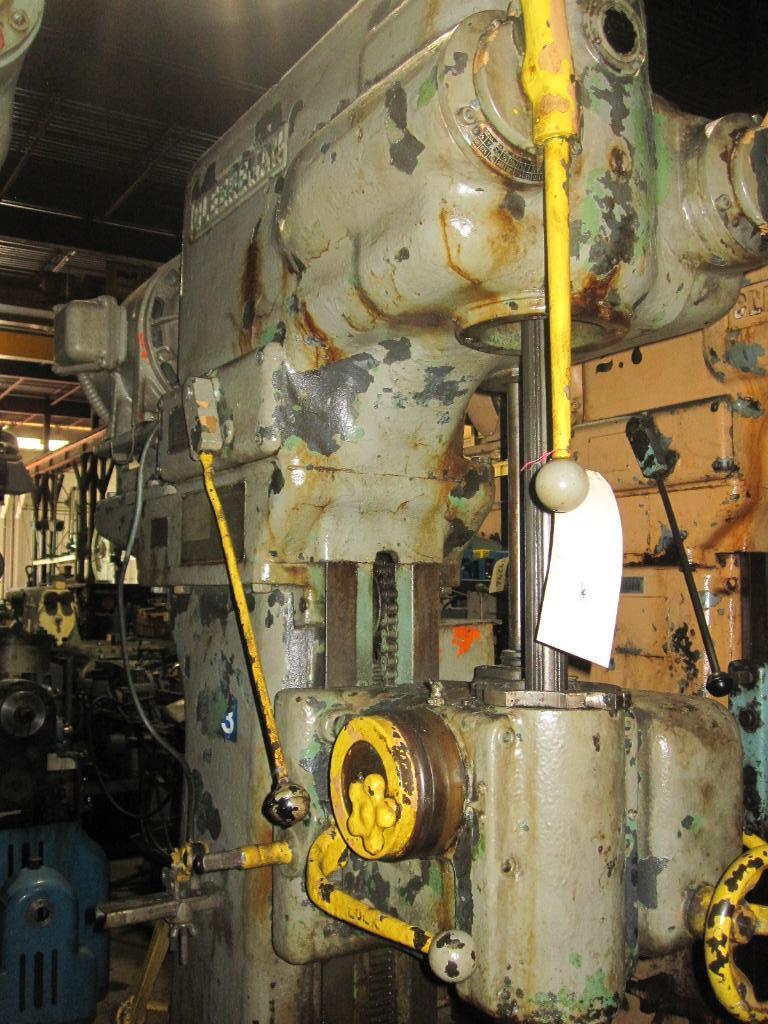

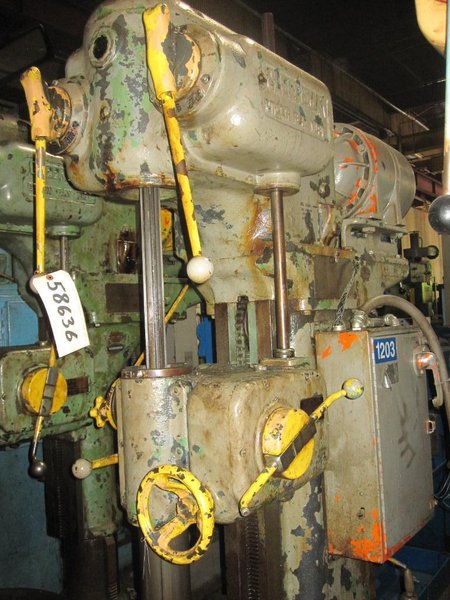

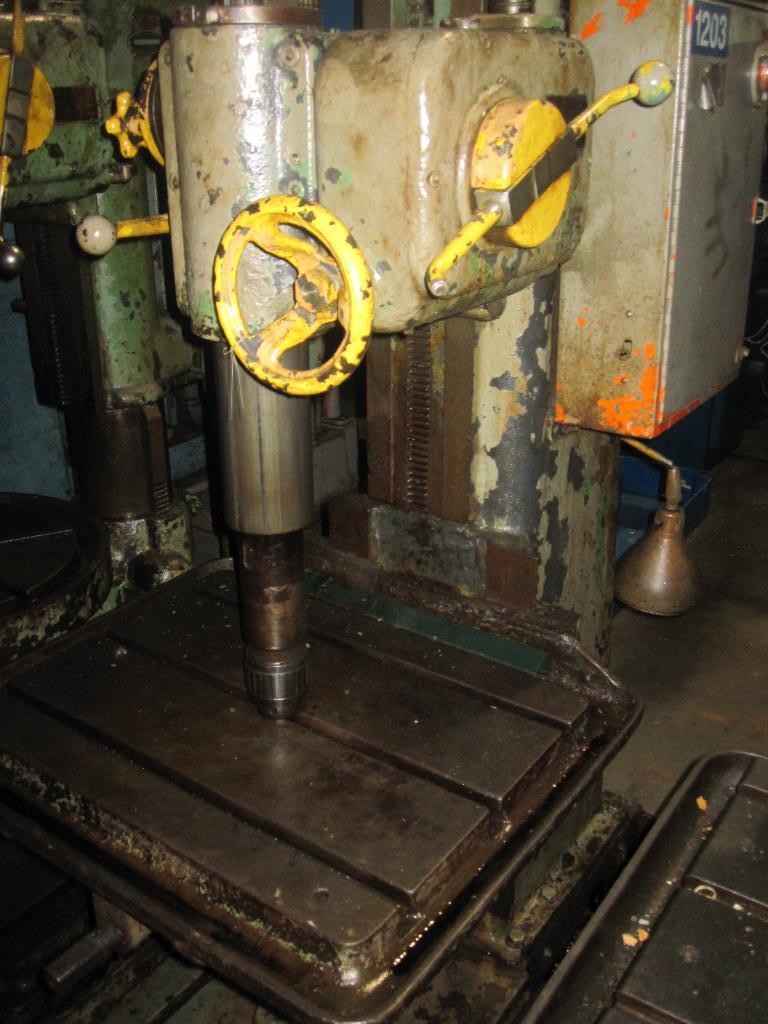

25' CLEEREMAN SINGLE SPINDLE DRILL: STOCK #58636
Brand
Not specified
Category
Model
25
Stock #
58636
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL ..................................... 25C495 MODEL ...................................... 25 SWING, SPINDLE CENTER TO LOWER COLUMN ...... 12-1/2" SWING, SPINDLE CENTER TO UPPER COLUMN ...... 11-1/2" AREA OF WORK TABLE, T-SLOTTED .............. 30" X 16" TABLE TRAVELS .............................. 20" X 12" VERTICAL TABLE ADJUSTMENT .................. 12" MAXIMUM DISTANCE SPINDLE TO TABLE .......... 27" VERTICAL ADJUSTMENT OF SLIDING HEAD ........ 18" POWER FEED SPINDLE TRAVEL .................. 12" SPINDLE TAPER .............................. #4 MT SPINDLE SPEEDS ............................. (12) 40-800 RPM SPINDLE FEEDS .............................. (9) .005-.032 IPR SPINDLE MOTOR .............................. 5 HORSEPOWER |
