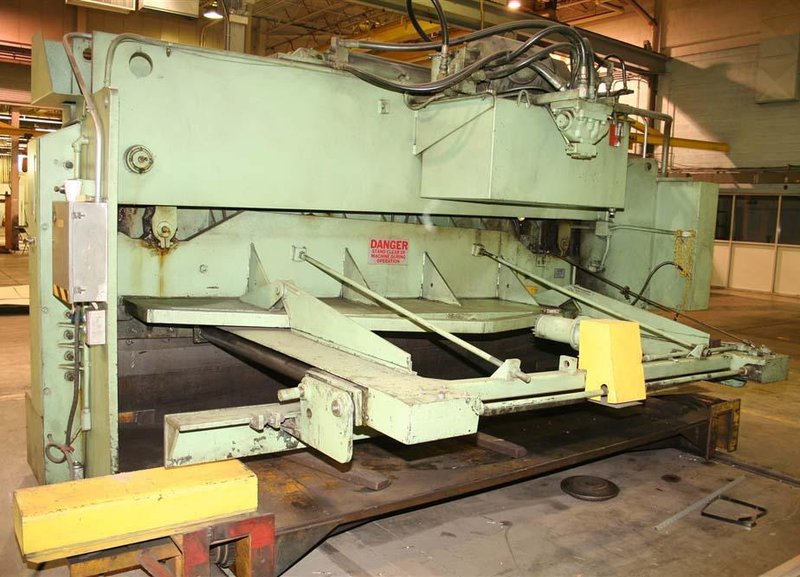

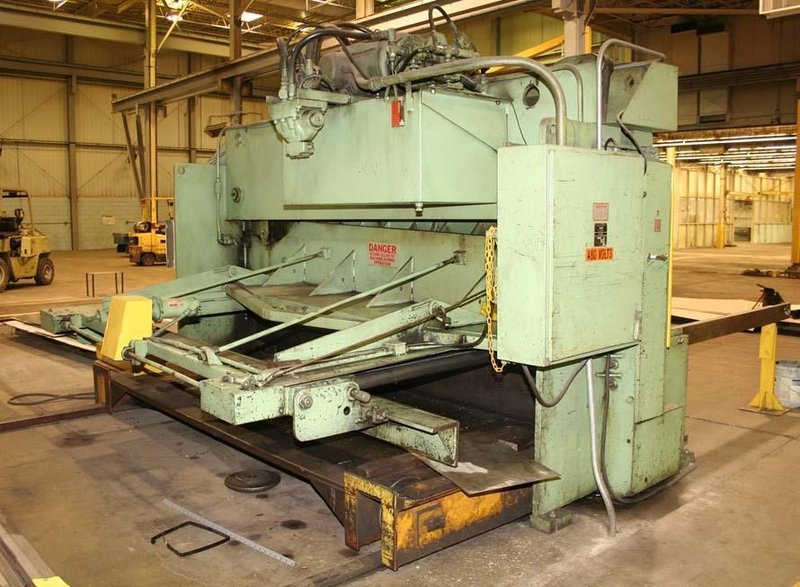

12' X 1/2" HTC HYDRAULIC POWER SQUARING SHEAR: STOCK 57556
Brand
Category
Model
12 X 500
Stock #
57556
Year
Not specified
Condition
Not specified
Location
Not specified
|
SERIAL ............................. A9771131 MODEL .............................. 500-12AH CAPACITY ........................... 1/2" MILD STEEL OVERALL LENGTH OF BLADES ........... 148" FRONT OPERATED POWER BACK GAUGE .... 48" NUMBER OF HYDRAULIC HOLD DOWNS ..... 13 SWING AWAY BACK GAUGE .............. YES RAKE ANGLE ......................... 1/2" PER FOOT KNIVES SPEED DOWN .................. 122 IPM KNIVES SPEED RETURN ................ 192 IPM STROKES PER MINUTE ................. 8 FULL STROKE STROKES PER MINUTE ................. 13 HALF STROKE FRONT ARM SUPPORTS ................. 2 FLOOR TO TOP OF TABLE .............. 32" SQUARING ARM ....................... YES BALL TRANSFERS IN TABLE ............ YES ELECTRIC FOOT PEDAL ................ YES MOTOR .............................. 40 HORSEPOWER |
