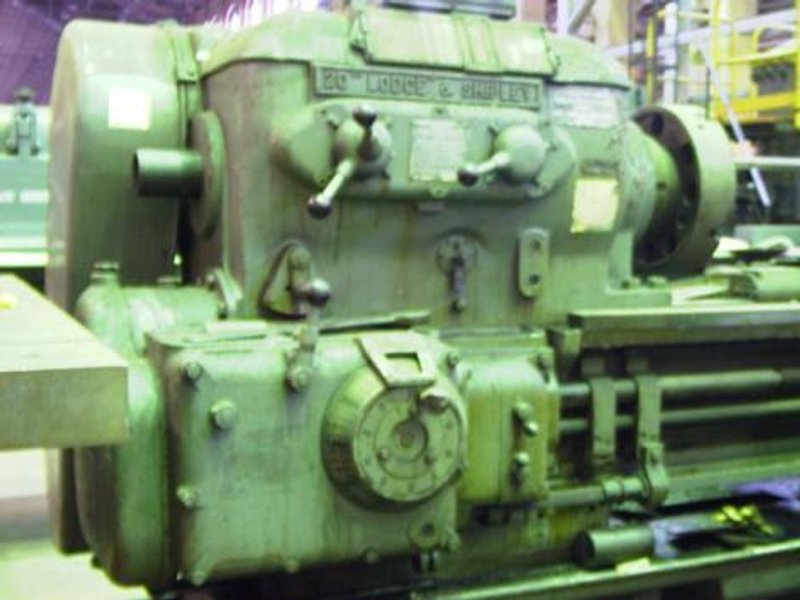

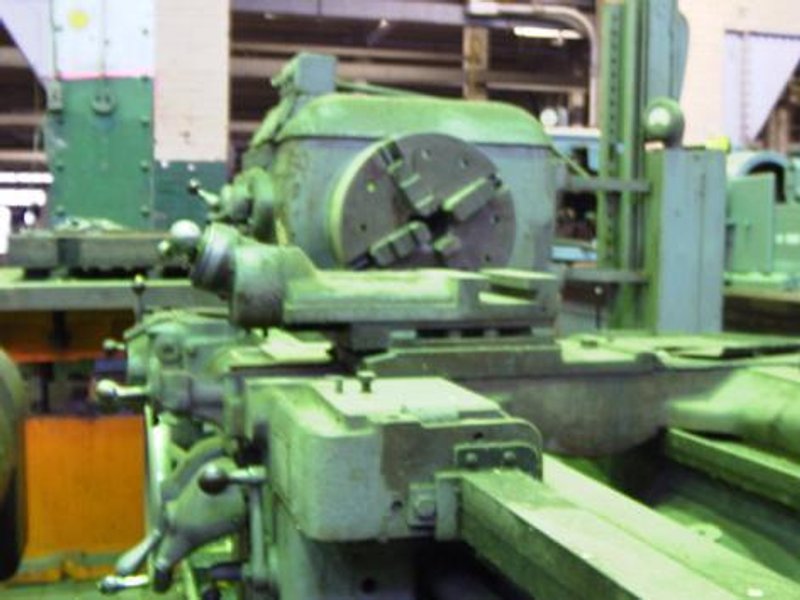

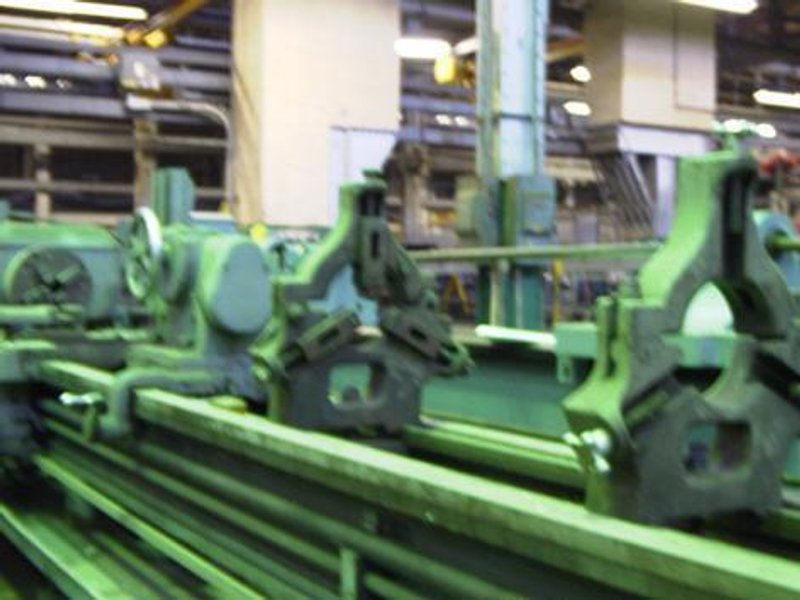

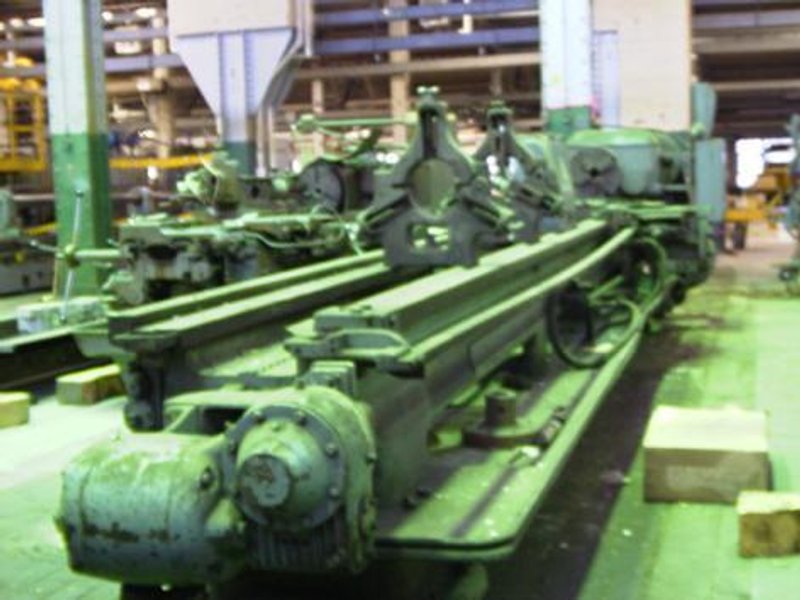

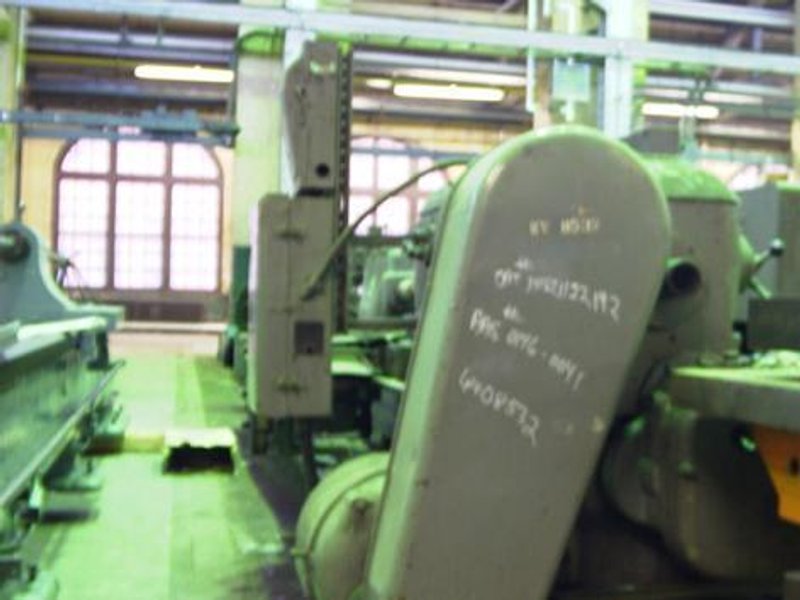

22" X 198" LODGE & SHIPLEY ENGINE LATHE: STOCK #56956
Brand
Category
Type
Model
22 X 198
Stock #
56956
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL .............................. 40866 MODEL ............................... XE20 SWING OVER WAYS ..................... 22" SWING OVER CROSS SLIDE .............. 14" DISTANCE BETWEEN CENTERS ............ 198" SPINDLE SPEEDS ...................... 13-1/2 TO 752 FEEDS ............................... 0075 TO .047 IPR THREADS ............................. 1 TO .142 TPI DIAMETER OF SPINDLE HOLE ............ 2-1/2" TAPER ATTACHMENT .................... YES CHUCK ............................... 15" 4 JAW STEADY REST ......................... 7-1/2" 3 POINT ROLLER COOLANT WITH CHIP PANS .............. YES MOTOR ............................... 30 HP |
