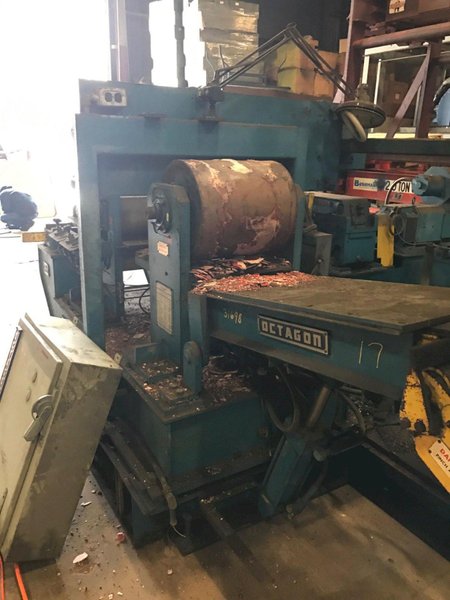

10,000 LBS X 18' OCTAGON RECOILER: STOCK #51678
Brand
Not specified
Category
Type
Model
10000 x 18
Stock #
51678
Year
Not specified
Condition
Not specified
Location
Ohio
|

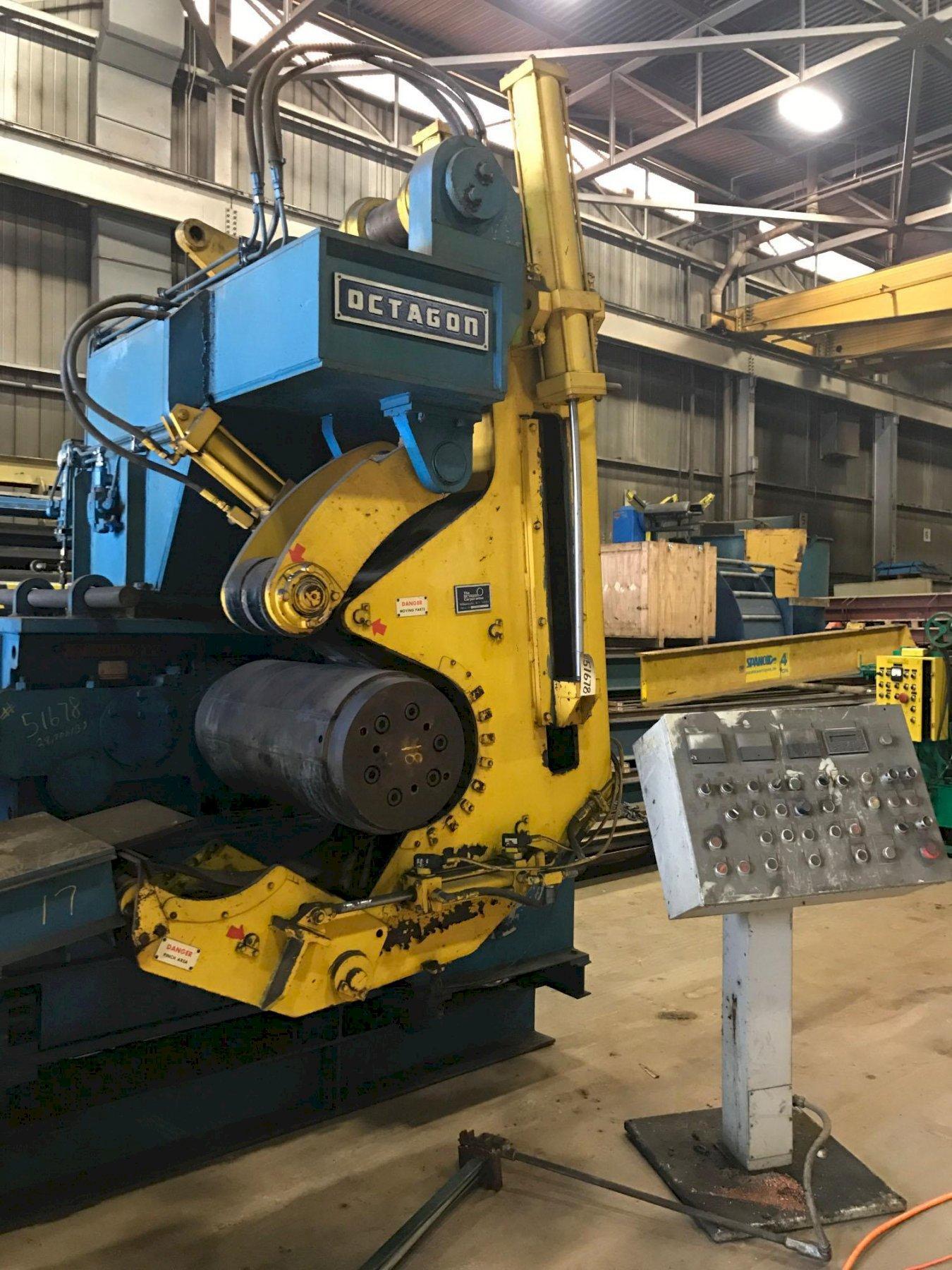

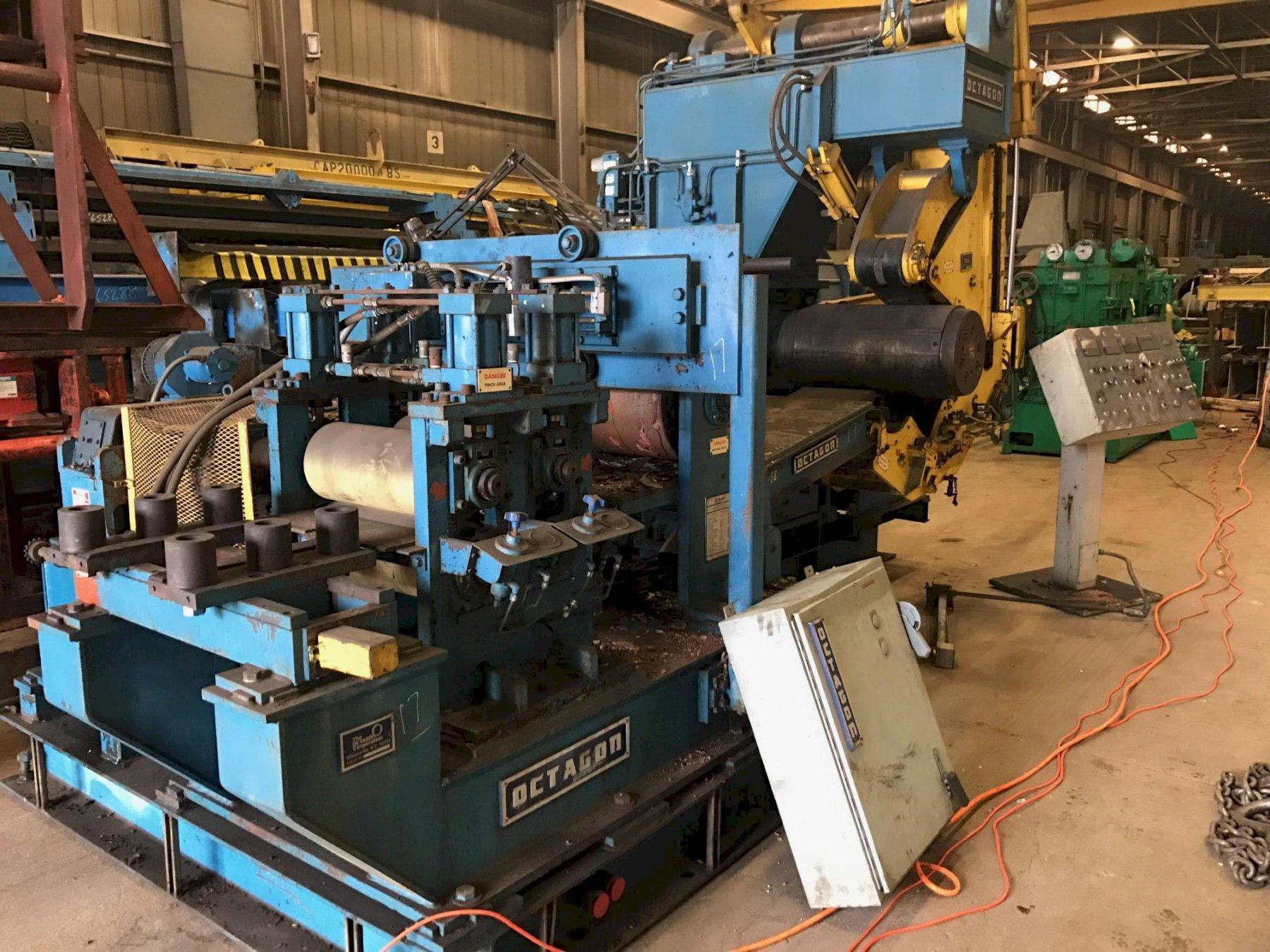

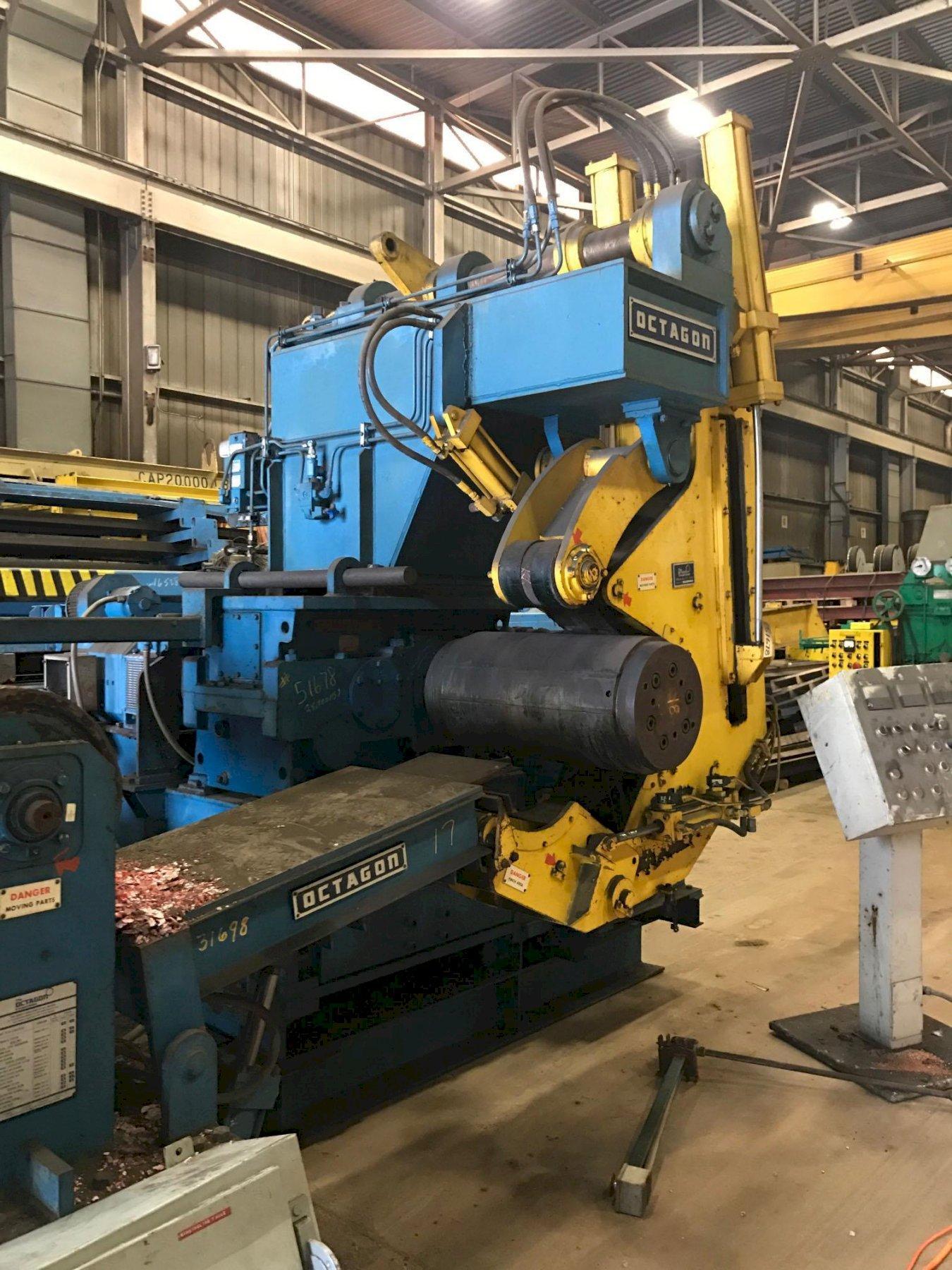

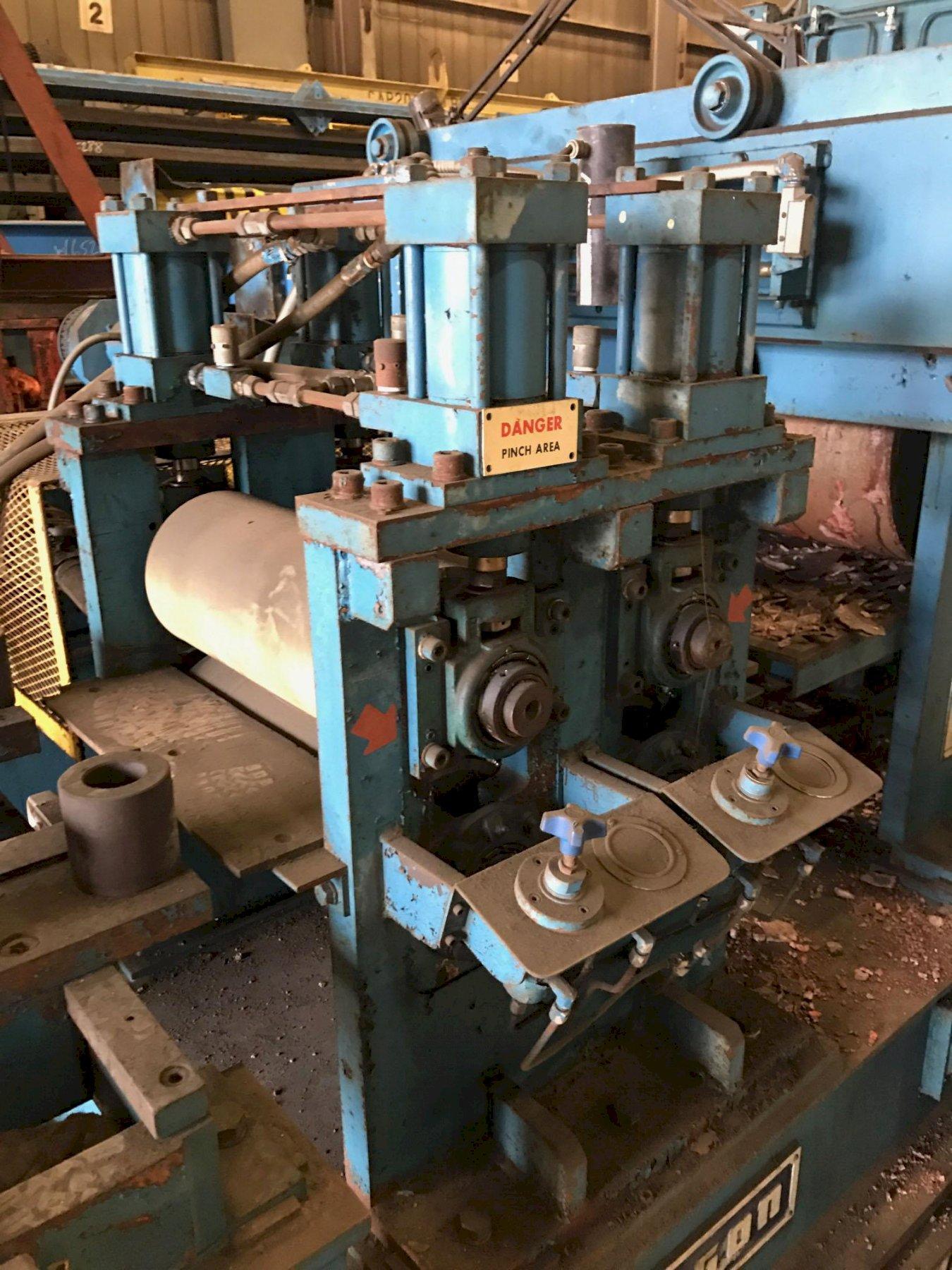

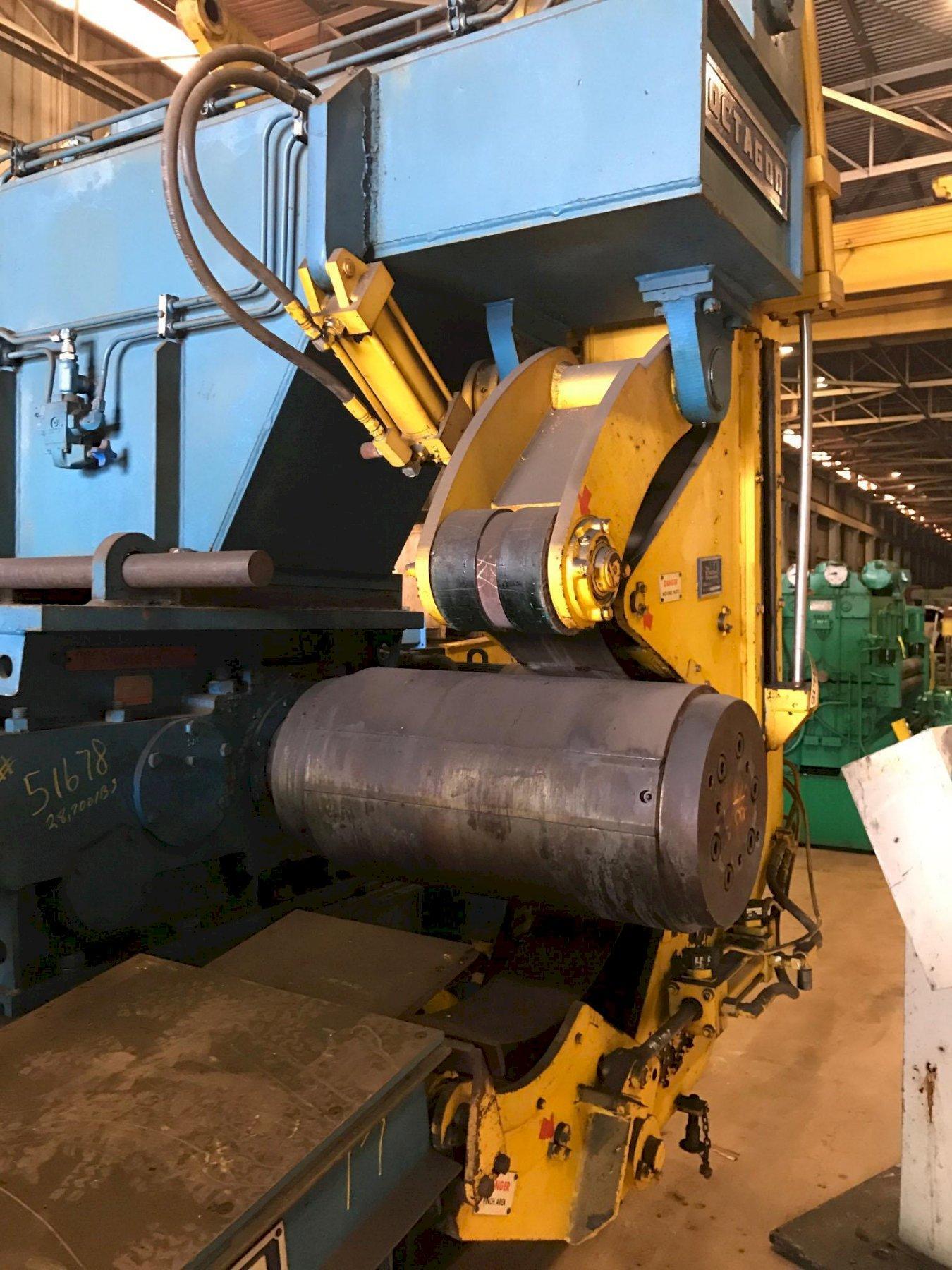

INSERTION SECTION CONSISTS OF ....... (3) PAIRS OF ADJUSTABLE WIDTH EDGE GUIDE ROLLS ........ (2) PAIRS OF DRIVEN RUBBER COATED ROLLS, 8" DIA. x 18" WIDE, .... EACH PAIR HAS HYDRAULIC HOLD DOWN CYLINDERS WHICH CAN BE INDIVIDUALLY .. ADJUSTED FOR PRESSURE ........ NORTH AMERICAN DISCRIMINATING DETECTOR CAMERA, MODEL #M3109, S/N HC6413 .. (1) LARGE DIA. RUBBER COATED HOLD DOWN ROLL .. PEELER BLADE TYPE COIL END GUIDE, HYDRAULIC LIFT & EXTEND ...... TABLE TO GUIDE LEAD END OF COIL ONTO RECOILER/BELT WRAPPER .... EST. MIN/MAX. COIL SPEED: 103/135 FPM DRIVEN BY 20 HP DC ........ RECOILER:.. MAX. COIL WIDTH: 27"........ MAX. COIL O.D.: 54" (EST) .......... COIL I.D. (RECOILER DRUM O.D.): 16" ..... RECOILER SHAFT DIAMETER: 9" ........... EST MIN. STRIP SPEED ON BARE DRUM & MIN. RECOIL SPEED: 35 FPM .... EST MAX. STRIP SPEED AT FULL COIL DIA.& MAX. RECOIL SPEED: 360 FPM .. MOTOR - 10 HP DC .. HYDRAULICALLY OPERATED 8" WIDE BELT WRAPPER .. RECOILER MOTOR - 10 HP DC 500 VOLT, 650/1950 RPM W/RELIANCE BLOWER 1/2 HP .. W/DC TECHOMETER .. HYDRAULIC UNIT - 20 HP 230/460/3/60-1750 RPM .. |
