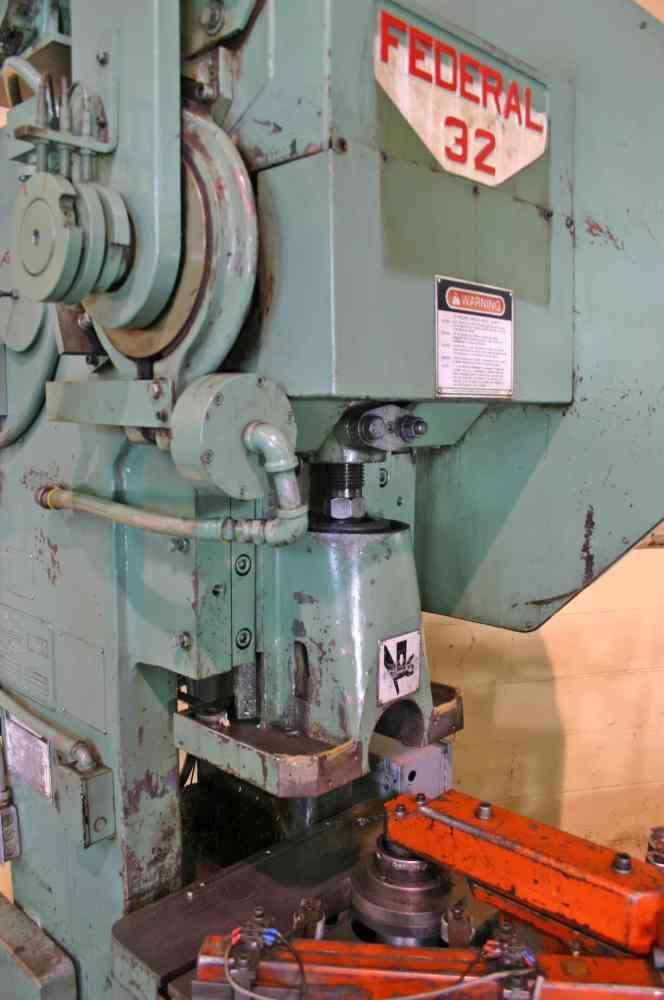

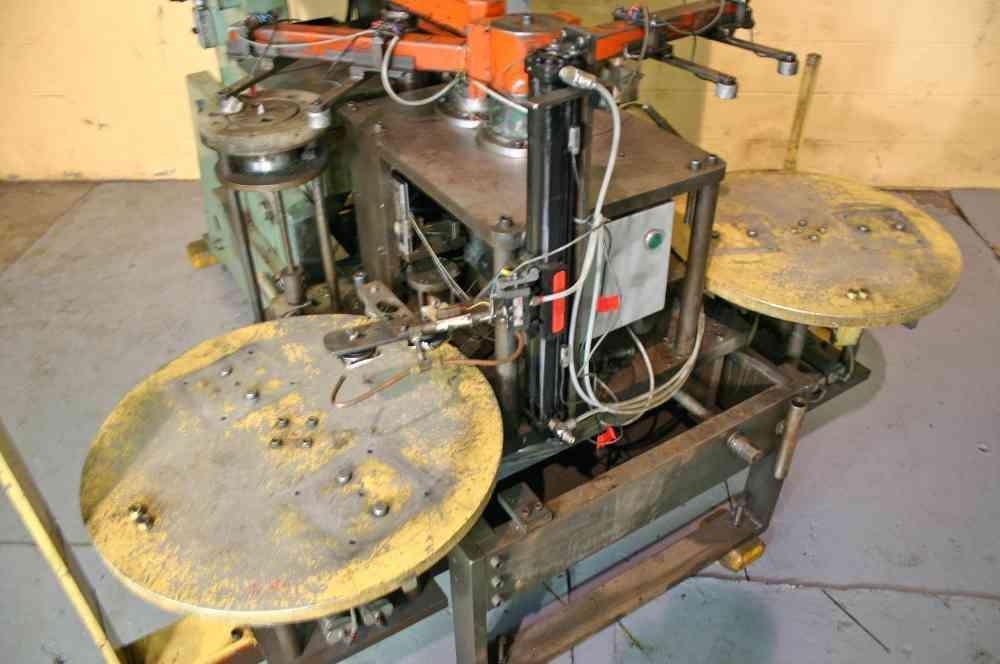

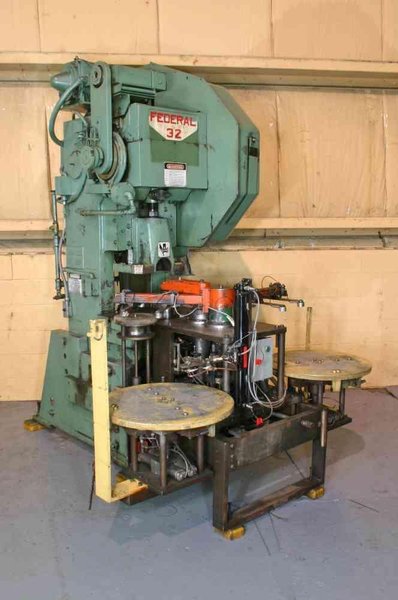

32 TON FEDERAL OBI NOTCHING PRESS: STOCK #51137
Brand
Not specified
Category
Type
Model
0032
Stock #
51137
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL ......................... #32-586 MODEL .......................... 32 YEAR ........................... 1992 CAPACITY ....................... 32 TON STROKE OF SLIDE ................ 3" SLIDE ADJUSTMENT ............... 2" SHUT HEIGHT, SDAU .............. 11-1/2" AREA OF BED .................... 24" X 15" AREA OF RAM .................... 15" X 10" DEPTH OF THROAT ................ 8" DIAMETER OF RECEIVING TABLE .... 24" BLANK DIAMETER ................. 8" MINIMUM - 18" MAXIMUM PICK & PLACE LOADED PICK & PLACE UNLOADED STROKES PER MINUTE, VARIABLE ... 100 - 200 BOLSTER ........................ 24" X 15" X 2-1/2" AIR CLUTCH AND AIR BRAKE ....... YES FLYWHEEL TYPE .................. YES PRESS MOTOR, HORSEPOWER ........ 5 |
