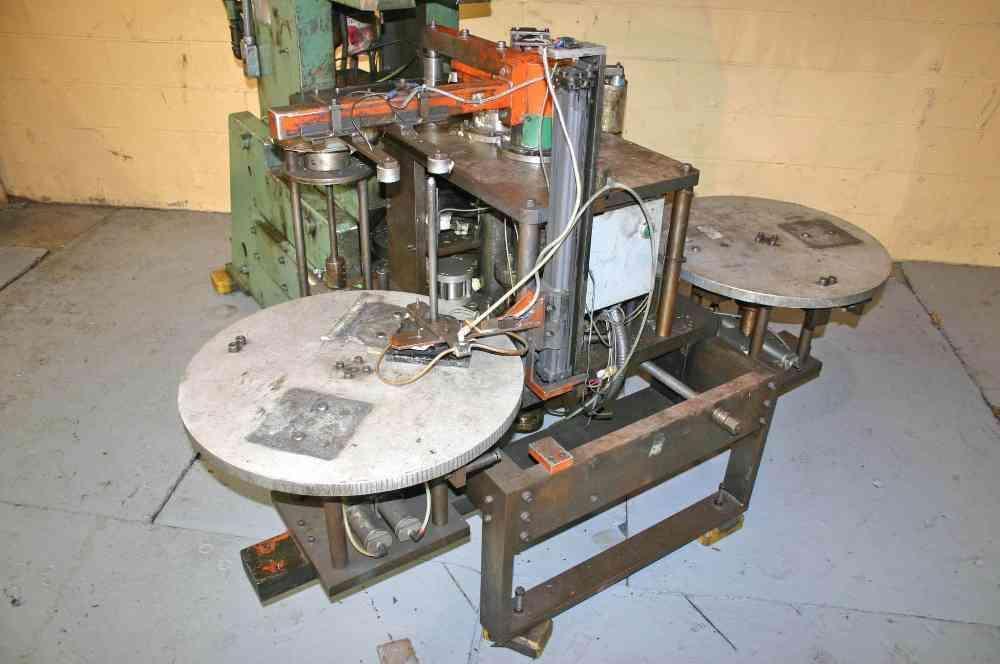

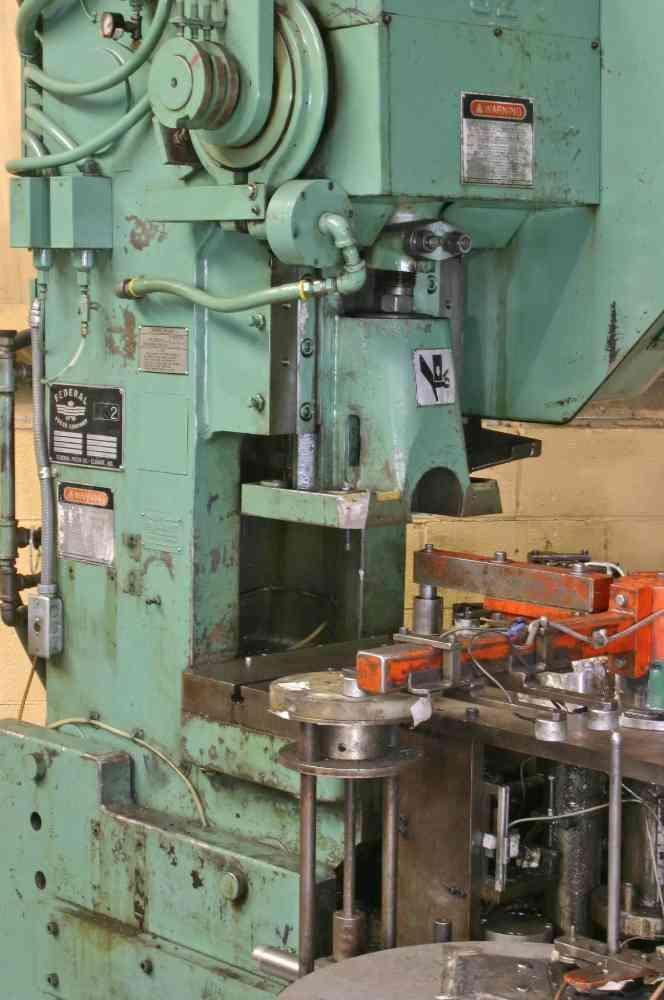

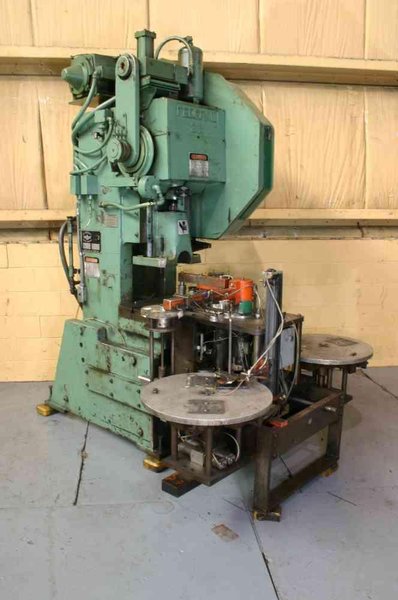

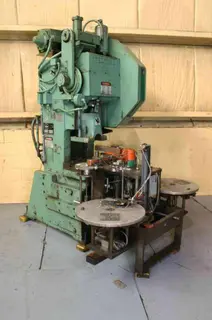

32 TON FEDERAL OBI NOTCHING PRESS: STOCK #51136
Brand
Not specified
Category
Model
0032
Stock #
51136
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL ......................... #32-591 MODEL .......................... 32 YEAR ........................... 1993 CAPACITY ....................... 32 TON STROKE OF SLIDE ................ 3" SLIDE ADJUSTMENT ............... 2" SHUT HEIGHT, SDAU .............. 11-1/2" AREA OF BED .................... 24" X 15" AREA OF RAM .................... 15" X 10" DEPTH OF THROAT ................ 8" DIAMETER OF RECEIVING TABLE .... 24" BLANK DIAMETER ................. 8" MINIMUM - 18" MAXIMUM PICK & PLACE LOADED PICK & PLACE UNLOADED STROKES PER MINUTE, VARIABLE ... 100 - 200 BOLSTER ........................ 24" X 15" X 2-1/2" AIR CLUTCH AND AIR BRAKE ....... YES FLYWHEEL TYPE .................. YES AIR COUNTER BALANCE ............ YES PRESS MOTOR, HORSEPOWER ........ 5 |
