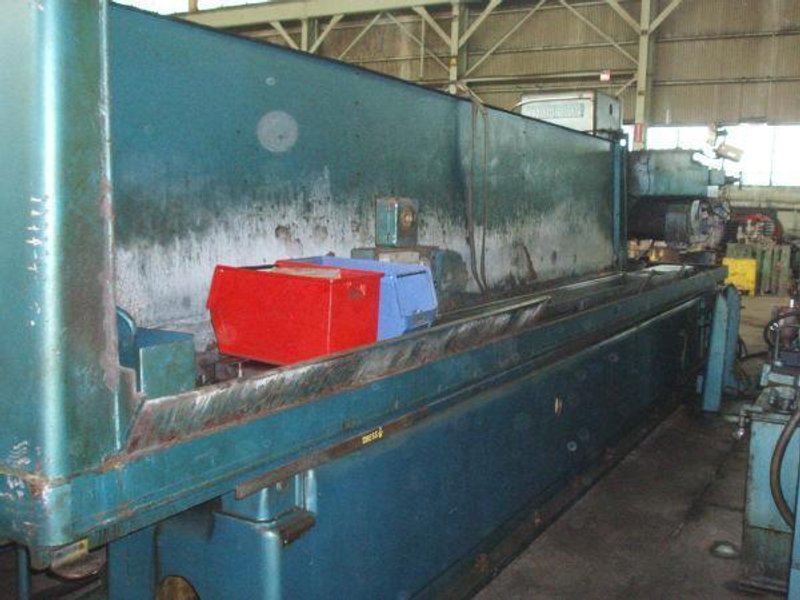

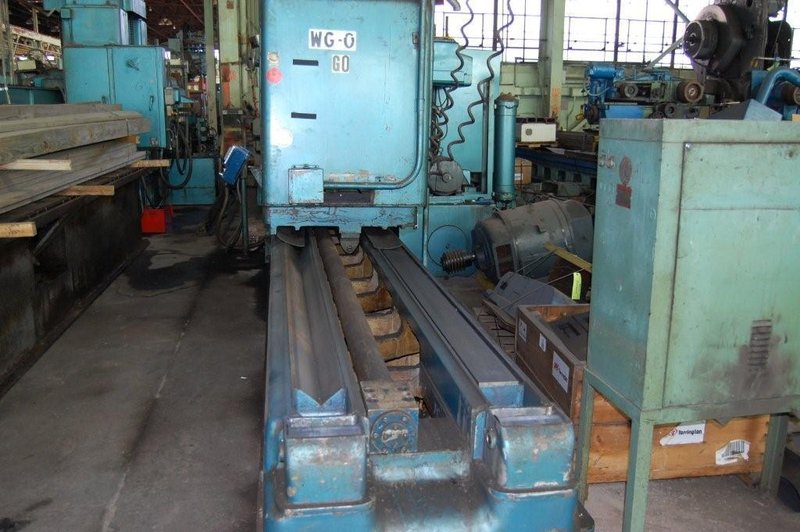

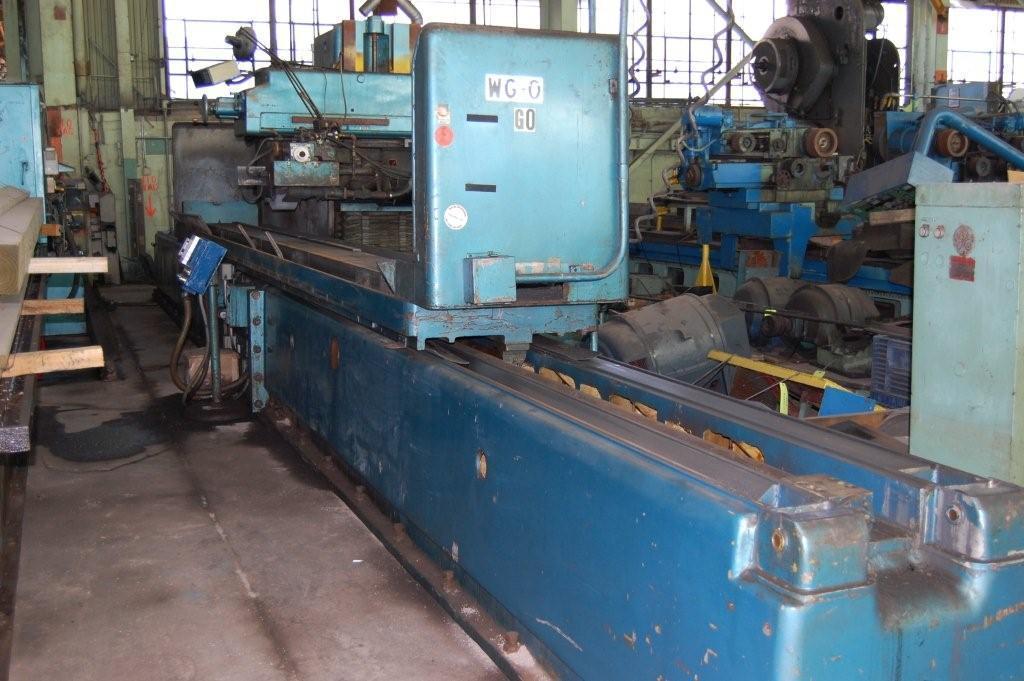

20" x 240" THOMPSON MODEL CH HORIZONTAL SURFACE GRINDER: STOCK #50560
Brand
Category
Model
20 X 240
Stock #
50560
Year
Not specified
Condition
Not specified
Location
Not specified
|
SERIAL NUMBER .................... 20CH667243 MODEL ............................ CH NEW .............................. 1966 CATALOGUE SPECIFICATIONS: TABLE WORKING SURFACE ............ 20" W X 240" L HEIGHT UNDER 20" GRINDING WHEEL .. 28" LONGITUDINAL TABLE TRAVEL ........ 268" MAX GRINDING WHEEL ................... 20" MAX DIA GRINDING WHEEL-WIDTHS ............ 6" GRINDING HOLE .................... 12" DIA GRINDING WHEEL SPEED ............. 6000 FPM INCREMENTAL DOWN FEEDS - RANGE ... .0002 TO .004 IPR LONGITUDINAL TABLE FEEDS, RANGE .. 10 TO 100 FPM POWER RAPID TABLE TRAVERSE ....... 240 IPM GRINDING WHEEL SPINDLE MOTOR ..... 30 HP OVERALL DIMENSIONS ............... 44'L X 8'8"D APPROX WEIGHT .................... 65,000 LBS EQUIPPED WITH: (4) 12" X 60" (240") ELECTRO-MAGNETIC CHUCKS W/NEUTROFIER TRAVATROL ELECTRONIC CROSS FEED REVERSAL INCREMENTAL POWER DOWN FEED W/MICROMETER BACKUP STOP HEAVIEST SQUARE TYPE SADDLE CONSTRUCTION HYDRAULIC HEAD MOUNTED WHEEL DRESSER |
