SERIAL .................................. 651-9

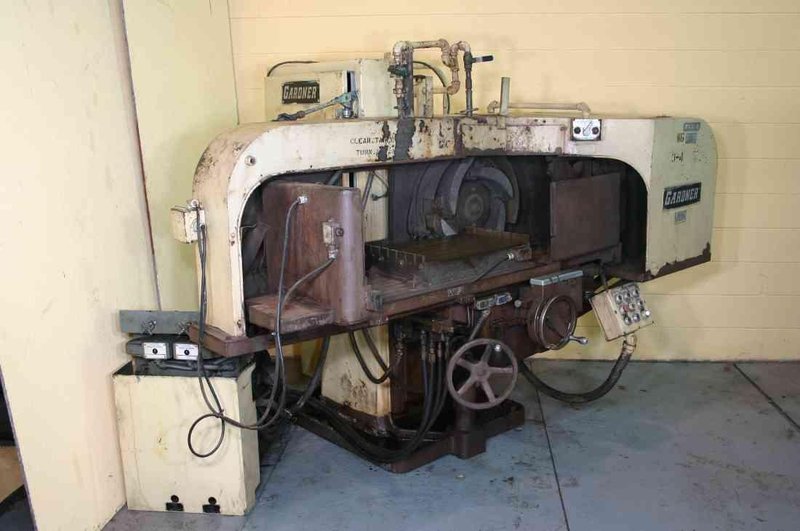

MODEL ................................... 18FG
TABLE SIZE .............................. 14" X 34"
SEGMENTED WHEEL SIZE .................... 18"
MAGNETIC CHUCK .......................... 14" X 22"
HYDRAULIC LONGITUDINAL TABLE TRAVEL ..... 24"
AREA OF T SLOTTED TABLE ................. 36" X 13-11/16"
HYDRAULIC CROSS TRAVEL OF TABLE ......... 5"
VERTICAL TRAVEL OF TABLE ................ 5"
NUETRIFIER AND RECTIFIER ................ YES
TABLE FACE TO NEW WHEEL ................. 1-1/4"
COOLANT ................................. YES
ONE SHOT BIJUR LUBE ..................... YES
AUTO CYCLE .............................. YES
SPARKOUT TIMER .......................... YES
PUSH BUTTON CONTROLS .................... YES
HYDRAULIC MOTOR ......................... 1-1/2 HORSEPOWER
SPINDLE MOTOR ........................... 15 HORSEPOWER
