(New) Lucas Model WFT 13 R CNC Table Type Horizontal Boring Mill
Brand
Category
Model
WFT 13R
Stock #
52598
Year
2016
Condition
Not specified
Location
Minnesota
|

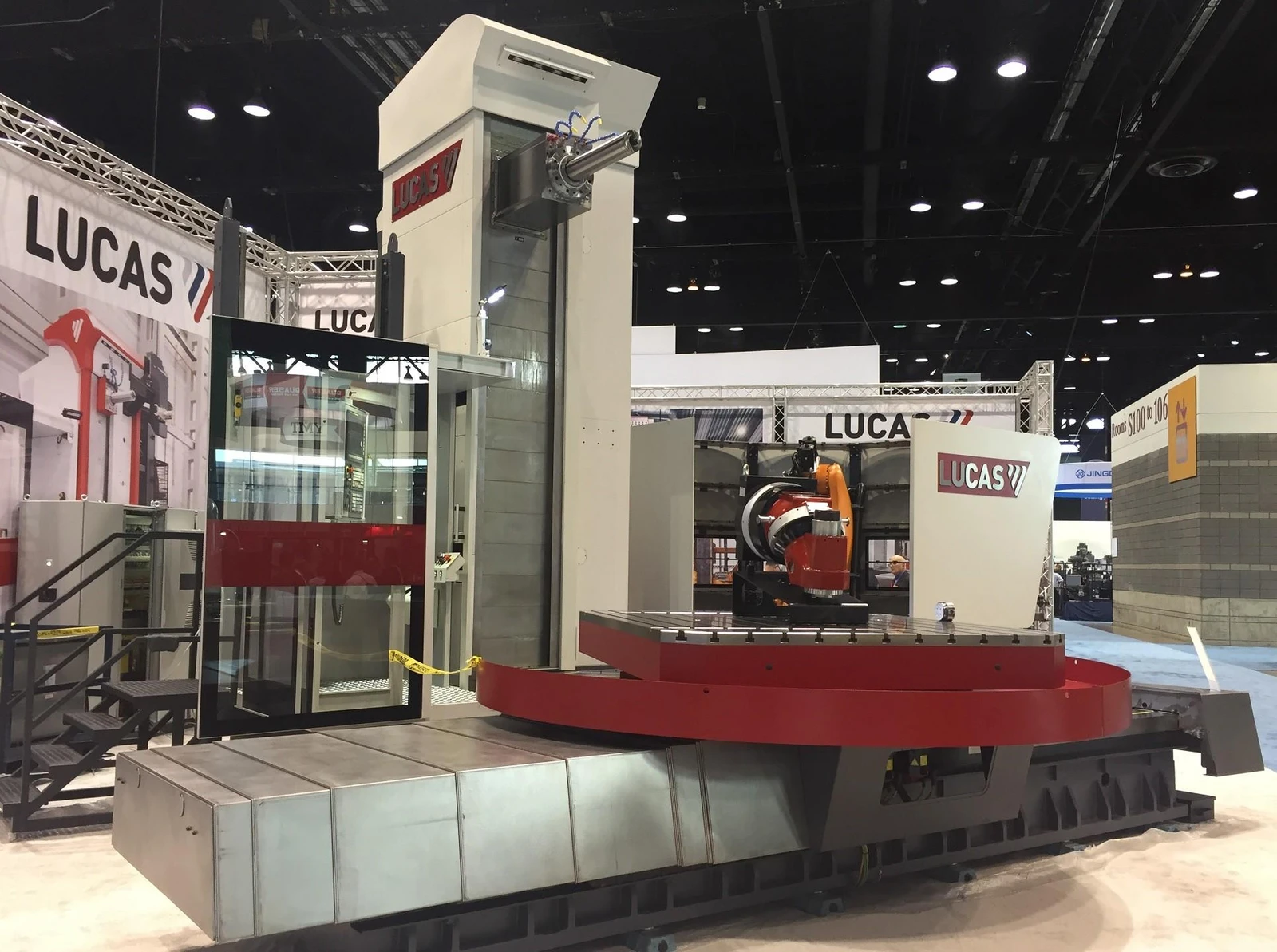

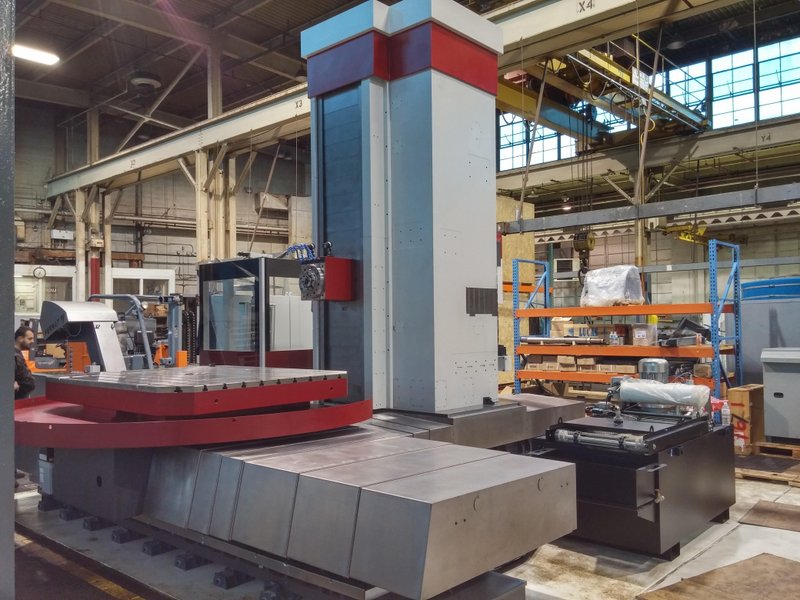

(New) Lucas Model WFT 13 R CNC Table Type Horizontal Boring Mill
Specifications:
Spindle diameter: 130 mm / 5.12 in
X axis: 4 000 mm / 157.48 in
Y axis: 2 500 mm / 98.43 in
Z axis: 1 500 mm / 59.06 in
W axis: 730 mm / 28.74 in
V axis (ram travel): 700 mm / 27.56 in
Rotary table: 2000x2400 mm / 78.74x94.49 in
Max. table load
20 tons / 44 092 lb
Control system:
Fanuc 31iB
Spindle motor:
Fanuc 37 kW / 49.62 hp
Automatic Tool Change for 40 tools. Milling heads and other accessories on customer’s request.
|
