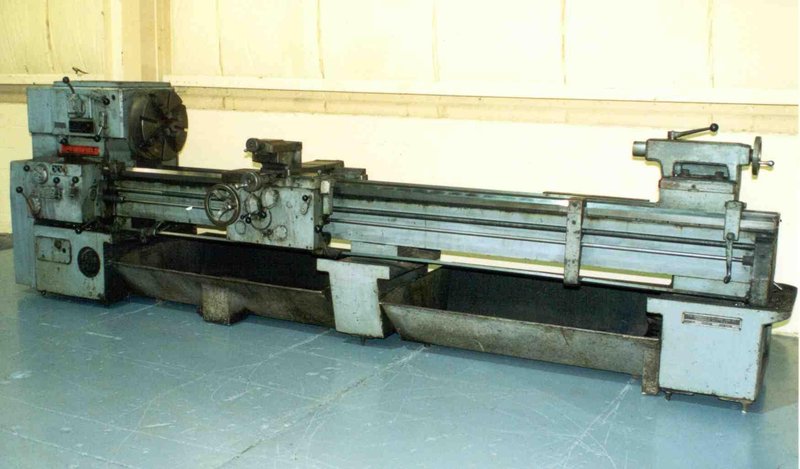

23" X 132" SPRINGFIELD ENGINE LATHE: STOCK #13857
Brand
Category
Type
Model
23 X 132
Stock #
13857
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL ................................ 57071 MODEL ................................. 280 ACTUAL SWING OVER BED ................. 23" SWING OVER CROSS SLIDE ................ 16" ACTUAL DISTANCE BETWEEN CENTERS ....... 132" SPINDLE SPEEDS ........................ (16) 30 - 1540 RPM LONGITUDINAL FEEDS .................... (60) .0037 - .2228 IPR THREADS ............................... (60) 1 - 60 TPI HOLE THRU SPINDLE ..................... 1-3/4" MICROMETER STOP ....................... YES HARDENED WAYS ......................... YES CHIP PAN .............................. YES TAPER ................................. YES CHUCK ................................. 18", 4 JAW FORWARD / REVERSE SPINDLE CONTROL ..... YES LONG .................................. 198" WIDE .................................. 48" HEIGHT ................................ 60" |
